RIDGID 26132 Model 711 1/8-2in Universal Self-Opening RH Die Head

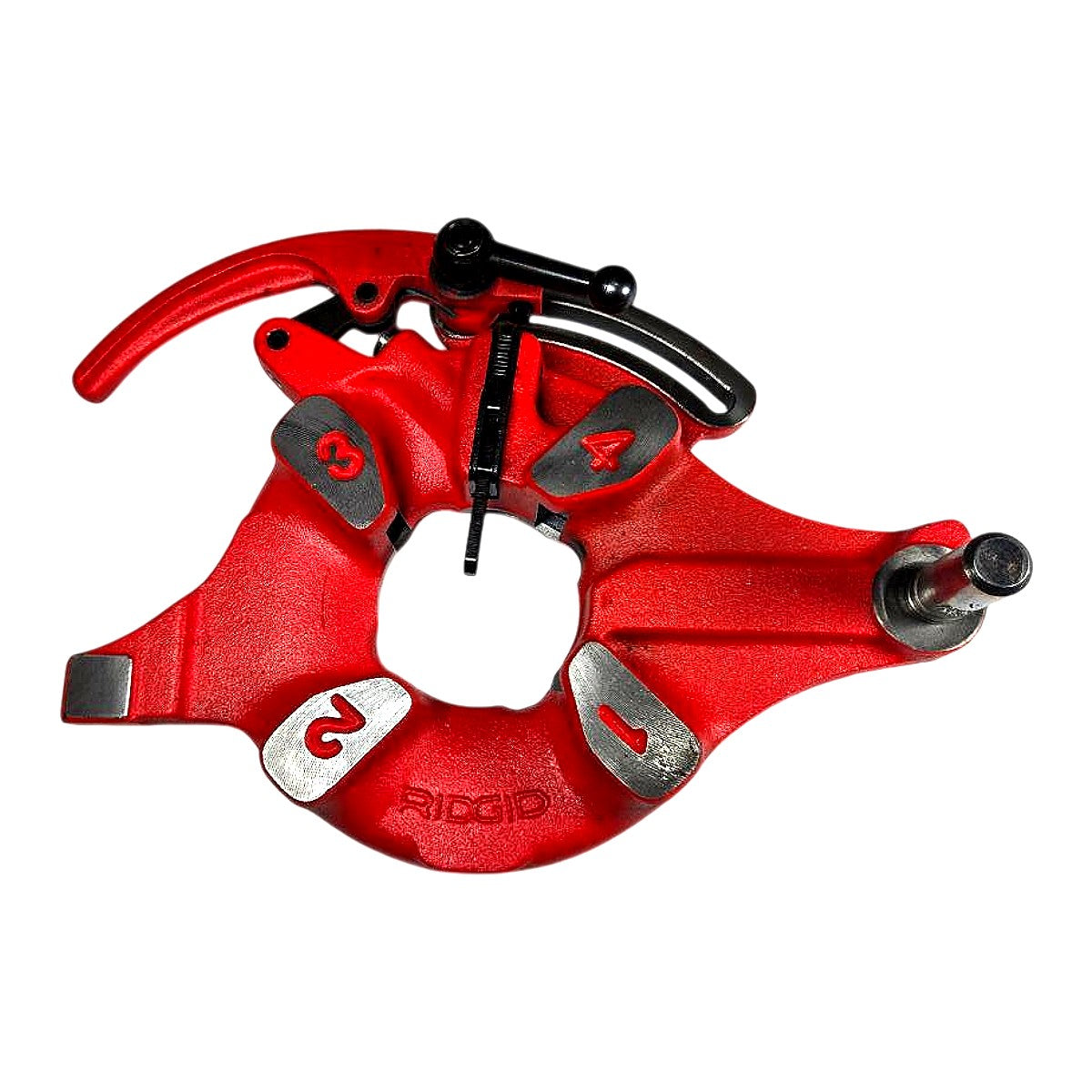

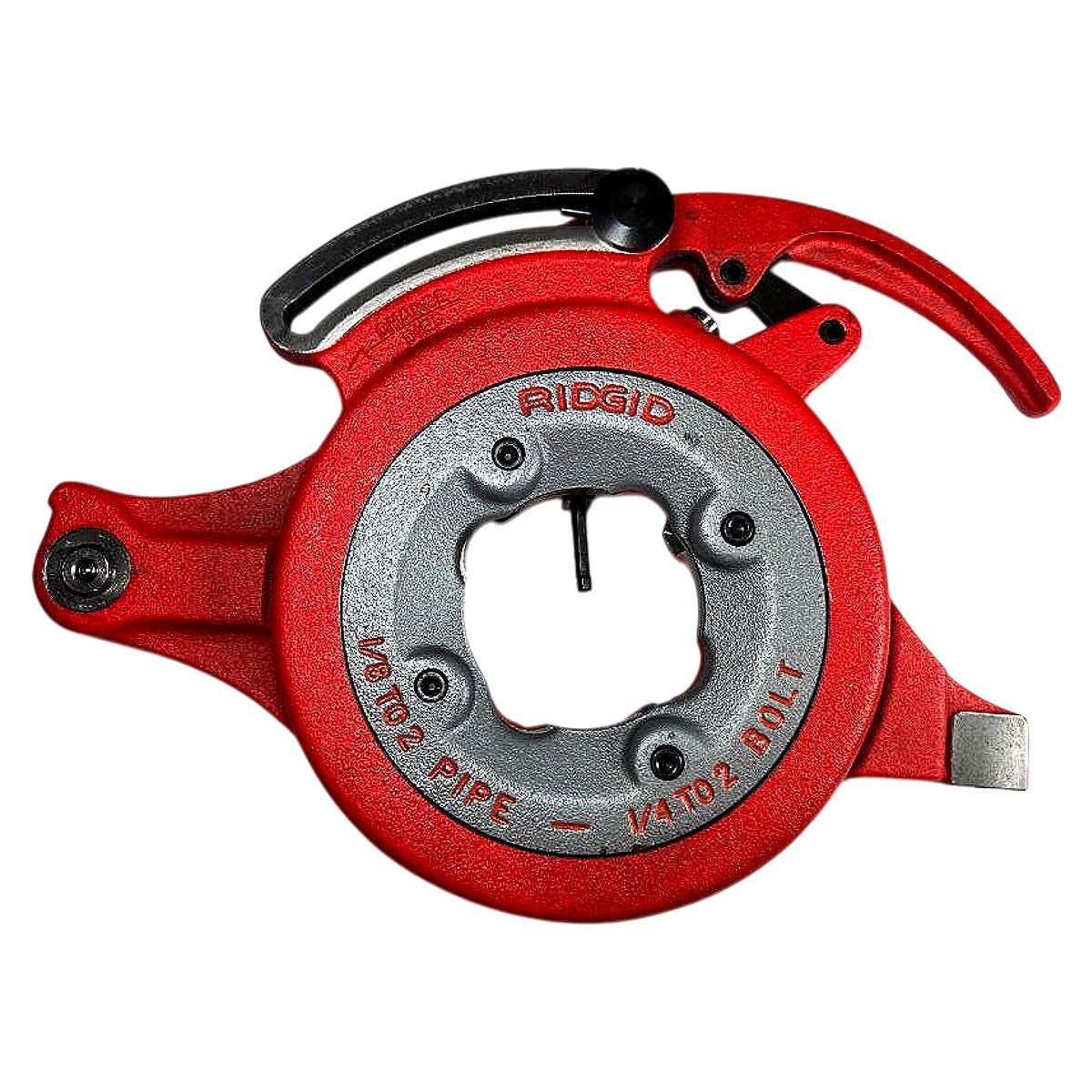

The RIDGID Model 711 Universal Self-Opening Die Head (Cat. No. 26132) is a new, USA-made right-hand pipe threading die head covering a full 1/8 in through 2 in (3–50 mm) pipe size range, as confirmed by the box label and visible markings on the head body. The die head accepts four numbered replaceable dies (positions 1–4 are visible in the photos) and features RIDGID's trademark self-opening mechanism with a red lever-actuated trip latch, allowing the head to open automatically at the end of a thread pass for fast, repeatable NPT threading without manual die removal. The cast iron body is finished in RIDGID red and is designed to be compatible with RIDGID 300, 535, 1224, and related power drive threading machines that accept the 4CW40 chuck configuration — the "4CW40" label is clearly visible on the box. Dies are sold separately by size group; this listing is for the die head only. The universal design accepts both "A" and "B" series die sets to cover the full 1/8–2 in range.
