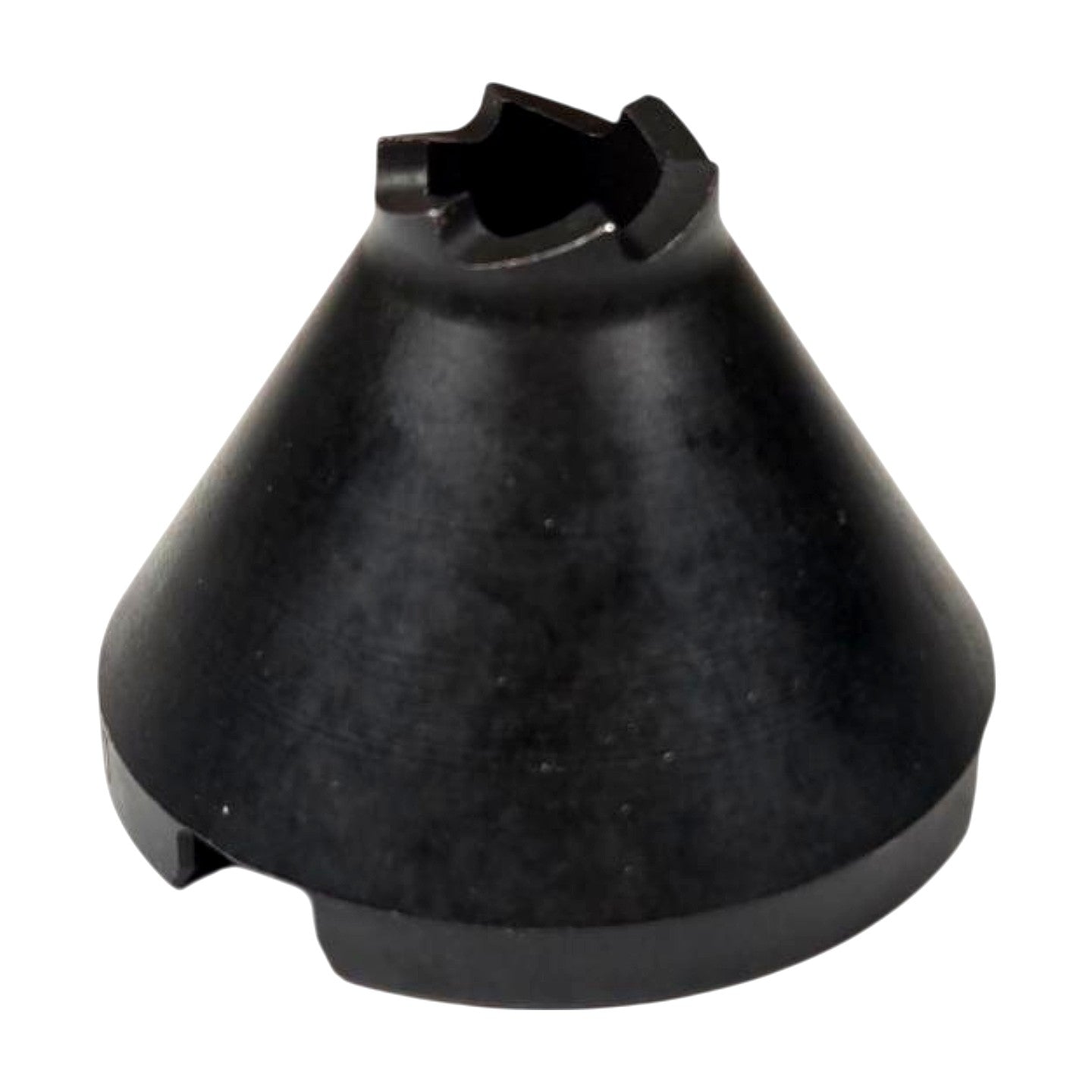

Rohm 1341613 16RS 0.67-1.26in Carbide Tooth Face Driver Disc

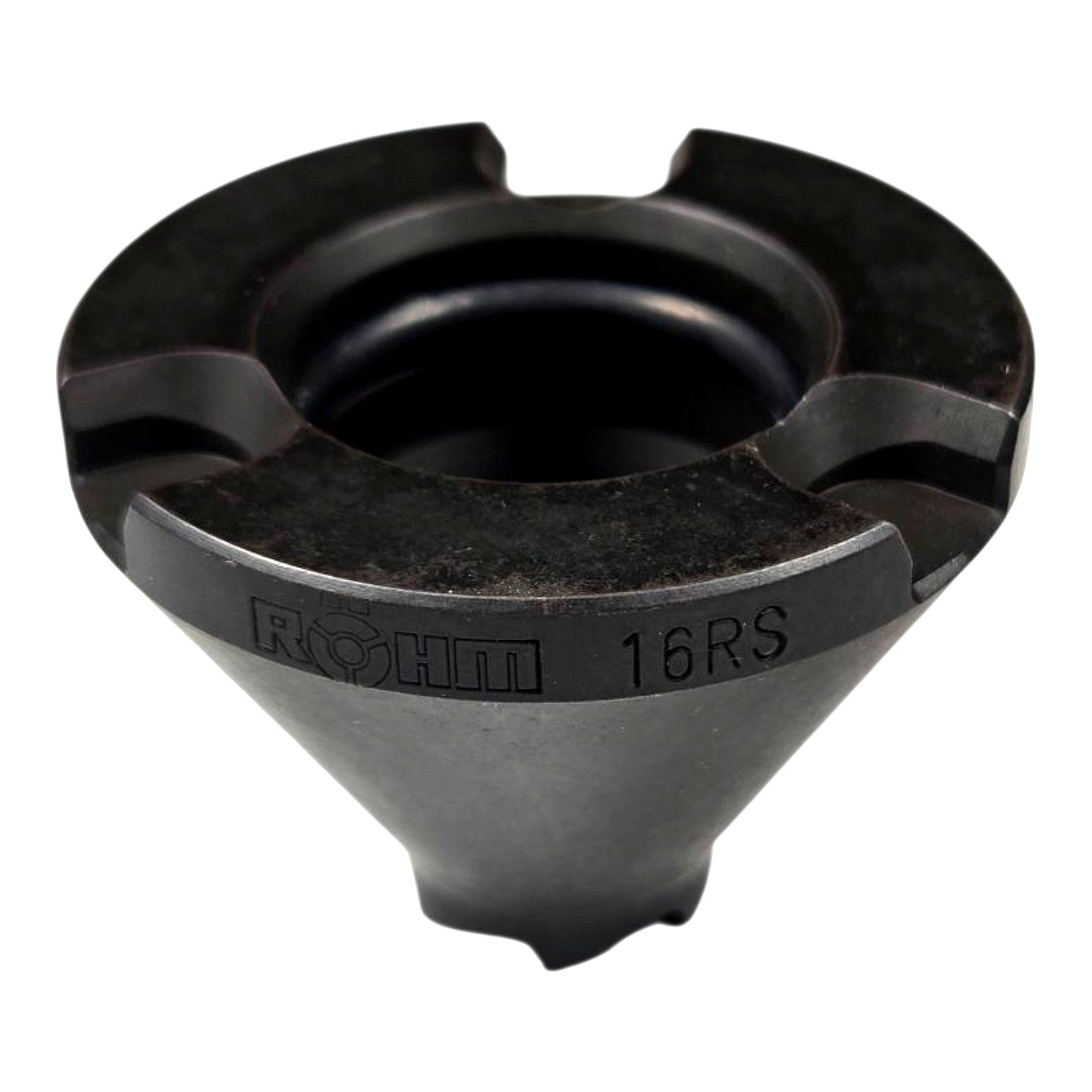

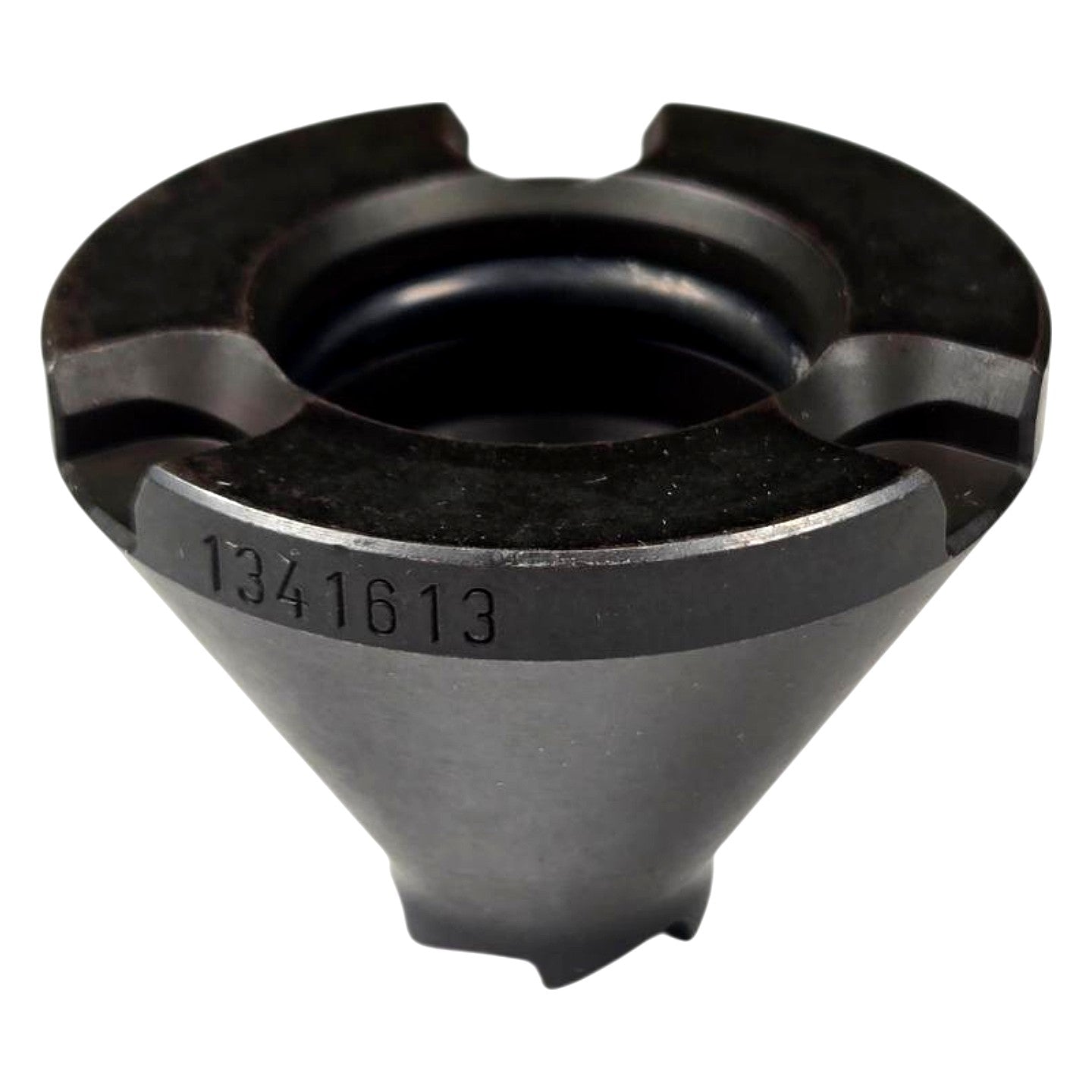

This is a new Rohm face driver disc, part number 1341613, stamped '16RS' on the body, designed as a replacement drive disc for Rohm face drivers used in between-centers turning operations on CNC and conventional lathes. The disc features carbide tooth inserts arranged in a circular pattern around the central bore, which grip the workpiece face to transmit rotational drive torque while the tailstock center supports the opposite end, enabling full-length OD turning in a single setup. Specified for a turning diameter range of 0.6693 to 1.2598 in (17–32 mm), a minimum clamping diameter of 0.6299 in (16 mm), and a 33 mm clamping length, this disc is compatible with Rohm 16RS series face driver assemblies. The oxide-finished alloy steel body with through-hardened construction and carbide drive pins delivers consistent, repeatable drive force without jaw marks, making it suited for precision shaft turning where full workpiece surface access is required.

Product Specifications
