Rub Inc 113655 3/4in MxF CW617N PN40 DN20 Brass Ball Valve PK2
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

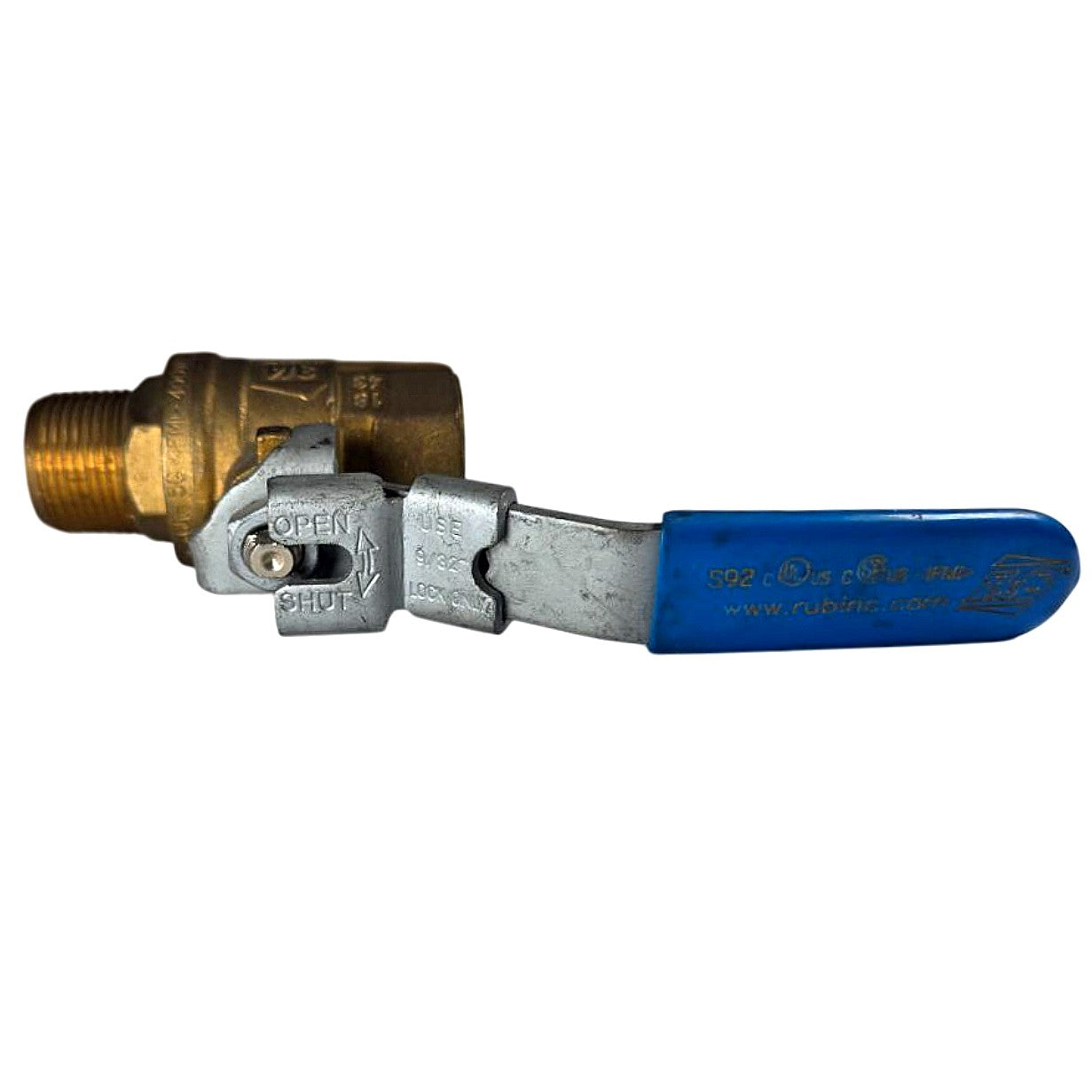

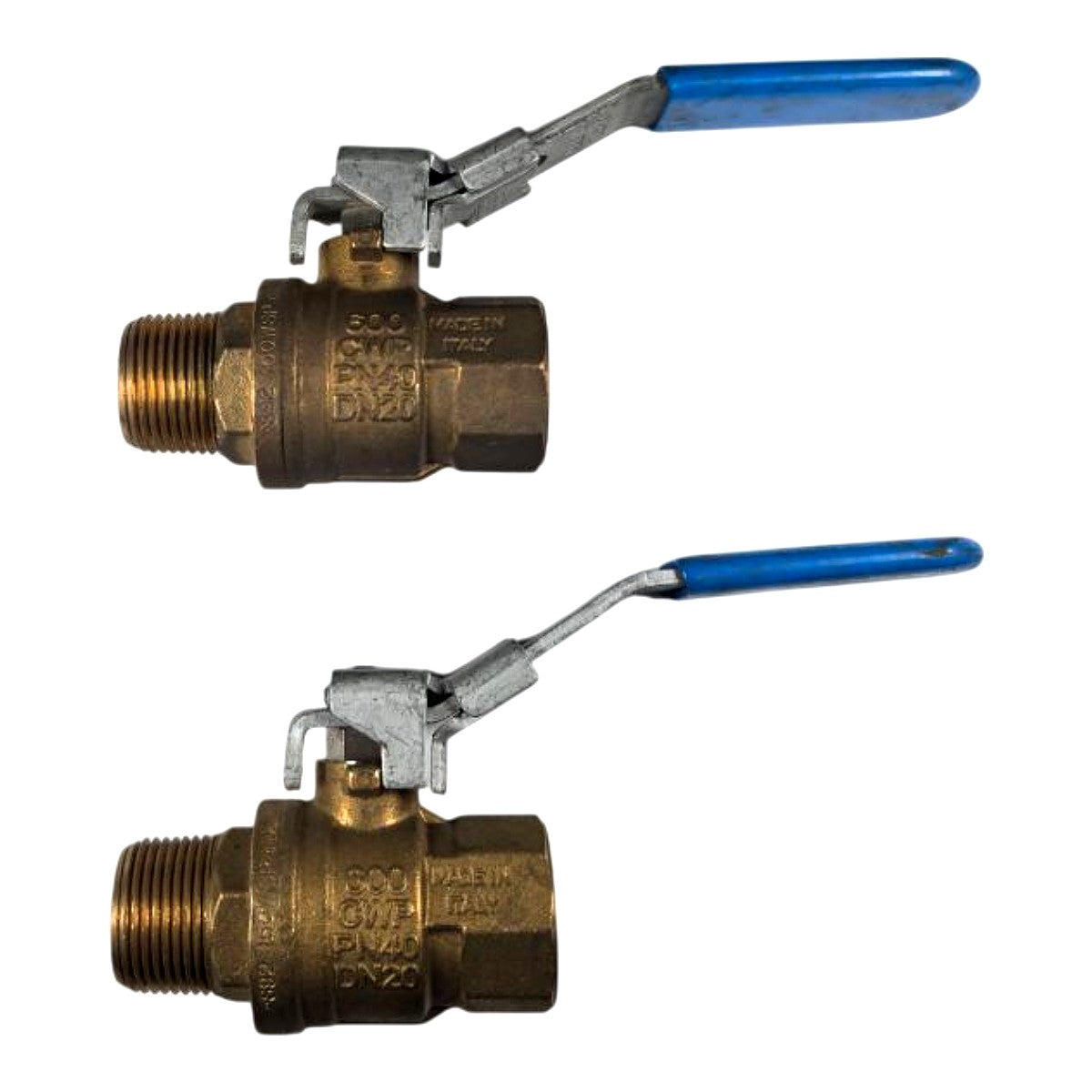

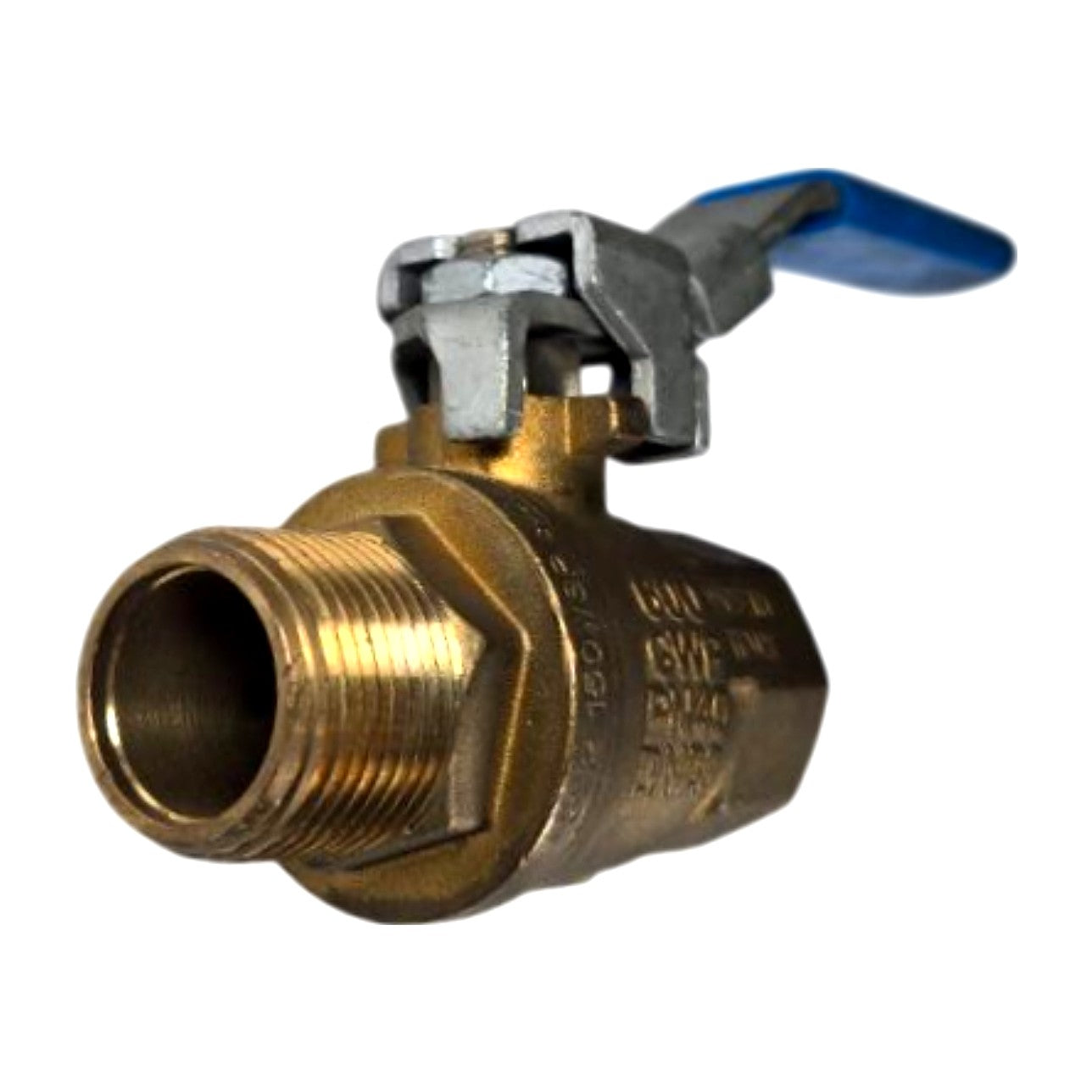

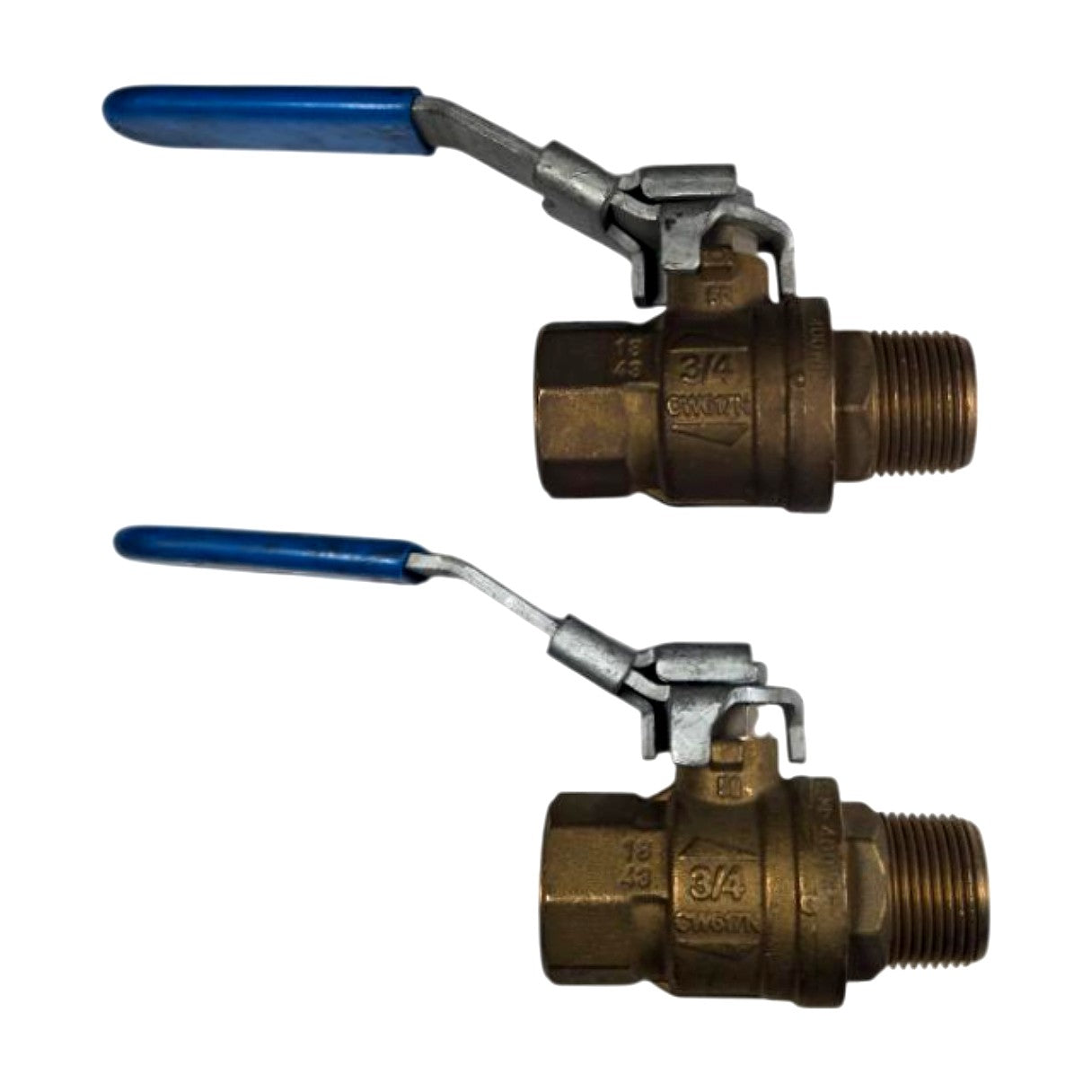

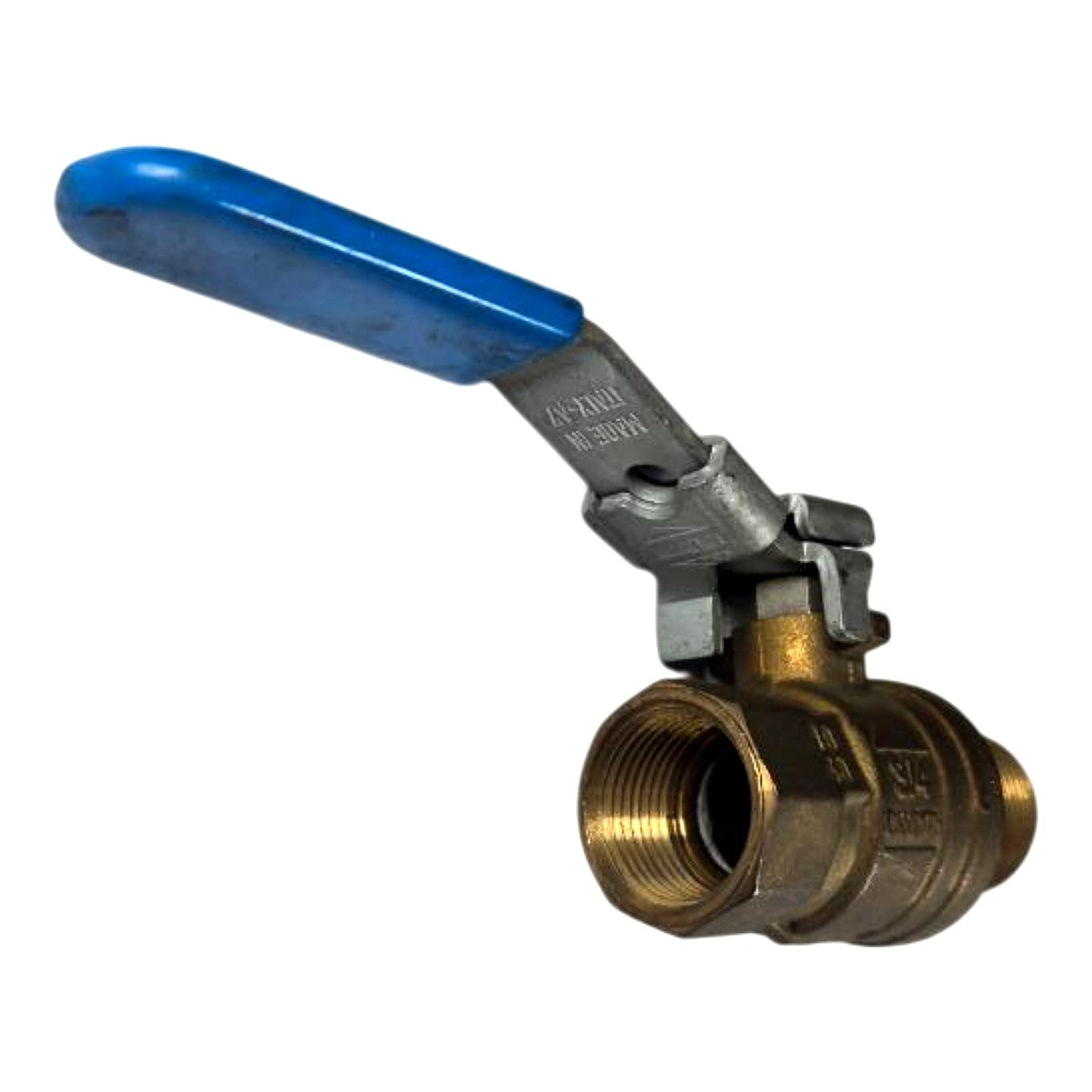

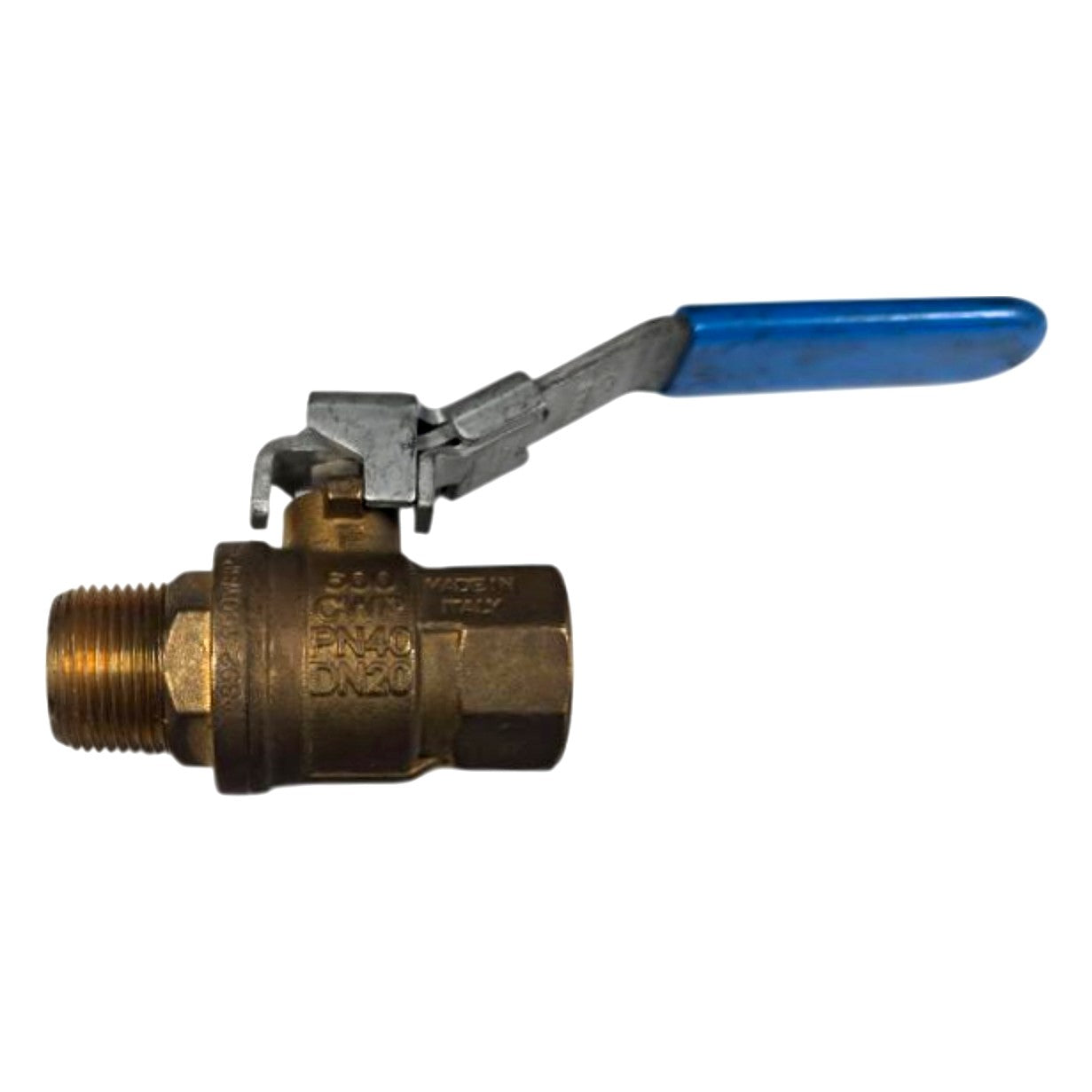

This is a new pack of two (PK2) Rub Inc model 113655 brass ball valves, 3/4 in. male NPT × female NPT (MxF), rated 600 CWP (Cold Working Pressure) / PN40 (580 PSI), sized DN20, manufactured in Italy from CW617N dezincification-resistant brass alloy. The S92 designation indicates a standard full-bore, two-piece body construction with a lever handle featuring a lockable tang mechanism (9/32 in. lock hole visible in photos), PTFE seats, and chrome-plated brass ball — a configuration that meets UL/cUL listings as confirmed by the "S92 cULus" markings visible on the handle. CW617N brass (EN 12165) provides superior corrosion and dezincification resistance versus standard CW614N, making these valves suitable for potable water, hydronic heating, compressed air, and light oil service. The locking lever handle allows the valve to be padlocked in the open or shut position, adding a safety/security feature commonly required in commercial plumbing and HVAC installations; "OPEN/SHUT" and "USE 9/32 LOCKOUT" are cast into the handle bracket as shown in the photos.
Product Specifications
| Brand | Rub Inc |
| Model / Part Number | 113655 |
| Quantity in Package | 2 (PK2) |
| Pipe Size | 3/4 in |
| DN (Nominal Diameter) | DN20 |
| Connection Type | Male NPT x Female NPT (MxF) |
| Pressure Rating (CWP) | 600 CWP (psi) |
| Pressure Rating (PN) | PN40 (~580 PSI) |
| Body Material | CW617N dezincification-resistant brass |
| Body Style | Two-piece |
| Bore Type | Full bore |
| Seat Material | PTFE |
| Handle Type | Lever, lockable (9/32 in lock hole) |
| Handle Material | Steel w/ blue PVC grip |
| Country of Manufacture | Italy |
| Series | S92 |
| Certifications | UL, cUL listed |
| Condition | New |
