Sandpiper S10B1K2KPAS000 1in Polypropylene AODD Pump

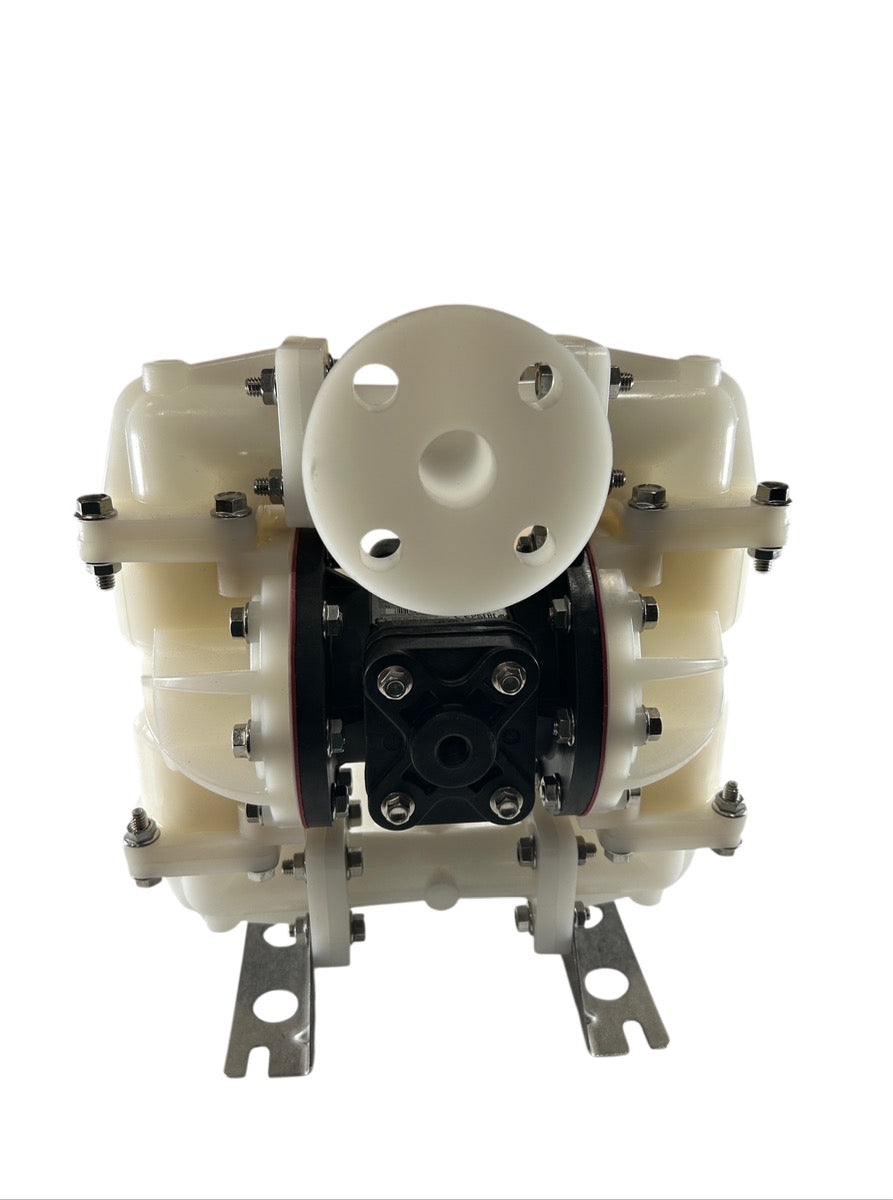

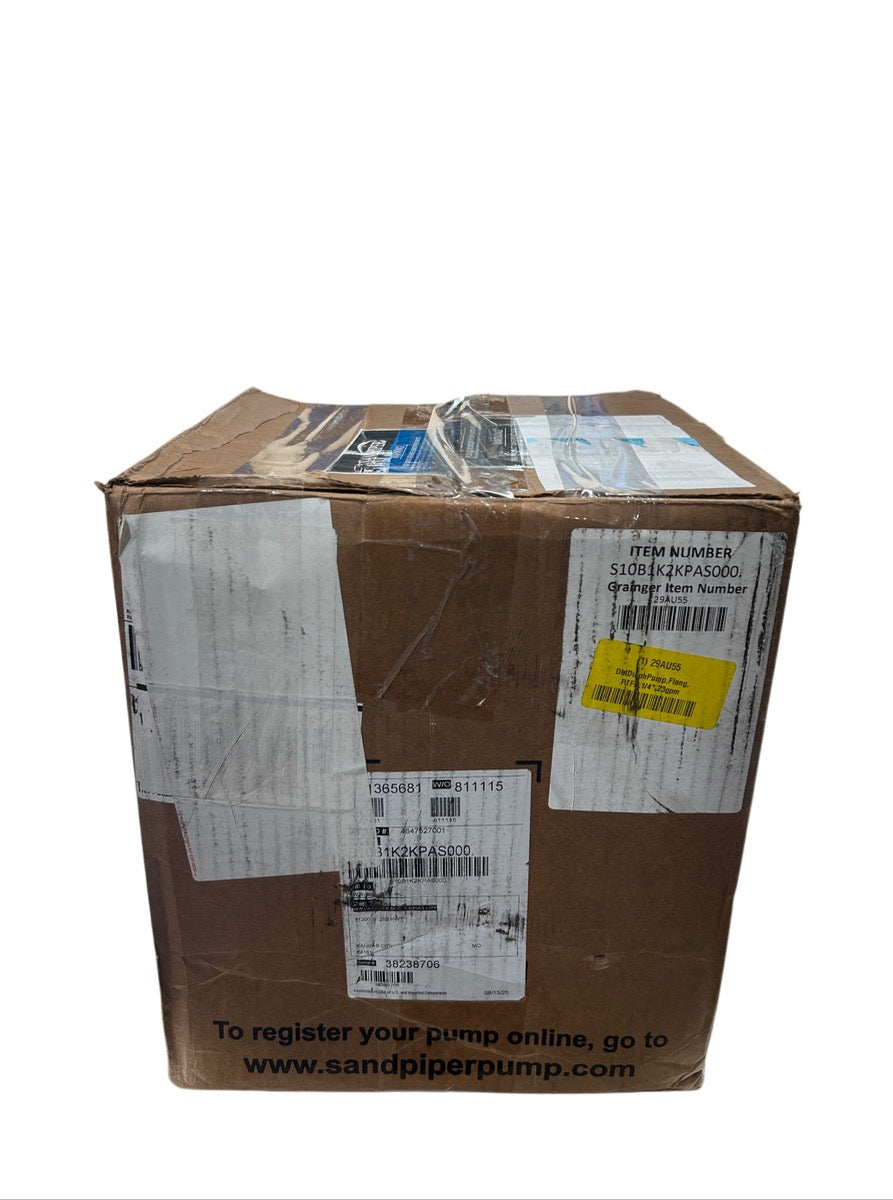

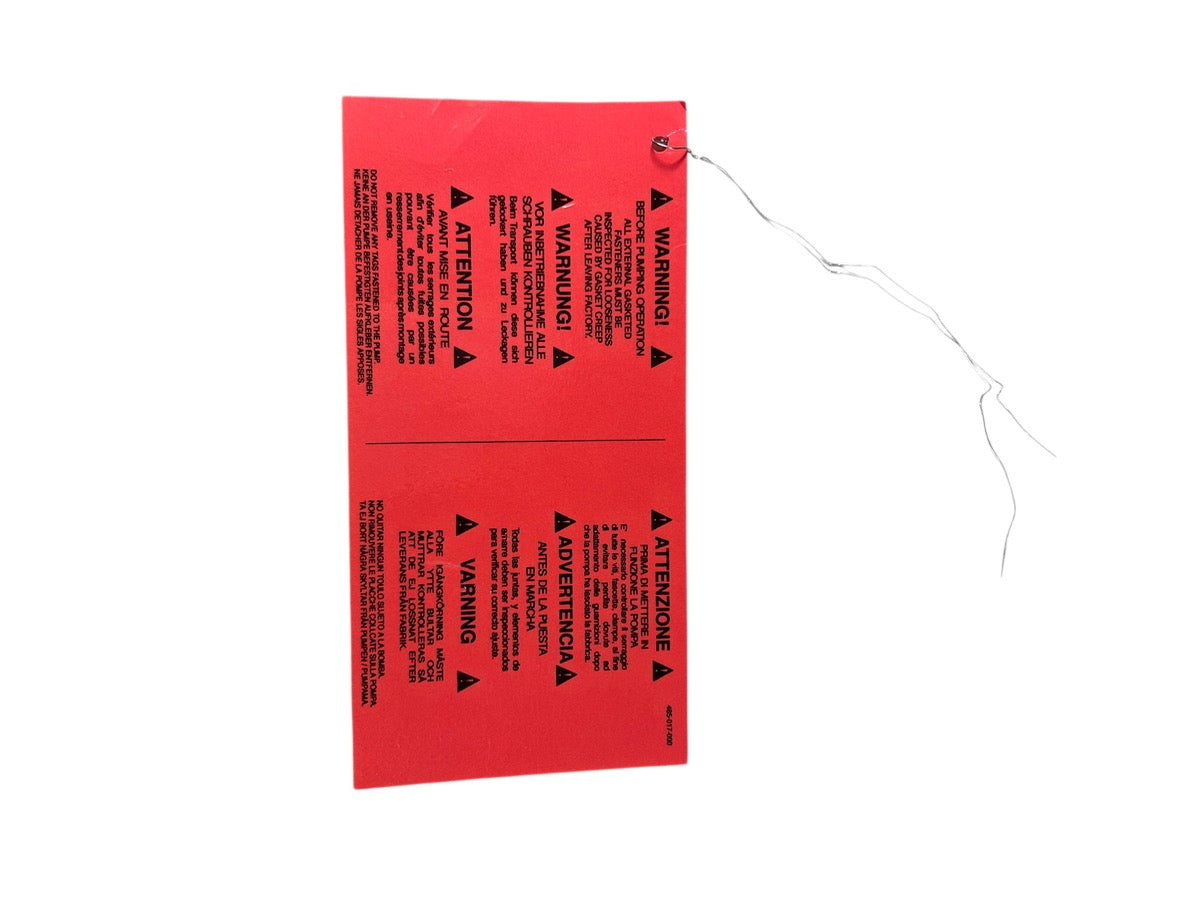

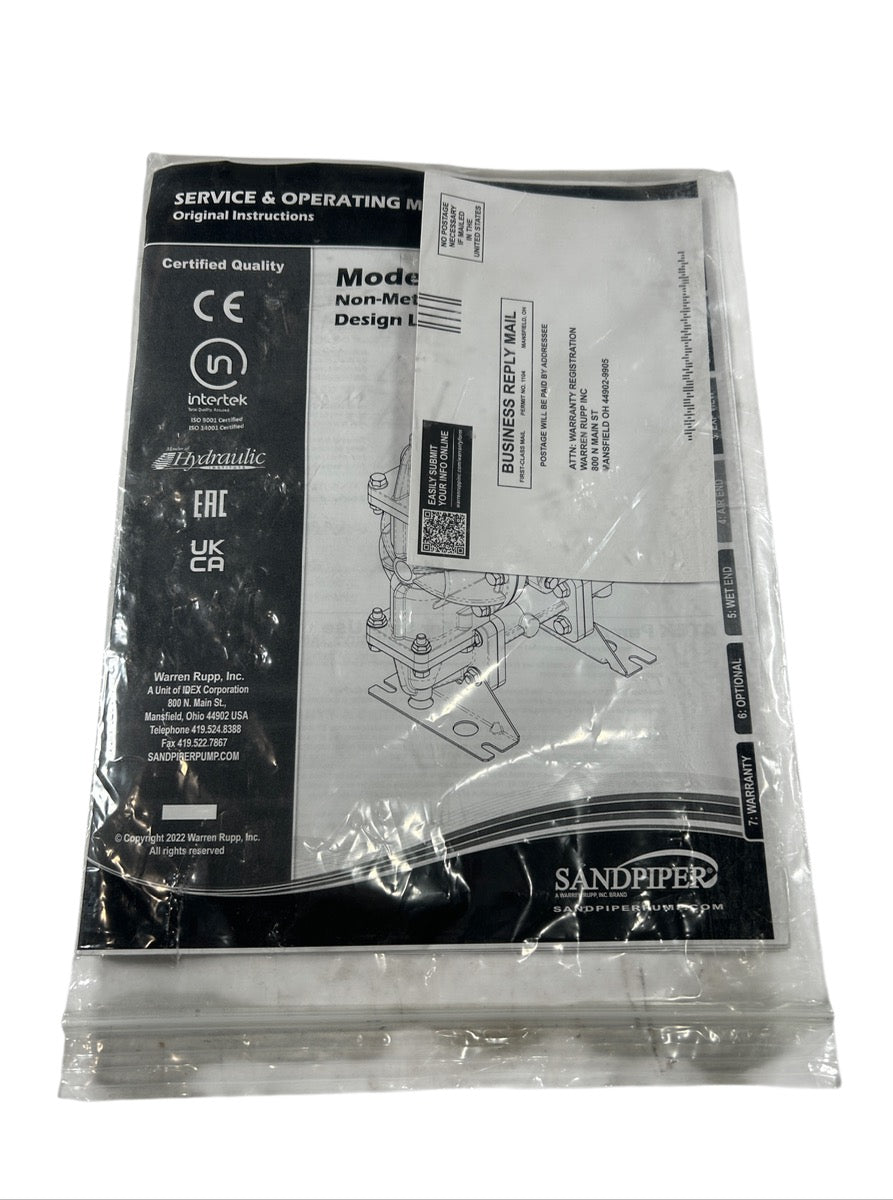

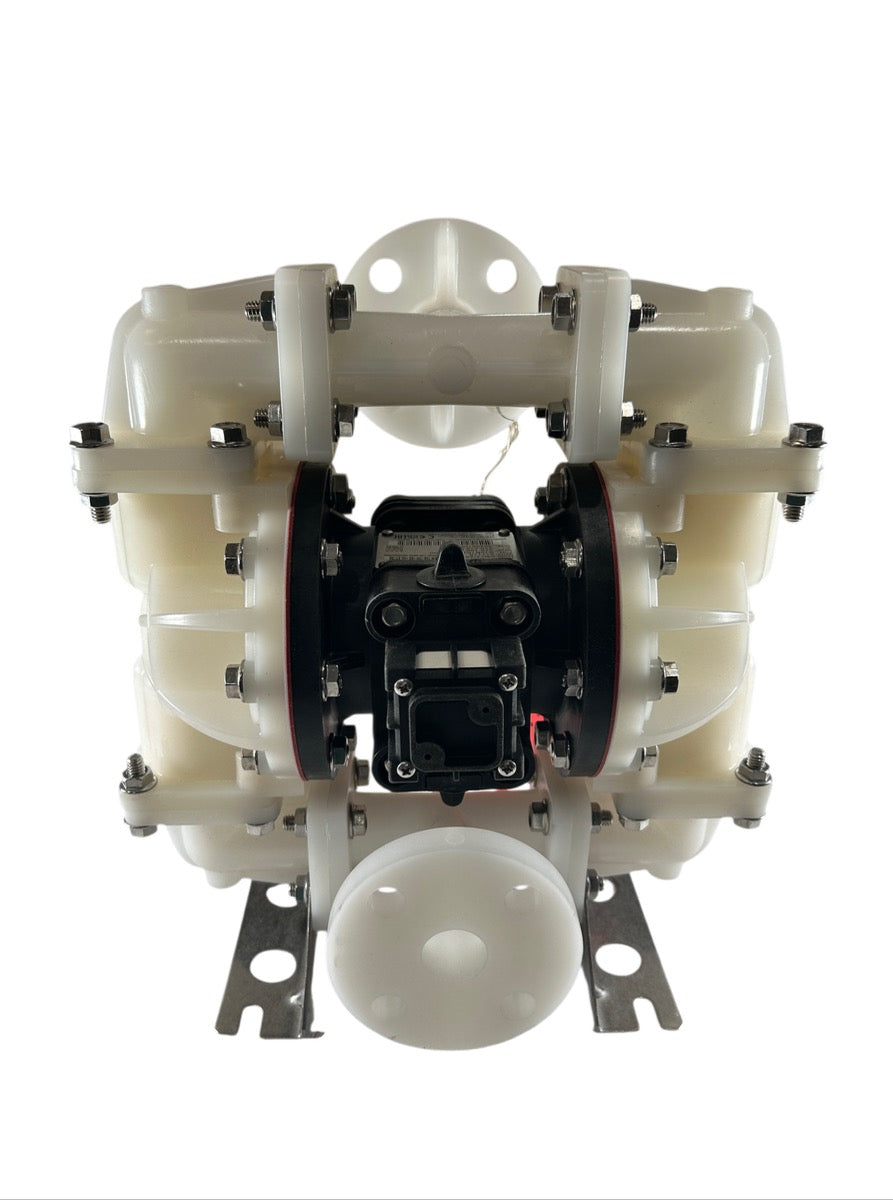

The Sandpiper S10B1K2KPAS000 is a new, 1-inch air-operated double diaphragm (AODD) pump from Warren Rupp's non-metallic Design Level product line, confirmed by the Sandpiper service manual and box labeling visible in photos. The wetted body and fluid chambers are constructed of polypropylene (natural/white), with stainless steel hardware throughout; the Grainger label on the box identifies this as a flanged-port configuration, and the red-sealed center section houses Sandpiper's standard pilot-operated air distribution valve. This pump is suited for transferring corrosive chemicals, acids, bases, and aqueous solutions where metallic wetted parts are unacceptable; the AODD design allows dry-run capability, self-priming, and stall-without-damage operation up to the rated air supply pressure. The unit ships with the original Sandpiper service and operating manual, warranty registration card, and multilingual pre-startup warning tag, and is CE, cUL (Intertek), and EAC/UKCA certified as shown on the manual cover. Product Specifications Brand Sandpiper MPN S10B1K2KPAS000 Pump Type Air-Operated Double Diaphragm (AODD) Port Size 1 in Port Connection Type Flanged Body / Wetted Material Polypropylene Center Section Material Non-metallic (Polypropylene) Hardware Material Stainless Steel Design Level / Series Non-Metallic Design Level (B) Pump Size Designation S10 (1 in) Certifications CE, cUL (Intertek), EAC, UKCA Drive Type Pneumatic (Air) Mounting Stainless steel foot bracket, floor mount Includes Service & operating manual, warranty card
