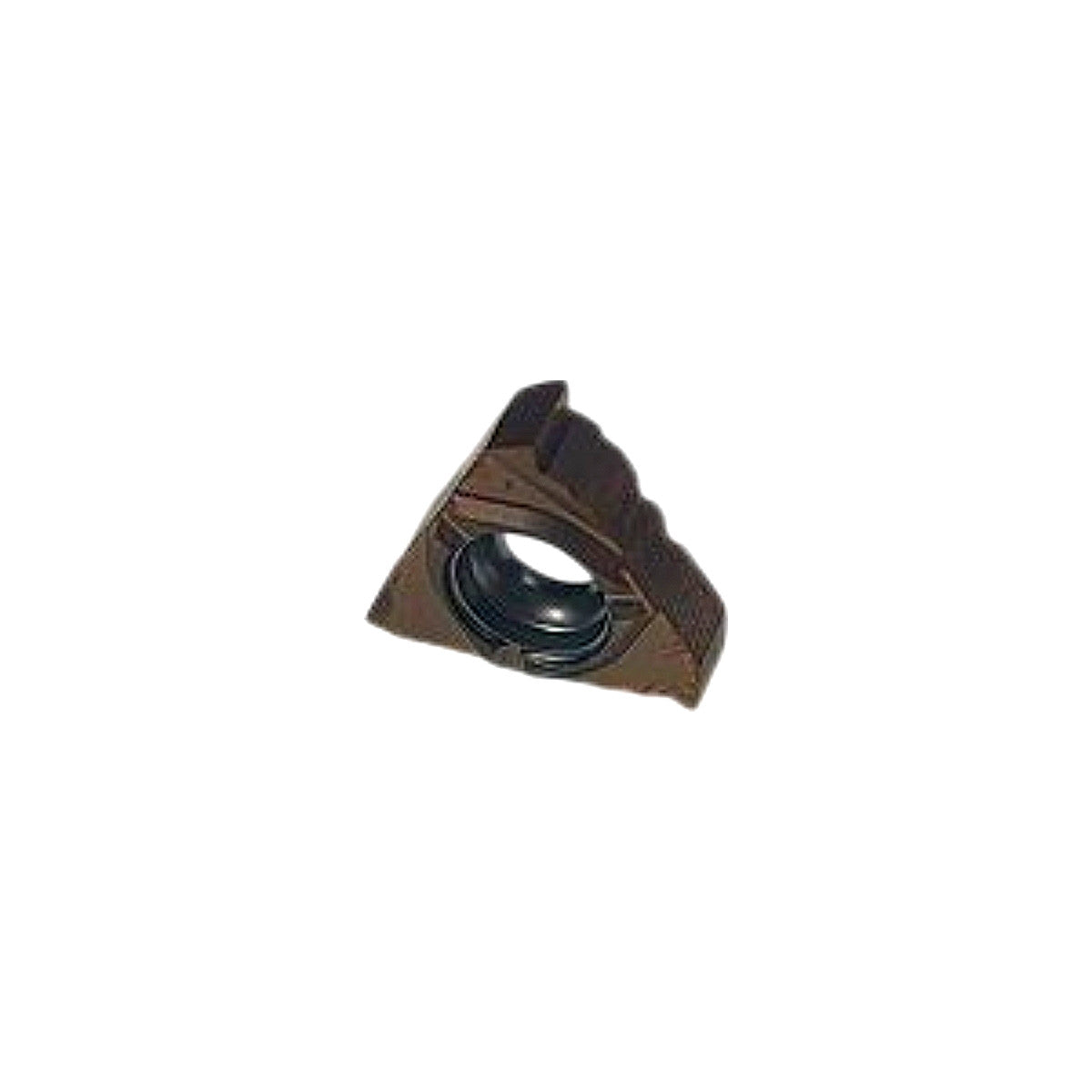

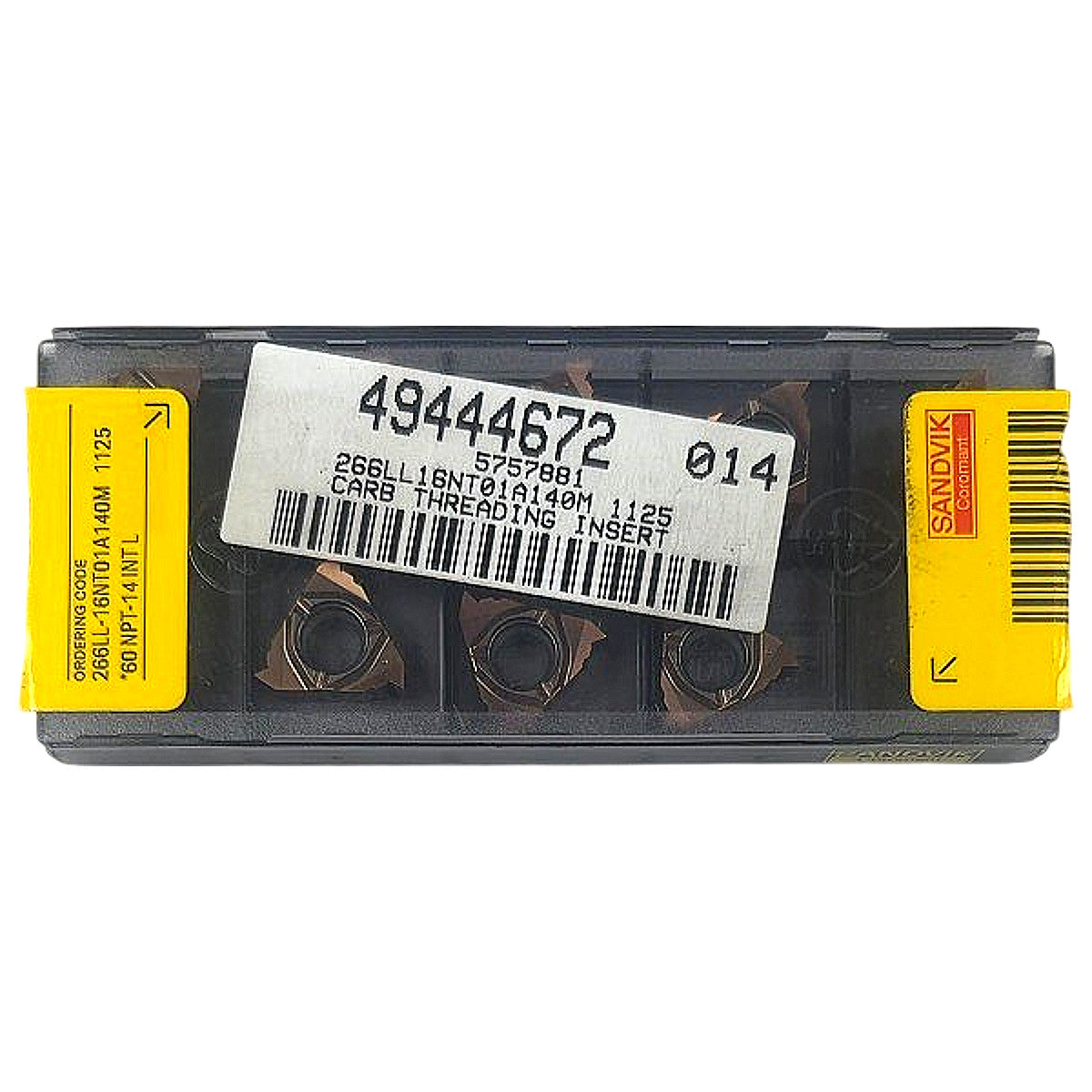

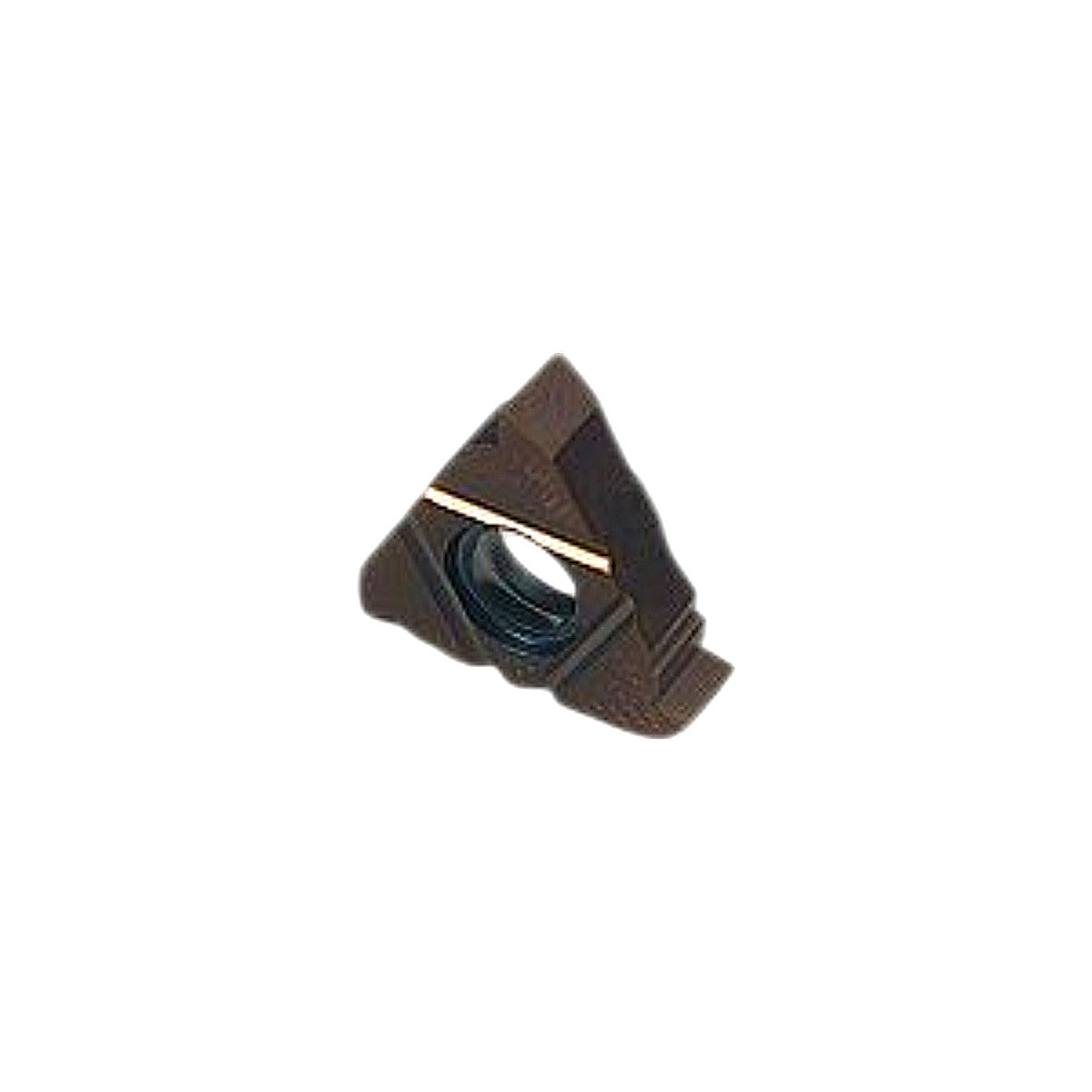

The Sandvik Coromant 266LL-16NT01A140M grade 1125 is a new, full-profile internal threading insert from the CoroThread 266 system, designed to cut 60° NPT (National Pipe Taper) threads at 14 TPI. The insert is triangular in shape (T = triangle), left-hand cutting (LL designation), size 16, with a 140° thread profile angle and a 1.37 mm (0.054 in) depth of cut per pass, requiring 10 passes for steel and stainless steel and 10 passes for non-ferrous materials per Sandvik's published data label on the packaging. Grade 1125 is a PVD-coated cemented carbide (TiAlN-based coating, identifiable by the gold cutting edge visible in photos) optimized for ISO P (steel, up to 175 HB at 520 SFM), M (stainless steel, up to 200 HB at 420 SFM), and N (non-ferrous, up to 90 HB at 1300 SFM) workpiece materials. These inserts are compatible with CoroThread 266 boring bar toolholders and are designed for internal NPT pipe thread turning on CNC lathes; the full-profile geometry eliminates the need for a separate deburring operation on the thread crests and roots.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 266LL-16NT01A140M |
| Grade | 1125 |
| Material ID (MtrlID) | 5757881 |
| Series | CoroThread 266 |
| Insert Shape | Triangular (T) |
| Cutting Direction | Left-hand (LL) |
| Thread Type | NPT (National Pipe Taper) |
| Thread Angle | 60° |
| Thread Pitch | 14 TPI |
| Profile Angle Code | 140° (A140) |
| Application | Internal threading |
| Insert Size | 16 |
| Coating | PVD TiAlN (grade 1125) |
| Substrate | Cemented carbide |
| Depth of Cut (ap) | 1.37 mm / 0.054 in |
| No. of Passes – Steel (P) | 10 |
| No. of Passes – Stainless (M) | 10 |
| No. of Passes – Non-Ferrous (N) | 10 |
| Cutting Speed – Steel (P) | 160 m/min / 520 sfm |
| Cutting Speed – Stainless (M) | 130 m/min / 420 sfm |
| Cutting Speed – Non-Ferrous (N) | 400 m/min / 1300 sfm |
| ISO Material Group | P (steel), M (stainless), N (non-ferrous) |
| Condition | New |
| Country of Origin | Sweden |
| Qty per Package | 10 pcs |
