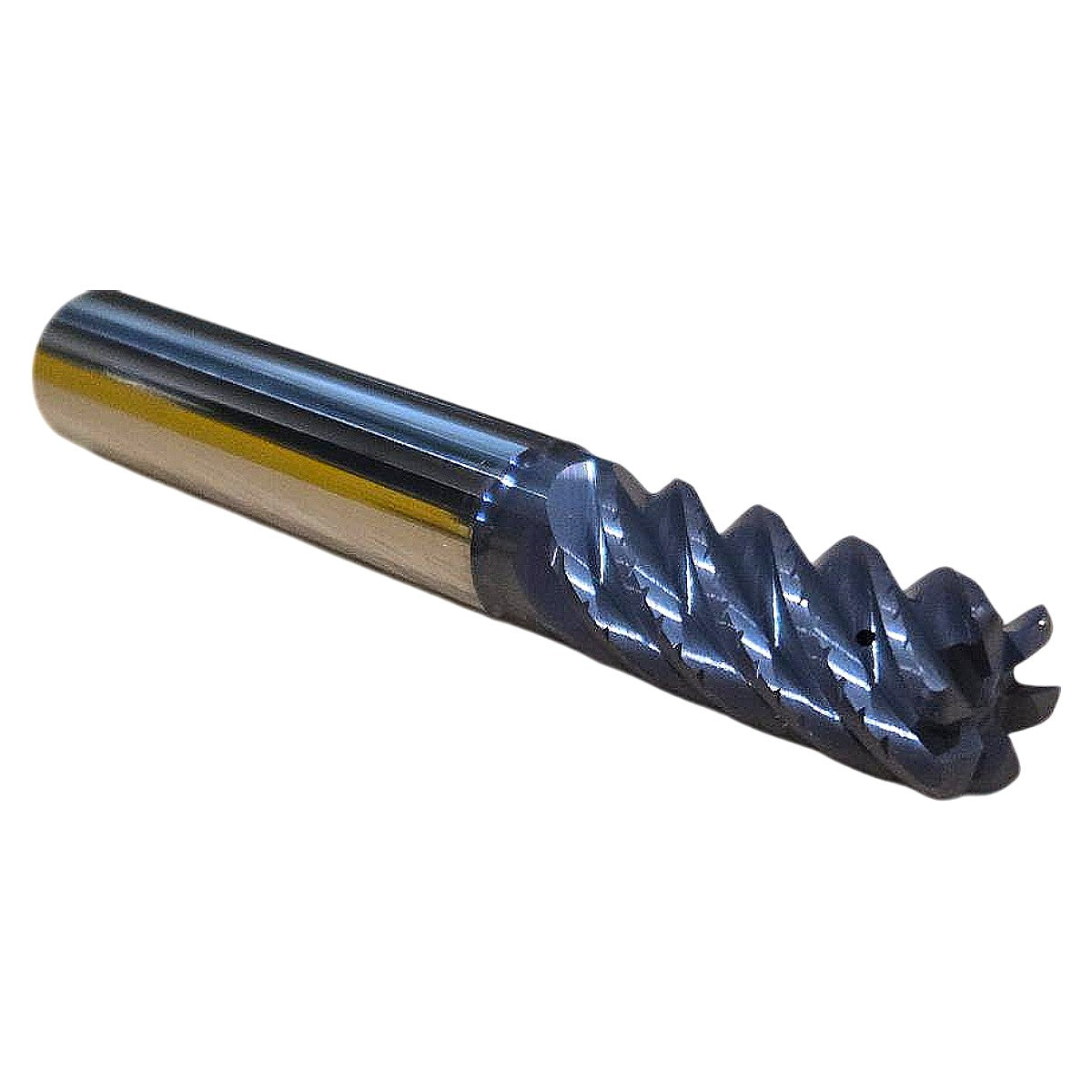

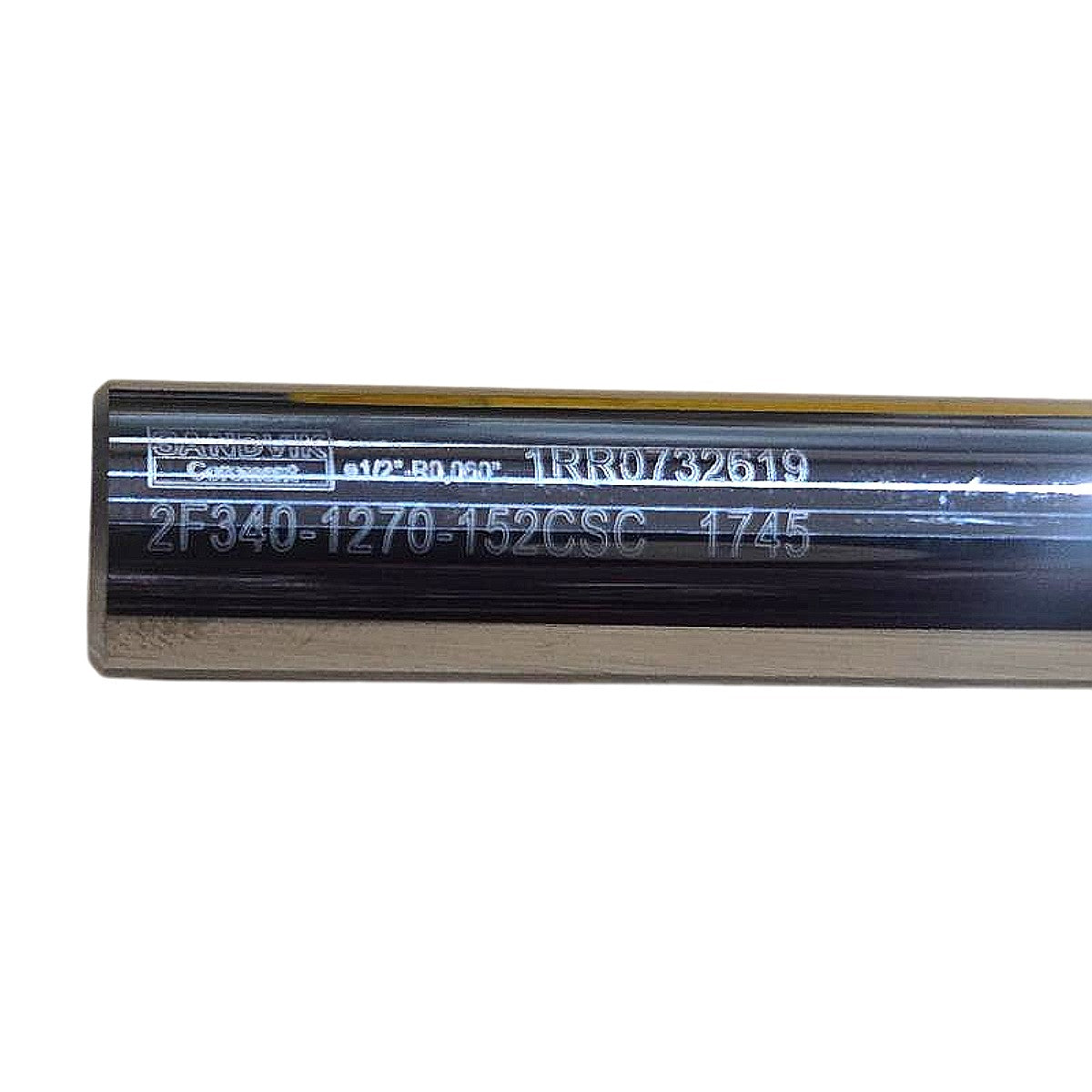

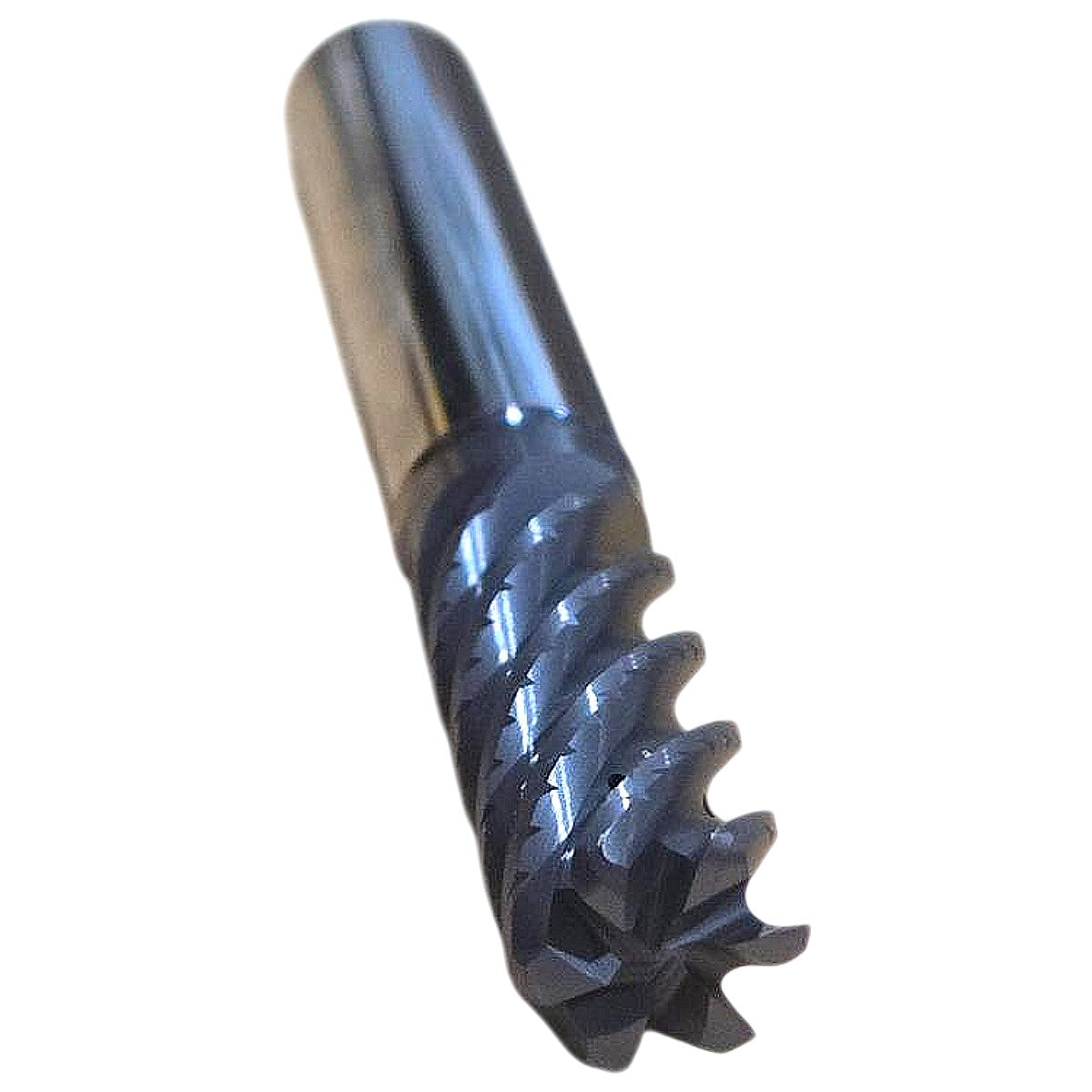

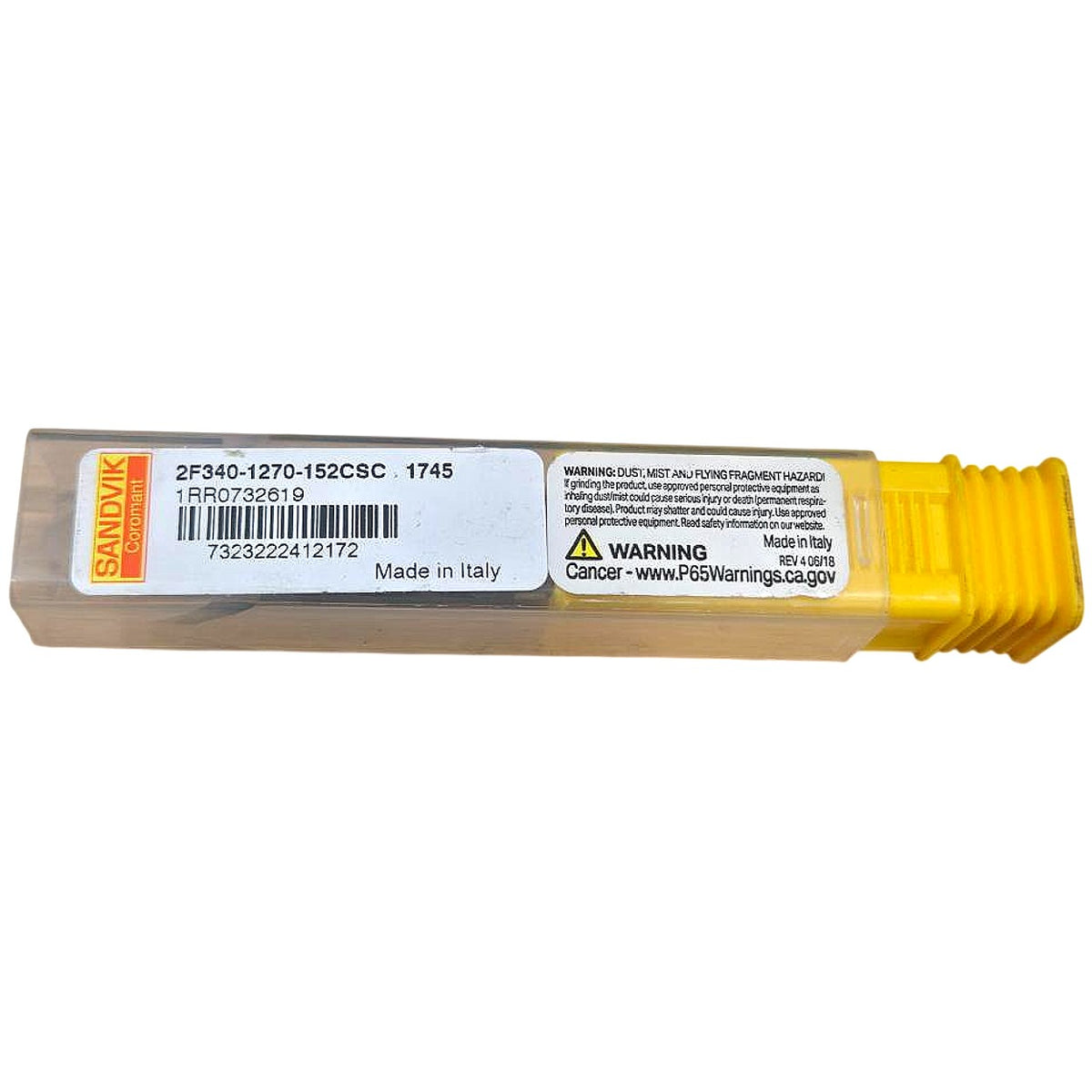

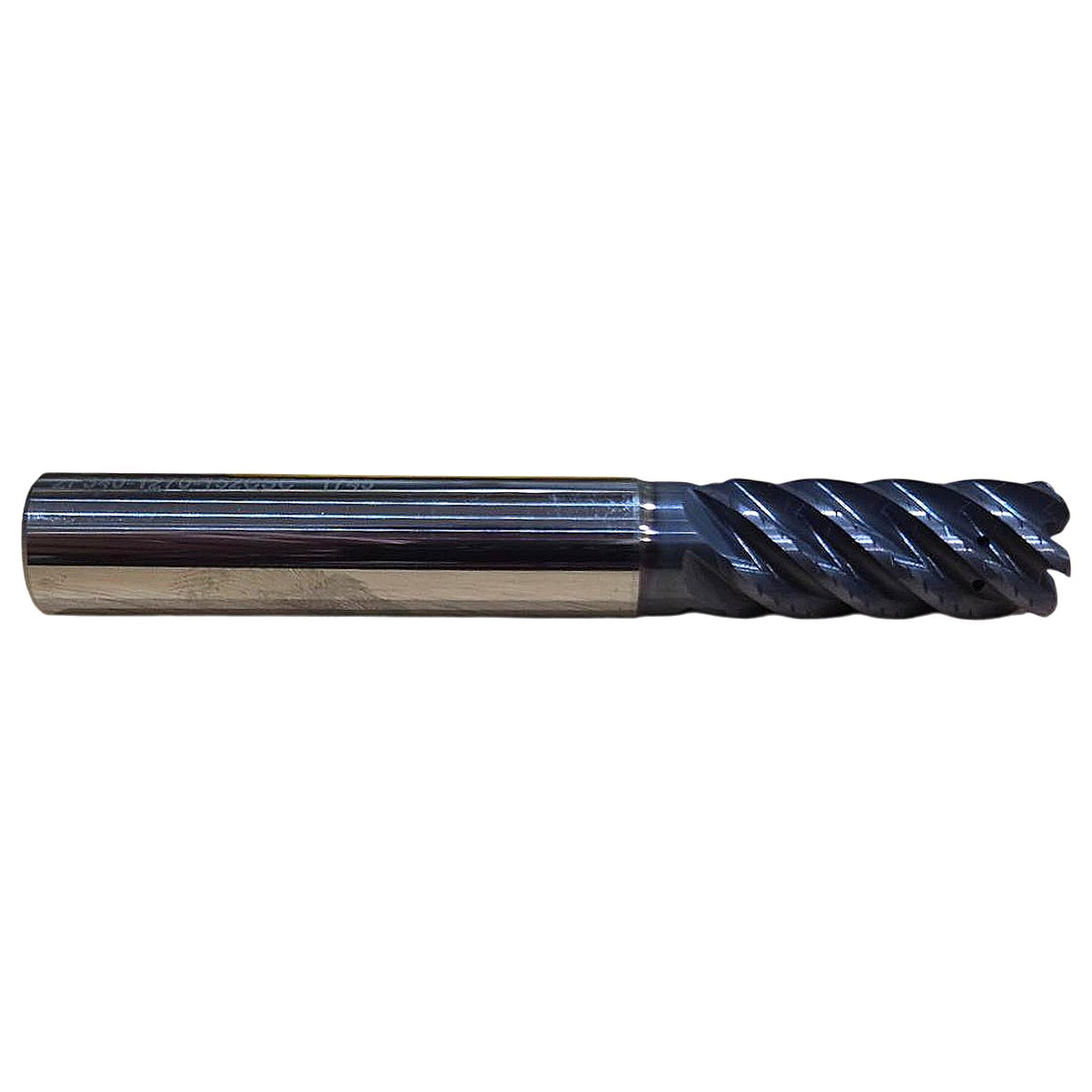

The Sandvik Coromant 2F340-1270-152CSC 1745 is a solid carbide roughing end mill from the CoroMill Plura family, featuring a 1/2 in (12.70 mm) cutting diameter, 0.060 in corner radius, 6 flutes, and a 6 in overall length with cylindrical shank — all confirmed from the photo label. The grade 1745 is Sandvik's PVD-coated (AlTiN-type, dark charcoal appearance consistent with 1745) submicron carbide grade engineered for high-feed roughing and semi-finishing of hardened steels and difficult-to-machine materials including stainless steels, titanium alloys, and heat-resistant superalloys (HRSA). The "CSC" suffix in Sandvik's Plura designation denotes a chipbreaker geometry optimized for superior chip evacuation during roughing passes, and the 6-flute design provides increased core strength and productivity versus 4-flute tools in rigid setups. This tool is new-in-box, Made in Italy per the label, and is compatible with standard 1/2 in ER, Weldon, or hydraulic toolholders.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 2F340-1270-152CSC 1745 |
| Series | CoroMill Plura |
| Cutting Diameter | 1/2 in (12.70 mm) |
| Corner Radius | 0.060 in |
| Number of Flutes | 6 |
| Shank Diameter | 1/2 in (12.70 mm) |
| Overall Length | 6 in (152 mm) |
| Geometry/Style | Roughing (chipbreaker, CSC) |
| Grade | 1745 |
| Coating | PVD AlTiN-type (1745 grade) |
| Substrate | Solid submicron carbide |
| Country of Origin | Italy |
| Condition | New |
| End Style | Corner radius (bull nose) |
