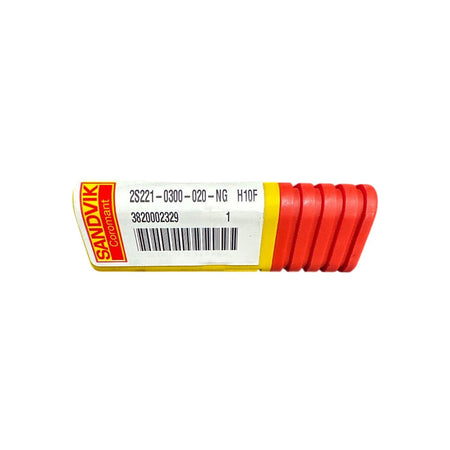

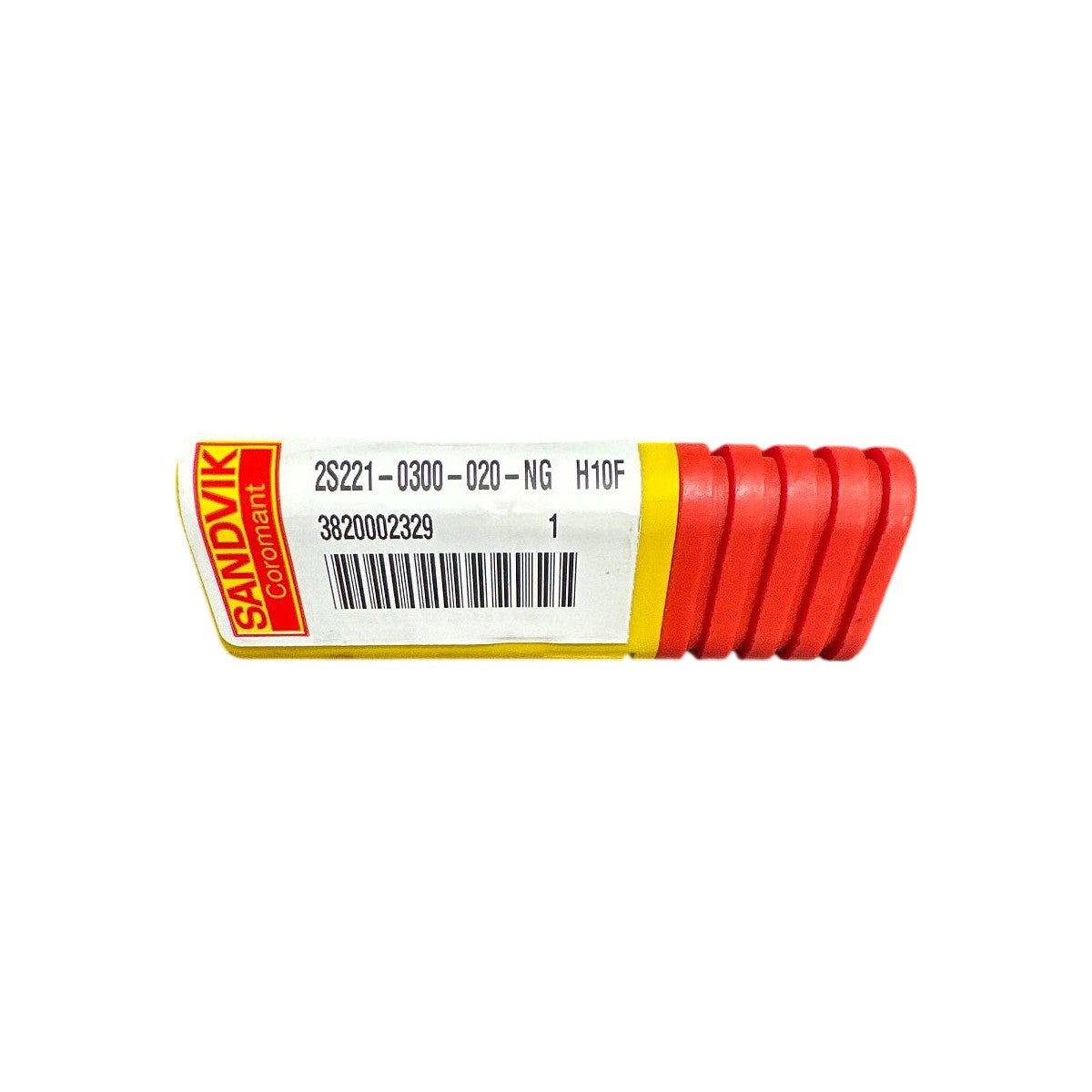

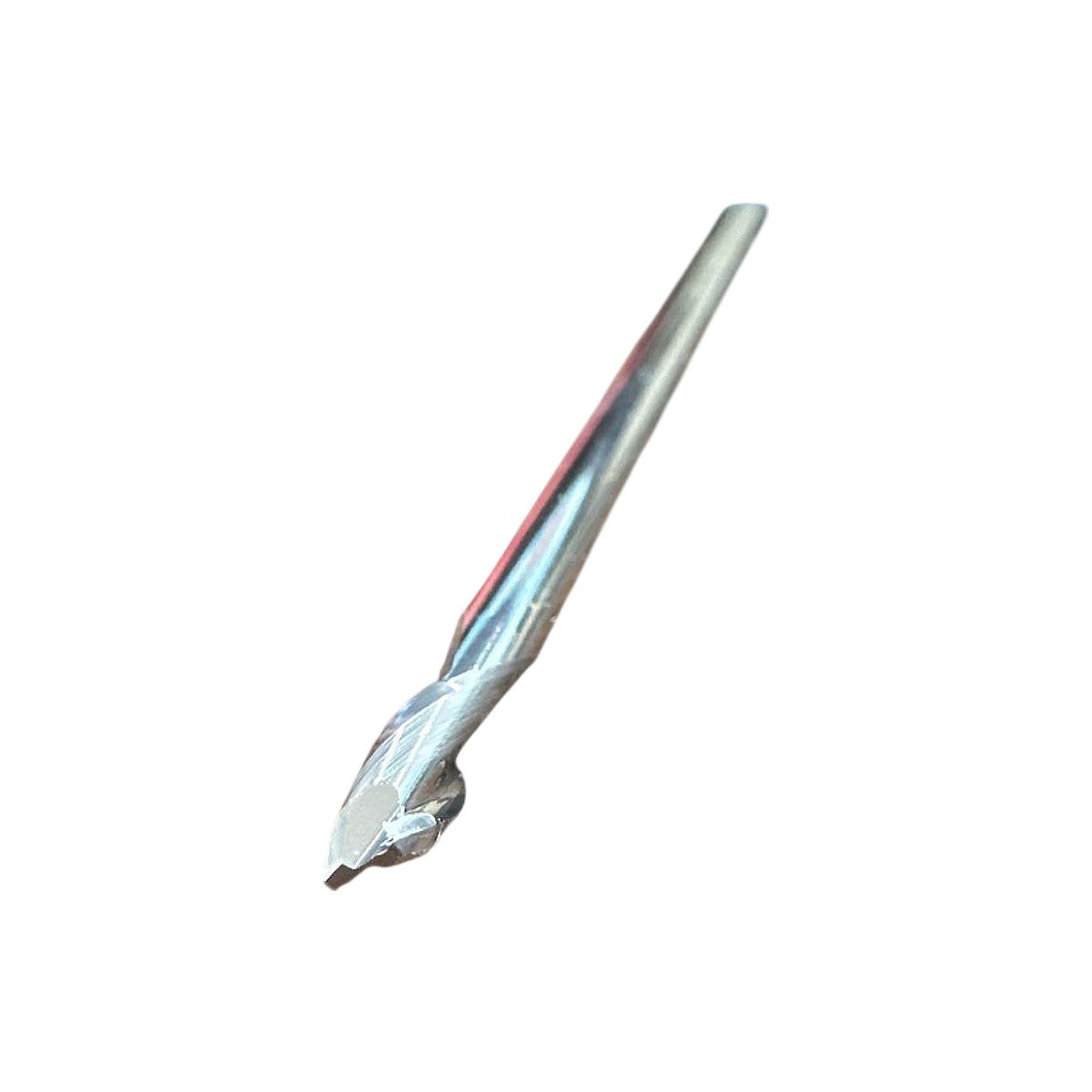

Sandvik 2S221-0300-020-NG H10F 3mm Solid Carbide Drill Bit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Sandvik Coromant 2S221-0300-020-NG H10F is a new, solid carbide straight-shank drill from the CoroDrill 2S221 series, designed for short-hole drilling of non-ferrous and soft materials. The MPN decodes as follows: "2S221" is the CoroDrill series for non-ferrous/composite drilling, "0300" indicates a 3.00 mm cutting diameter, "020" indicates a 20× diameter flute length (60 mm), "NG" denotes no internal coolant (no coolant-through), and the grade H10F is an uncoated fine-grain cemented carbide (WC-Co) optimized for non-ferrous metals, aluminium alloys, plastics, and composites — materials where a TiAlN or similar coating would cause built-up edge. H10F grade provides high hardness and edge sharpness at elevated cutting speeds, making it well suited for precision drilling in aluminium, copper alloys, graphite, and fibre-reinforced plastics. The straight cylindrical shank is compatible with standard precision collet chucks and shrink-fit holders accepting 3 mm shank diameters, and the drill is manufactured to h6 shank tolerance per Sandvik Coromant published standards.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 2S221-0300-020-NG H10F |
| Series | CoroDrill 2S221 |
| Cutting Diameter | 3.00 mm |
| Flute Length (L/D Ratio) | 20× diameter (60 mm) |
| Shank Diameter | 3.00 mm |
| Shank Type | Straight cylindrical, h6 tolerance |
| Carbide Grade | H10F (uncoated fine-grain WC-Co) |
| Coating | Uncoated (NG = no coating) |
| Coolant-Through | No (NG designation) |
| Application | Non-ferrous metals, aluminium, plastics, composites |
| Point Type | Faceted/cross-ground carbide tip |
| Condition | New |
