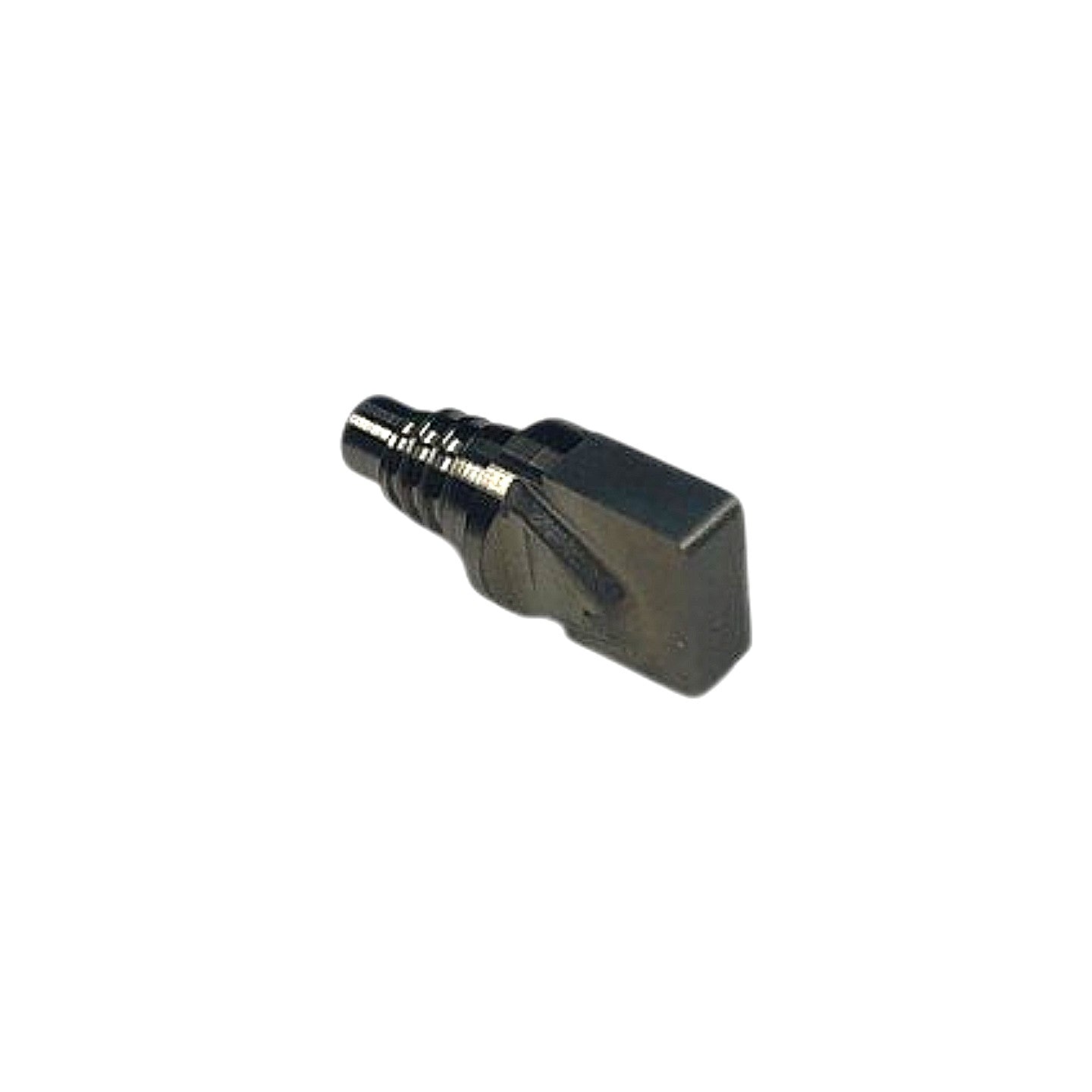

Sandvik 316-10S1050-0800-B H10F Carbide Spade Drill Insert 10.50mm
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Sandvik Coromant 316-10S1050-0800-B H10F is a new, uncoated solid carbide spade drill insert (blank) from the CoroDrill 316 series, designed for use in Sandvik modular spade drill holders accepting the 10S shank interface. The MPN encodes a 10.50 mm drilling diameter, 8.00 mm cutting depth, and a "B" (blank/unground) cutting edge preparation, indicating this insert is supplied without a pre-ground chipbreaker geometry and is intended for applications where a custom edge prep or specific point geometry is applied by the end user or re-sharpening shop. Grade H10F is a fine-grain uncoated tungsten carbide grade optimized for non-ferrous materials, cast iron, and other short-chipping workpiece materials where a sharp, uncoated edge outperforms coated alternatives. Compatible Sandvik 316-series spade drill holder bodies accepting the 10S bayonet/screw-lock interface are required for use.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 316-10S1050-0800-B H10F |
| Product Series | CoroDrill 316 |
| Drill Diameter | 10.50 mm |
| Cutting Depth | 8.00 mm |
| Shank/Interface Size | 10S (CoroDrill 316 modular interface) |
| Edge Preparation | B – Blank (unground) |
| Grade | H10F |
| Grade Type | Uncoated fine-grain tungsten carbide |
| Coating | None (uncoated) |
| Application Materials | Non-ferrous, cast iron, short-chipping materials |
| Condition | New |
| Sandvik Order Code | 26370712 |
| Quantity | 1 pc (single insert) |
