Sandvik 460.1-0390-012A1-XM GC34 3.9mm CoroDrill 460 Solid Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

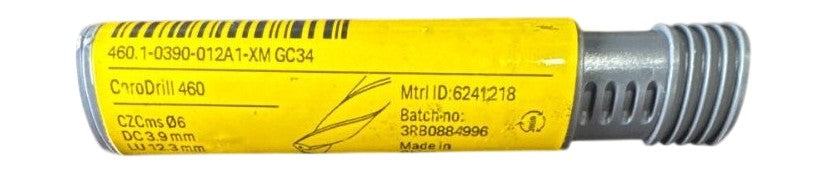

This is a new Sandvik Coromant CoroDrill 460 solid carbide drill, part number 460.1-0390-012A1-XM GC34, with a 3.9 mm cutting diameter (DC), 12.3 mm cutting length (LU), and a 6 mm cylindrical shank (CZCms Ø6). Grade GC34 is Sandvik's PVD-coated submicron carbide grade optimized for drilling steel, stainless steel, and cast iron at high cutting speeds with through-coolant capability, as indicated by the XM designation denoting internal coolant channels. The CoroDrill 460 geometry features a self-centering point, straight flutes optimized for chip evacuation, and is designed for use in CNC machining centers and modular toolholding systems accepting Ø6 mm straight-shank adapters. Material ID 6241218 and batch number 3RB0884996 are visible on the label for full traceability.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 460.1-0390-012A1-XM GC34 |
| Series | CoroDrill 460 |
| Cutting Diameter (DC) | 3.9 mm |
| Cutting Length (LU) | 12.3 mm |
| Shank Diameter | 6 mm |
| Shank Type | Cylindrical (CZCms) |
| Grade | GC34 |
| Coolant | Through-coolant (internal channels, XM) |
| Tool Material | Solid Carbide |
| Coating | PVD |
| Material ID | 6241218 |
| Batch Number | 3RB0884996 |
| Condition | New |
| L/D Ratio | ~3xD |
