Sandvik 460.1-1250-038A0-XM GC34 12.5mm CoroDrill 460 Carbide Drill

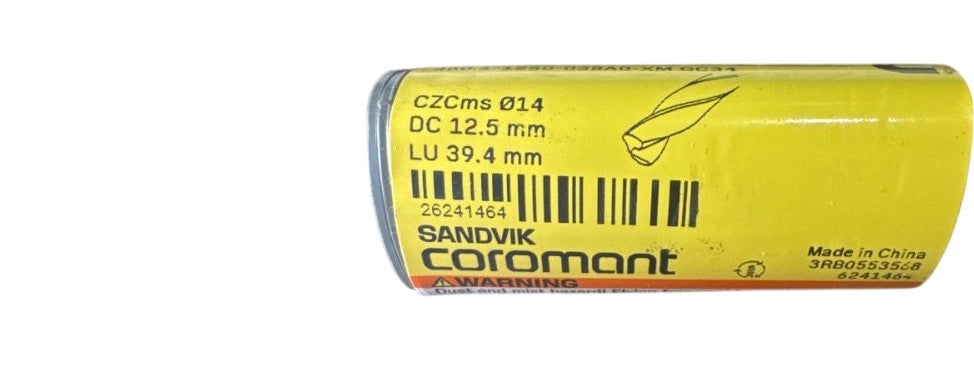

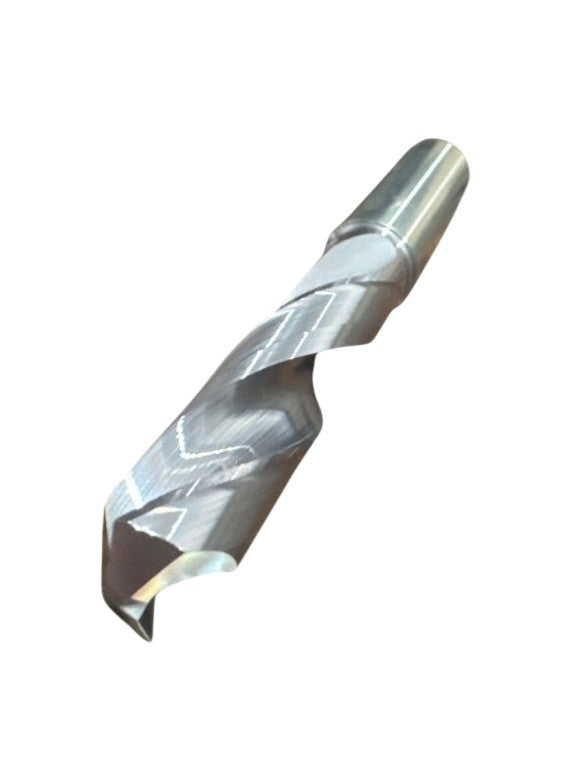

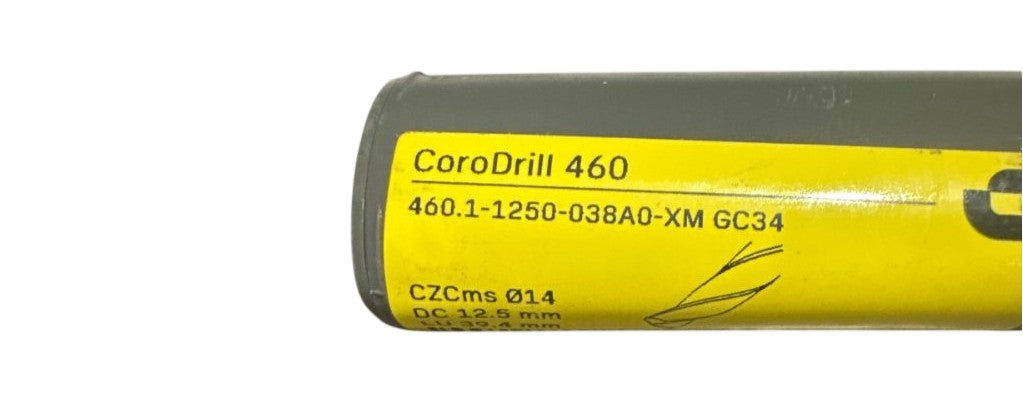

This is a new Sandvik Coromant CoroDrill 460 solid carbide drill, full part number 460.1-1250-038A0-XM GC34, featuring a 12.5 mm cutting diameter (DC), 14 mm shank diameter (CZCms Ø14), and 39.4 mm usable cutting length (LU). The grade GC34 is Sandvik's uncoated or lightly treated fine-grain carbide grade optimized for drilling non-ferrous materials — particularly aluminum and aluminum alloys — where built-up edge resistance and sharp cutting edges are paramount; the bright, uncoated finish visible in the photos is consistent with GC34 for non-ferrous applications. The XM geometry suffix designates the extra-margin flute form engineered for aluminum and soft non-ferrous materials, providing superior chip evacuation and hole quality at high cutting speeds. The 460.1 series is a straight-shank, through-coolant-capable design compatible with ER, hydraulic, shrink-fit, and Coromant Capto toolholding systems that accept a 14 mm cylindrical shank. This drill is new-in-packaging and carries Sandvik Coromant's published performance data for aluminum drilling at recommended surface speeds up to 300+ m/min.

Product Specifications
