Sandvik 460.1-1250-094A1-XM GC34 CoroDrill 460 12.5mm Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

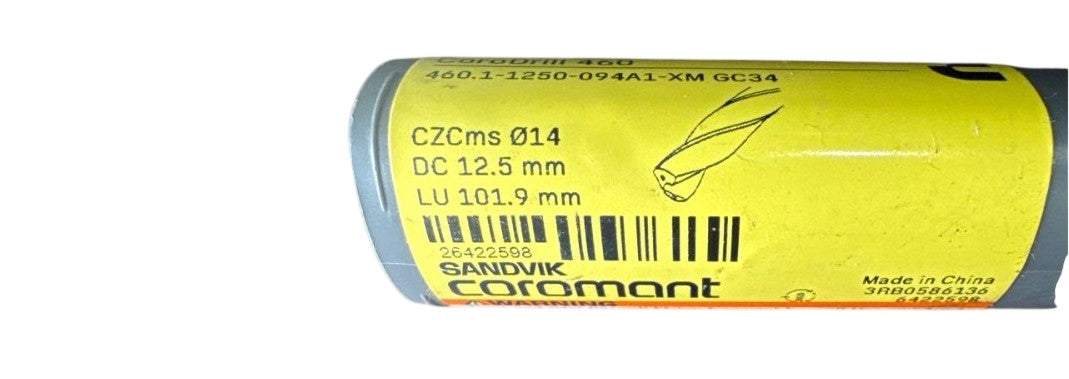

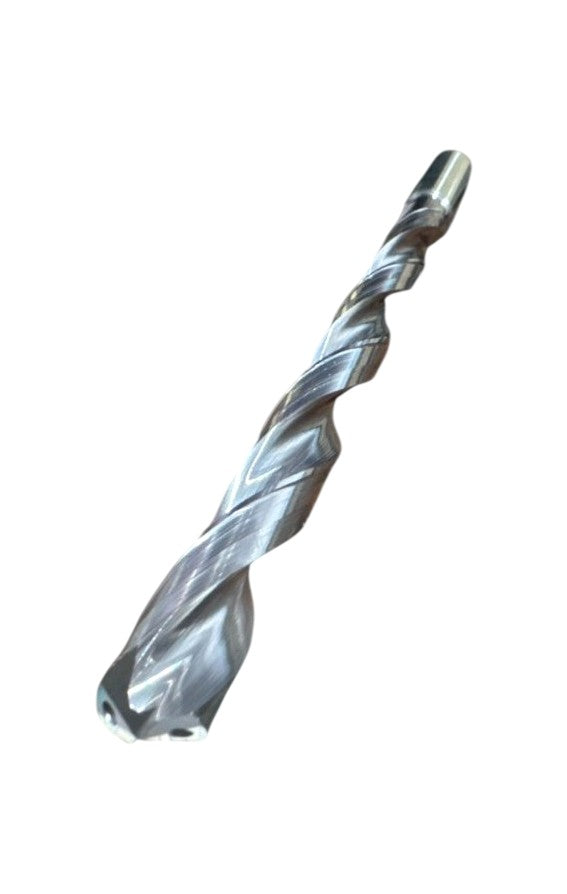

This is a new Sandvik Coromant CoroDrill 460 solid carbide twist drill, part number 460.1-1250-094A1-XM GC34, featuring a 12.5 mm cutting diameter (DC) and 101.9 mm usable flute length (LU). The GC34 grade is a PVD-coated uncoated substrate carbide specifically engineered for drilling in ISO P (steel) and ISO M (stainless steel) materials, with the XM designator indicating an optimized geometry for demanding materials including stainless and hardened steels. The CoroDrill 460 series features internal coolant channels delivered through the drill body to the cutting edge, enabling high-speed, high-feed drilling with excellent chip evacuation and extended tool life. The CZCms Ø14 shank designation indicates a cylindrical shank with a 14 mm diameter, compatible with ER or hydraulic chucks and shrink-fit holders bored to 14 mm. Intended for use on CNC machining centers requiring reliable, repeatable hole quality in steel and stainless steel workpieces.
Product Specifications
| Brand | Sandvik Coromant |
| Series | CoroDrill 460 |
| Part Number (MPN) | 460.1-1250-094A1-XM GC34 |
| Cutting Diameter (DC) | 12.5 mm |
| Shank Diameter | 14 mm |
| Usable Flute Length (LU) | 101.9 mm |
| Grade | GC34 |
| Geometry / Variant | XM (eXtreme Material) |
| Shank Type | Cylindrical (CZCms), Ø14 mm |
| Coolant | Internal through-coolant |
| Tool Material | Solid carbide |
| Coating | PVD |
| ISO Material Application | ISO P (steel), ISO M (stainless steel) |
| Condition | New |
| Country of Manufacture | China |
