Sandvik 570-32L123J18B060B CoroCut 1-2 Ø32mm Parting Grooving Blade

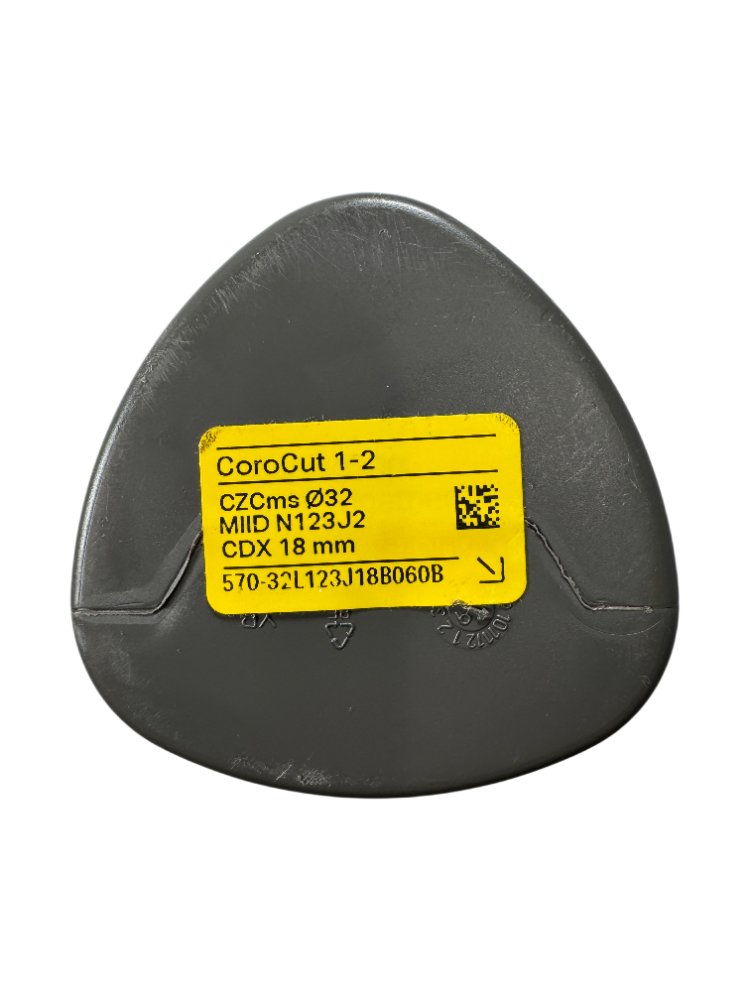

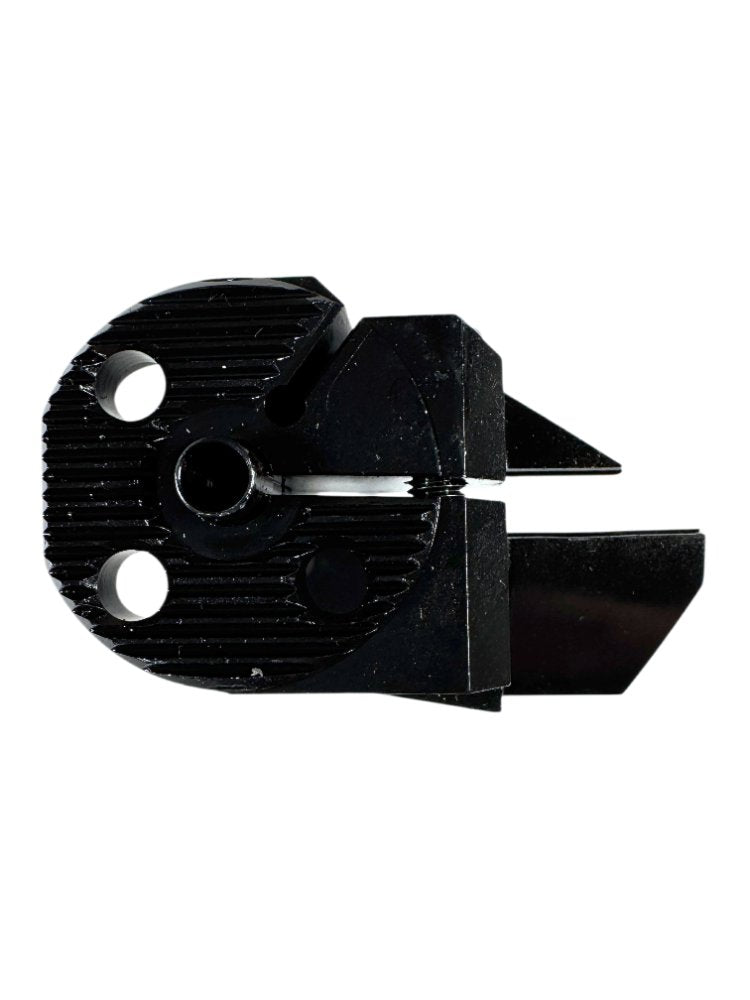

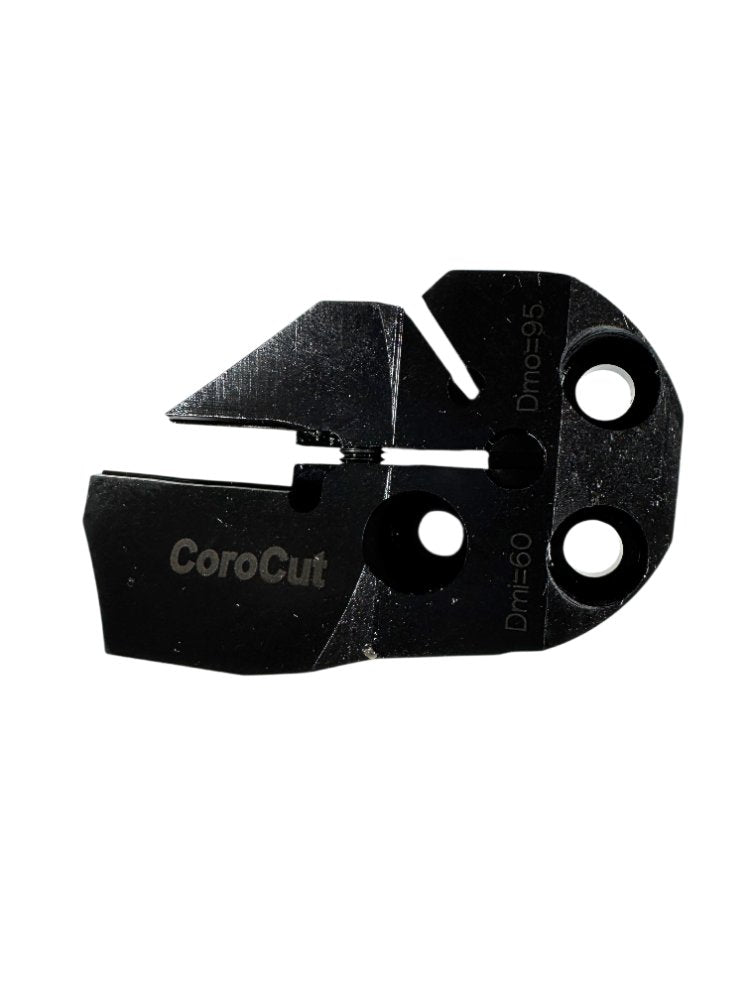

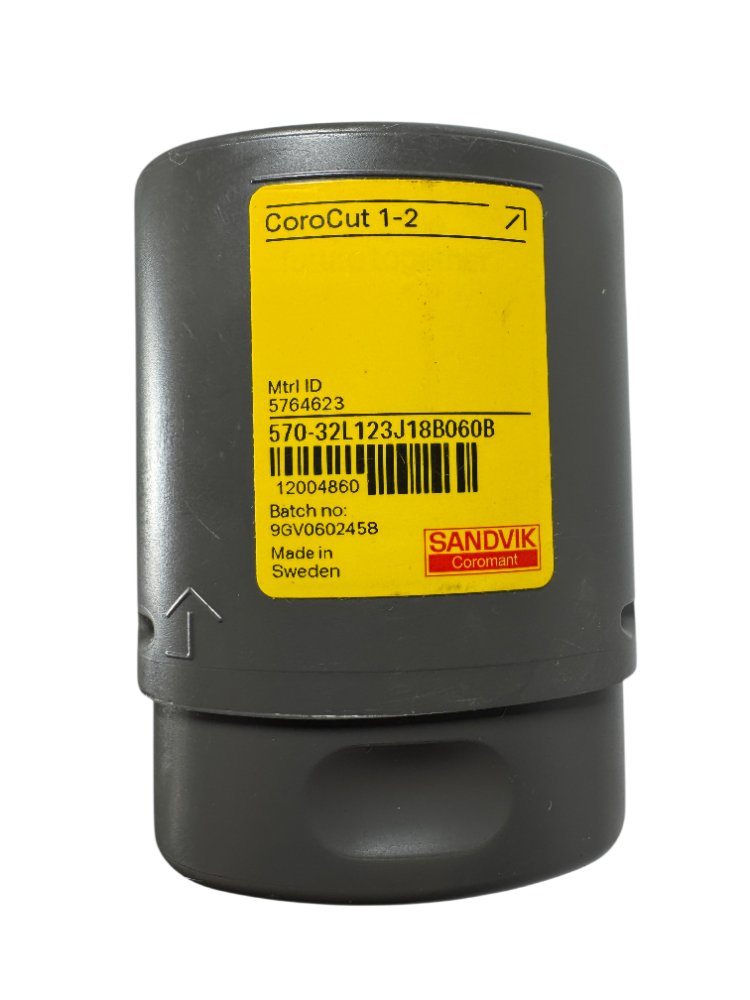

This is a new Sandvik Coromant CoroCut 1-2 system parting and grooving blade, part number 570-32L123J18B060B, manufactured in Sweden and supplied in original factory packaging. The designation decodes as follows: 570 = CoroCut blade/holder series; 32 = coupling/shank diameter of 32 mm (Ø32, CZCms interface); L = left-hand cutting direction; 123 = compatible insert seat for N123J2 (CoroCut 1-2 double-edged inserts, J-style seat); 18 = cutting depth / usable insert width range related to 18 mm CDX (maximum cutting depth); B060 = bore/parting diameter range with minimum bore diameter Dmi = 60 mm and maximum outer diameter Dmo = 95 mm; B = designation variant. The blade features a knurled body for secure clamping, a precision ground insert pocket for N123J2 series CoroCut 1-2 inserts, and is designed for internal/face grooving and parting operations on CNC lathes and turning centers equipped with the Sandvik Coromant CZCms Ø32 mm modular tooling interface. Compatible inserts are from the N123J2 family (e.g. N123J2-0200-0002-GF, etc.), and the blade is suited for groove widths up to the insert edge width with a maximum cutting depth (CDX) of 18 mm.

Product Specifications
