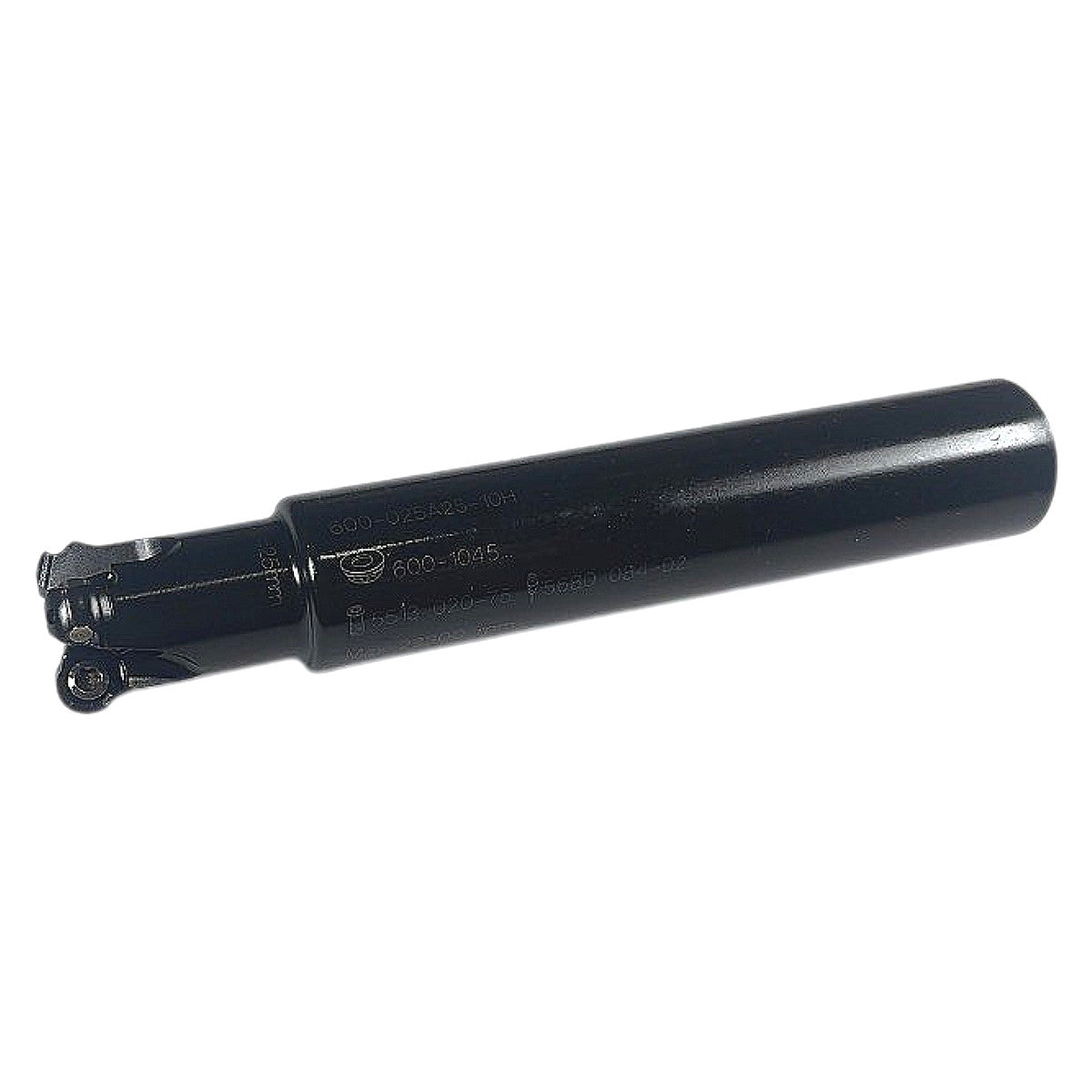

Sandvik 600-025A25-10H CoroMill 600 25mm Ball Nose Indexable End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

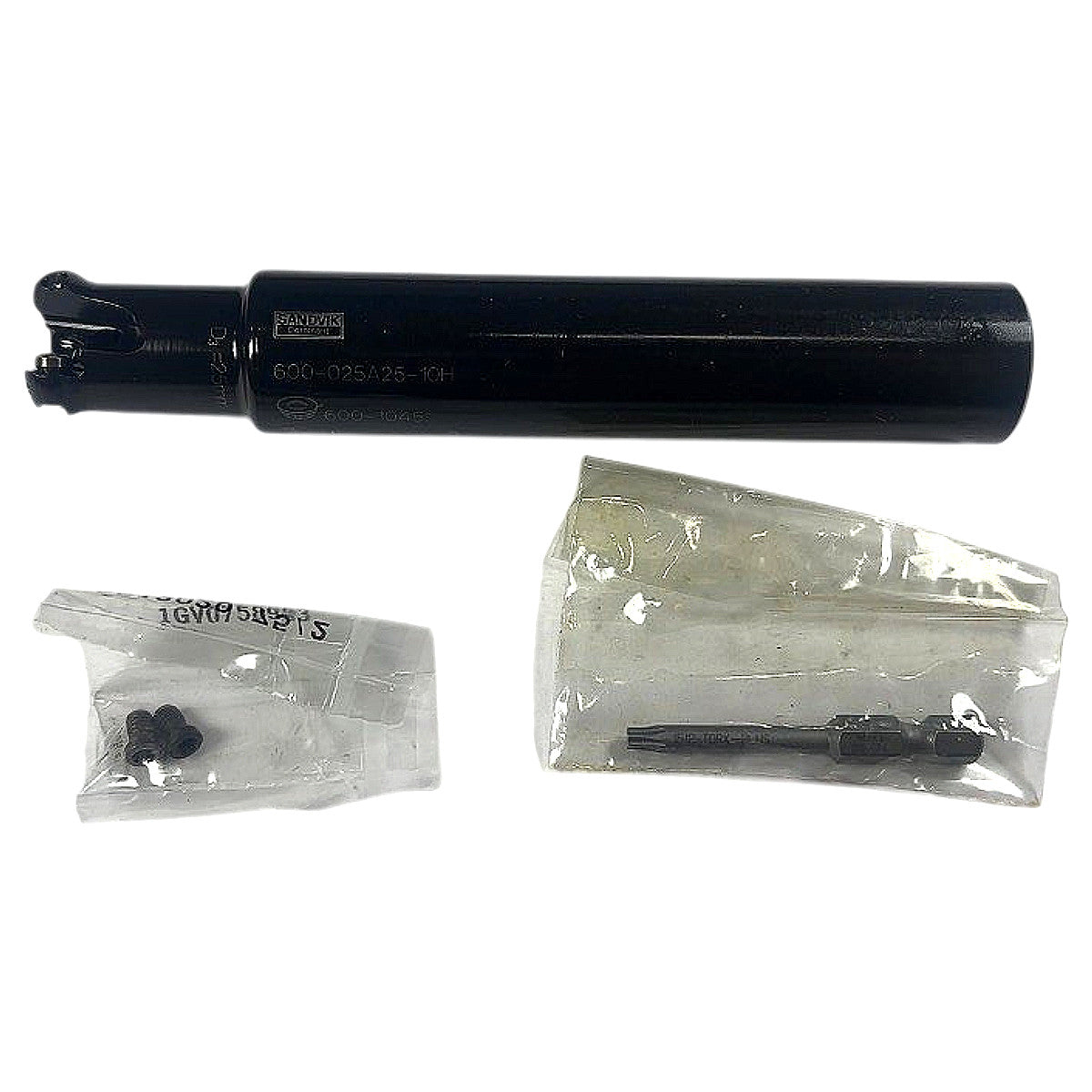

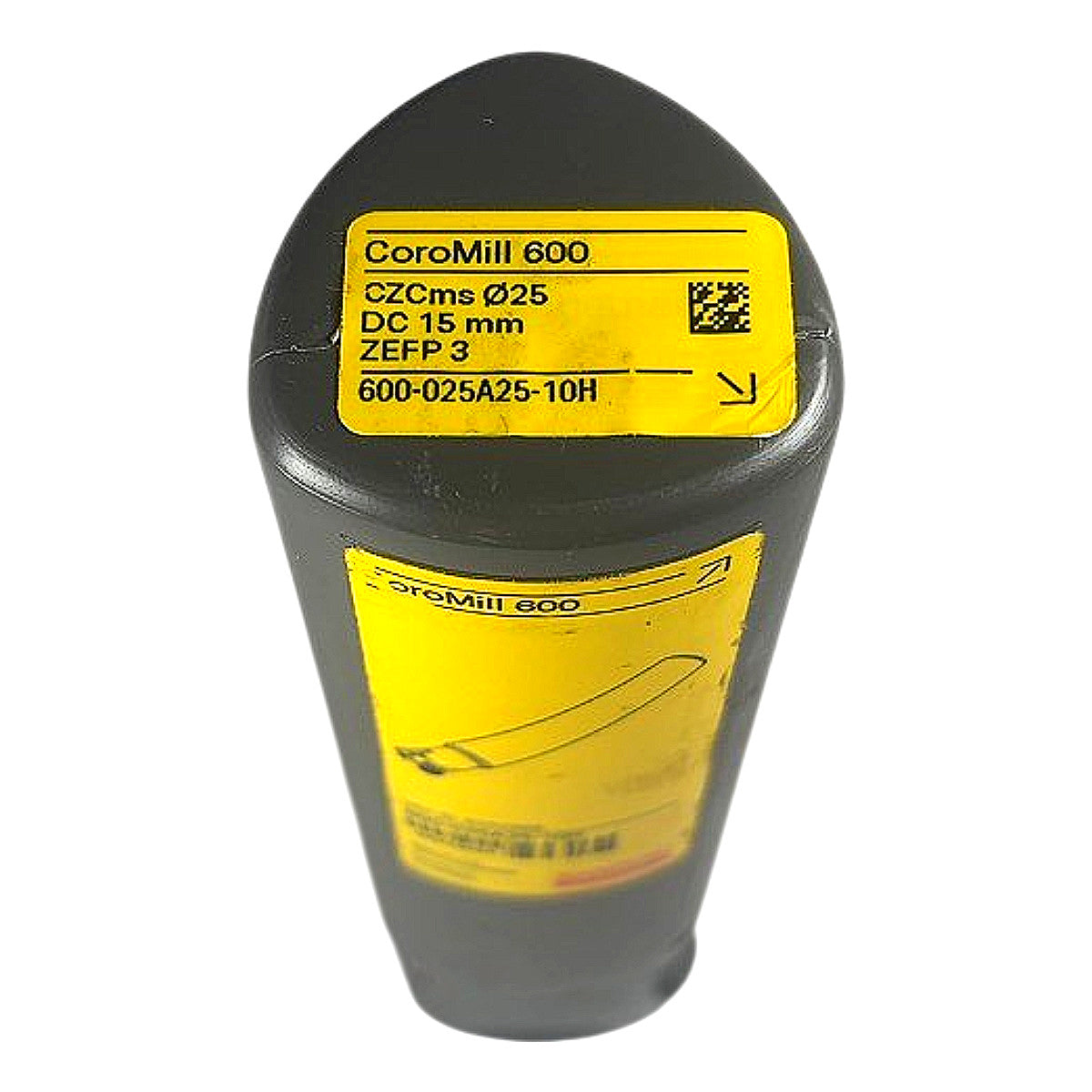

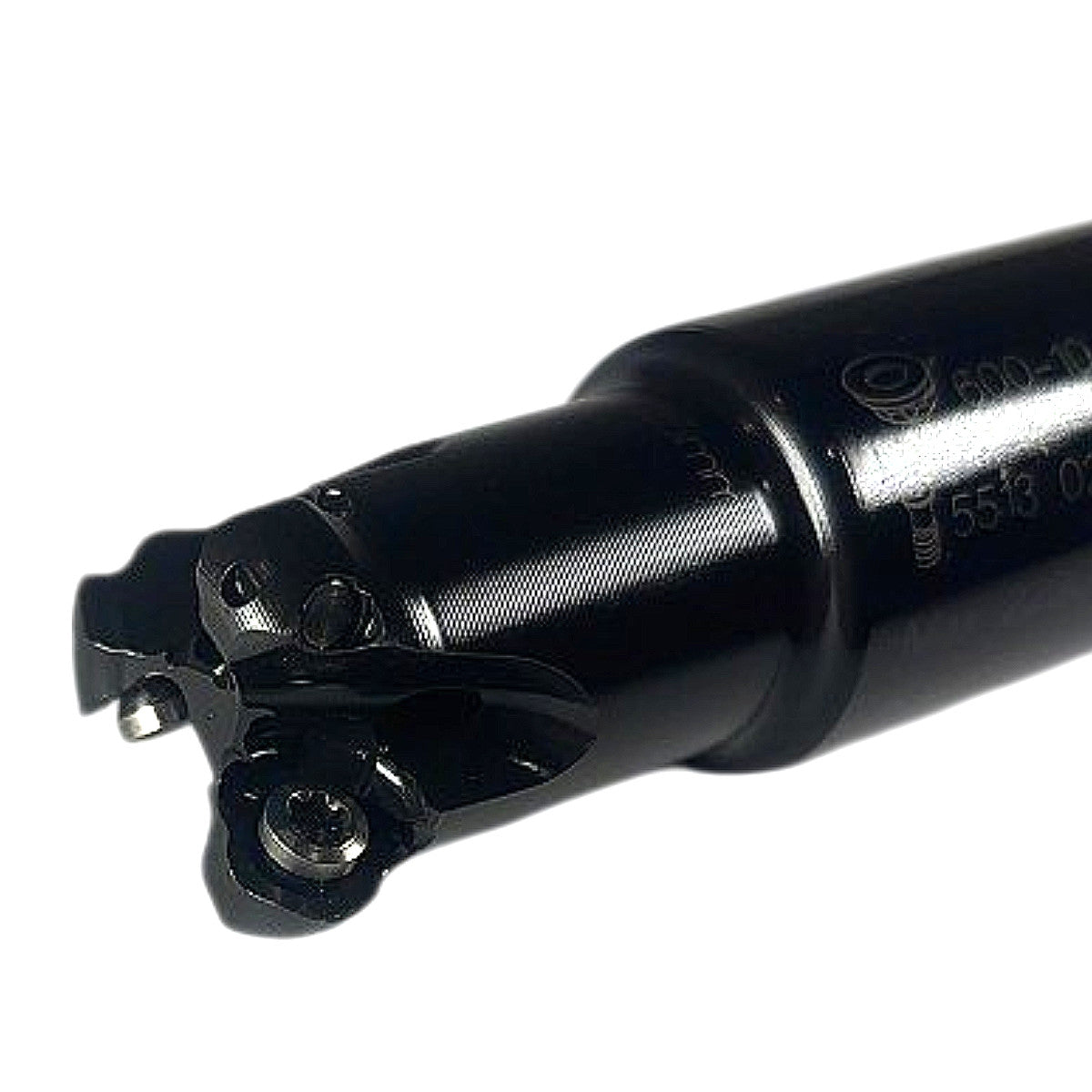

The Sandvik Coromant 600-025A25-10H is a new CoroMill 600 indexable ball nose end mill designed for copy milling and profiling operations in a wide range of workpiece materials. Decoding the MPN: "600" designates the CoroMill 600 product family; "025" indicates 25 mm cutting diameter (DC); "A25" specifies a 25 mm cylindrical straight shank (Weldon-flat style, CZCms interface); "10H" denotes the 10 mm insert size designation and right-hand cut. Per the container label, this tool has a DC of 15 mm effective ball radius cutting diameter — note: the 600-025A25-10H is a 25 mm shank tool accepting R600-10 round inserts with a 15 mm ball cutting diameter, 3 flutes (ZEFP 3 as stamped on lid label). The body is manufactured from alloy steel with a black-oxide/nitrided finish for corrosion resistance, and the insert pockets accept standard Sandvik R600-10T3 series inserts secured by Torx-Plus clamping screws; the kit includes spare clamping screws and a Torx-Plus key as visible in the photos.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 600-025A25-10H |

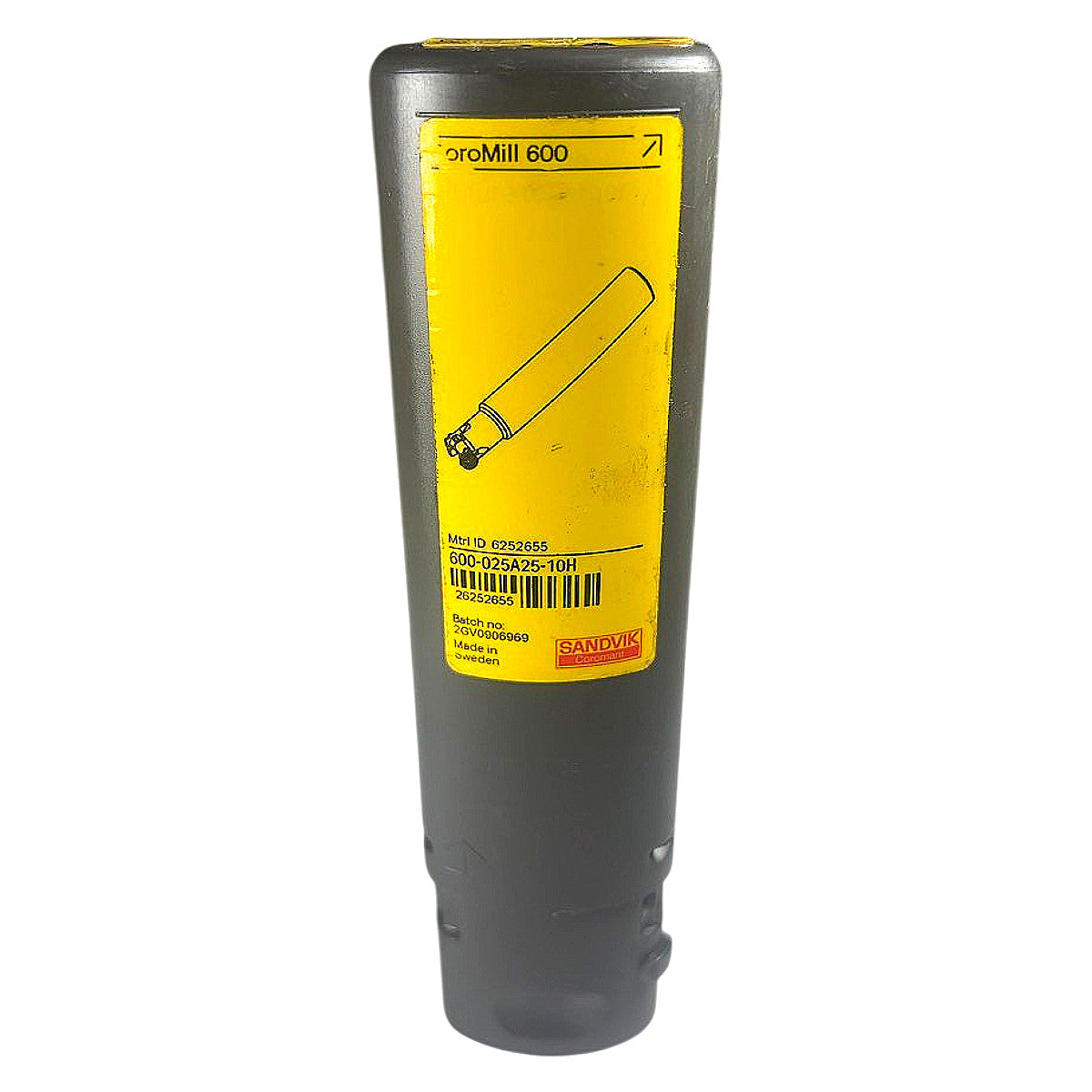

| Material ID | 6252655 |
| Product Family | CoroMill 600 |
| Cutting Diameter (DC) | 15 mm |
| Shank Diameter | 25 mm |
| Shank Style | Cylindrical w/ flat (CZCms), Ø25 |
| Number of Flutes (ZEFP) | 3 |
| Insert Size | 10 mm (R600-10 series) |
| Hand of Cut | Right-hand |
| Country of Origin | Sweden |
| Tool Type | Ball nose indexable end mill |
| Body Material | Alloy steel, black-oxide finish |
| Clamping Style | Torx-Plus screw clamp |
| Condition | New |
