Sandvik 860.1-0300-024A1-NM H10F CoroDrill 860 3mm Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

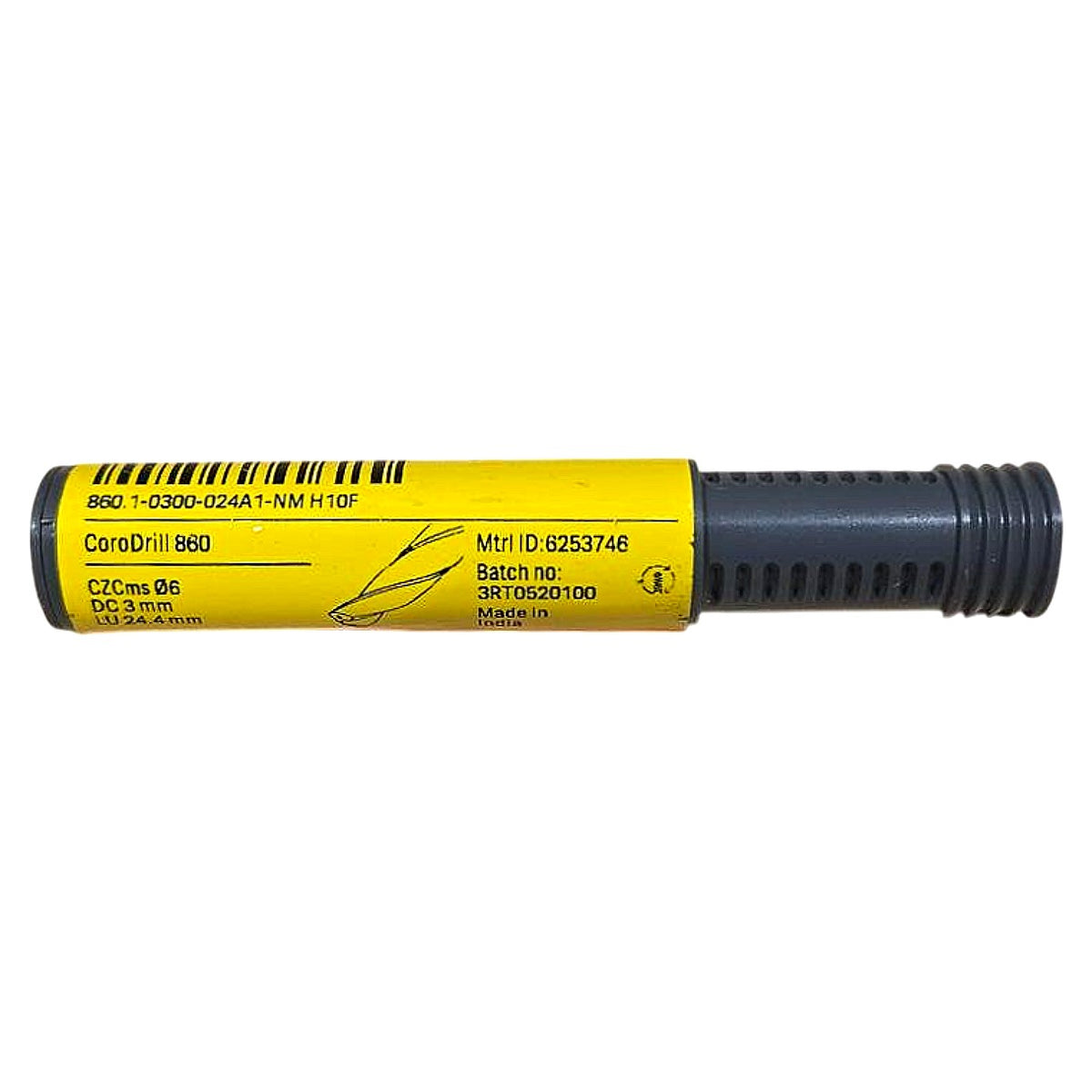

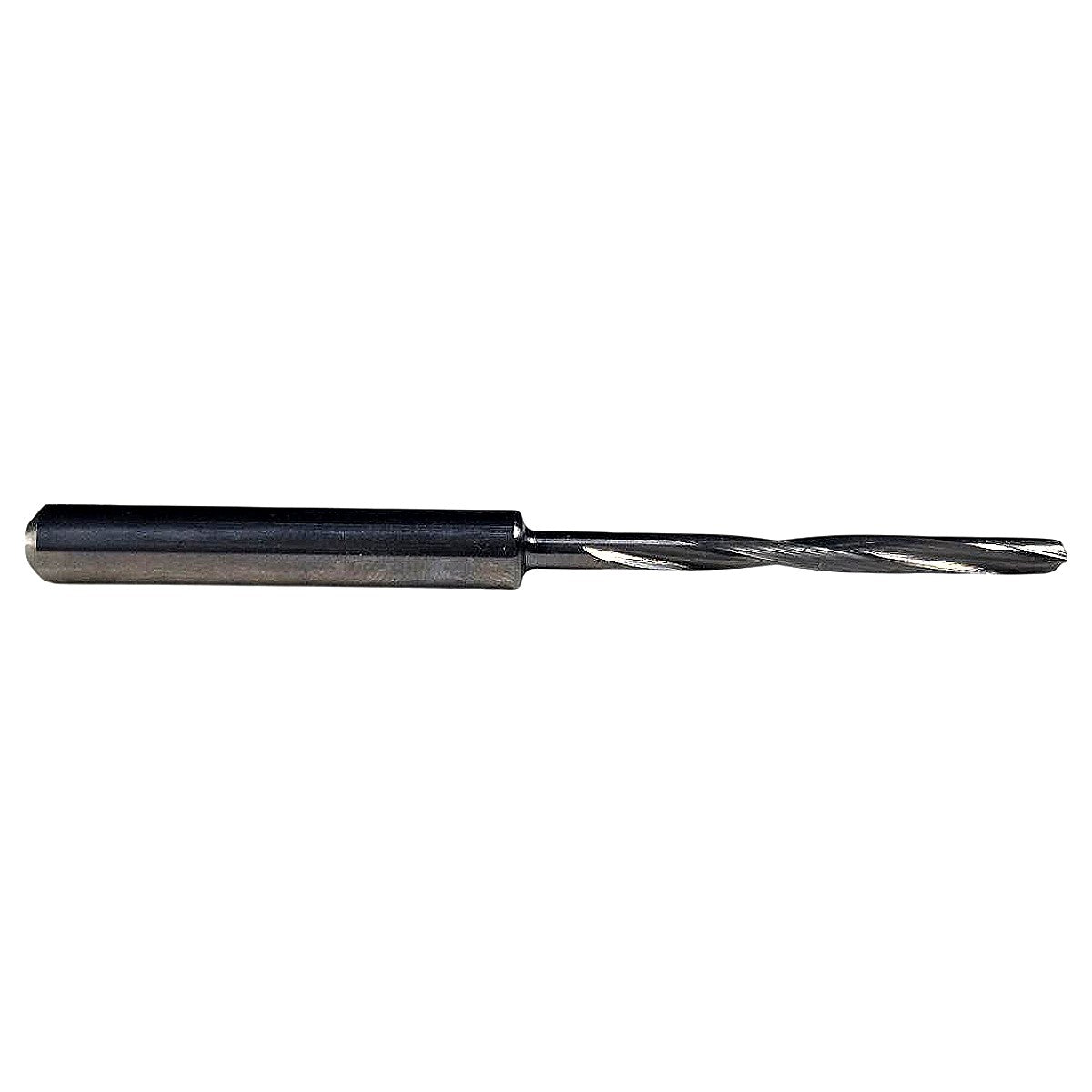

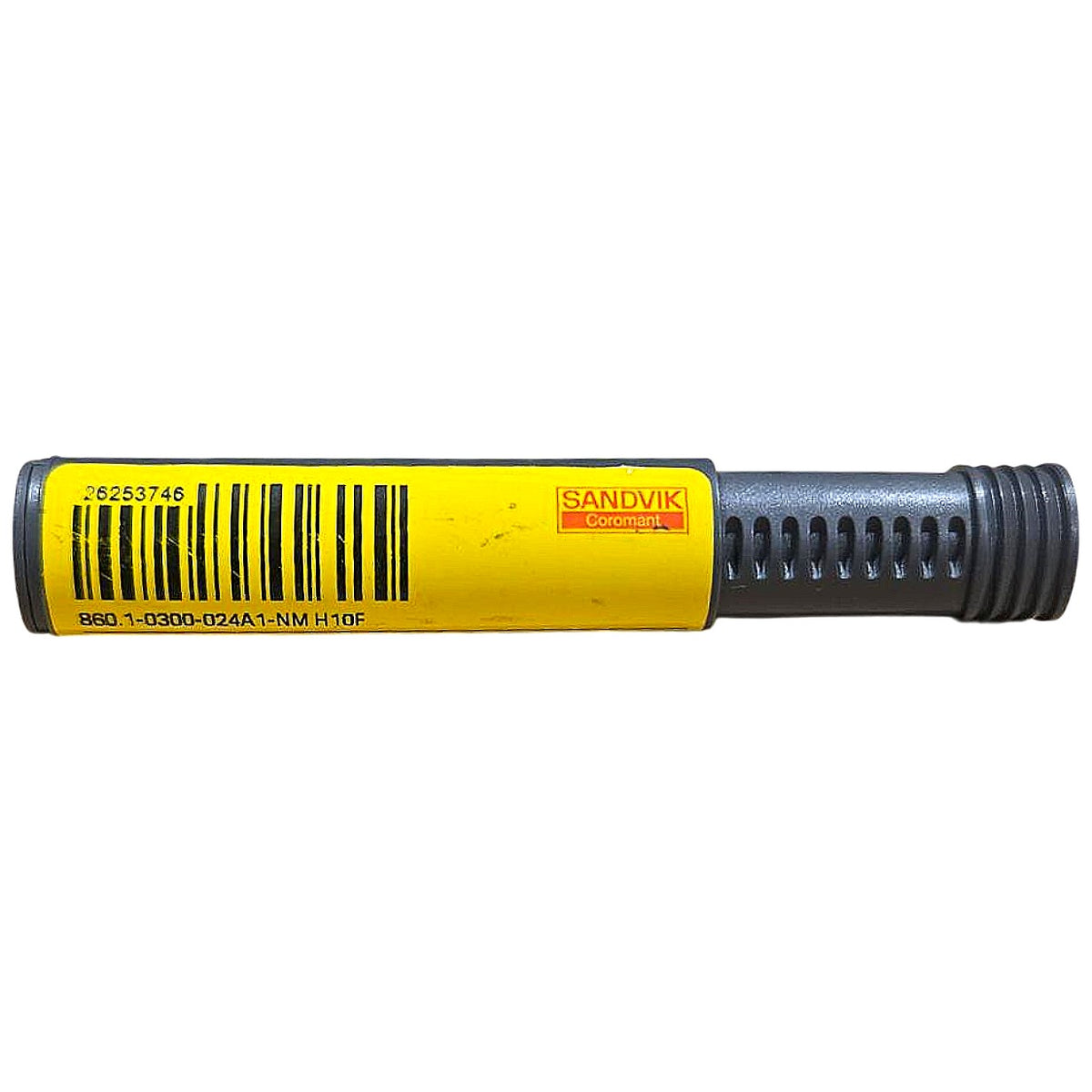

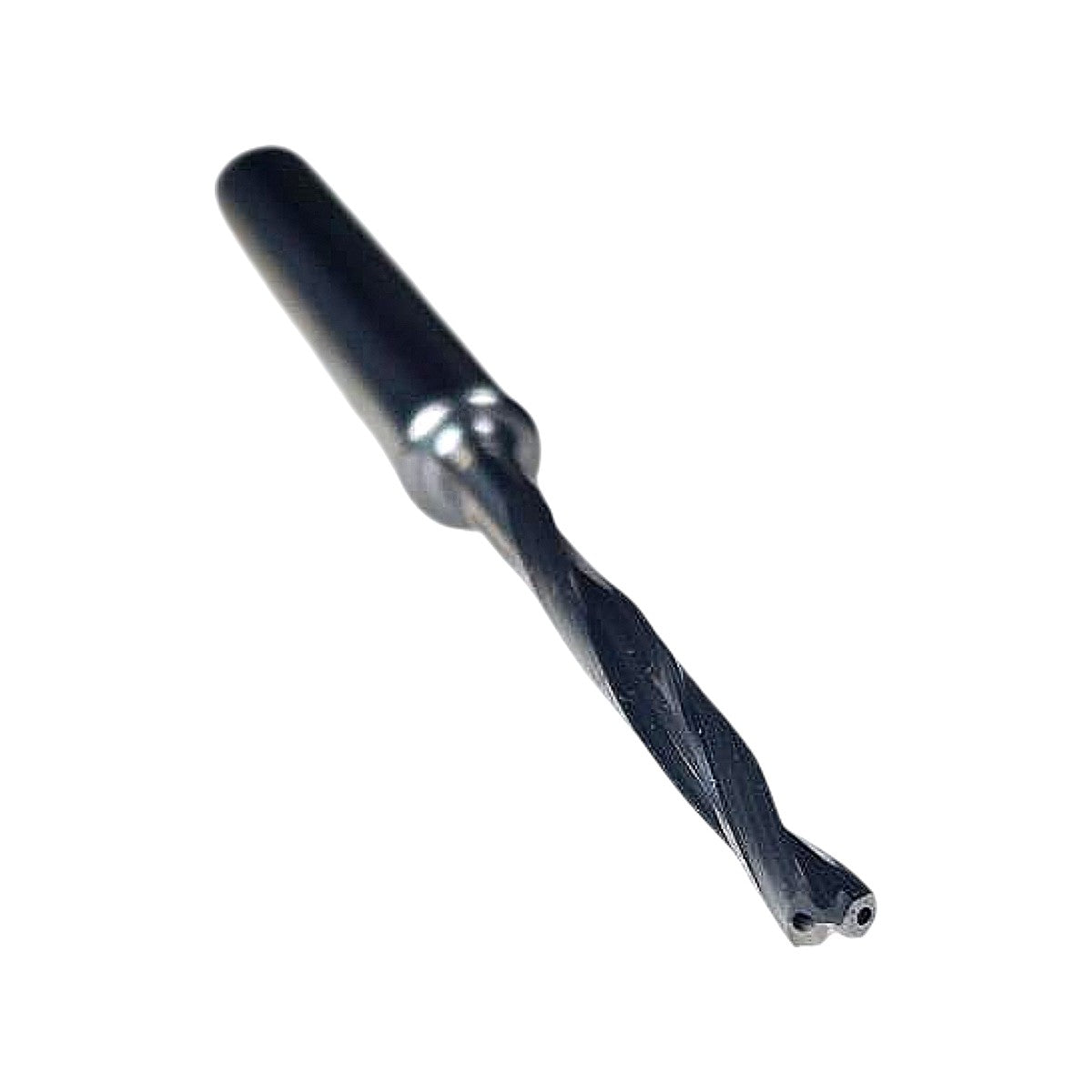

The Sandvik Coromant 860.1-0300-024A1-NM H10F is a new CoroDrill 860 solid carbide twist drill designed for high-productivity hole-making in non-metallic materials (NM designation), featuring a 3 mm cutting diameter (DC), 24.4 mm usable cutting length (LU), and a 6 mm cylindrical shank (CZCms Ø6) as confirmed on the package label. Grade H10F is a fine-grain uncoated tungsten carbide grade optimized for drilling non-metallic materials such as CFRP, GFRP, and other fiber-reinforced composites, offering superior edge sharpness and wear resistance in abrasive, non-metallic workpieces. The 860.1 series features through-coolant capability (visible coolant hole at the drill tip in the photos), a 140° point angle, and helix geometry engineered to minimize delamination and fiber pullout in composite materials. The A1 shank designation confirms a straight cylindrical shank compatible with standard precision collet chucks and hydraulic toolholders accepting 6 mm shanks; the drill carries Sandvik Material ID 6253746 and was manufactured in India (Batch 3RT0520100).
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 860.1-0300-024A1-NM H10F |
| Series | CoroDrill 860 |
| Grade | H10F |
| Cutting Diameter (DC) | 3 mm |
| Usable Cutting Length (LU) | 24.4 mm |
| Shank Diameter | 6 mm |
| Shank Type | Cylindrical (A1) |
| Material Application | Non-metallic (NM) — CFRP, GFRP, composites |
| Coolant | Through-coolant |
| Number of Flutes | 2 |
| Point Angle | 140° |
| Tool Material | Solid carbide |
| Coating | Uncoated |
| Condition | New |
| Country of Origin | India |
| Material ID | 6253746 |
