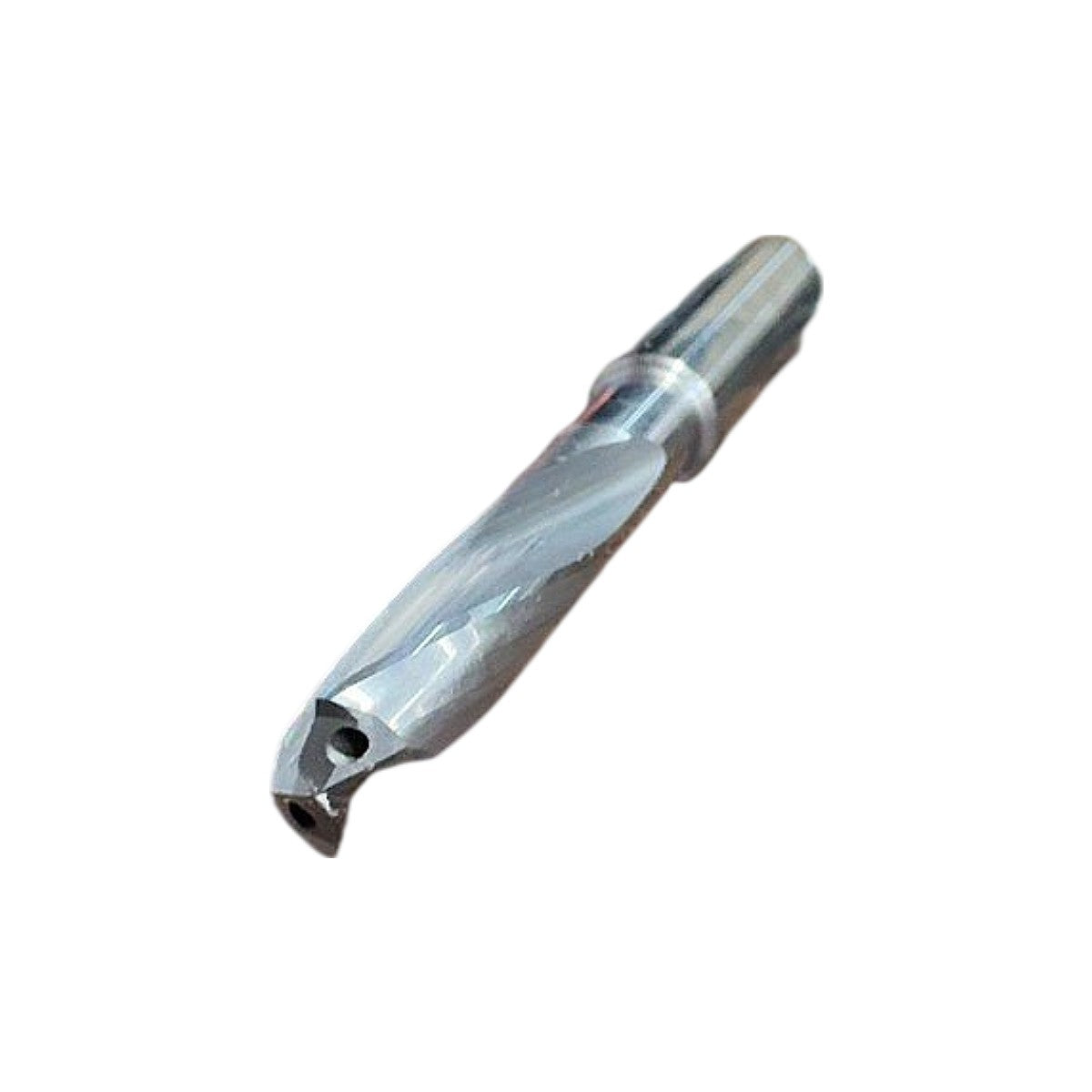

Sandvik 860.1-0630-019A1-NM H10F 6.3mm CoroDrill 860 Indexable Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

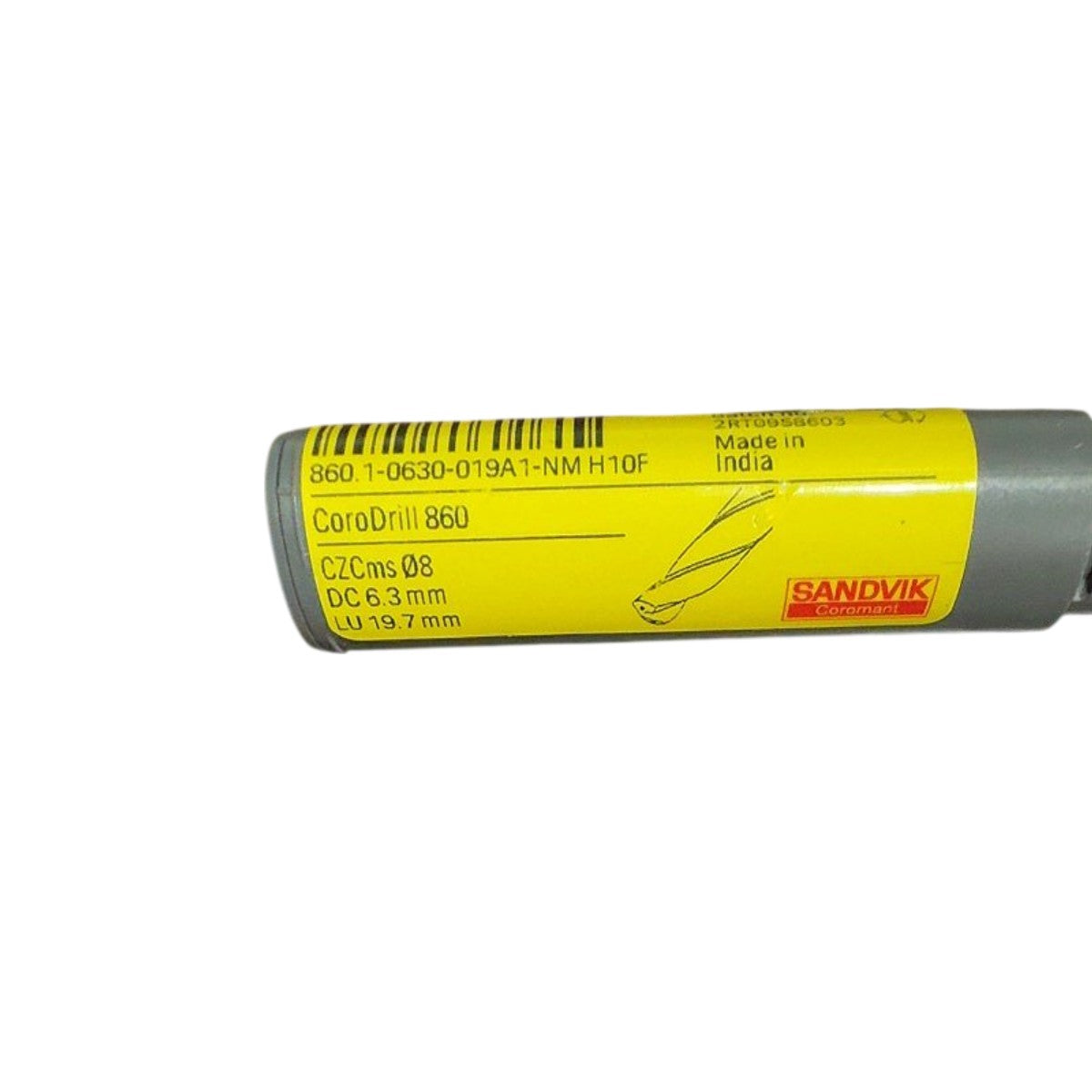

The Sandvik Coromant 860.1-0630-019A1-NM H10F is a new CoroDrill 860 solid carbide indexable insert drill with a 6.3 mm cutting diameter (DC) and 19.7 mm usable cutting length (LU), designed for high-productivity drilling in steel, stainless steel, and cast iron. The grade H10F is an uncoated fine-grain carbide grade optimized for non-metallic and non-ferrous materials (NM designation confirms non-metal application), delivering excellent edge sharpness and wear resistance in these materials. The "A1" shank designation indicates a cylindrical straight shank (Ø8 mm, CZCms Ø8 as labeled), and the drill features through-coolant capability for effective chip evacuation and heat management at the cutting zone. Compatible with Sandvik Coromant CoroDrill 860 toolholders and standard cylindrical shank collet chucks accepting 8 mm shanks, this drill is manufactured in India to Sandvik Coromant's published tolerances (Material ID 6253874).
Product Specifications
| Brand | Sandvik Coromant |
| Series | CoroDrill 860 |
| MPN | 860.1-0630-019A1-NM H10F |

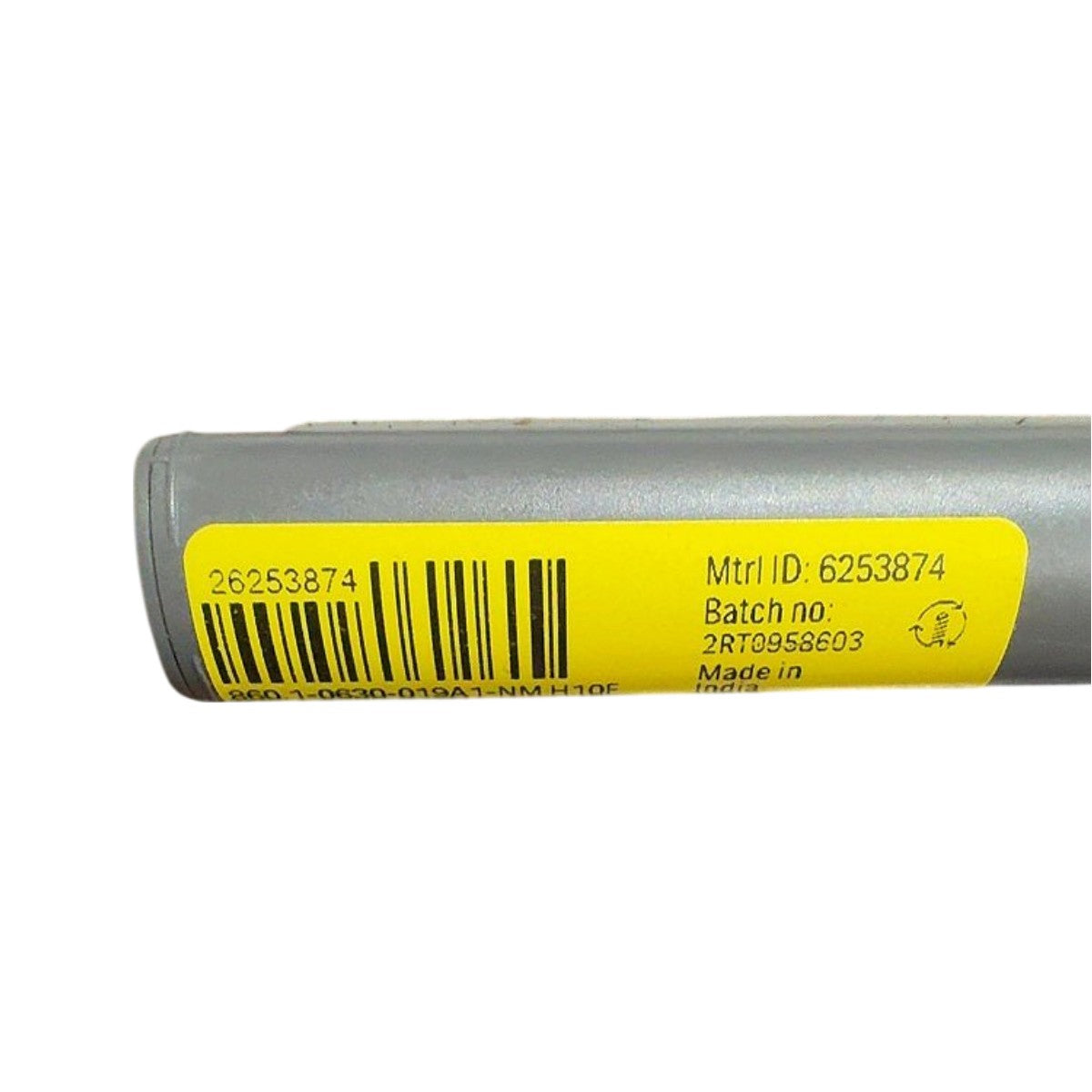

| Material ID | 6253874 |
| Cutting Diameter (DC) | 6.3 mm |
| Usable Cutting Length (LU) | 19.7 mm |
| Shank Diameter | 8 mm (CZCms Ø8) |
| Shank Type | Cylindrical straight shank (A1) |
| Carbide Grade | H10F |
| Application Material | Non-metallic / non-ferrous (NM) |
| Coating | Uncoated |
| Coolant | Through-coolant (internal) |
| Drill Type | Solid carbide indexable insert drill |
| Country of Origin | India |
| Condition | New |
