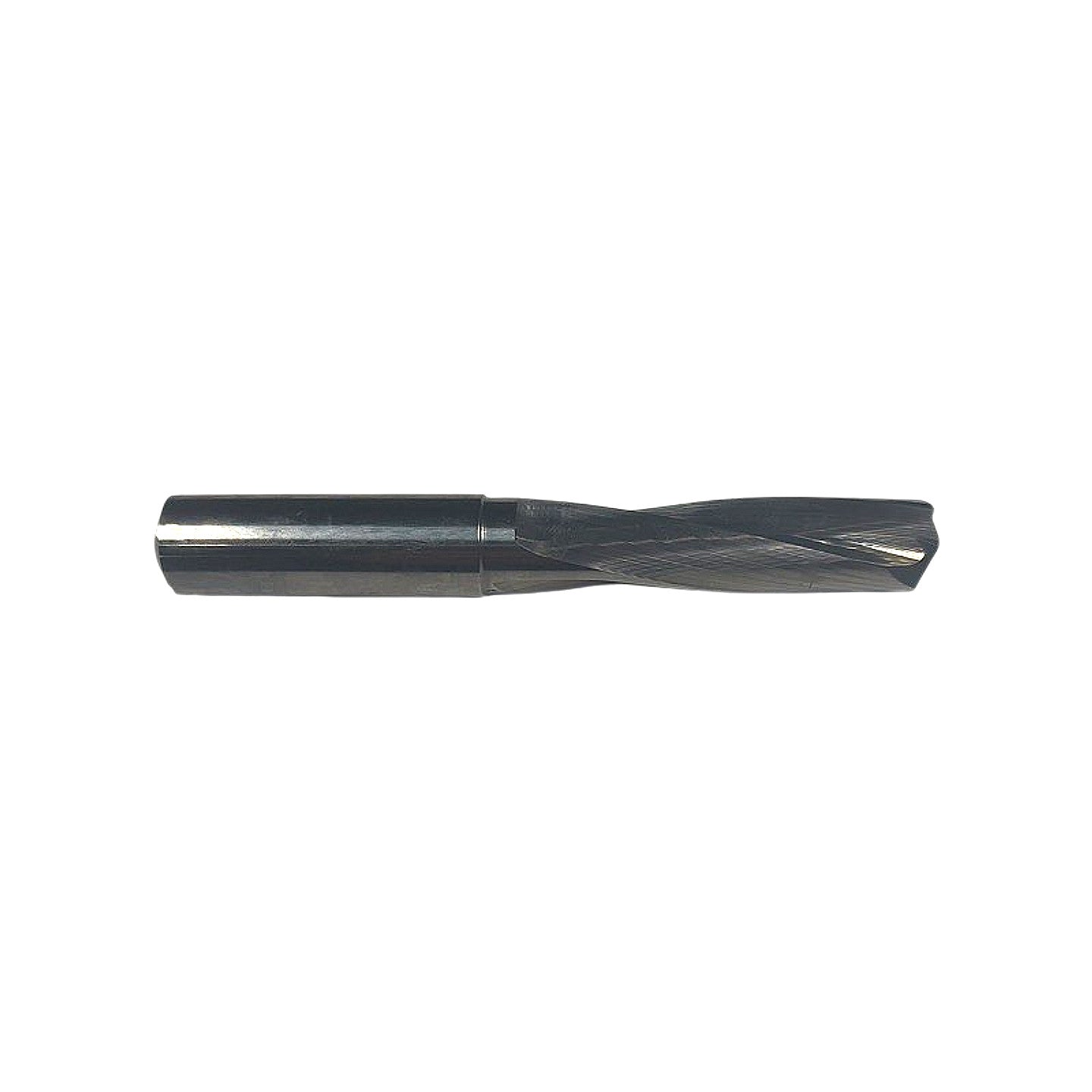

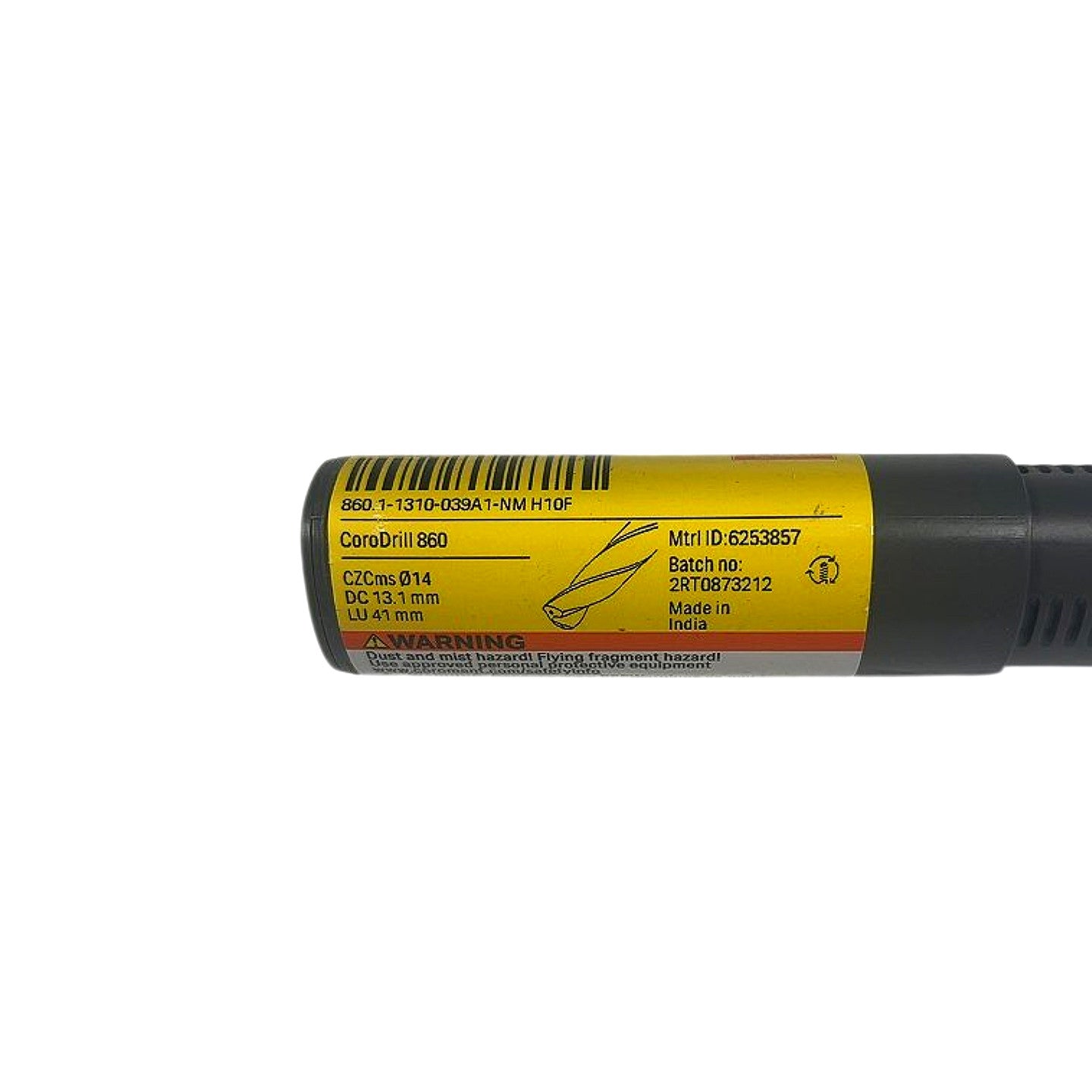

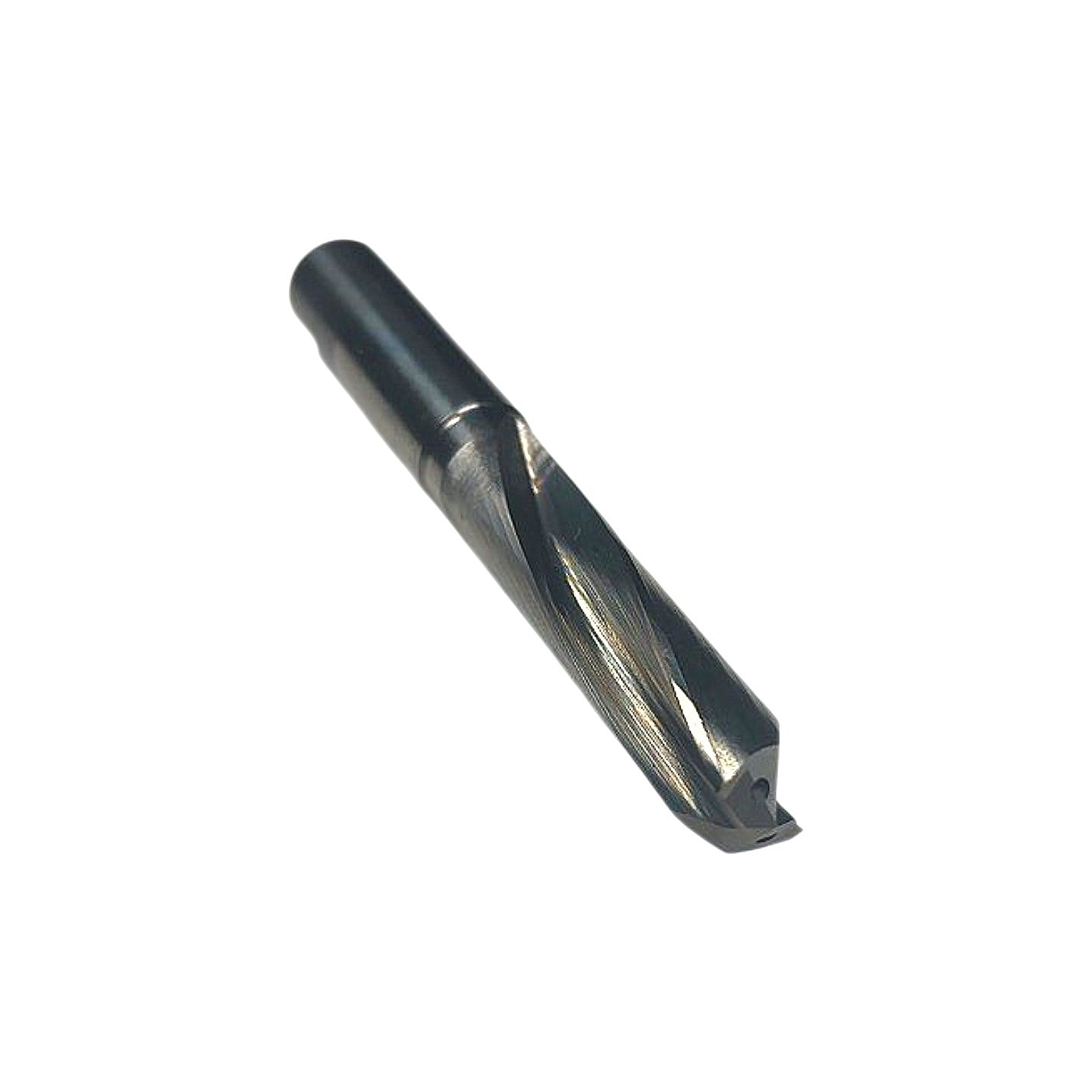

This is a new Sandvik Coromant CoroDrill 860 solid carbide drill, part number 860.1-1310-039A1-NM H10F, Material ID 6253857. The CoroDrill 860 is a screw-machine-length (stub), 3xD flute-length drill with a 130° point angle, through-coolant capability via internal coolant channels, and a 14mm cylindrical shank (CZCms Ø14) with a 13.1mm cutting diameter (DC) and 41mm flute length (LU). The grade H10F is a fine-grain uncoated (NM = no coating) tungsten carbide substrate optimized for non-ferrous materials including aluminum alloys, copper alloys, and plastics, where a TiAlN or TiN coating would cause built-up edge. The drill accepts standard cylindrical toolholders and collet chucks with a 14mm bore; the stepped-down cutting diameter of 13.1mm (33/64 in) produces near-net holes in non-ferrous workpieces at high cutting speeds. Made in India per label.
Product Specifications
| Brand | Sandvik Coromant |
| Part Number (MPN) | 860.1-1310-039A1-NM H10F |
| Material ID | 6253857 |
| Product Line | CoroDrill 860 |
| Cutting Diameter (DC) | 13.1 mm (33/64 in) |
| Shank Diameter | 14 mm (CZCms Ø14) |
| Flute Length (LU) | 41 mm |
| Point Angle | 130° |
| Drill Depth Capacity | 3xD |
| Grade | H10F |
| Coating | Uncoated (NM) |
| Substrate | Solid carbide, fine-grain |
| Coolant Through | Yes (internal coolant channels) |
| Shank Type | Cylindrical (CZCms) |
| Length Style | Screw machine / stub length |
| Number of Flutes | 2 |
| Hand of Cut | Right-hand |
| Country of Origin | India |
| Condition | New |
| Recommended Work Material | Non-ferrous (aluminum, copper alloys, plastics) |
