Sandvik 862.1-2180-189A1-GM X2BM 2.18mm Solid Carbide Drill

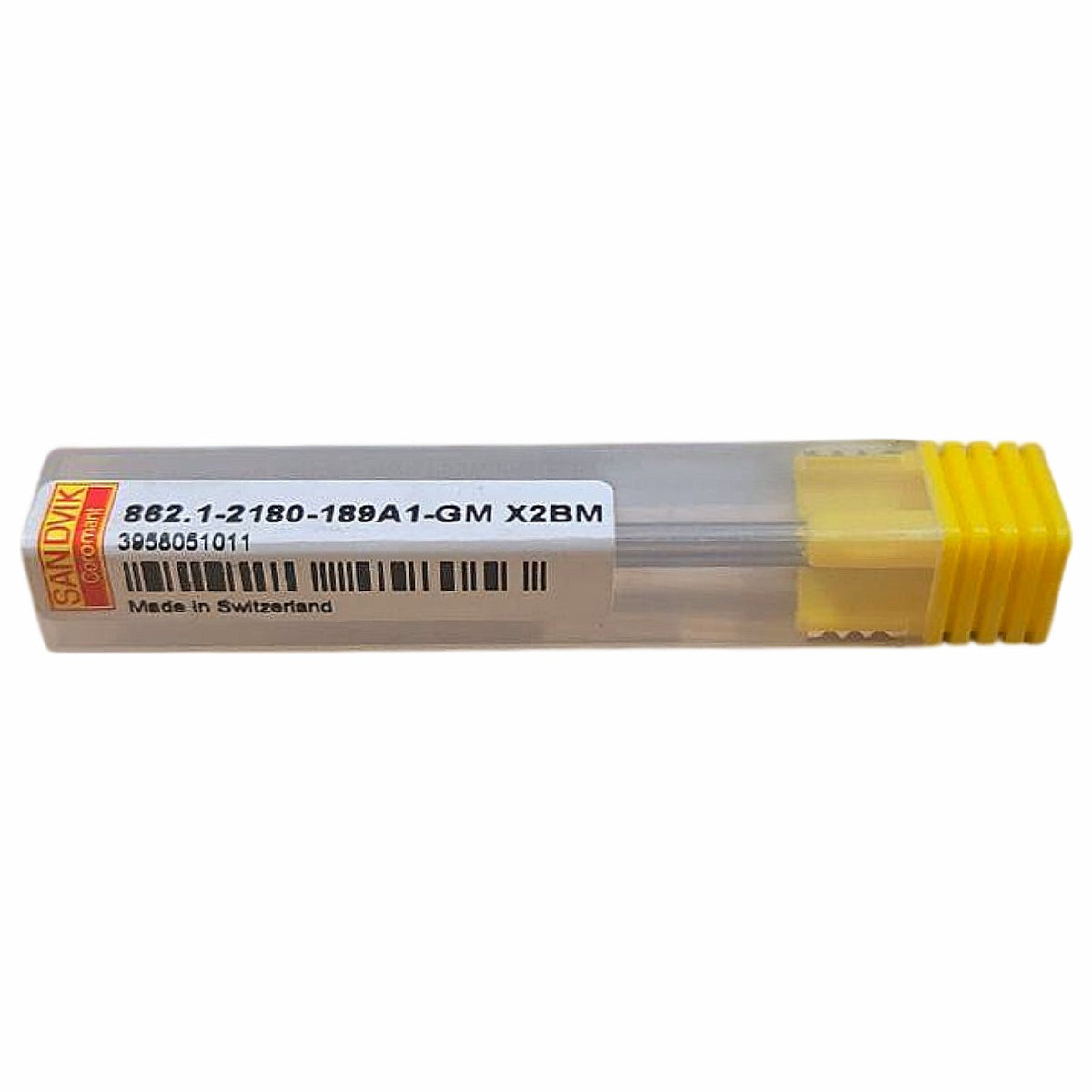

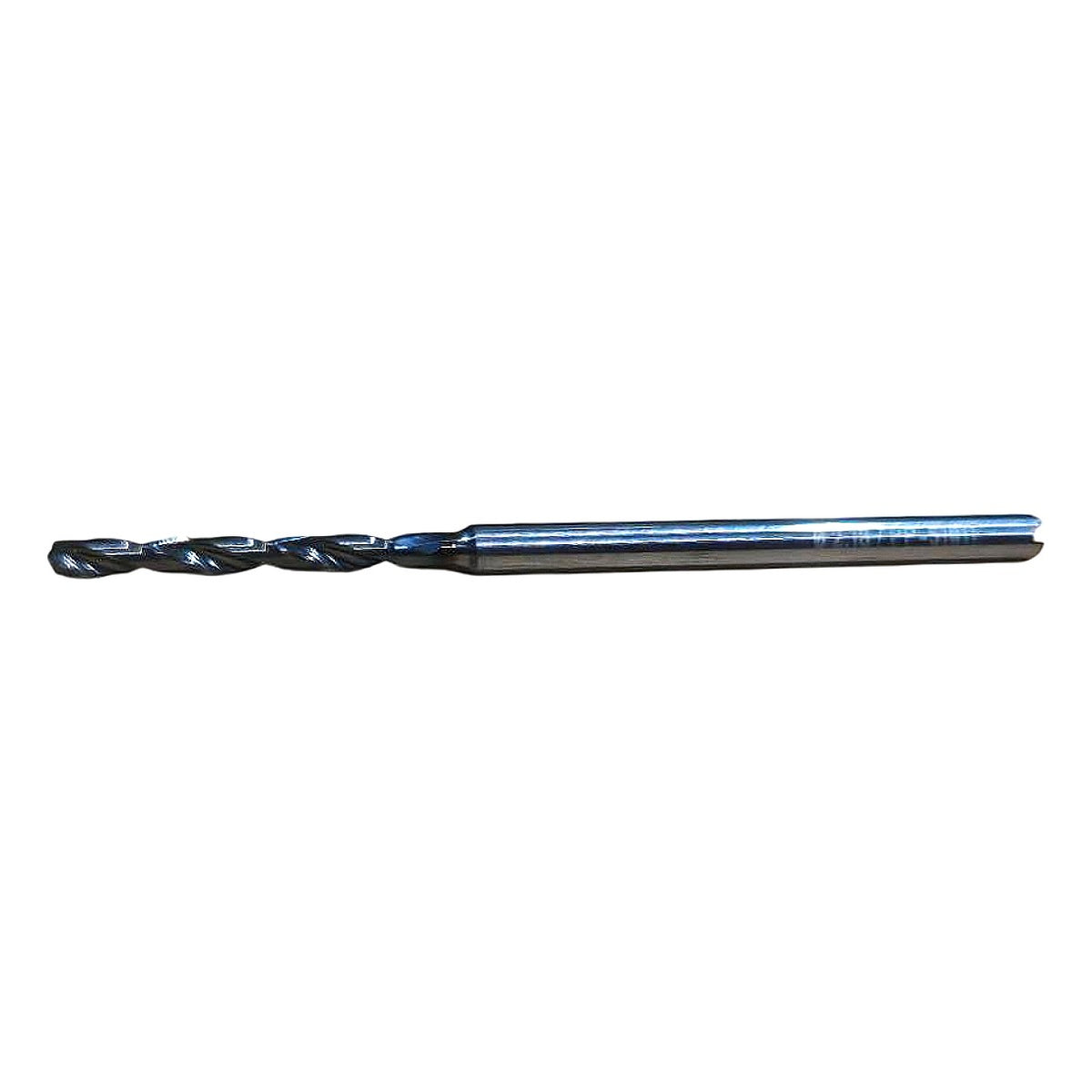

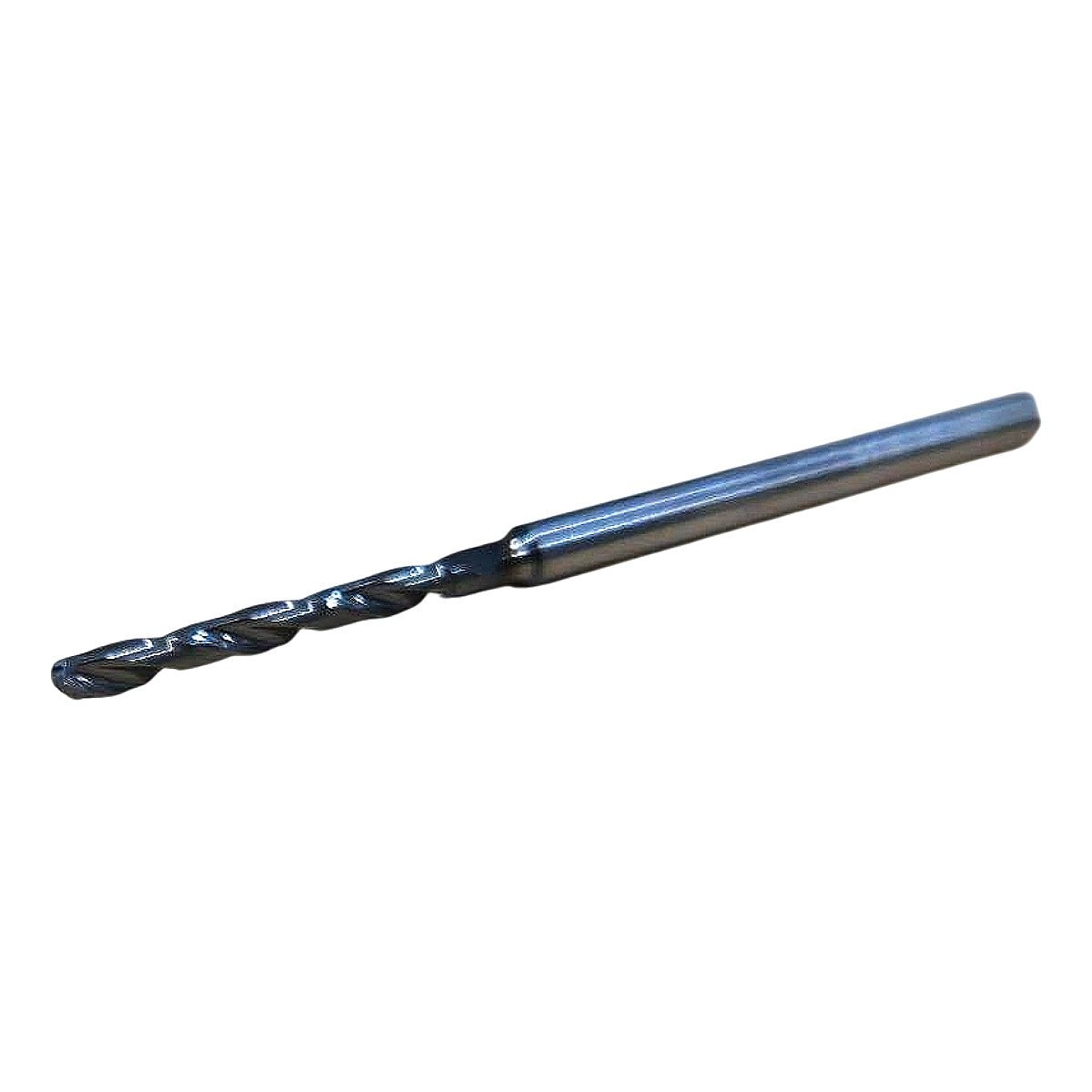

This is a new Sandvik Coromant 862.1-2180-189A1-GM X2BM solid carbide micro drill from the CoroDrill 862 series, manufactured in Switzerland (confirmed on label). Decoding the MPN: "862.1" = CoroDrill 862, step-type geometry variant (.1); "2180" = 2.180 mm cutting diameter; "189" = 1.89 mm neck/flute diameter (reduced neck for rigidity in small-diameter step drill format); "A1" = 1 × Dc point geometry / straight shank designation; "GM" = GM ground geometry chipbreaker; "X2BM" = grade X2BM, a fine-grain solid carbide substrate with an nACo (nano-composite AlCrN-based) PVD coating optimized for ISO P, M, K, and N materials — the dark blue-black appearance on the flutes visible in the photos confirms the PVD coating. The CoroDrill 862 series is engineered specifically for small-diameter hole making (micro-drilling) in steel, stainless steel, cast iron, aluminum, and non-ferrous materials, with a 140° point angle suited for flat-bottomed entry performance and chip evacuation in deep-hole applications. Compatible with CoroPak and other precision collet chucks accepting a cylindrical straight shank; the oversized shank (visible in photos as the larger-diameter uncoated cylindrical body relative to the flute diameter) enables secure clamping in standard ER collets despite the sub-3 mm cutting diameter.

Product Specifications
