Sandvik 870-1480-14-KM 3334 14.8mm CoroDrill 870 Replaceable Tip (2 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

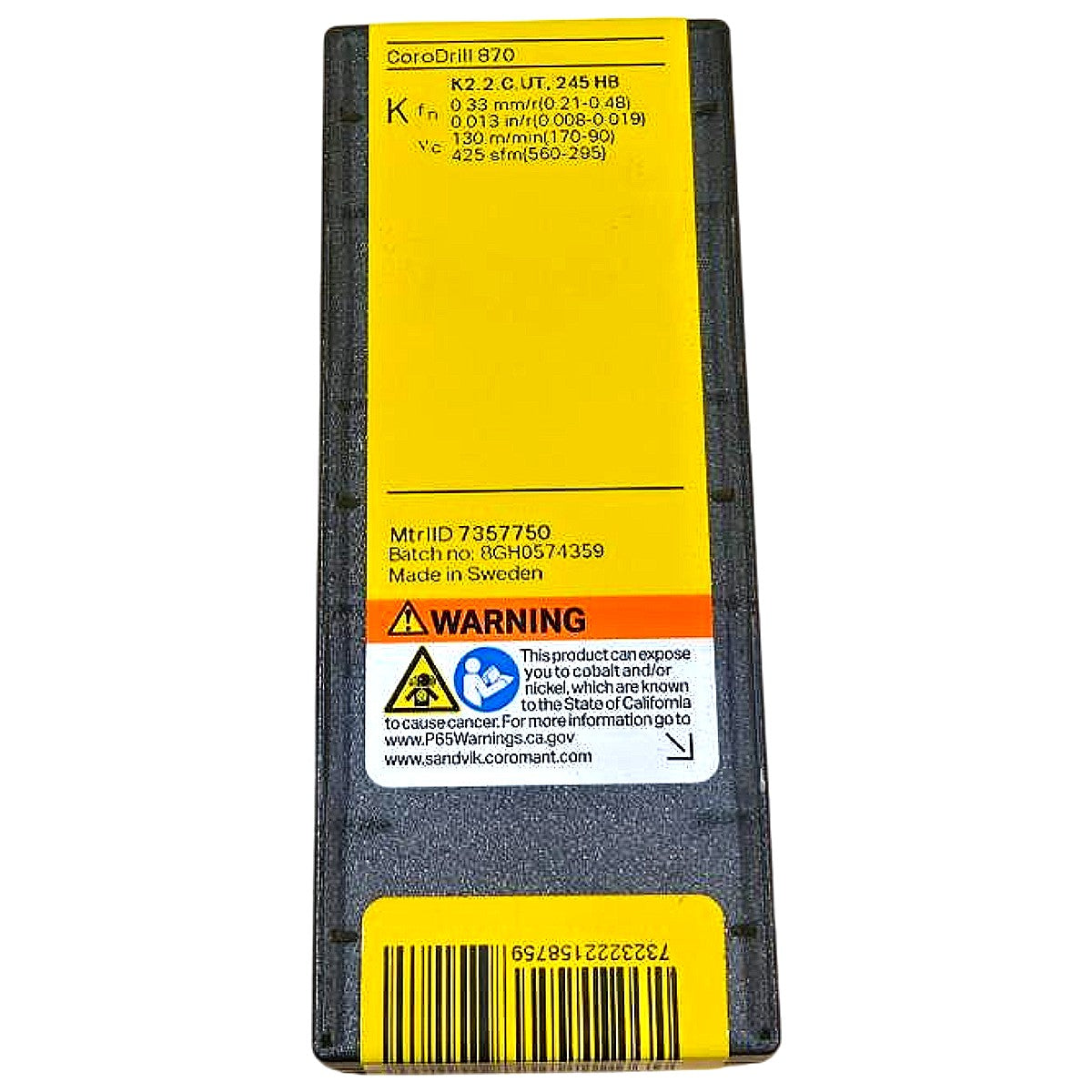

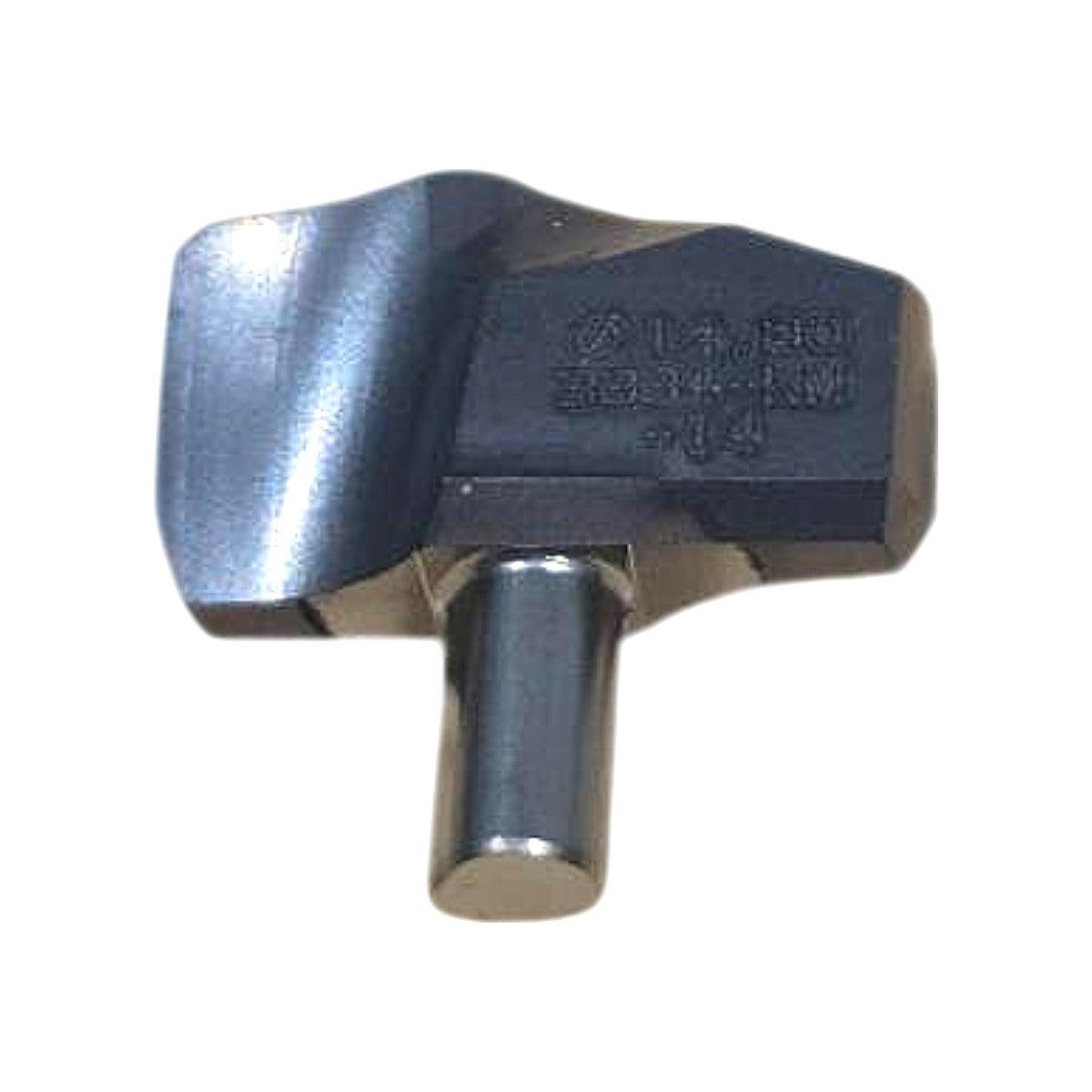

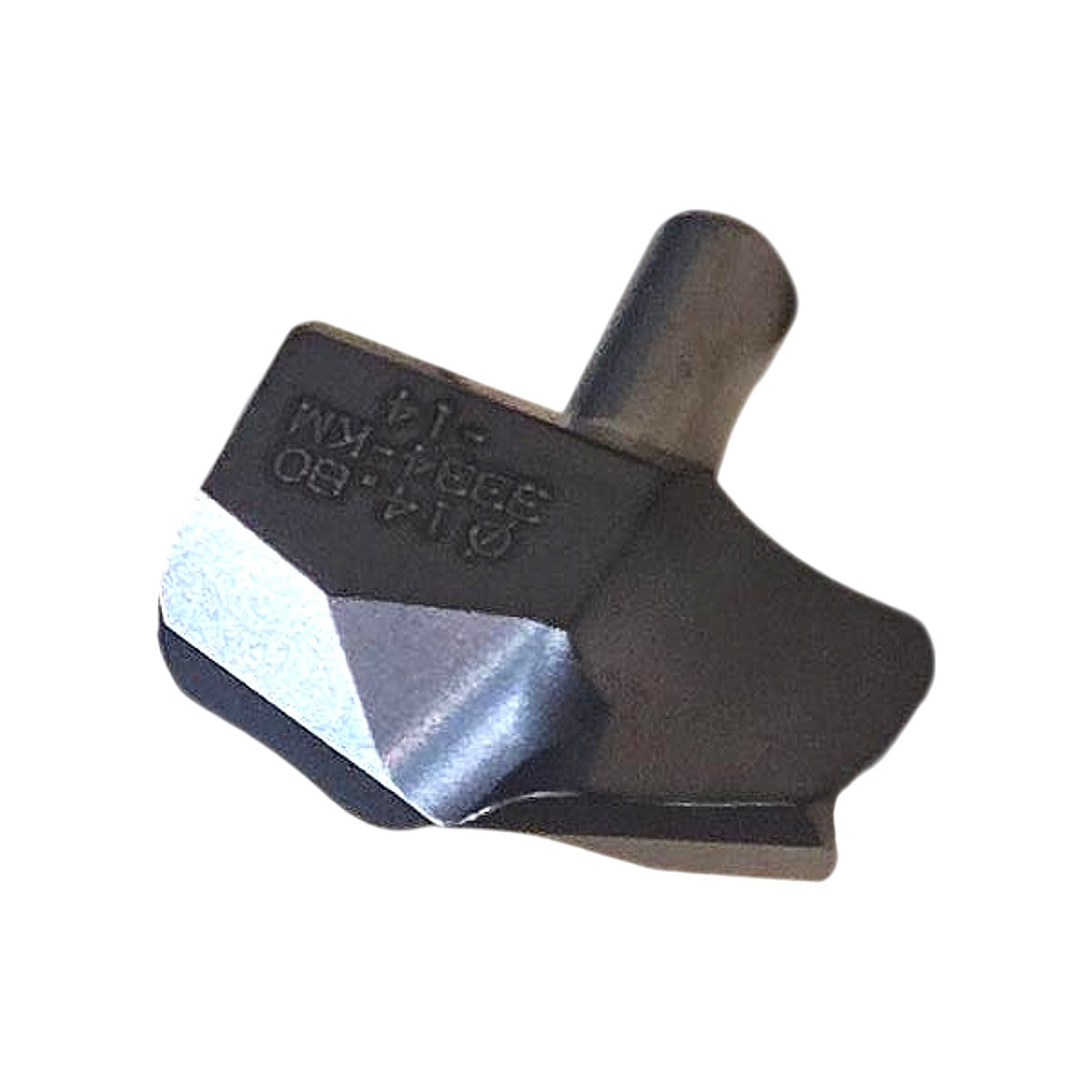

This listing is for two (2) new Sandvik Coromant 870-1480-14-KM replaceable carbide drill tips in grade 3334, designed for use with the CoroDrill® 870 indexable drill system. The part number decodes as follows: 870 = CoroDrill 870 system; 1480 = 14.80 mm drilling diameter; 14 = tip length/shank diameter code; KM = carbide grade family (uncoated or PVD-coated fine-grain carbide). Grade 3334 is a PVD TiAlN-coated fine-grain cemented carbide optimized for ISO K materials (cast iron) with a recommended cutting speed of 130 m/min (425 sfm) and feed of 0.33 mm/rev (0.013 in/rev) as confirmed on the package label. These tips seat into compatible CoroDrill 870 drill bodies at the matching 14 mm shank interface and are manufactured in Sweden; the two-flute geometry with a self-centering point delivers excellent hole roundness and positional accuracy without a pilot hole.
Product Specifications
| Brand | Sandvik Coromant |

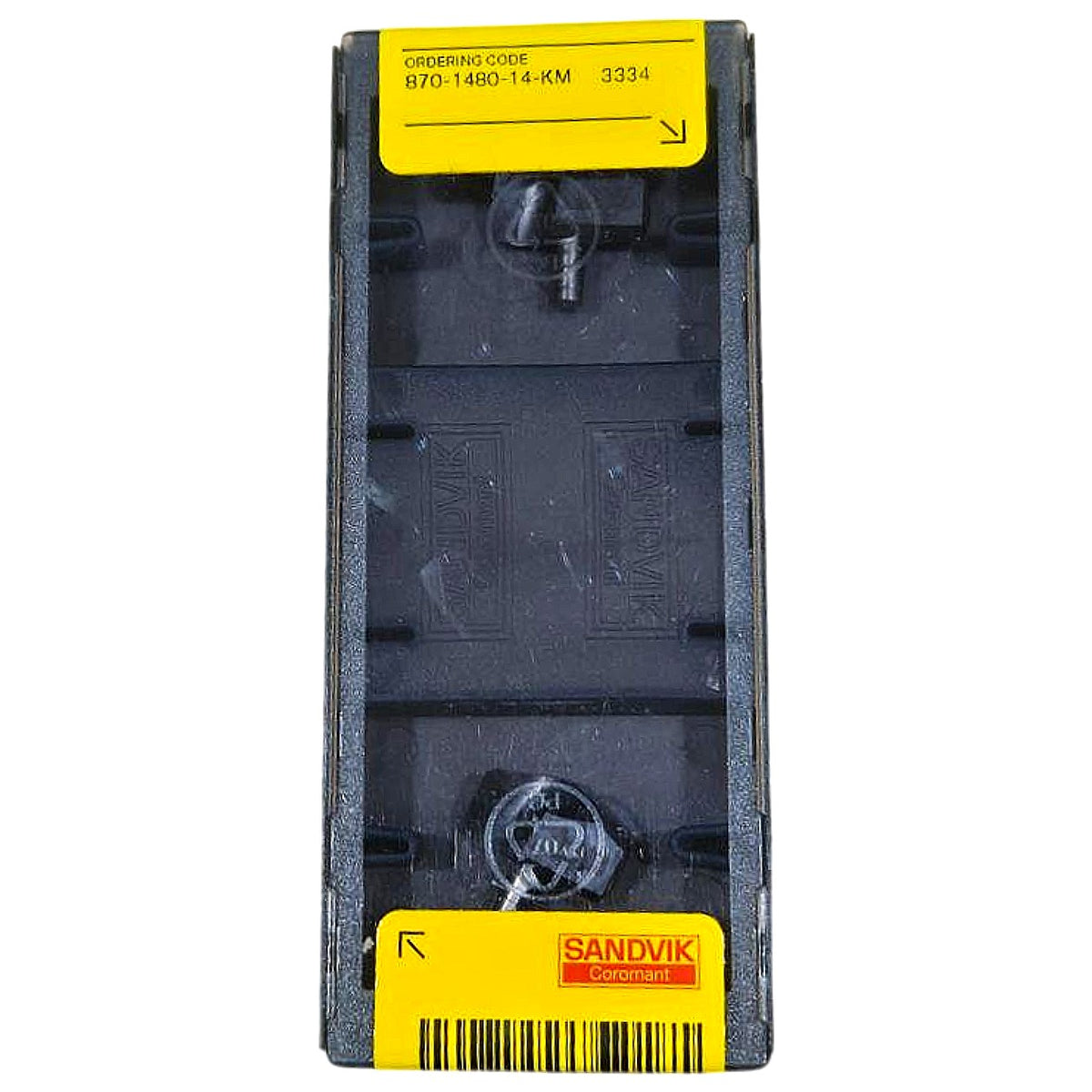

| Ordering Code / MPN | 870-1480-14-KM |
| Grade | 3334 |
| Drill System | CoroDrill 870 |
| Drilling Diameter | 14.80 mm (0.583 in) |
| Tip/Shank Interface Code | 14 mm |
| Number of Flutes | 2 |
| ISO Material Group | K (cast iron) |
| Workpiece Hardness | ≤245 HB |
| Coating | PVD TiAlN (KM grade) |
| Substrate | Fine-grain cemented carbide |
| Recommended Feed (fn) | 0.33 mm/rev (0.013 in/rev) |
| Feed Range | 0.21–0.48 mm/rev (0.008–0.019 in/rev) |
| Recommended Cutting Speed (Vc) | 130 m/min (425 sfm) |
| Cutting Speed Range | 90–170 m/min (295–560 sfm) |
| Country of Origin | Sweden |

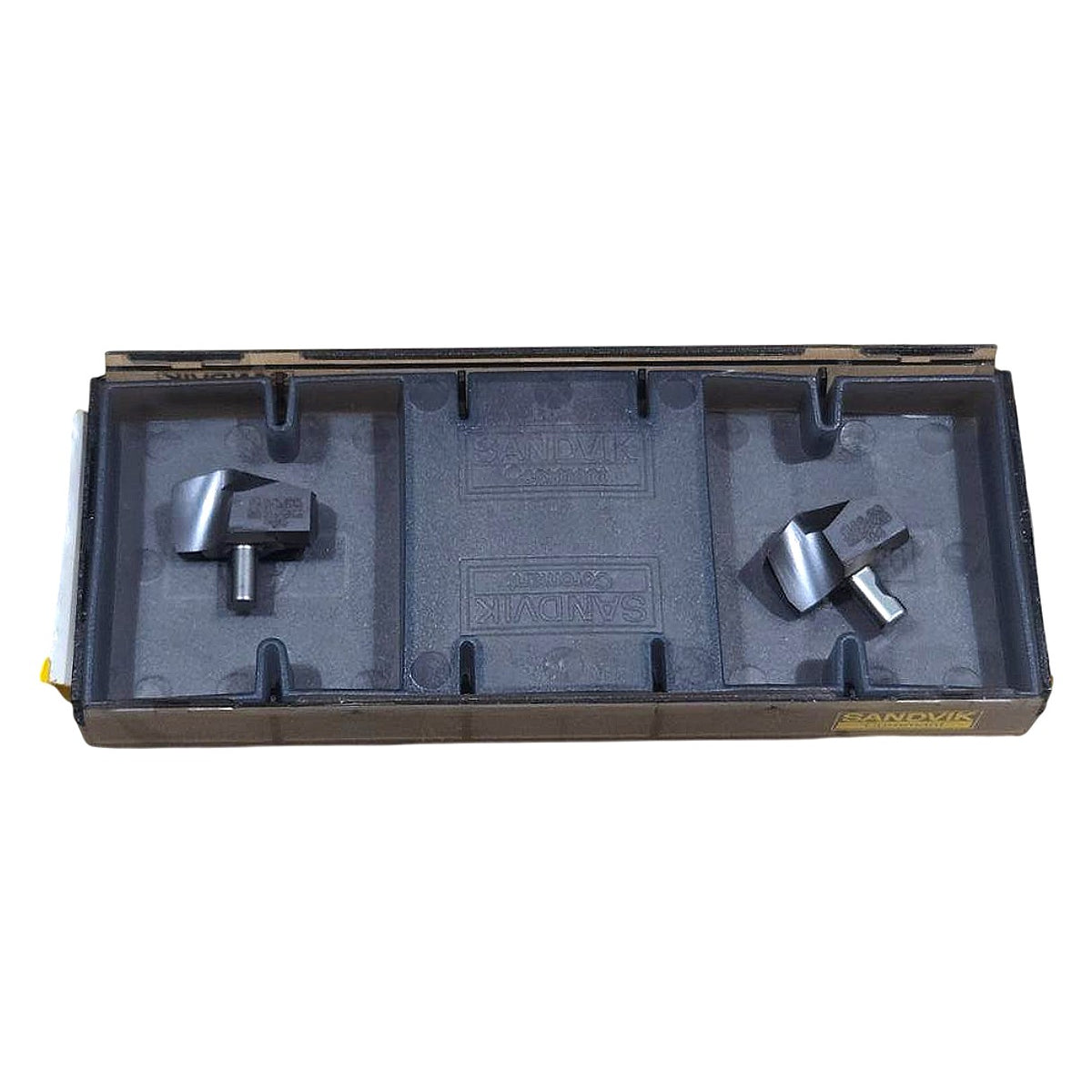

| Quantity per Package | 2 pcs |
| Condition | New |
| MtrIID | 7357750 |
| Batch No. | 8GH0574359 |
