Sandvik 870-2010-20-PM 4334 20.10mm CoroDrill 870 Drill Insert
Regular price
$79.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

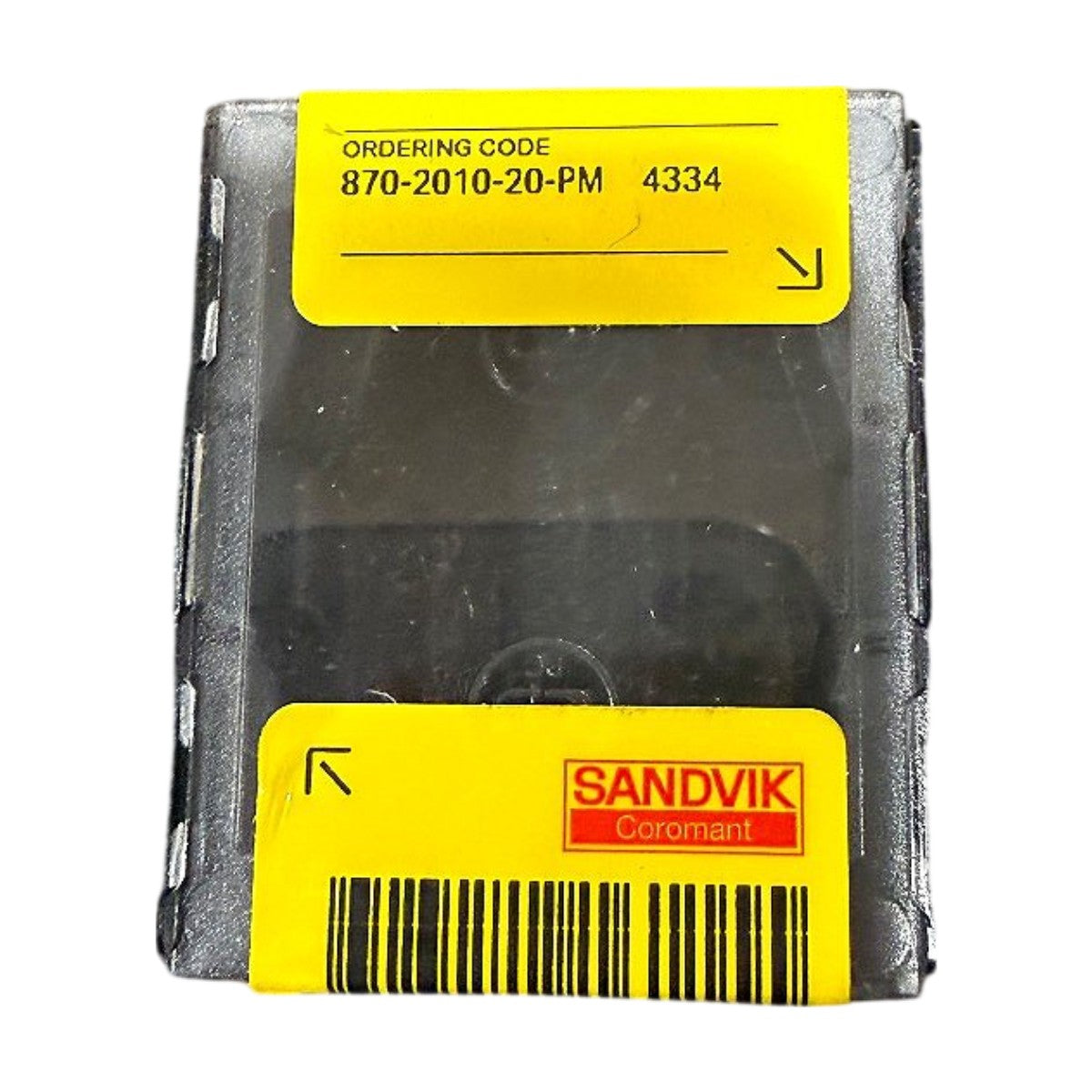

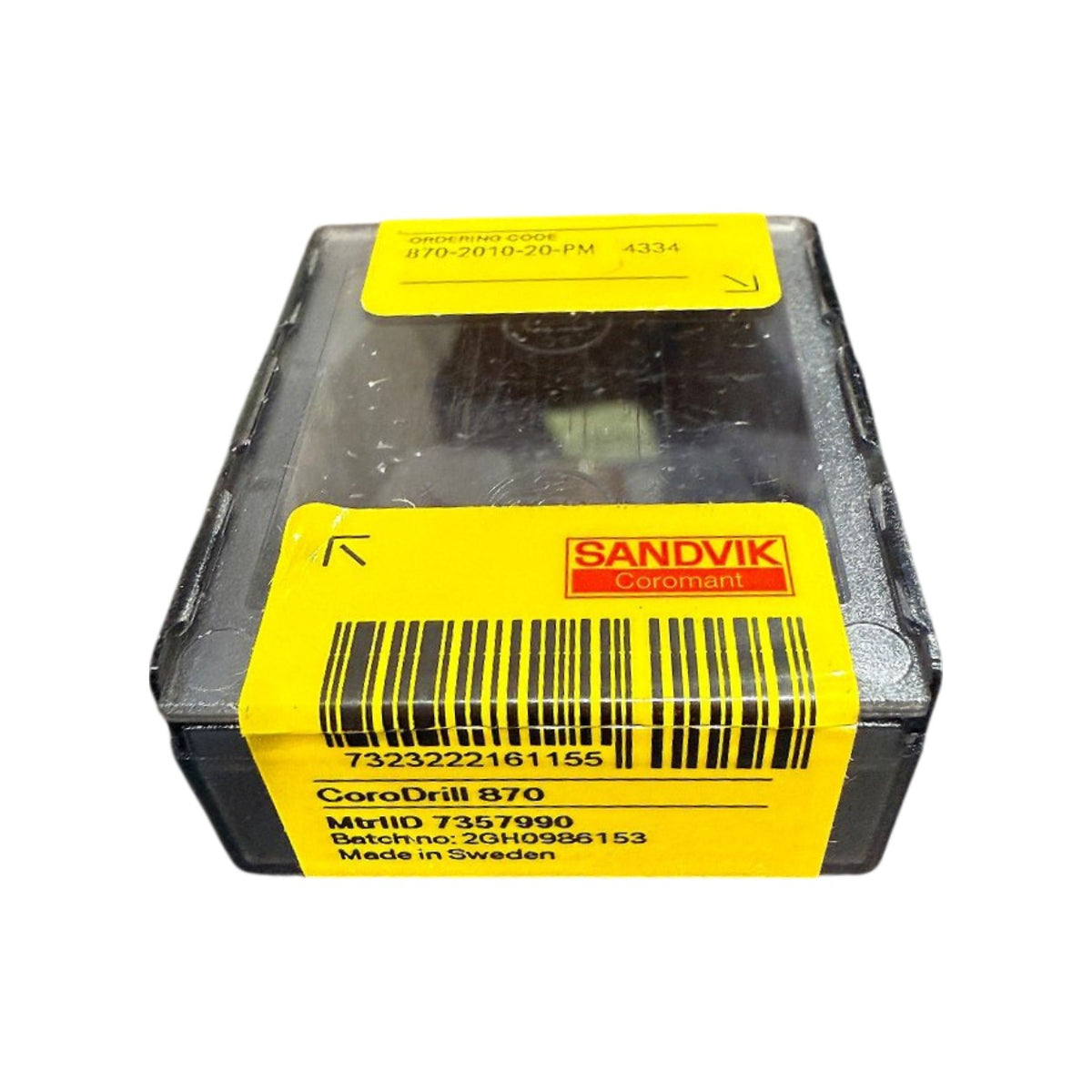

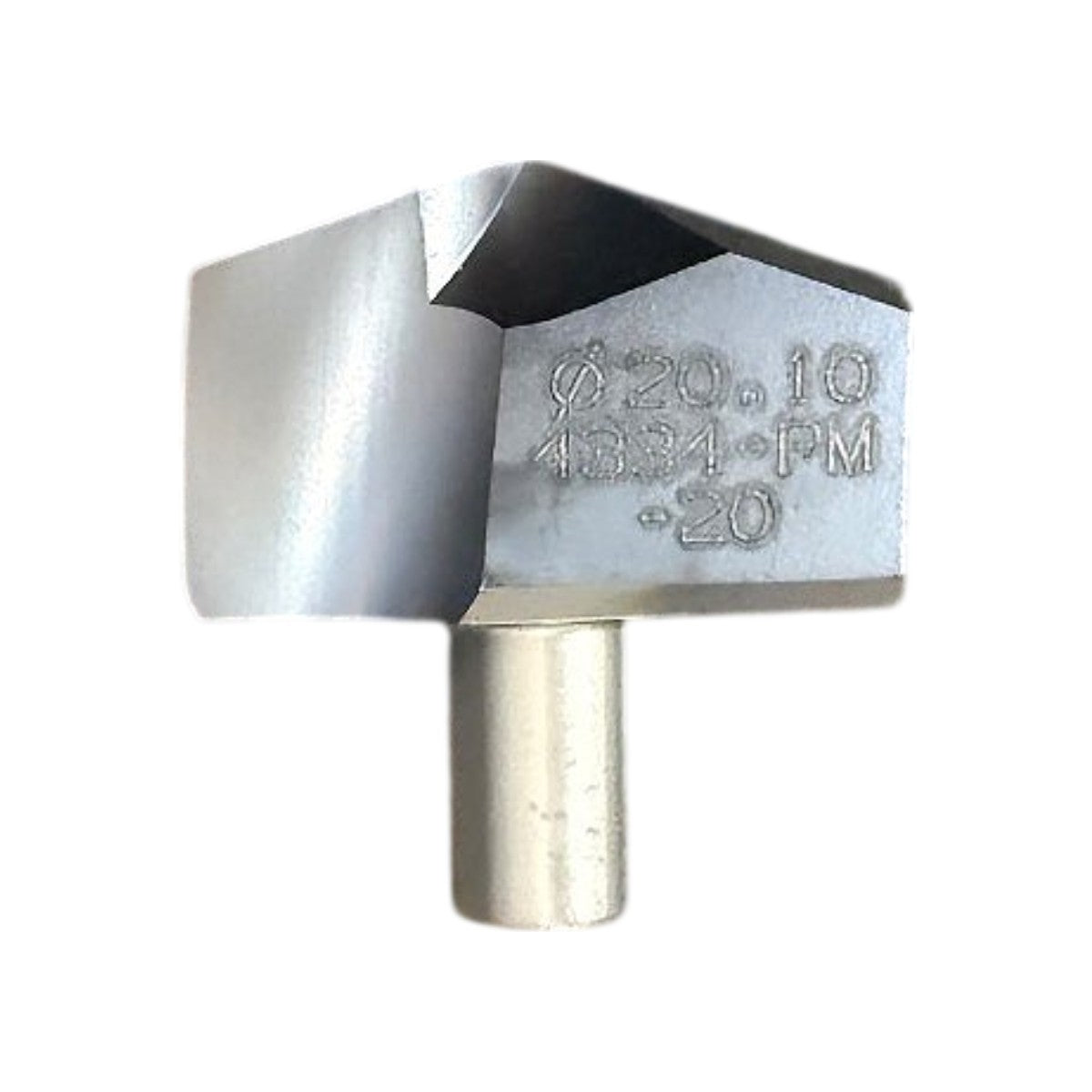

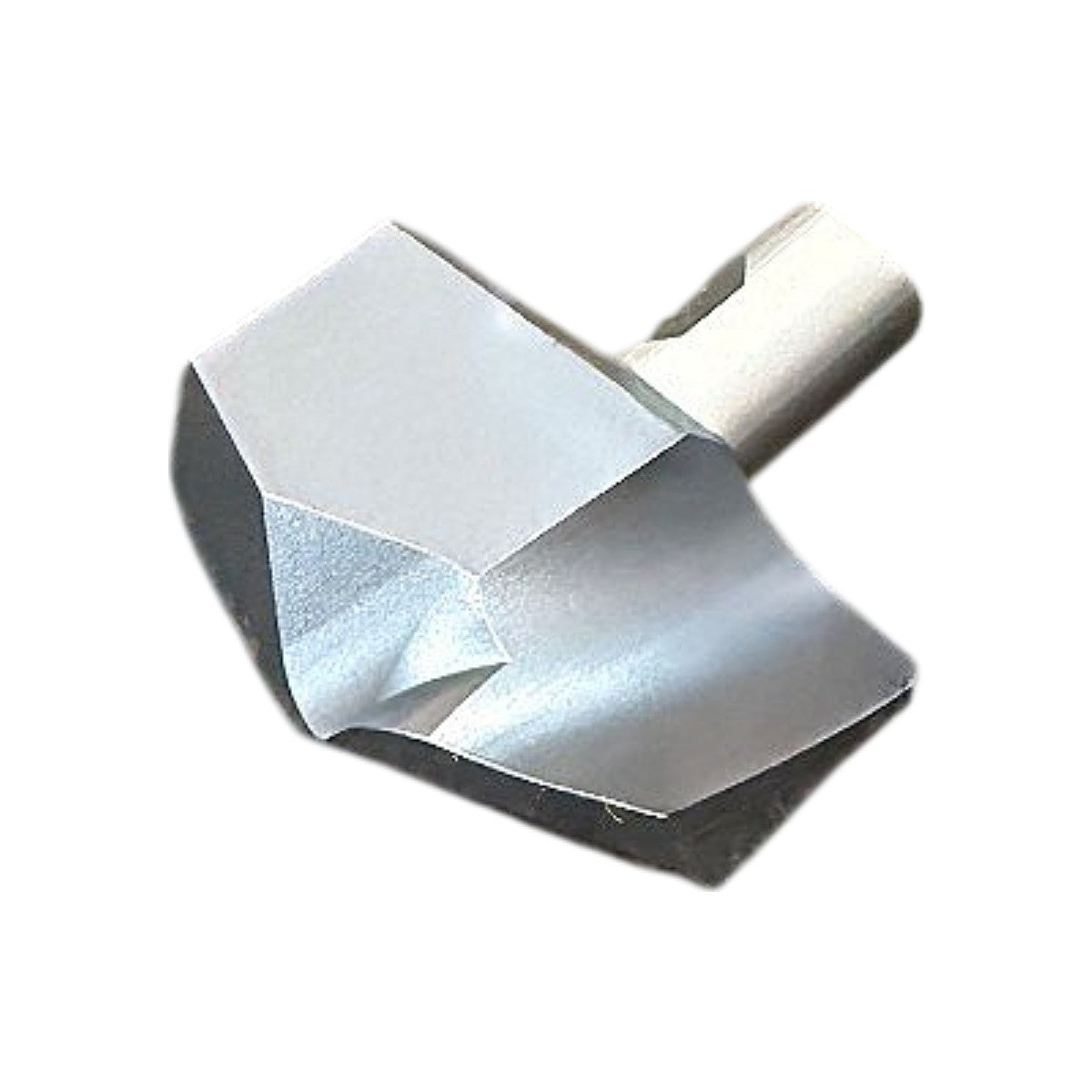

The Sandvik Coromant 870-2010-20-PM is a replaceable-tip indexable drill insert from the CoroDrill 870 system, laser-marked with a 20.10 mm diameter, grade 4334 and the -PM geometry designation. Grade 4334 is a PVD-coated carbide grade, and the PM geometry is intended for steel (ISO P) and medium-duty drilling. The insert is a single-piece drill point with a cylindrical locating stem and mounts in matching CoroDrill 870 drill bodies for 20.10 mm drills. This item is new, supplied in the original Sandvik Coromant packaging that is marked Made in Sweden.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 870-2010-20-PM |
| Series | CoroDrill 870 |
| Grade | 4334 |
| Geometry | -PM |
| Cutting Diameter | 20.10 mm |
| Material | Carbide |
| Coating | PVD Coated |
| Operation | Drilling |
| Workpiece Material | ISO P (Steel) |
| Insert Type | Replaceable Drill Tip, Center Drill Point |
| Material ID | 7357990 |
| Country of Origin | Sweden |
