Sandvik 870-2500-25L32-3 CoroDrill 870 25mm Ø32 Shank Insert Drill Body
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

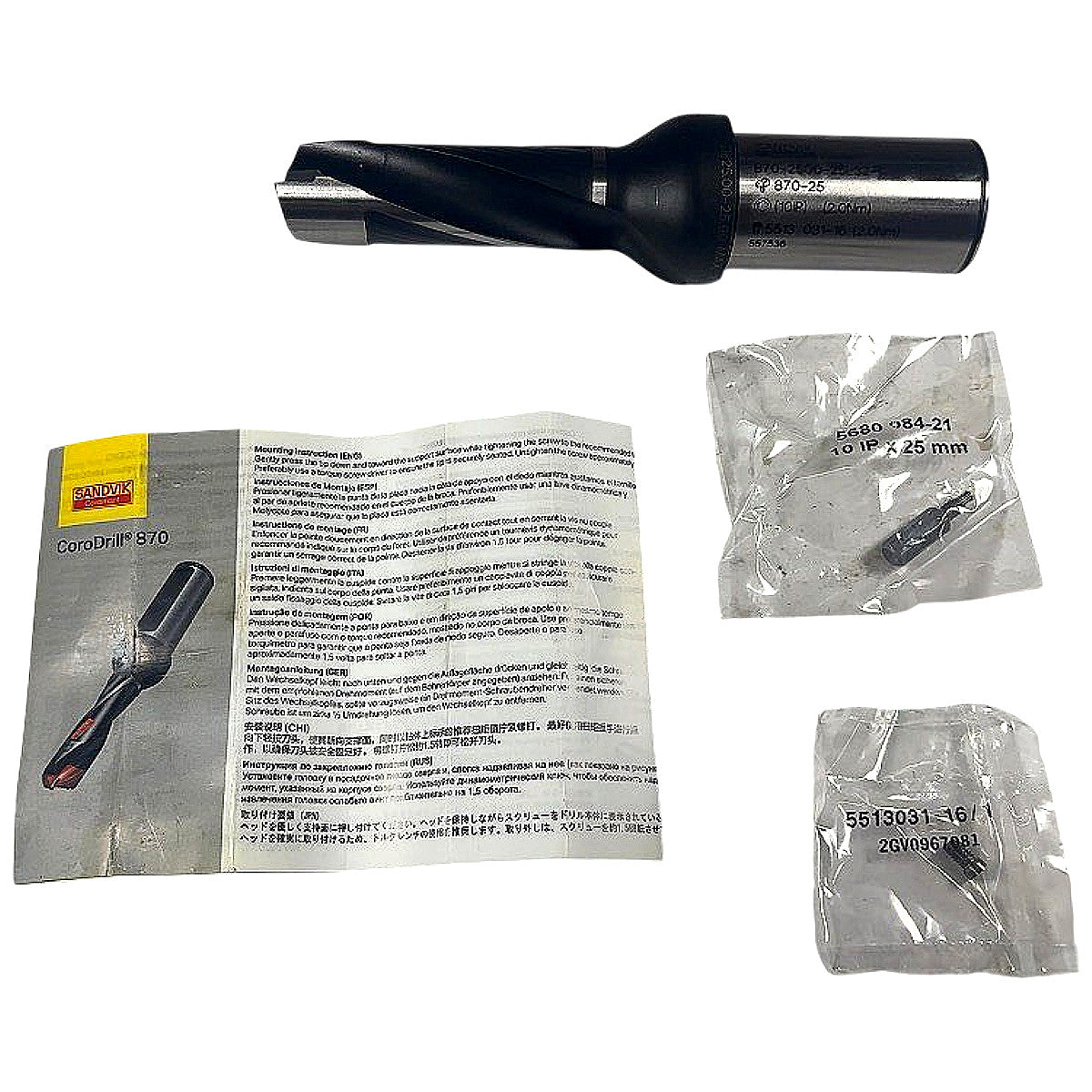

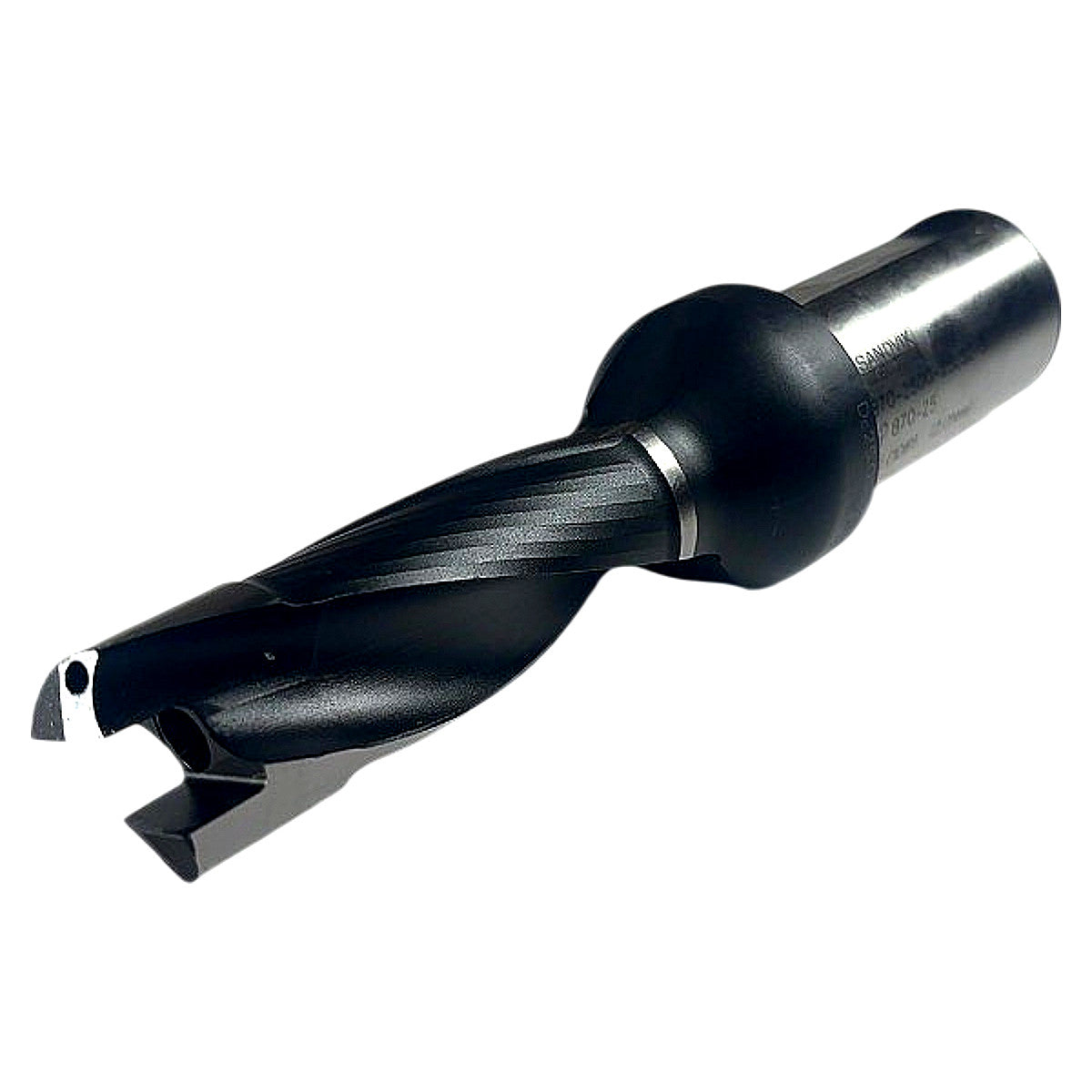

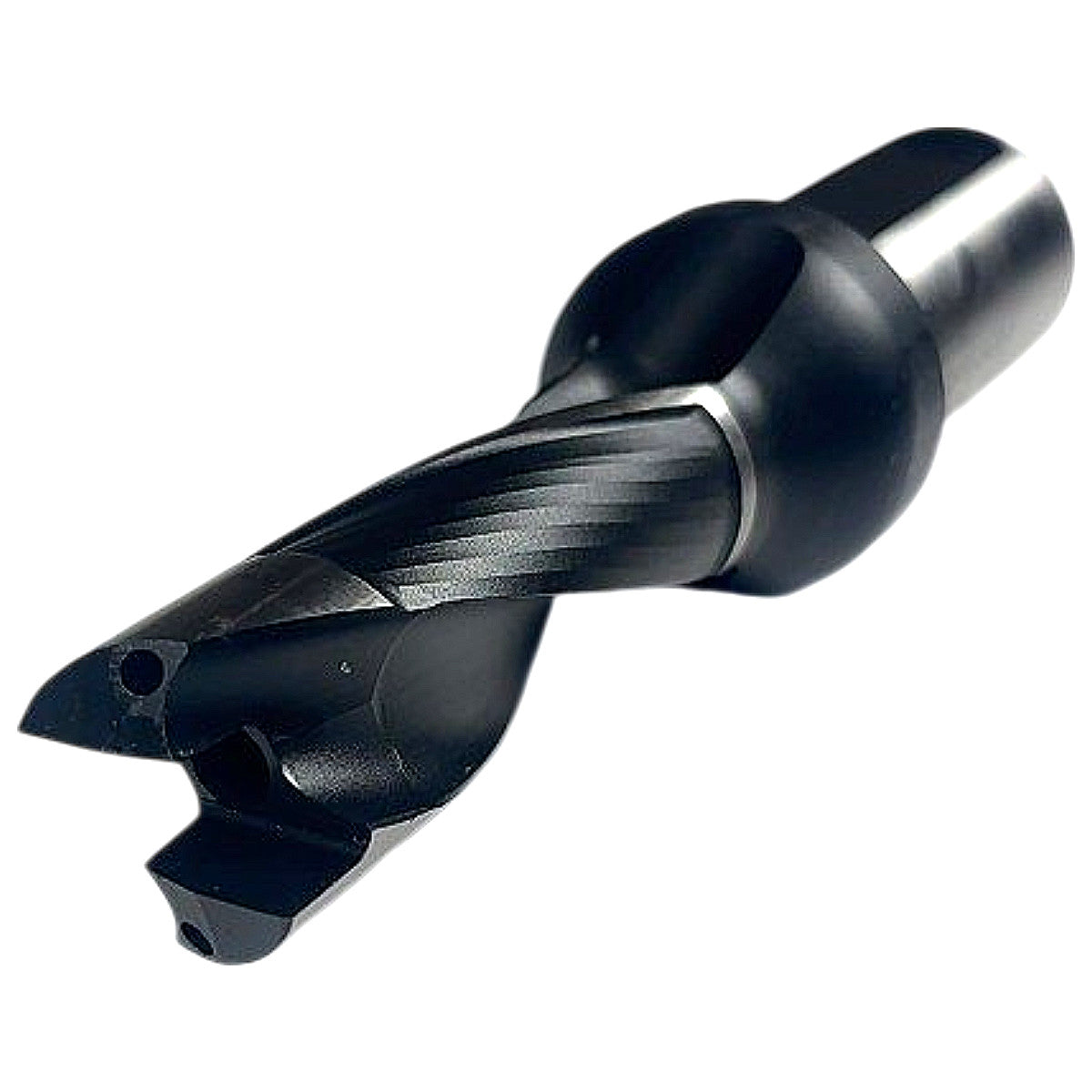

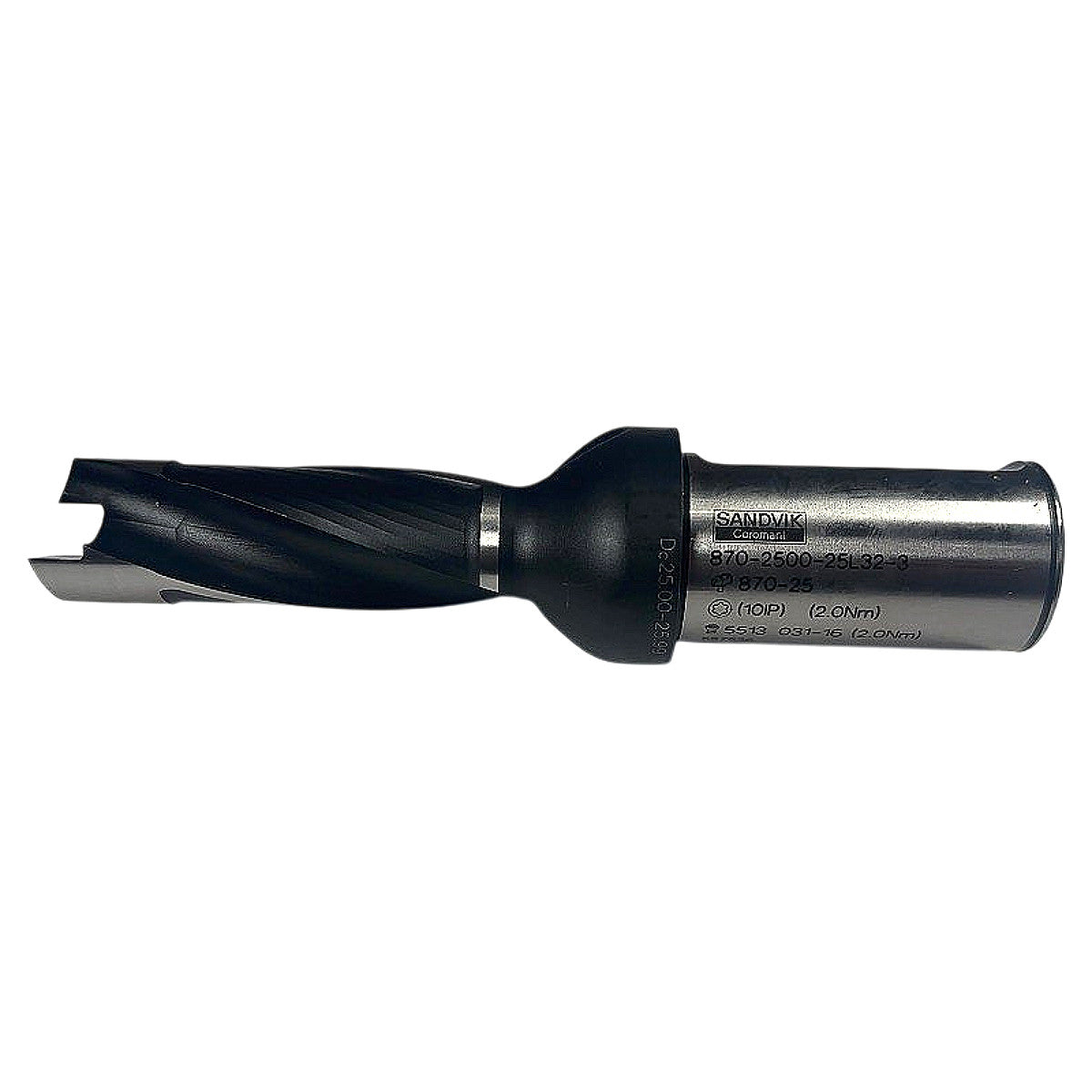

The Sandvik Coromant 870-2500-25L32-3 is a new CoroDrill 870 series exchangeable-tip drill body designed for 25 mm nominal cutting diameter (DCN 25 mm) with a maximum cutting diameter (DCX) of 25.99 mm, a Ø32 mm cylindrical shank (CZCms Ø32), and a 3×D depth-of-cut ratio. The drill body accepts 870-25 series CoroDrill 870 exchangeable carbide drill heads, secured via a central clamping screw (torque 2.0 Nm per label markings), and is compatible with the 5513 031-16 screw (2.0 Nm) and the 5680 084-21 10IP 25 mm tip, both included per the photos. Internal through-coolant channels deliver coolant directly to the cutting zone, and the body features a black-oxidized steel construction with two helical flutes and a 32 mm straight shank for use in standard ER, hydraulic, or shrink-fit toolholders with a 32 mm bore. This drill body is manufactured in Sweden, carries Sandvik Material ID 6239465, and is suited for machining steel, stainless steel, cast iron, and non-ferrous materials at high feed rates in CNC turning centers and machining centers.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 870-2500-25L32-3 |
| Product Line | CoroDrill 870 |

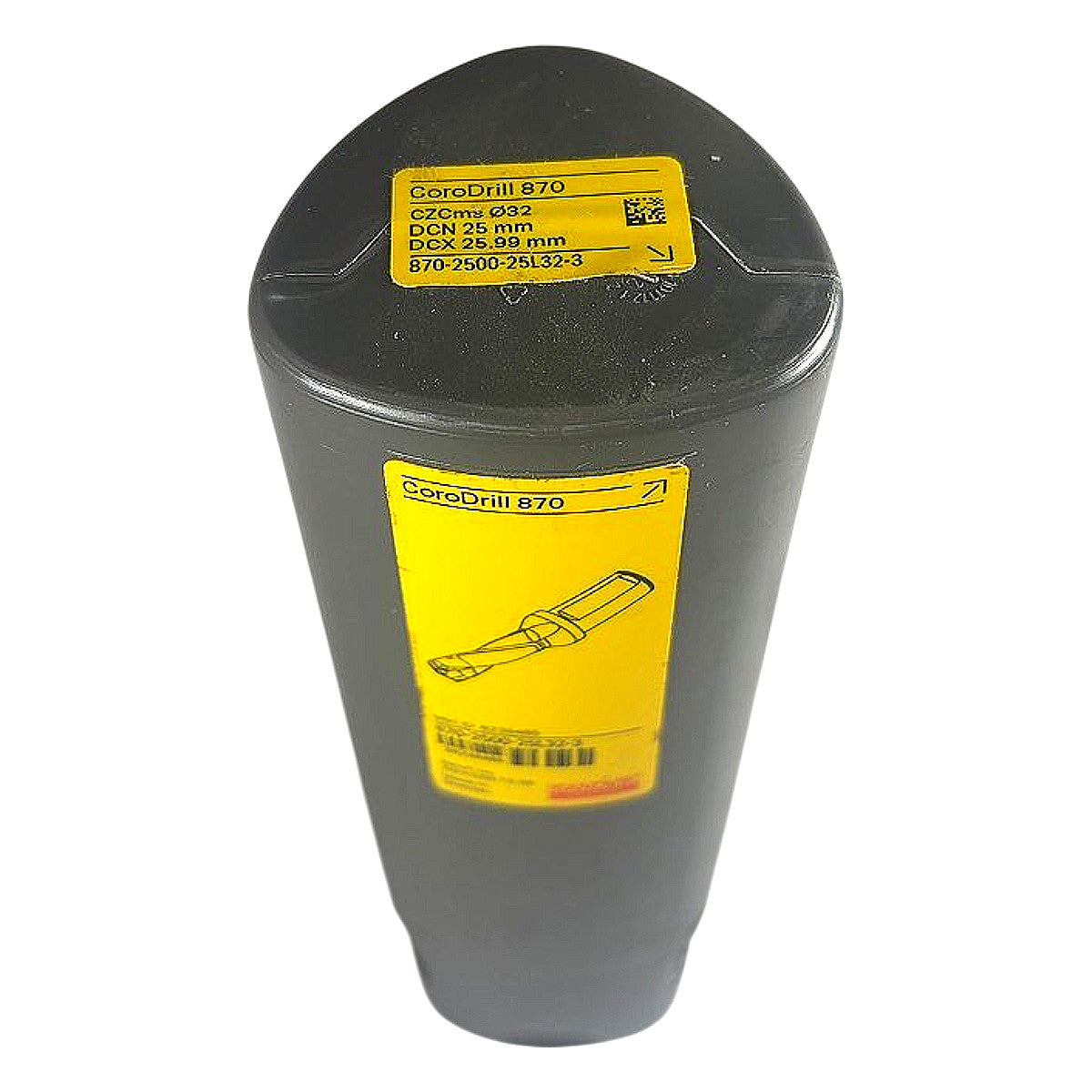

| Nominal Cutting Dia (DCN) | 25 mm |
| Max Cutting Dia (DCX) | 25.99 mm |
| Shank Diameter | 32 mm (CZCms Ø32) |
| Depth of Cut Ratio | 3×D |
| Compatible Drill Head Series | 870-25 |
| Clamping Screw Torque | 2.0 Nm |
| Compatible Screw | 5513 031-16 |
| Compatible Tip | 5680 084-21, 10IP, 25 mm |
| Number of Flutes | 2 |
| Coolant | Internal through-coolant |
| Shank Type | Cylindrical (straight) |

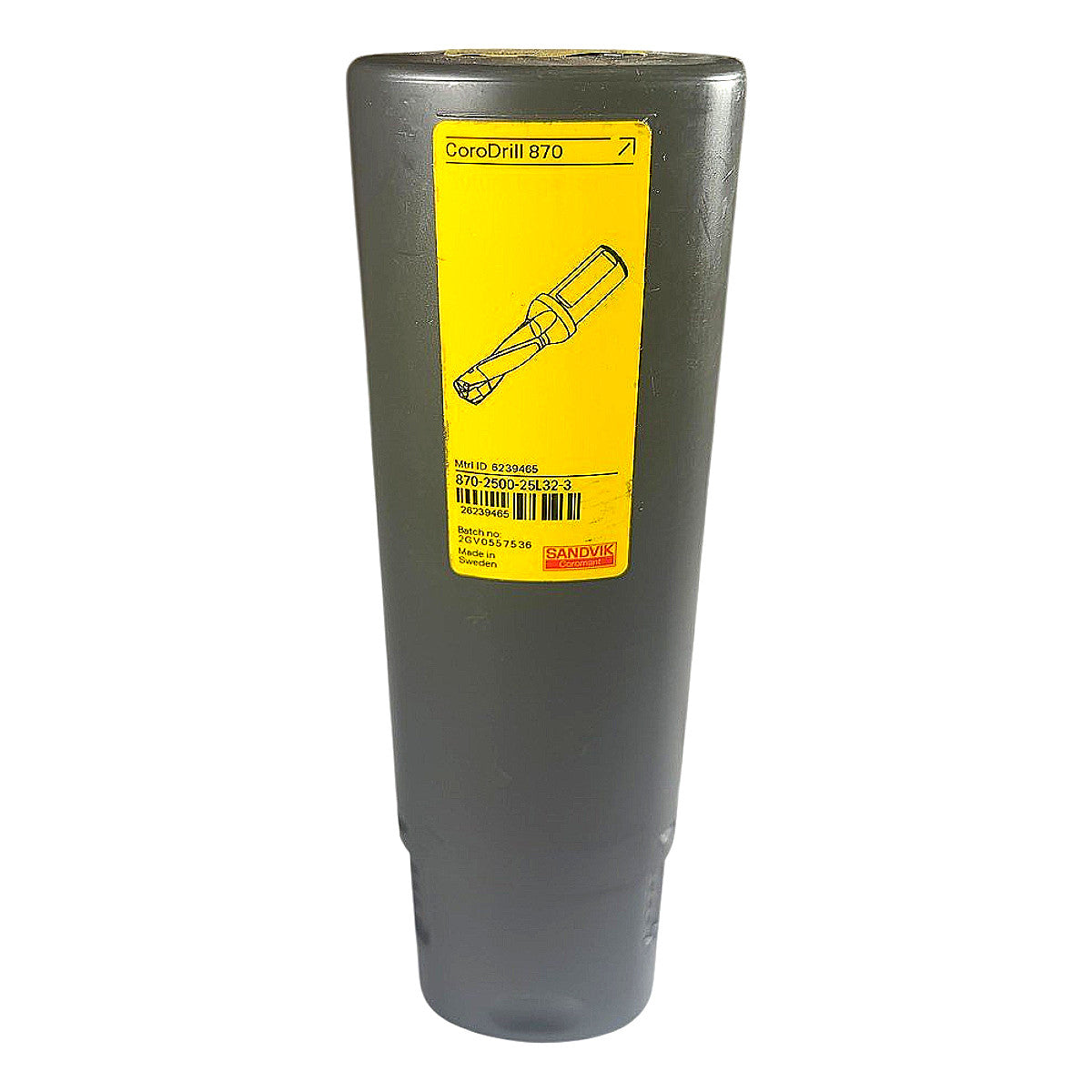

| Material ID | 6239465 |
| Country of Origin | Sweden |
| Condition | New |
