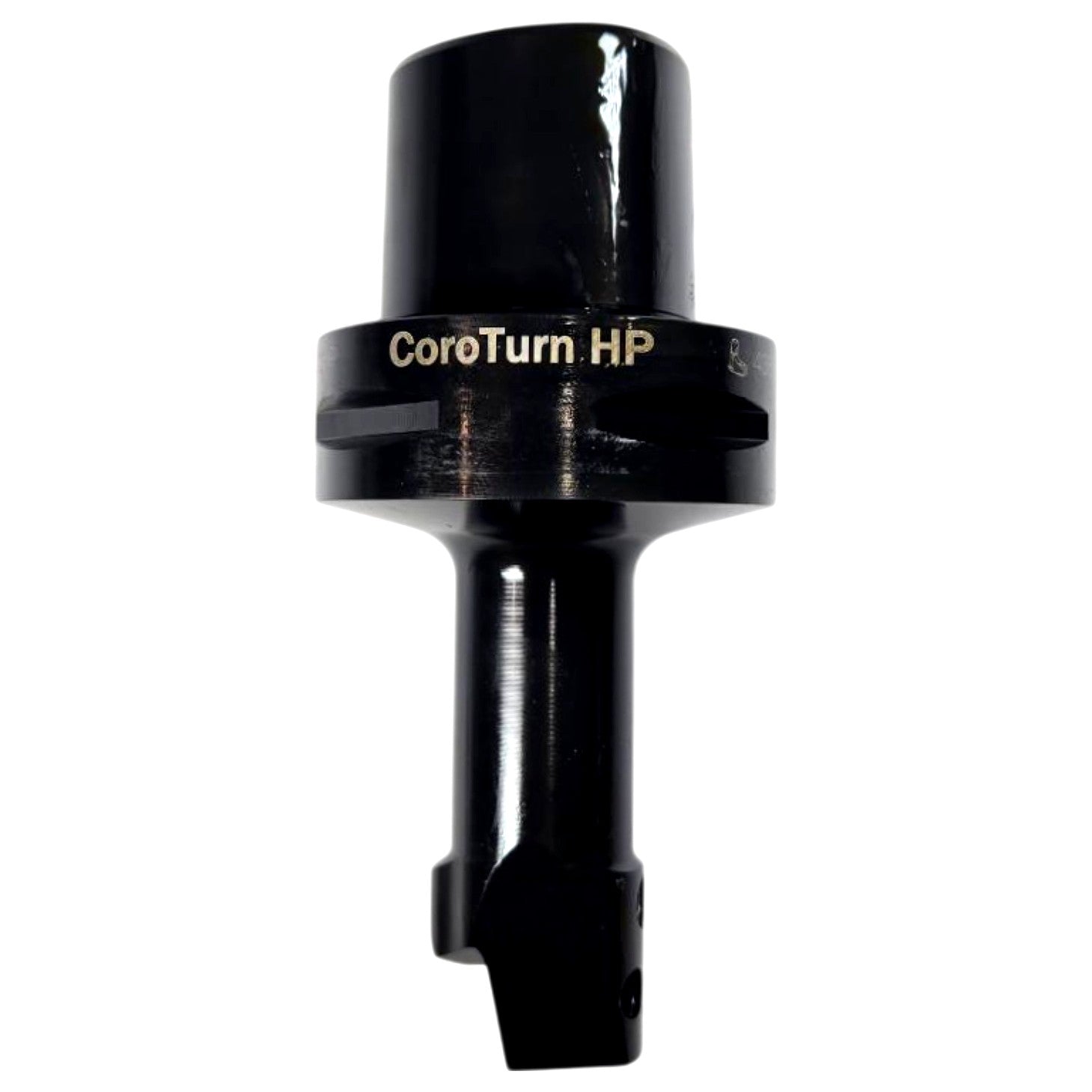

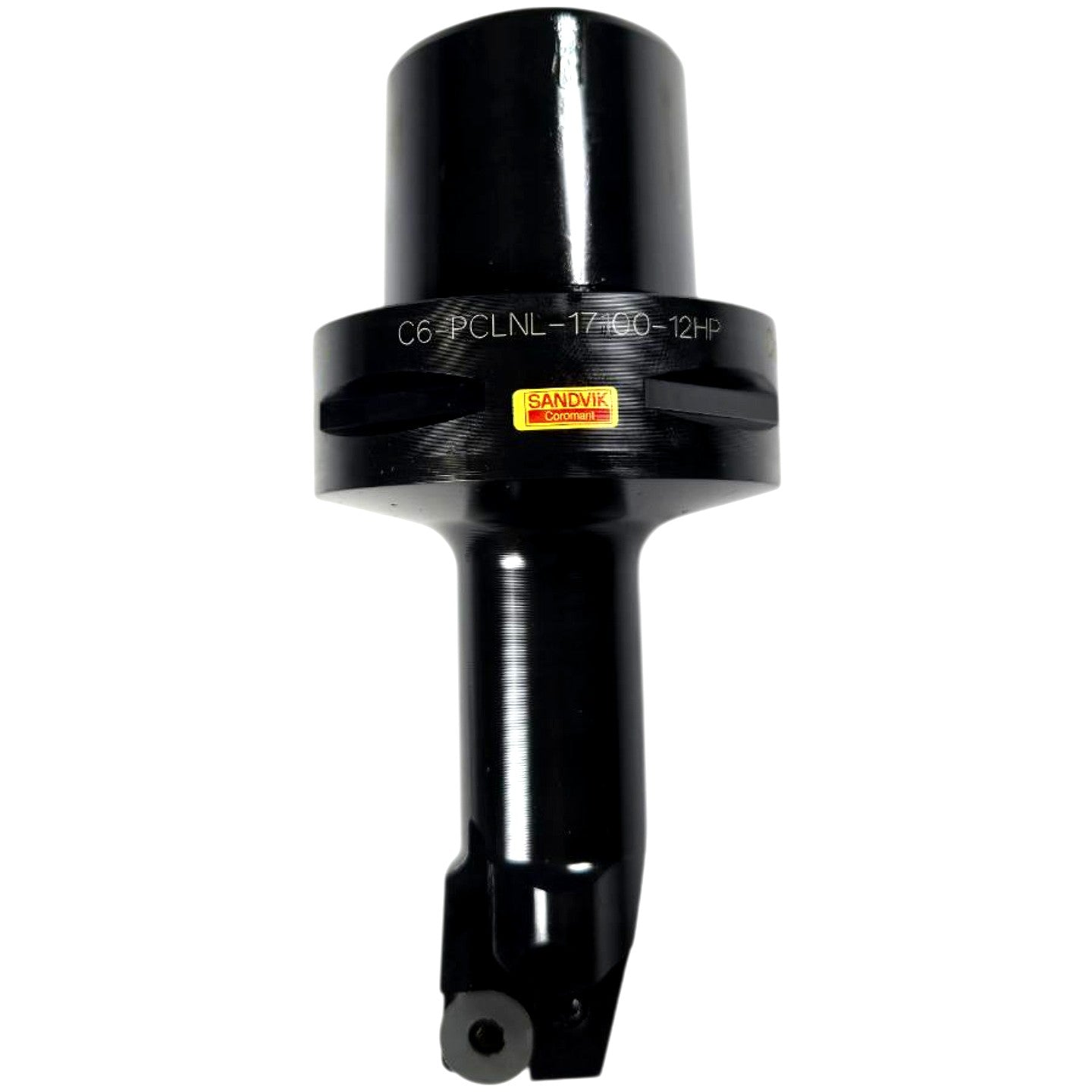

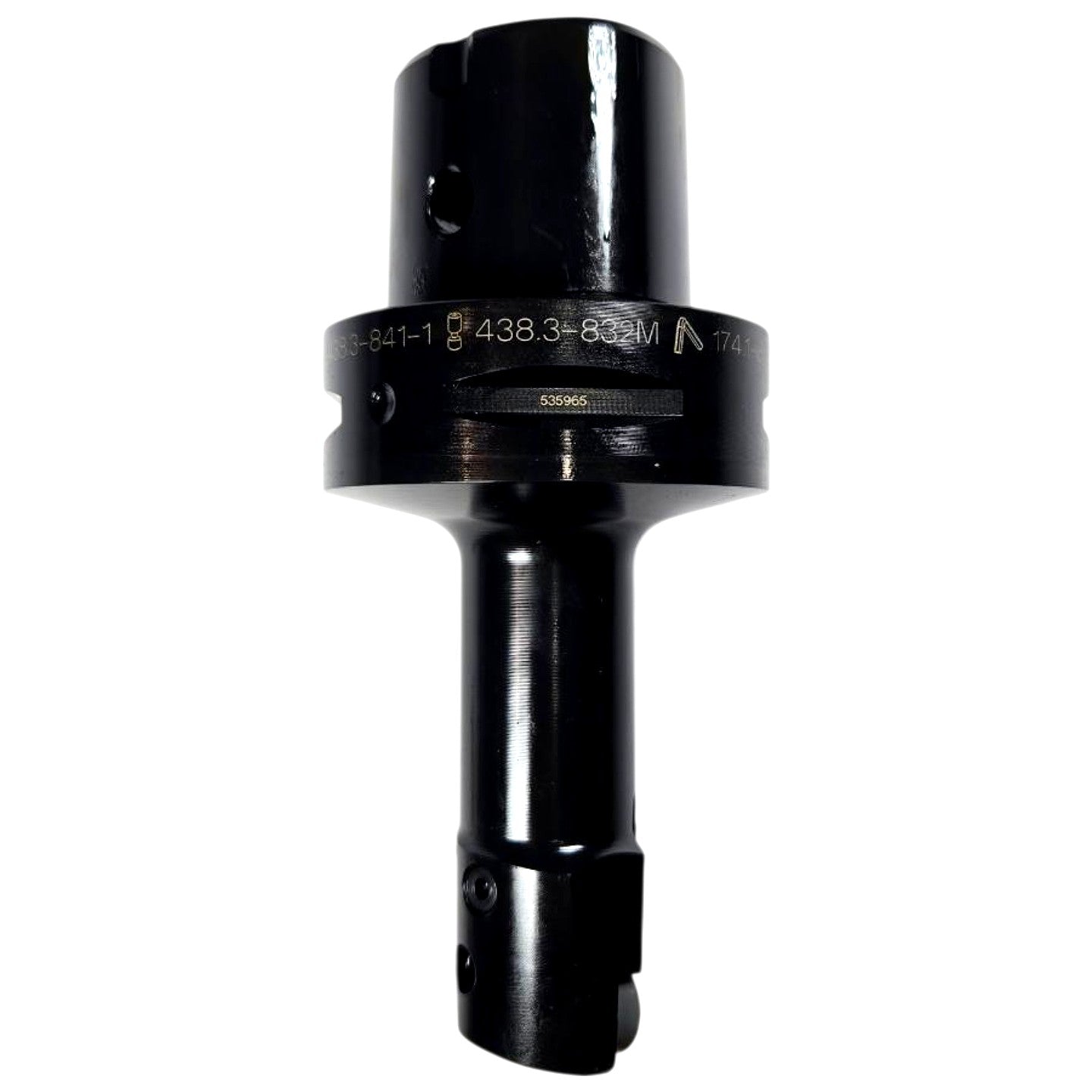

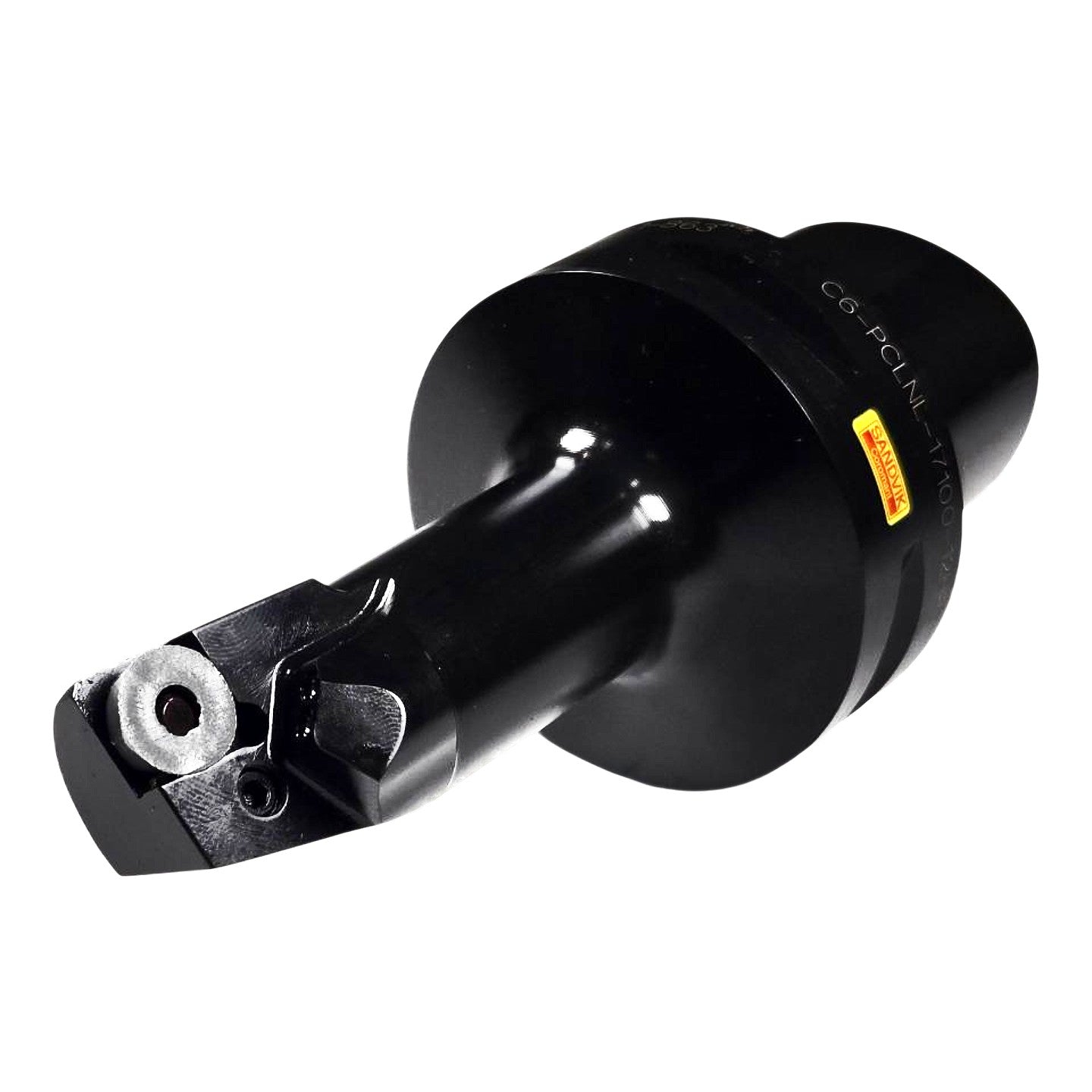

Sandvik C6-PCLNL-17100-12HP T-Max P Capto C6 CoroTurn HP Turning Cutting Unit

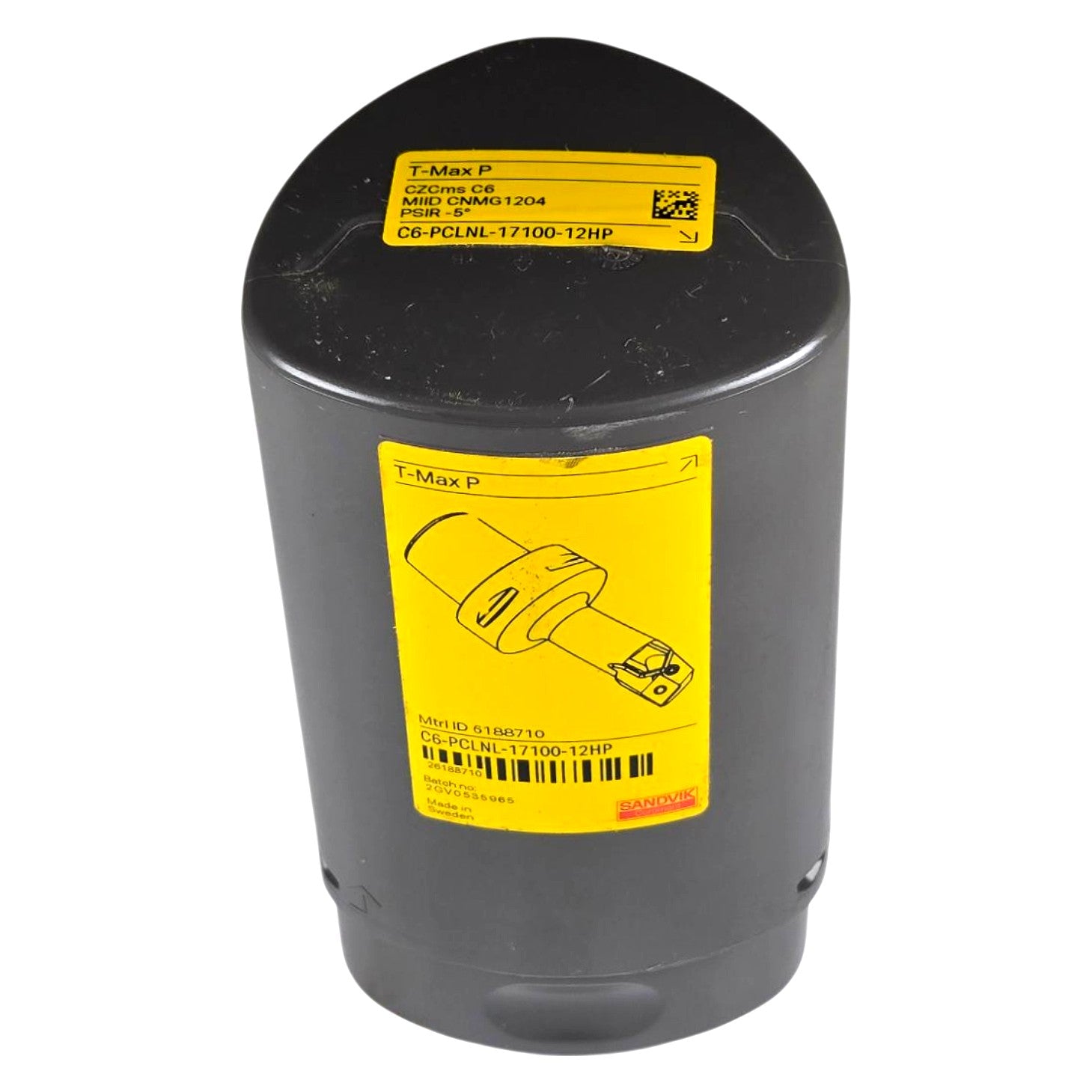

The Sandvik Coromant C6-PCLNL-17100-12HP is a new T-Max® P CoroTurn HP cutting unit for turning, featuring a Coromant Capto® C6 interface with high-pressure coolant (HP) capability delivered directly through the coupling — the "HP" suffix denotes integrated precision coolant channels that direct fluid onto the rake face and flank for superior chip control and tool life in difficult-to-cut materials. The designation decodes as follows: C6 = Capto size 6 coupling; P = turning; CLNL = insert seat style (C-clearance 7°, L = 80° diamond insert shape [CNM/CNMG], N = 0° normal clearance, L = left-hand cutting direction); 17100 = 171 mm overhang/gauge length, 100 mm head width; 12 = CNMG 12xx insert IC (12.7 mm inscribed circle); HP = high-pressure coolant through-coupling. Compatible inserts are CNMG 1204xx series (IC 12.7 mm, 4 mm thick), confirmed by the label notation "MIID CNMG1204" and "PSIR -5°" rake designation visible on the packaging label. The unit mounts on Sandvik Coromant Capto® C6 machine interfaces (lathes, turning centers, and multi-task machines equipped with C6 Capto turrets), and is manufactured in Sweden to Sandvik Coromant's T-Max P specification; Material ID 6188710, Batch 2GV0535965 are confirmed from the product label.

Product Specifications
