Sandvik CCMT 06 02 04-UR 4315 CoroTurn 107 Carbide Turning Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

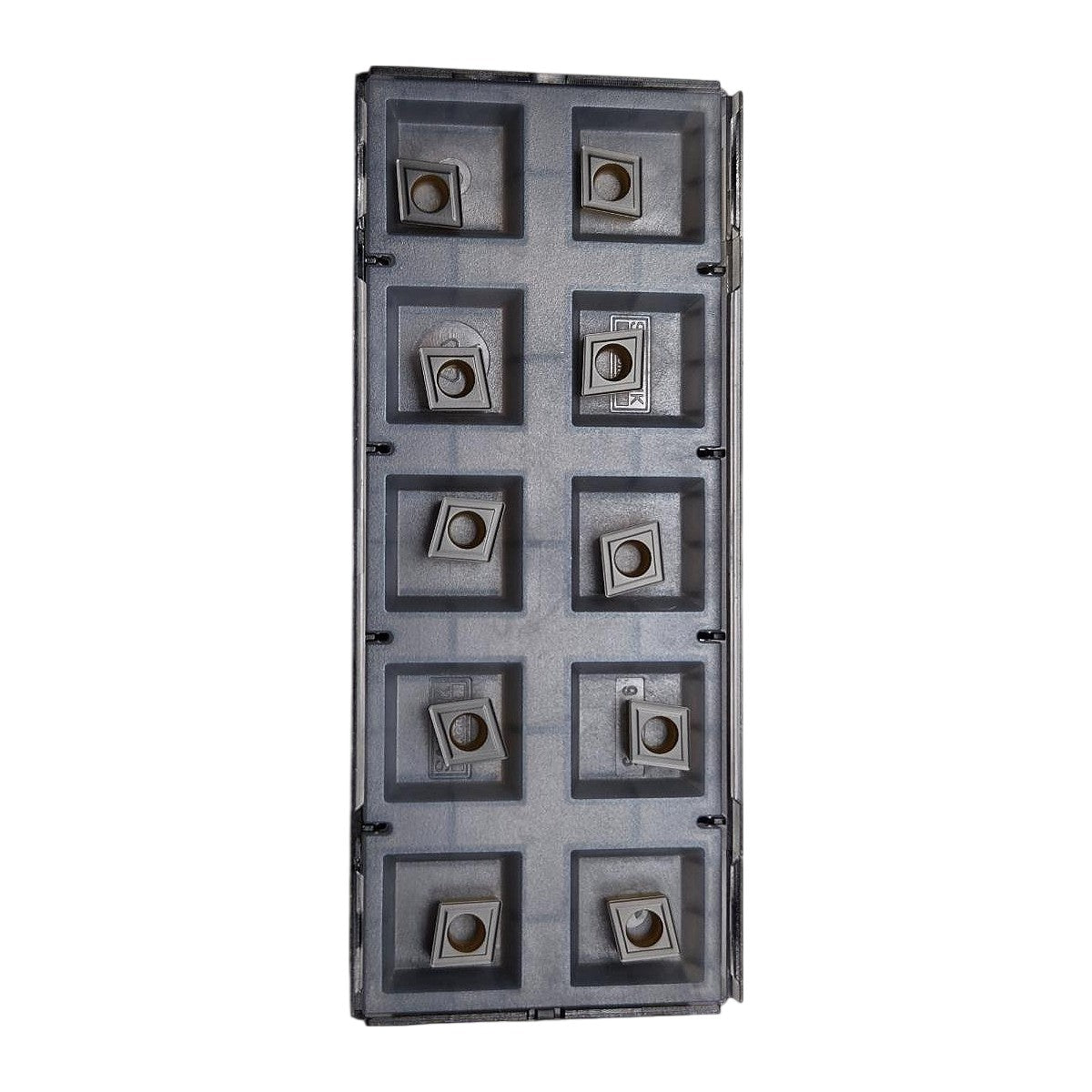

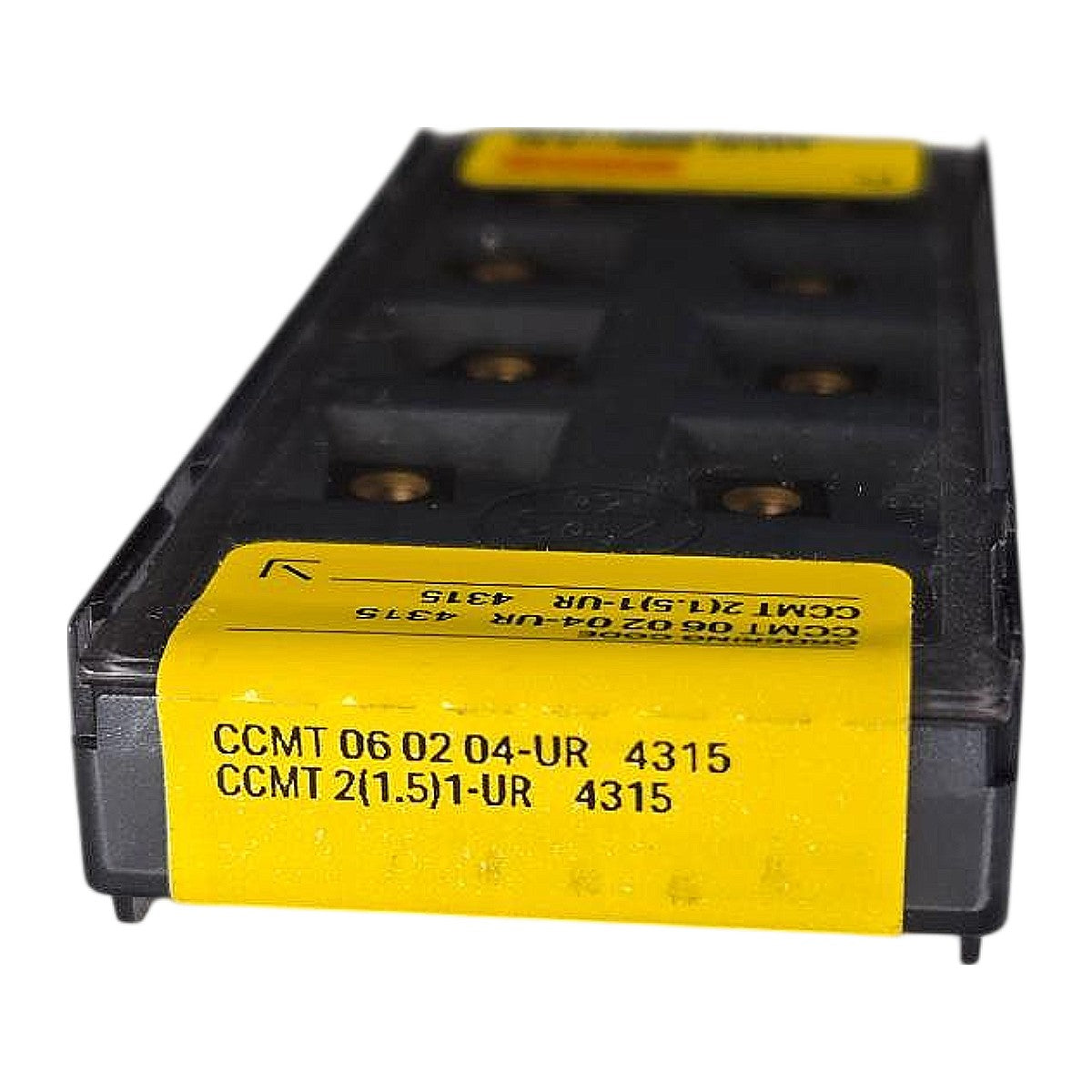

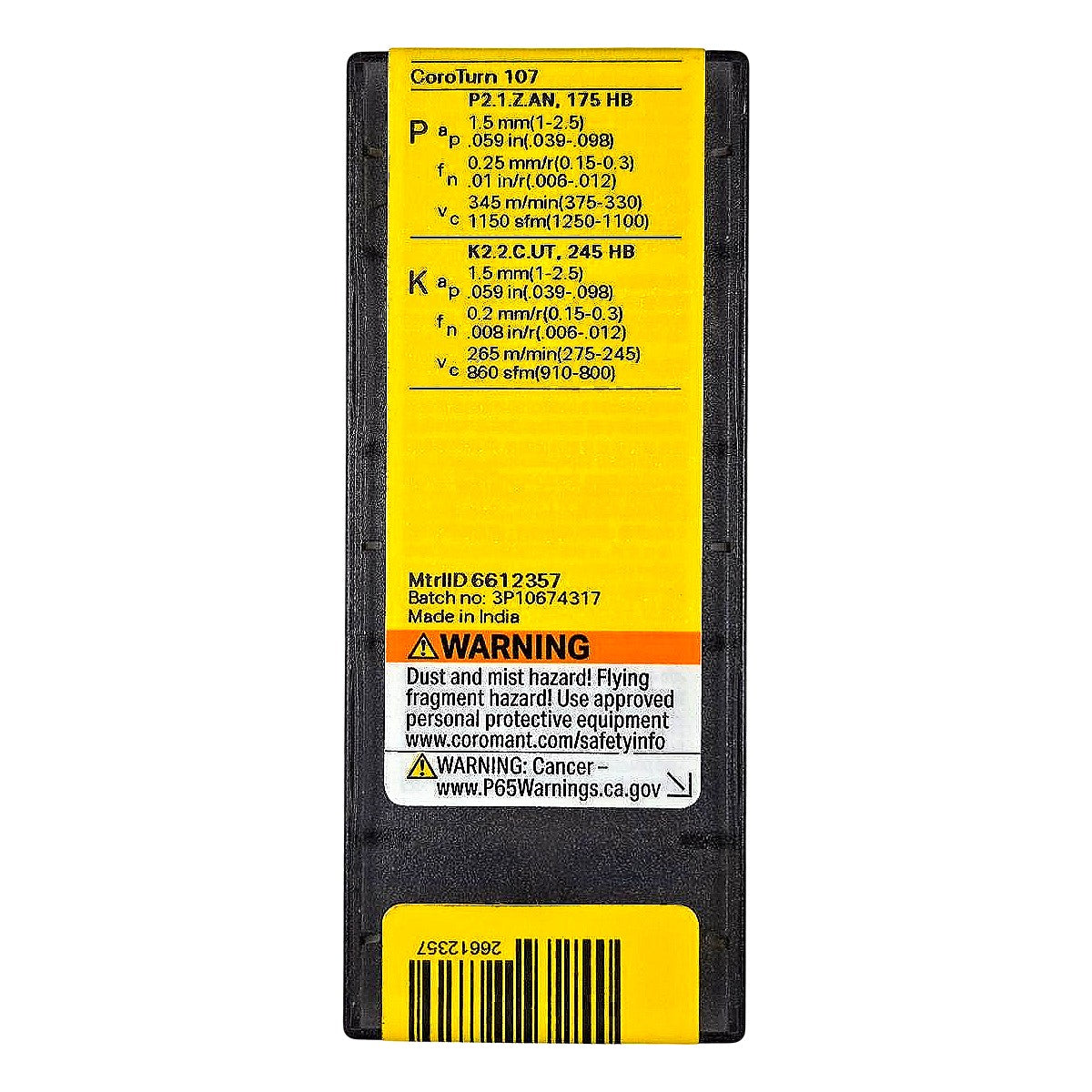

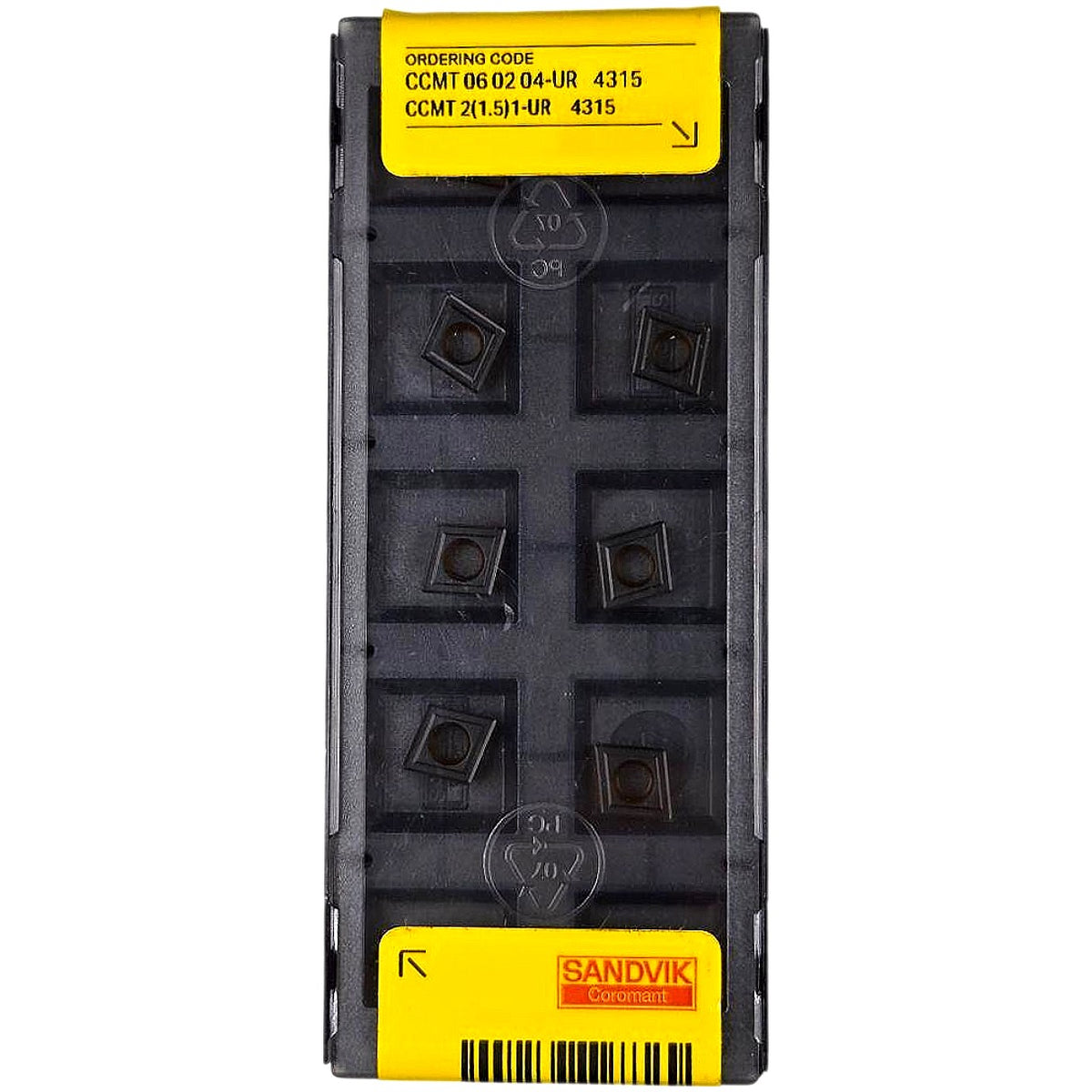

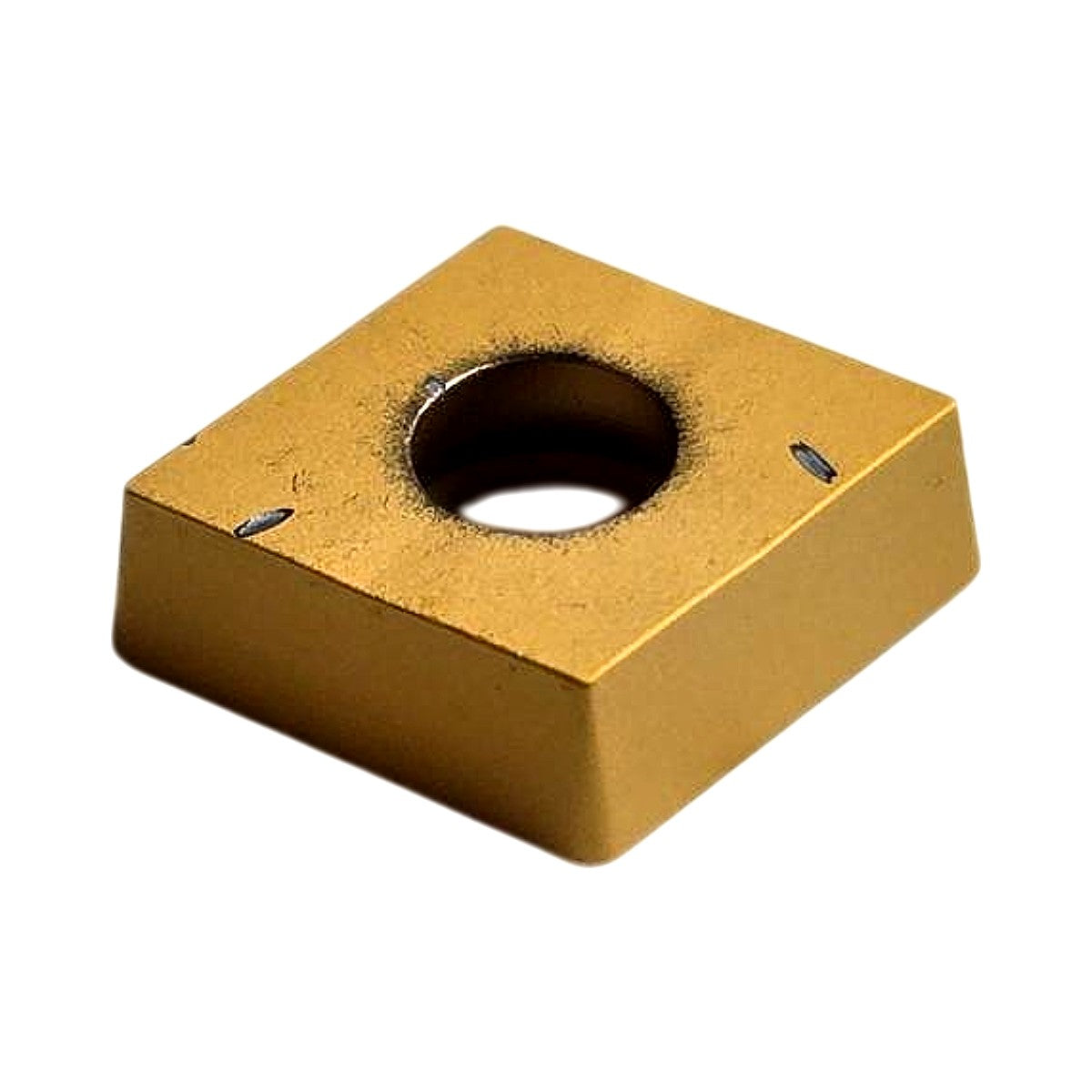

This is a factory-new box of 10 Sandvik Coromant CCMT 06 02 04-UR 4315 carbide turning inserts for the CoroTurn 107 toolholder system, designed for internal and external turning of steel (ISO P) and cast iron (ISO K). The ISO designation decodes as: C = 80° diamond shape, C = 7° clearance angle, M = medium tolerance class, T = with hole and countersink (single-sided), 06 = 6.35 mm (1/4 in) inscribed circle, 02 = 2.38 mm thickness, 04 = 0.4 mm nose radius, UR = universal finishing chipbreaker geometry. Grade 4315 is a CVD-coated cemented carbide (Ti(C,N)/Al₂O₃ multilayer coating visible as the gold/black dual-tone on the flank/rake faces) targeting steel finishing at cutting speeds of 345 m/min (1150 sfm) for P-class steels up to 175 HB, and 265 m/min (860 sfm) for K-class cast irons up to 245 HB per the package label. Recommended cutting parameters per label: depth of cut 1.5 mm (0.059 in), feed 0.25 mm/rev for steel and 0.2 mm/rev for cast iron; compatible toolholders use CCMT 06 02 / CCMT 2(1.5)1 insert seats in CoroTurn 107 boring bars and external turning holders.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | CCMT 06 02 04-UR 4315 |
| Alternate MPN (inch) | CCMT 2(1.5)1-UR 4315 |
| Material ID | 6612357 |
| Insert Shape | C — 80° diamond |
| Clearance Angle | C — 7° |
| Tolerance Class | M (medium) |
| Fixing / Chipbreaker Type | T — hole w/ countersink, single-sided |
| Inscribed Circle (IC) | 6.35 mm (1/4 in) |
| Insert Thickness | 2.38 mm (3/32 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker | UR — universal finishing |
| Grade | 4315 |
| Coating | CVD Ti(C,N)/Al₂O₃ multilayer |
| Substrate | Cemented carbide |
| ISO Material Group (P) | P2.1.Z.AN — steel up to 175 HB |
| ISO Material Group (K) | K2.2.C.UT — cast iron up to 245 HB |
| Cutting Speed — Steel (P) | 345 m/min (1150 sfm) |
| Cutting Speed — Cast Iron (K) | 265 m/min (860 sfm) |
| Depth of Cut (ap) | 1.5 mm / 0.059 in (range 1–2.5 mm) |
| Feed — Steel (fn) | 0.25 mm/rev (range 0.15–0.3) |
| Feed — Cast Iron (fn) | 0.2 mm/rev (range 0.15–0.3) |
| Toolholder System | CoroTurn 107 |
| Quantity | 10 pcs per box |
| Condition | New |
| Country of Origin | India |
