Sandvik CNMG 12 04 12-MMC 2025 80° Diamond Carbide Turning Insert (10pc)

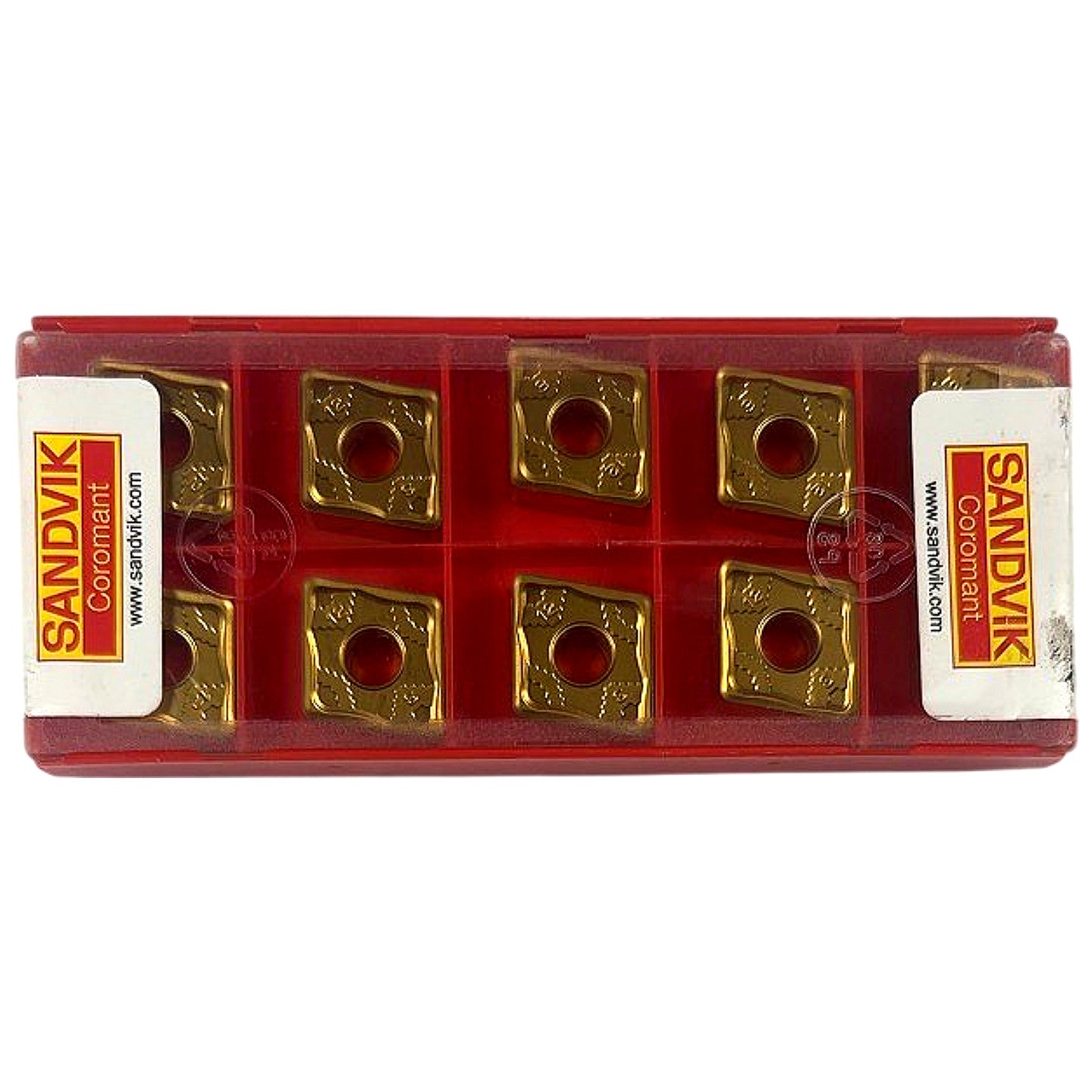

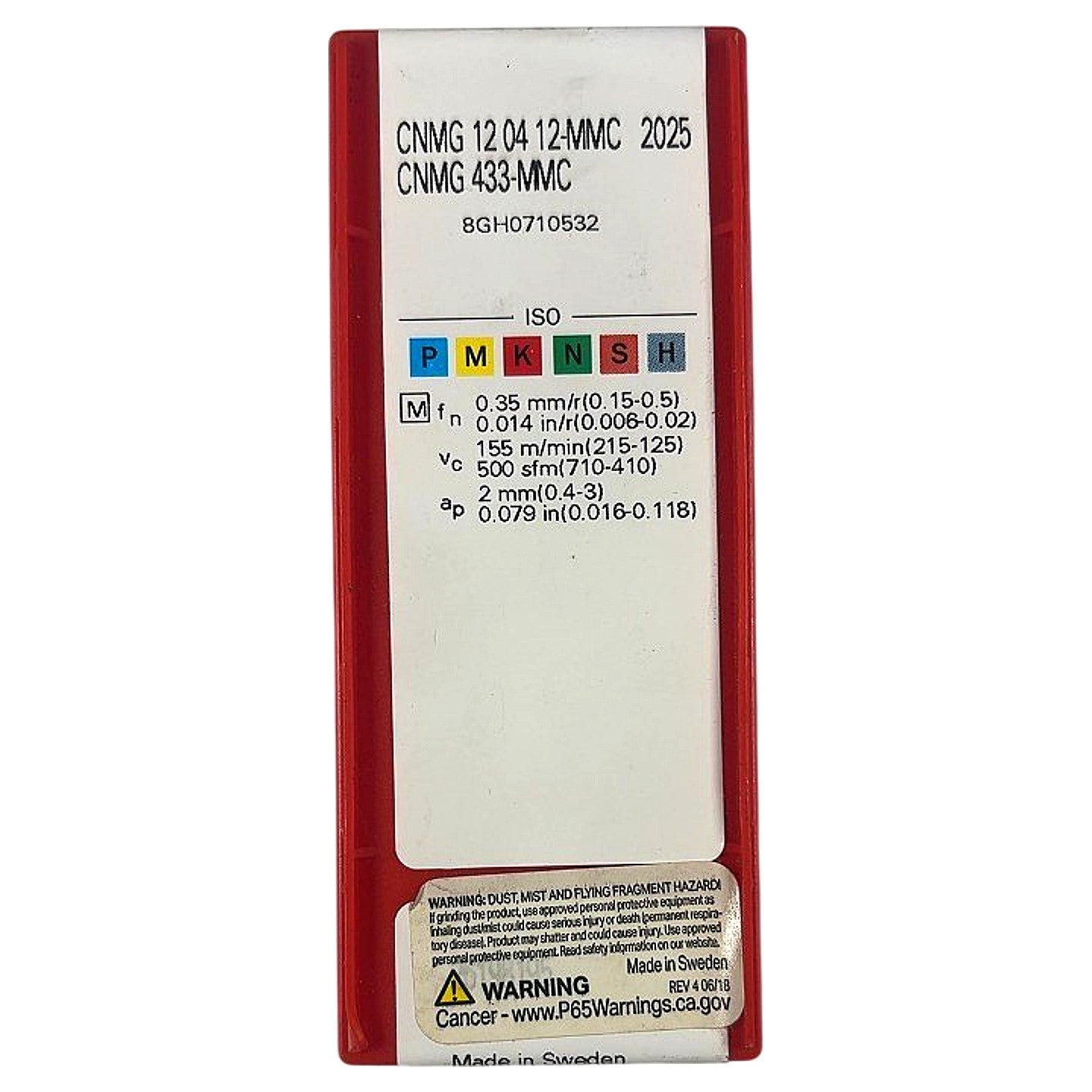

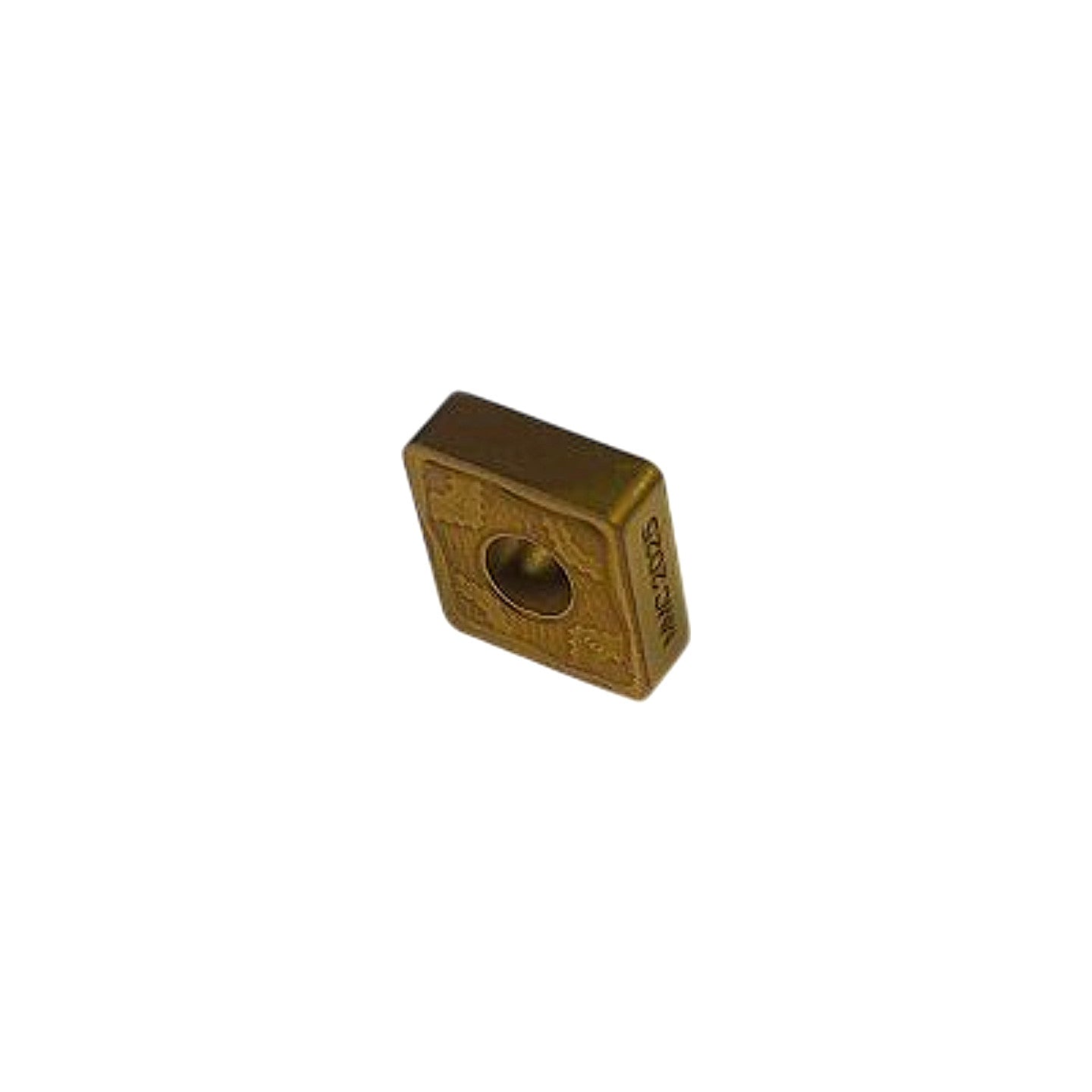

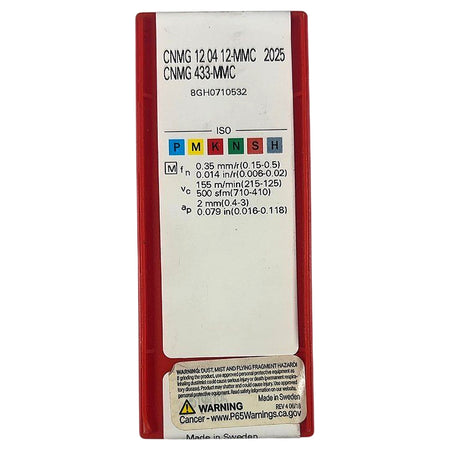

The Sandvik Coromant CNMG 12 04 12-MMC 2025 (inch equivalent: CNMG 433-MMC) is a new, factory-sealed box of 10 double-sided 80° diamond-shape (C) carbide turning inserts in the 2025 PVD-coated grade — a CVD Ti(C,N)/Al₂O₃ multilayer coating specifically engineered for medium-to-rough turning of stainless steel and difficult-to-cut materials (ISO M work material group, with secondary applicability in P, K, N, S, and H groups). Decoded from the ISO designation: C = 80° rhombic shape, N = 0° clearance angle (double-sided), M = M-tolerance class, G = screw-hole with chipbreaker, 12 04 = 12.7 mm IC / 4.76 mm thickness, 12 = 1.2 mm nose radius, MMC = Sandvik's medium-roughing chipbreaker geometry optimized for moderate feed and depth with controlled chip flow on sticky and work-hardening alloys. Recommended cutting parameters per the box label: feed (fn) 0.35 mm/rev (range 0.15–0.5 mm/rev), cutting speed (vc) 155 m/min (range 125–215 m/min), depth of cut (ap) 2 mm (range 0.4–3 mm); these inserts are compatible with PCLNR/L and DCLNR/L style ISO toolholders accepting CN_G 12 inserts and are manufactured in Sweden to Sandvik Coromant specifications.

Product Specifications
