Sandvik CNMG 160612-QM 4315 CVD Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

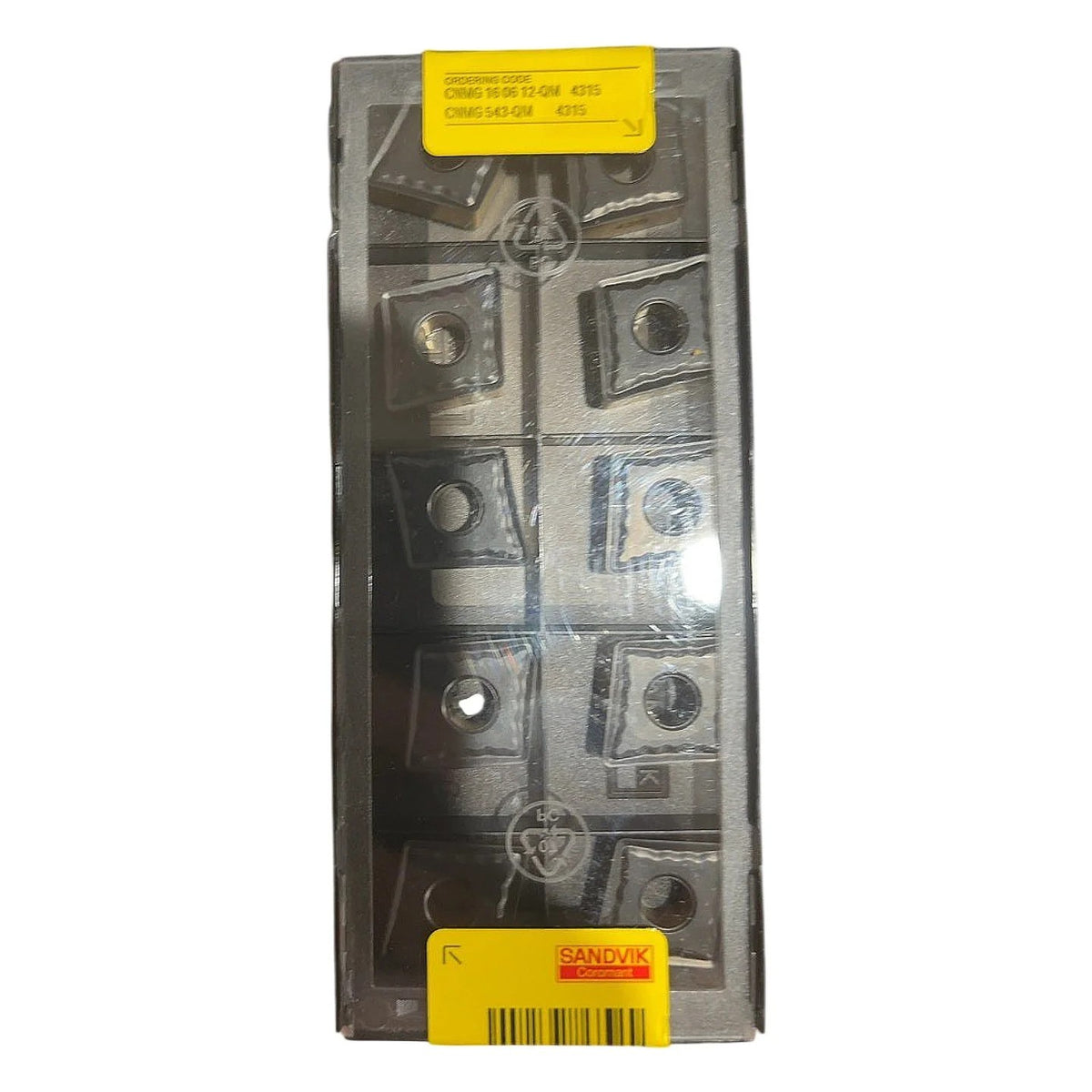

These are new Sandvik Coromant CNMG 160612-QM inserts in grade 4315, a CVD-coated cemented carbide grade featuring a Ti(C,N)/Al2O3 multilayer coating designed for medium to roughing turning of steel (ISO P) and stainless steel (ISO M). The CNMG designation specifies an 80° diamond (rhombic) shape, 0° clearance angle (N), medium tolerance (M), with a hole and chipbreaker (G), 16mm inscribed circle, 6.35mm thickness, and 1.2mm nose radius; the -QM chipbreaker geometry is optimized for medium cutting conditions with good chip control across a wide feed range. Grade 4315 utilizes Sandvik's Inveio coating technology with unidirectional crystal orientation in the Al2O3 layer, delivering enhanced wear resistance and heat resistance for extended tool life in continuous and light interrupted cuts on carbon steel, alloy steel, and austenitic stainless steel. Compatible toolholders use CNMG 16 series seats (e.g., Sandvik PCLNR/L, DCLNR/L style holders); the pack contains 10 inserts sealed in original Sandvik Coromant packaging.
Product Specifications
| Brand | Sandvik Coromant |
| Part Number (ISO) | CNMG 160612-QM 4315 |
| Part Number (Inch Equiv.) | CNMG 543-QM 4315 |
| Insert Shape | 80° Diamond (C) |
| Clearance Angle | 0° (N) |
| Tolerance Class | M |
| Fixing/Chipbreaker Type | G (hole + chipbreaker) |
| Inscribed Circle (IC) | 16 mm (5/8 in) |
| Insert Thickness | 6.35 mm (1/4 in) |
| Nose Radius | 1.2 mm (3/64 in) |
| Chipbreaker Geometry | QM (medium turning) |
| Grade | 4315 |
| Coating Type | CVD Ti(C,N)/Al2O3 multilayer (Inveio) |

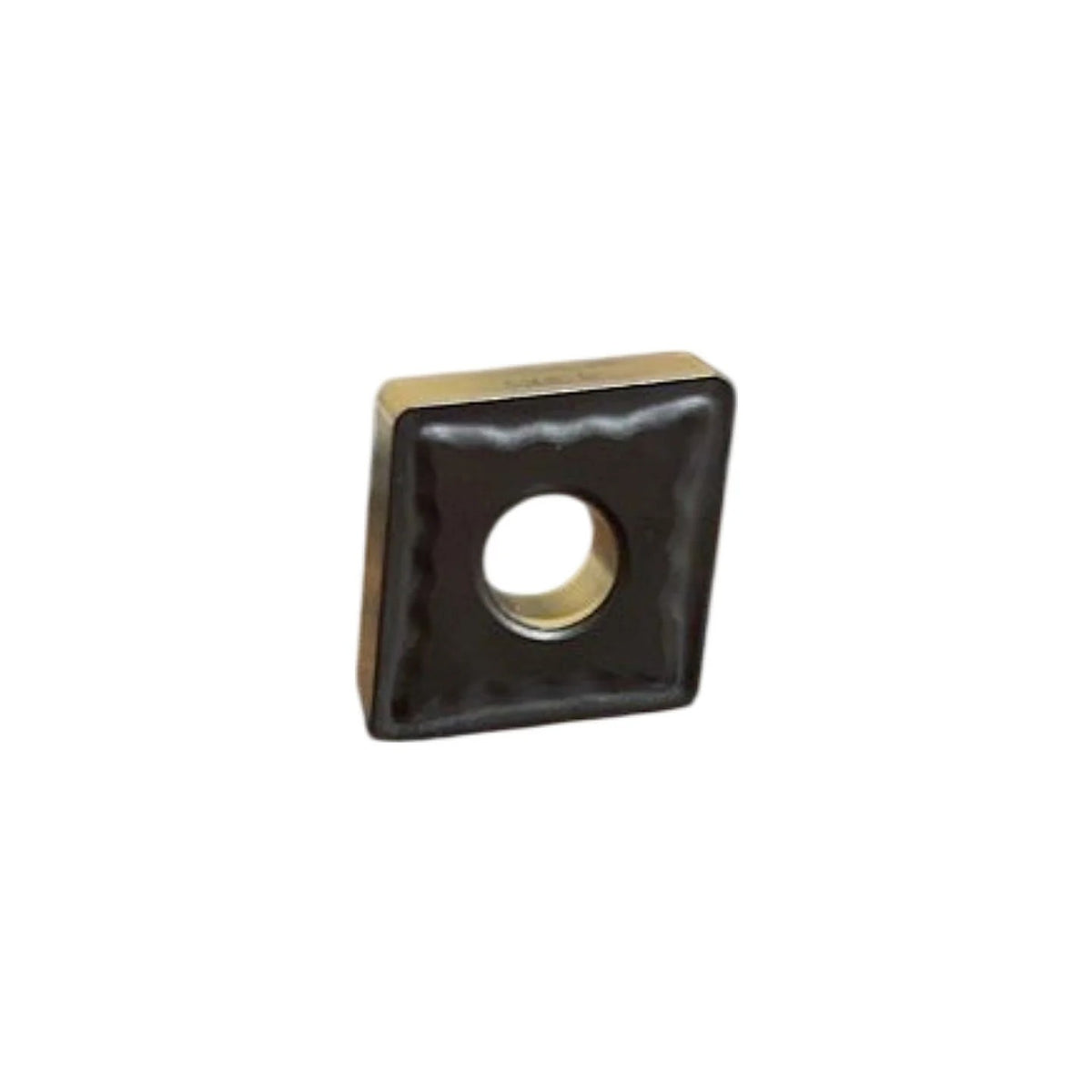

| Coating Color | Dark/black top face, gold flank visible |
| ISO Application Range | P05-P35, M05-M25 |
| Substrate | Cemented carbide |
| Quantity per Pack | 10 |
| Condition | New |
| Compatible Holder Style | CNMG 16 series (PCLNR/L, DCLNR/L) |
