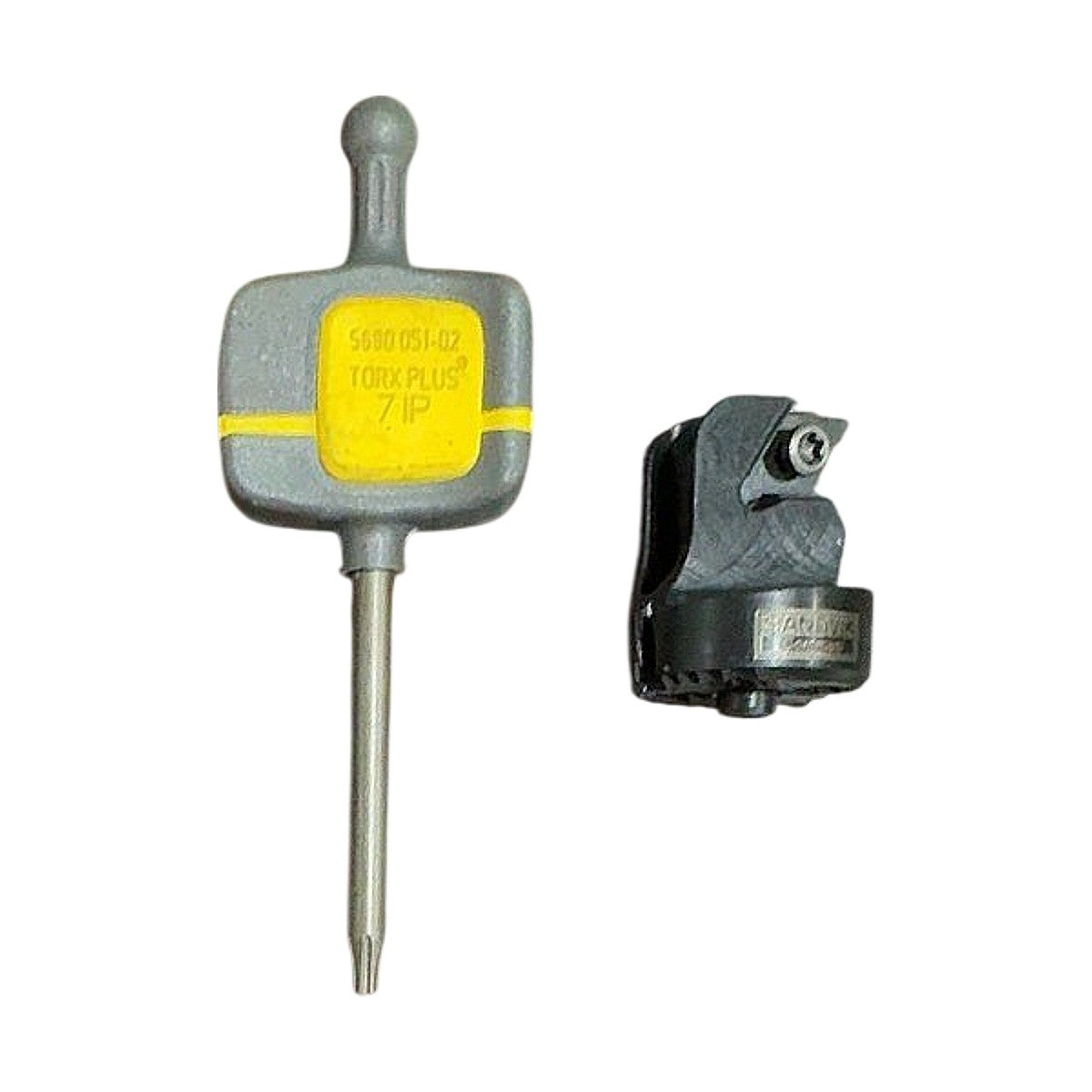

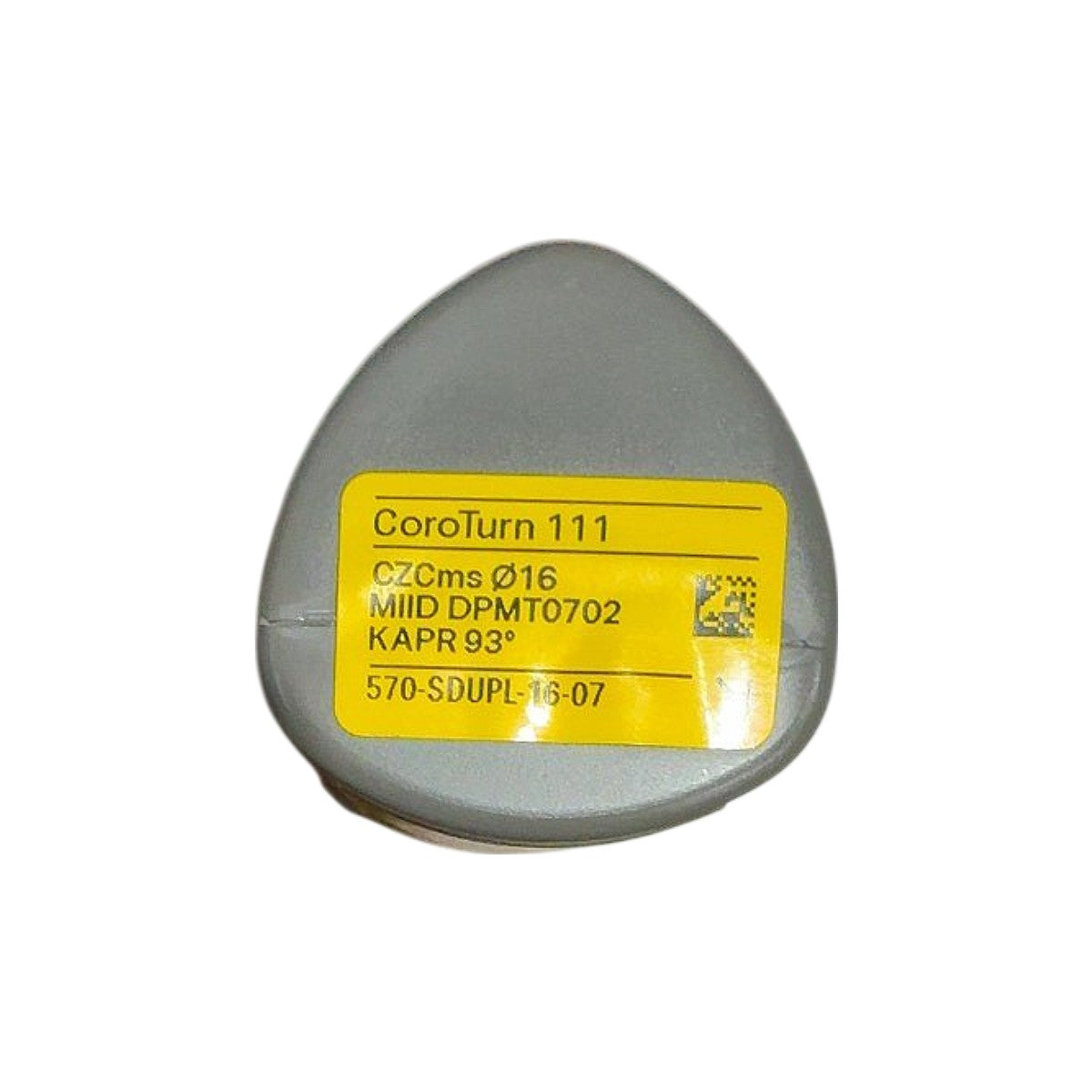

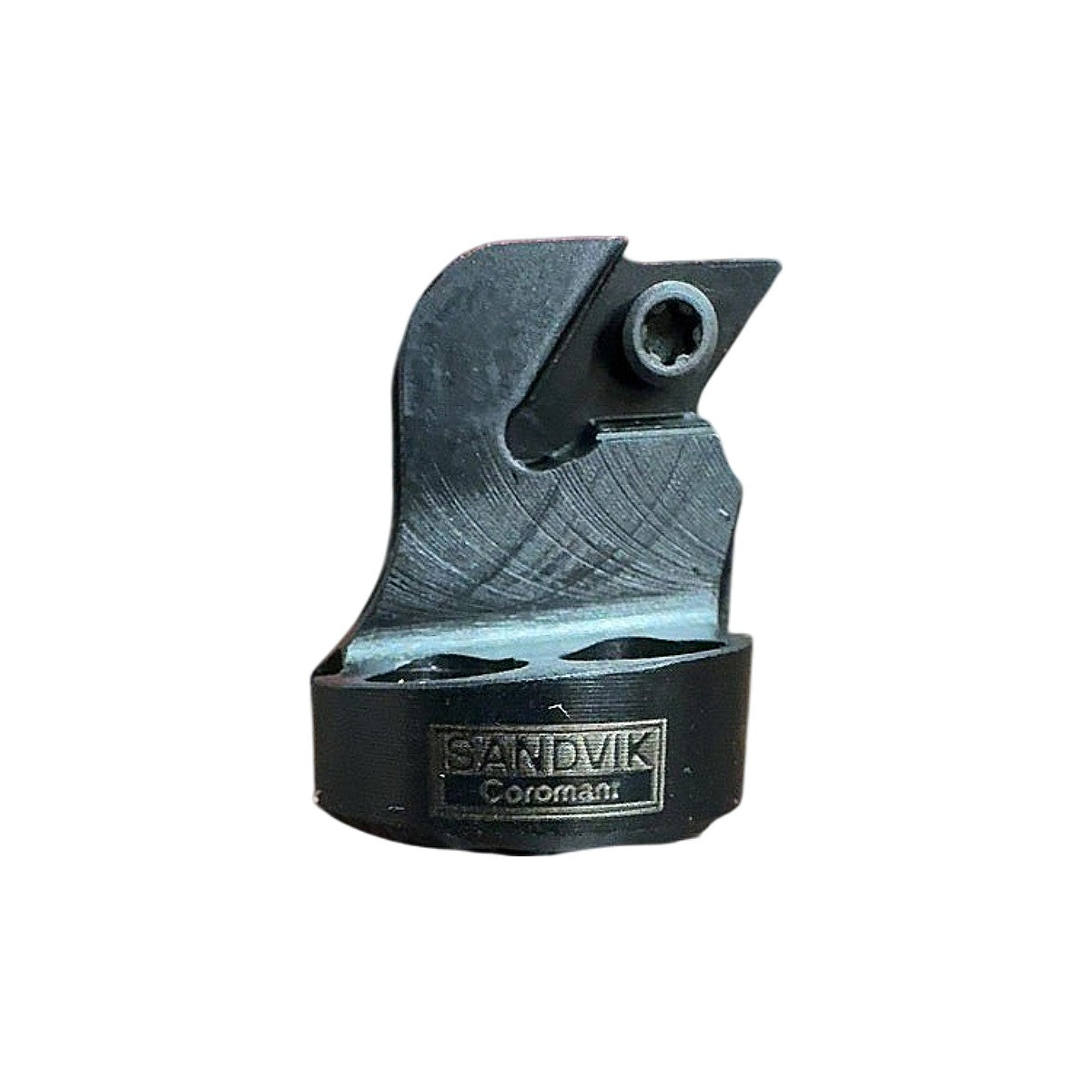

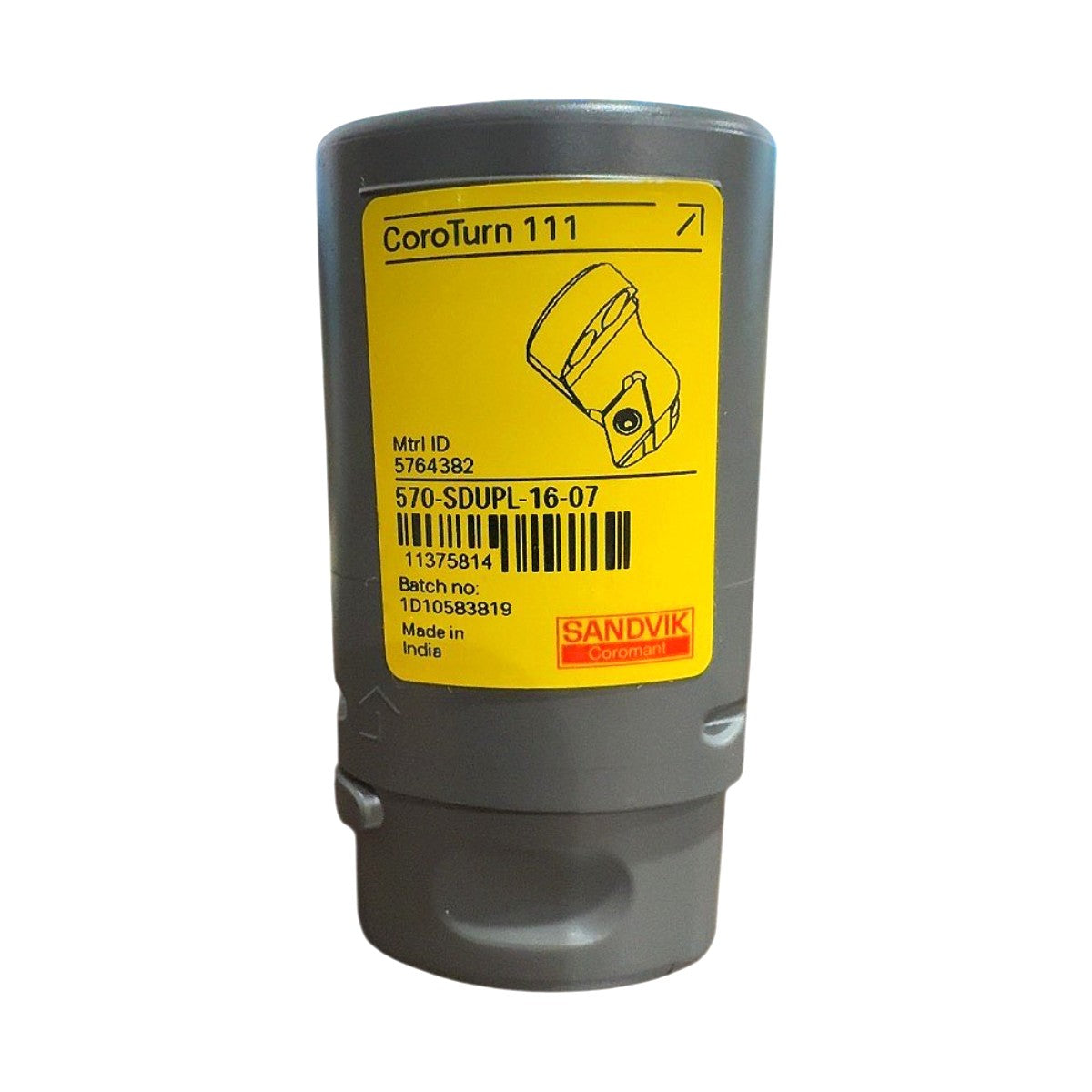

The Sandvik Coromant 570-SDUPL-16-07 is a new CoroTurn 111 indexable turning head designed for the Coromant Capto modular tooling system, specifically the C5 coupling size (CZCms Ø16 = 16 mm clamping diameter). Decoded from the part number: 570 = CoroTurn 111 system, S = Capto shank interface, D = insert seat style, U = left-hand cutting direction, PL = clamp style, 16 = 16 mm head diameter, 07 = insert size (DPMT 0702 series). The head accepts DPMT 0702 (7.94 mm IC, 0.2 mm nose radius) inserts and has an approach angle (KAPR) of 93°, making it suited for external turning, profiling, and copy-turning operations on lathes equipped with the Coromant Capto quick-change tooling system. Mtrl ID 5764382 is confirmed on the label; the Torx Plus 7IP (S690 051-02) insert key is included as shown in the photos. Made in India per the label.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | 570-SDUPL-16-07 |
| Material ID | 5764382 |
| System | CoroTurn 111 |
| Tooling Interface | Coromant Capto (CZCms) |
| Clamping Diameter | Ø16 mm |
| Compatible Insert | DPMT 0702 |
| Approach Angle (KAPR) | 93° |
| Hand of Cut | Left-hand (L) |
| Insert Size Code | 07 (DPMT 07) |
| Insert Clamping Method | Screw clamp (PL) |
| Insert Key Included | Torx Plus 7IP (S690 051-02) |
| Country of Origin | India |
| Condition | New |
