Sandvik Coromant N123J2-0600-RM 3115 CoroCut 1-2 Carbide Grooving Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

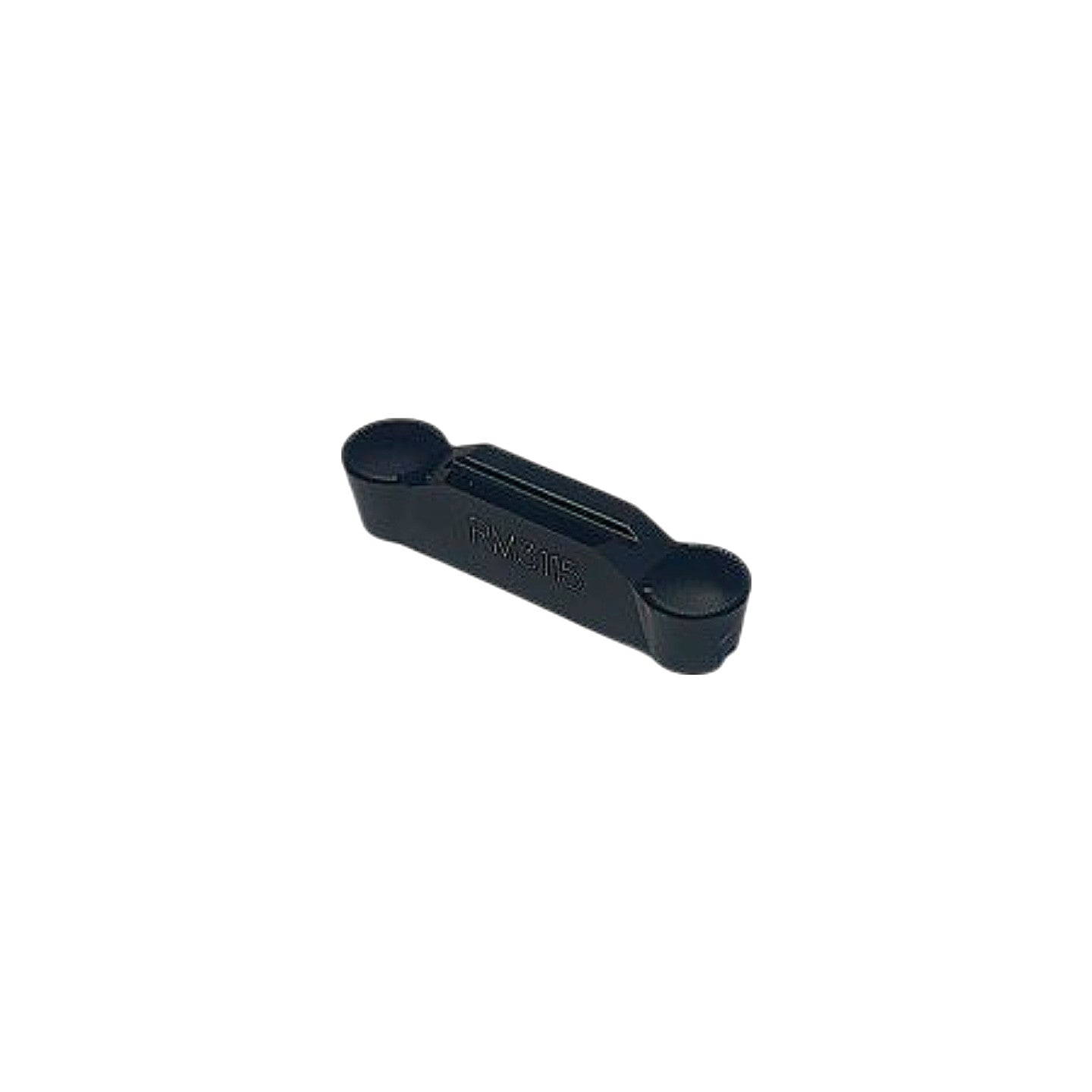

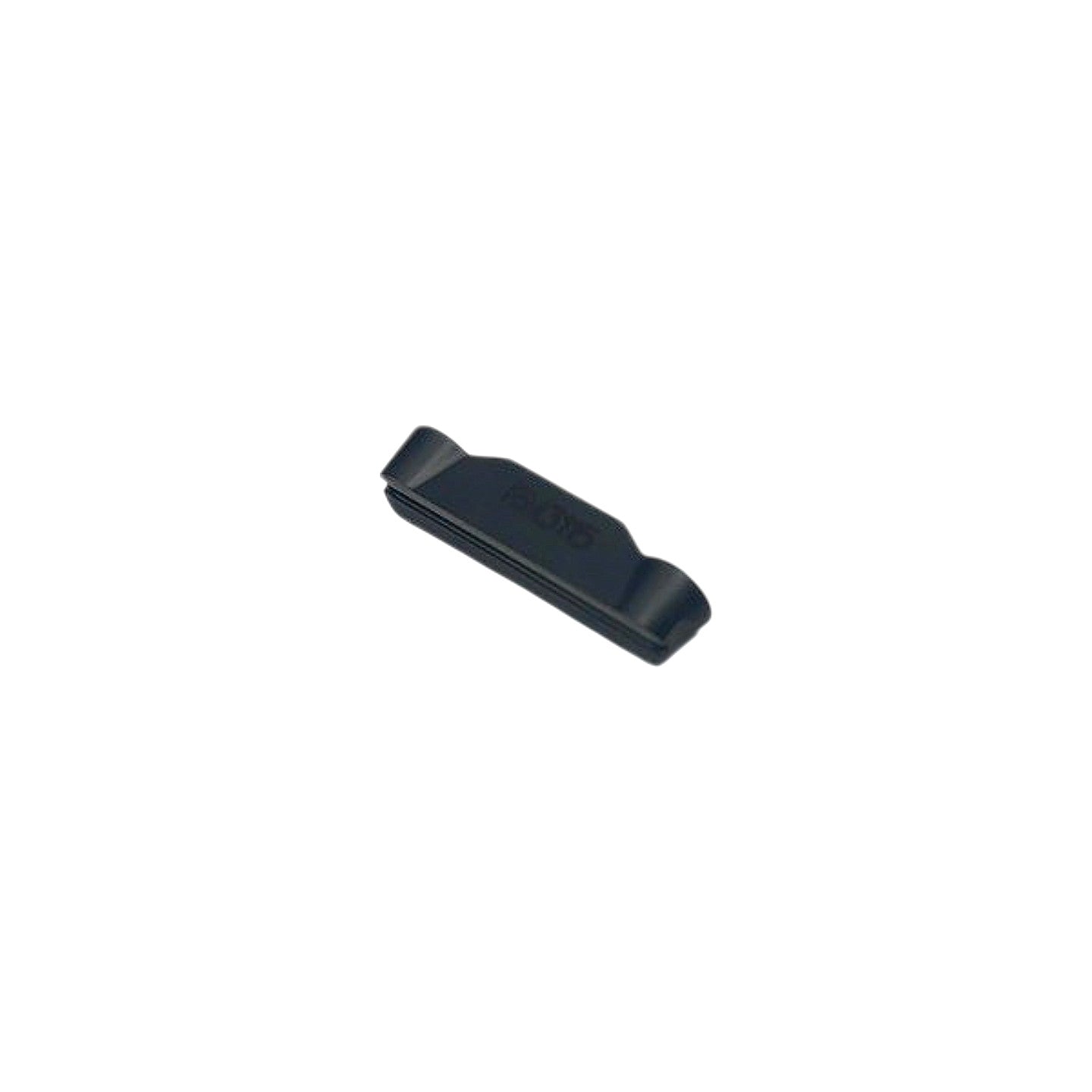

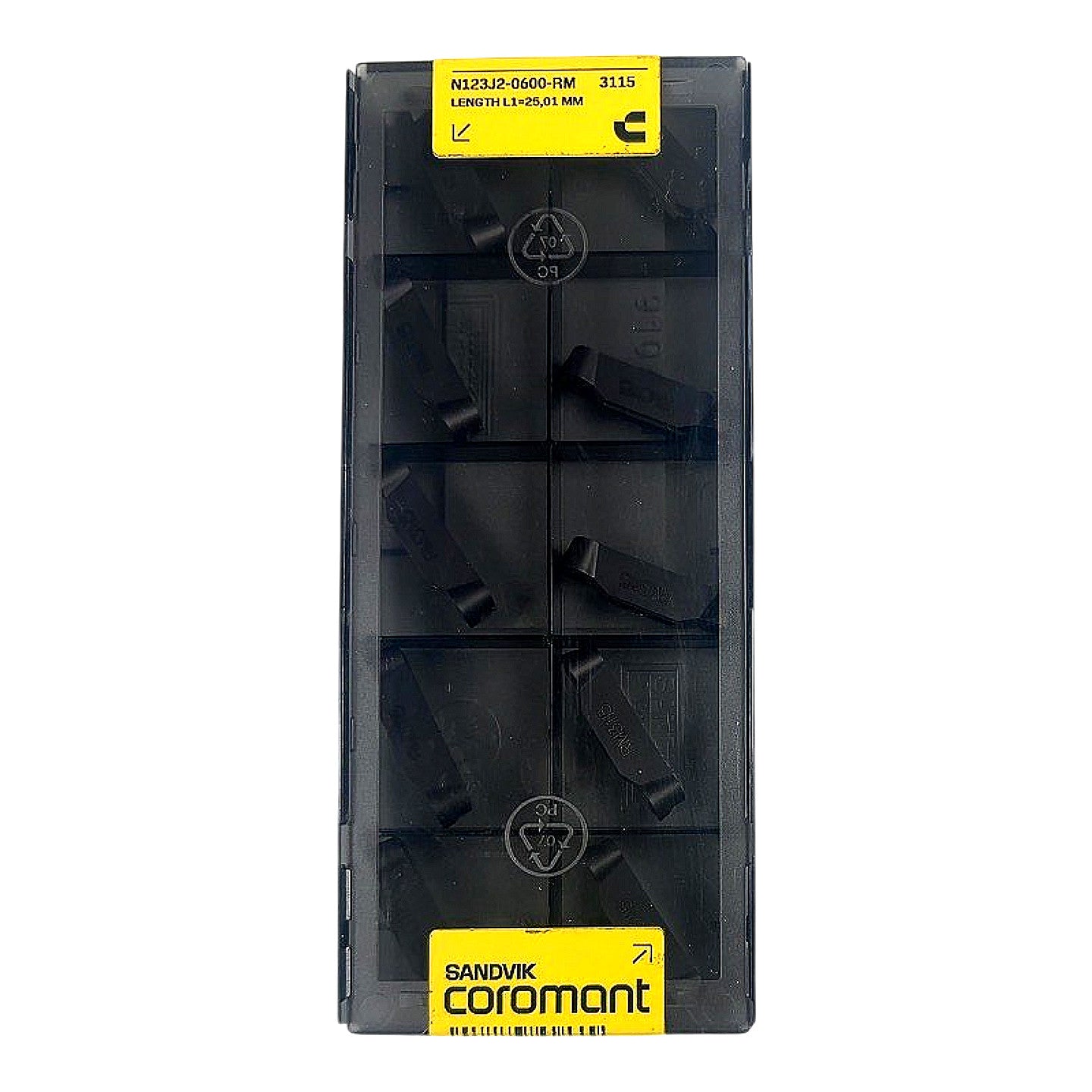

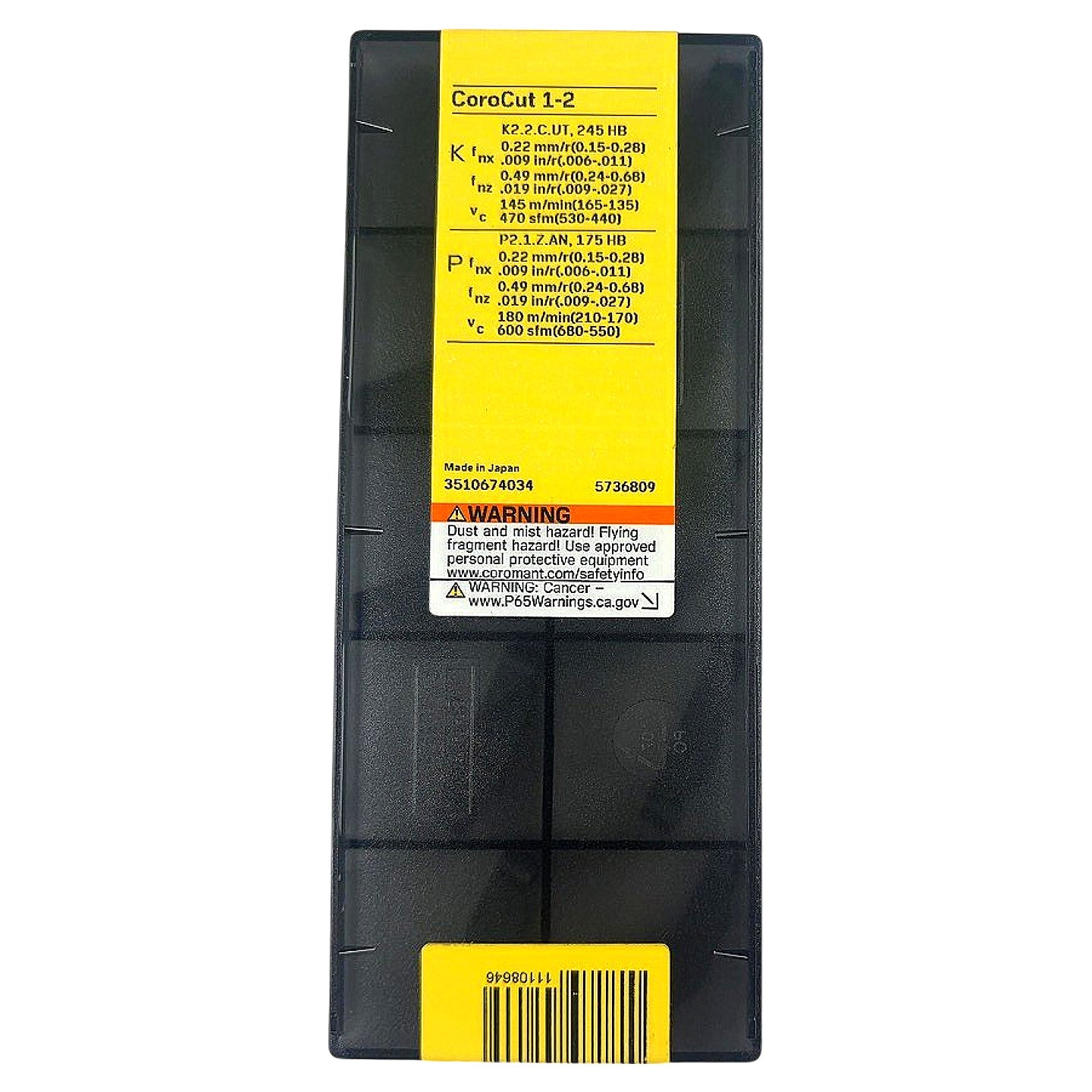

The Sandvik Coromant N123J2-0600-RM 3115 is a new, double-ended CoroCut 1-2 carbide grooving/parting insert designed for use in two-edge CoroCut toolholders with a J2 (2 mm) seat width. The MPN decodes as follows: N = neutral cutting geometry, 123 = CoroCut 1-2 system, J2 = 2-edge seat designation, 0600 = 6.00 mm cutting width, RM = medium chipbreaker geometry suited for a broad feed range on both steel and cast iron. Grade 3115 is a CVD-coated cemented carbide (Ti(C,N)/Al₂O₃ multilayer) optimized for steel (P) and cast iron (K) at moderate-to-high cutting speeds; the back label confirms use on K-material (245 HB) at vc 470 sfm (530–440) and P-material (175 HB) at vc 600 sfm (680–550). The insert length L1 is 25.01 mm as shown on the package label, and the box contains 10 inserts manufactured in Japan. Compatible toolholders include Sandvik CoroCut QD, QF, and RF series holders accepting the N123J2 seat.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | N123J2-0600-RM 3115 |
| Insert System | CoroCut 1-2 |
| Insert Style | N123J2 (double-ended grooving/parting) |
| Cutting Width | 6.00 mm (0.236 in) |
| Insert Length L1 | 25.01 mm |
| Seat Width Designation | J2 (2-edge, 2 mm seat) |
| Chipbreaker | RM (medium, neutral) |
| Grade | 3115 |
| Coating | CVD Ti(C,N)/Al₂O₃ multilayer |
| ISO Material Groups | P (steel), K (cast iron) |
| Cutting Speed – K (245 HB) | 470 sfm (530–440) / 145 m/min (165–135) |
| Cutting Speed – P (175 HB) | 600 sfm (680–550) / 180 m/min (210–170) |
| Feed fnx – K & P | 0.009 in/r (0.006–0.011) / 0.22 mm/r |
| Feed fnz – K & P | 0.019 in/r (0.009–0.027) / 0.49 mm/r |
| Country of Origin | Japan |
| Quantity per Package | 10 inserts |
| Condition | New |
