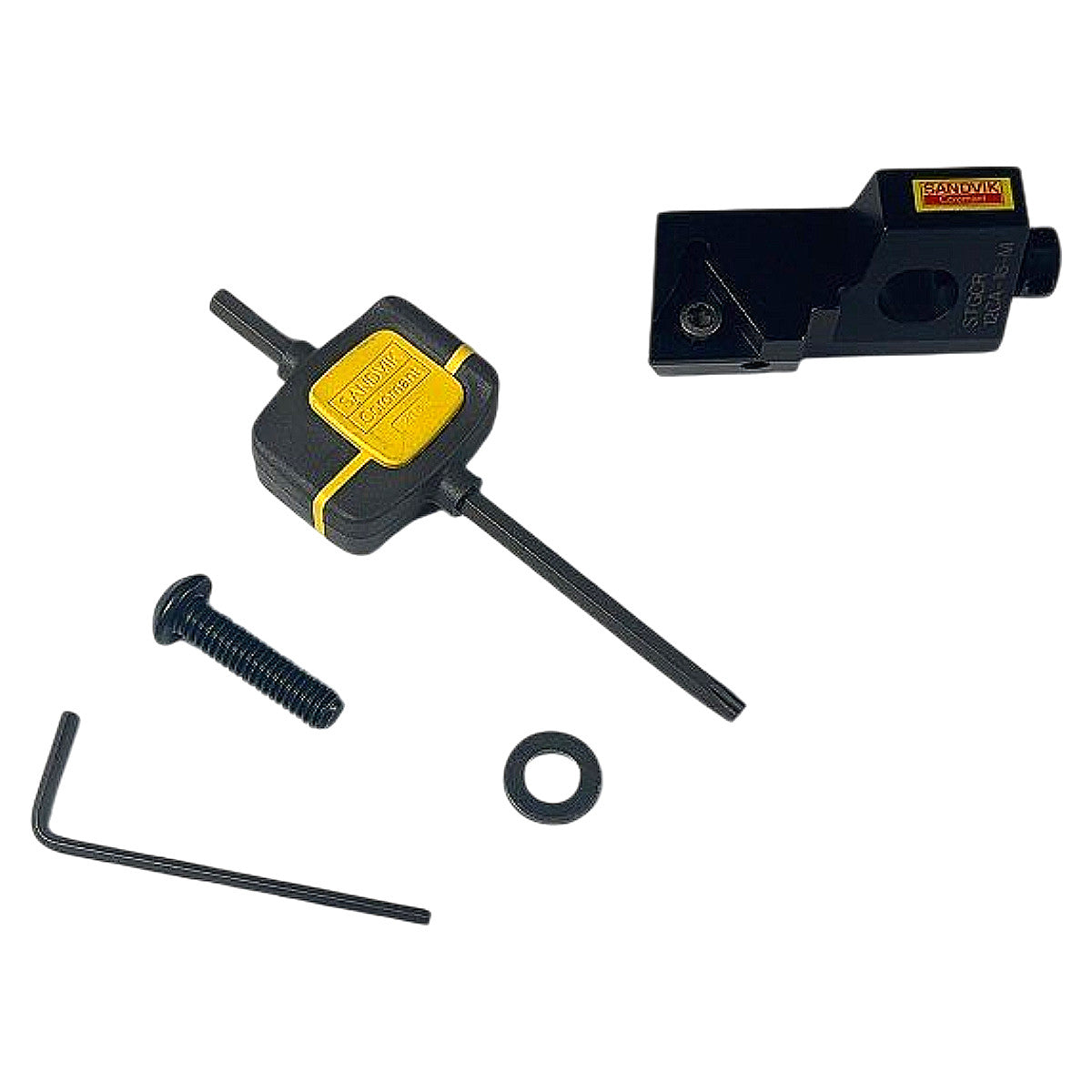

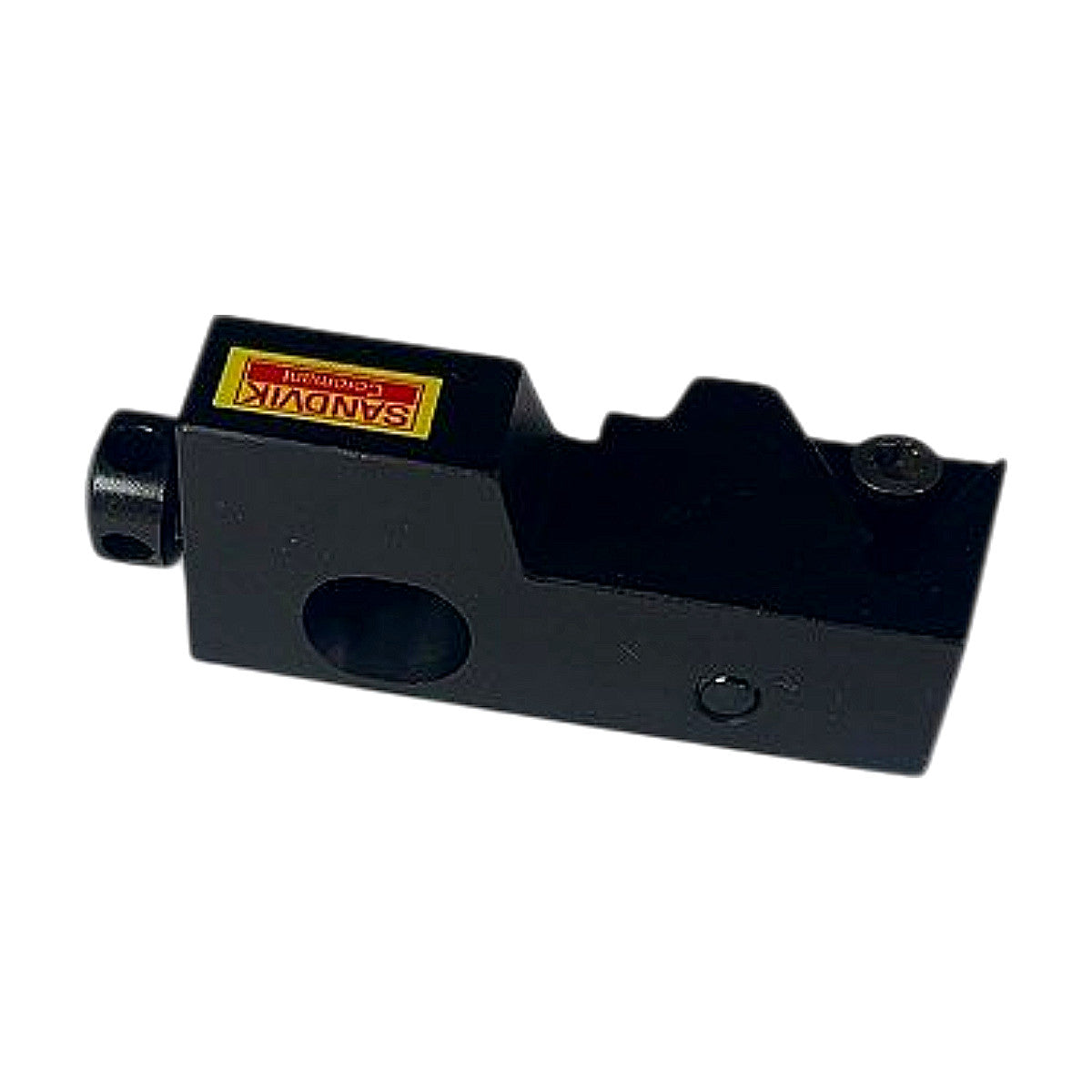

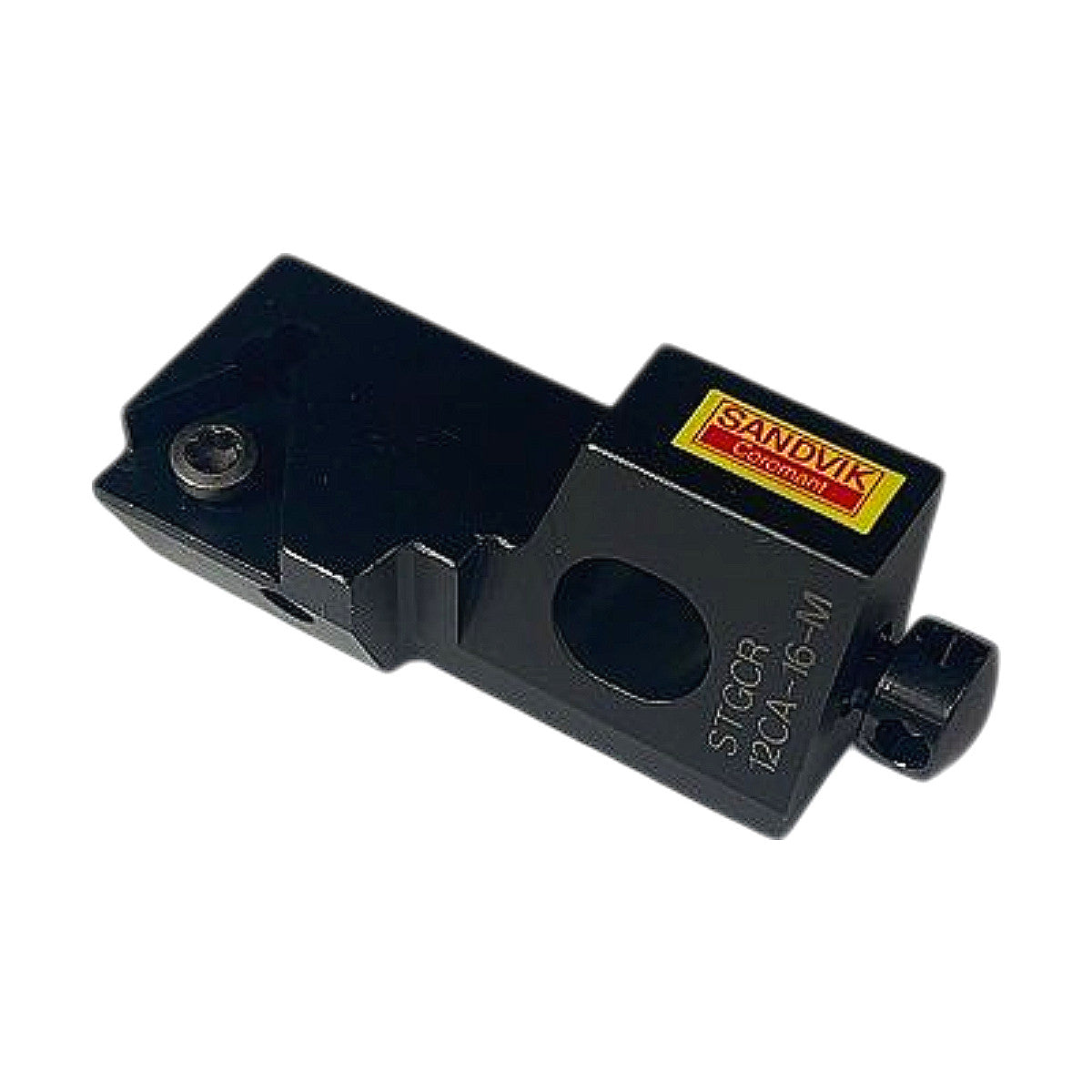

The Sandvik Coromant STGCR 12CA-16-M is a new CoroTurn 107 indexable turning toolholder designed for external longitudinal and facing operations, accepting TCGT/TCMT 16-series inserts (triangular, 7° clearance). Decoding the designation: S = shank style (square), T = insert shape (triangular/TCMT-TCGT), G = clearance angle (7°), C = clamping method (top clamp/screw-on), R = right-hand cutting direction, 12CA = 12 mm square shank with CA-style interface, 16 = insert size IC 9.525 mm (3/8 in), M = metric. The 12 mm square shank is machined from hardened alloy steel with a black oxide finish and accepts TCMT/TCGT 16T3 inserts secured by a top-clamp mechanism using the included Torx key. This holder is suited for light finishing and semi-finishing of steel, stainless, aluminum, and non-ferrous materials on CNC lathes and manual turning centers; it ships new-in-box with the mounting hardware, hex key, Torx key, clamping screw, and washer as shown.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | STGCR 12CA-16-M |
| Series | CoroTurn 107 |
| Shank Style | Square (S) |
| Shank Size | 12 mm x 12 mm |
| Insert Shape | Triangular (T) — TCMT/TCGT |
| Insert Clearance Angle | 7° (G) |
| Clamping Method | Top clamp / screw-on (C) |
| Cutting Direction | Right-hand (R) |
| Insert Size (IC) | 16 — 9.525 mm (3/8 in) |
| Compatible Insert | TCMT/TCGT 16T3xx |
| Standard | Metric (M) |

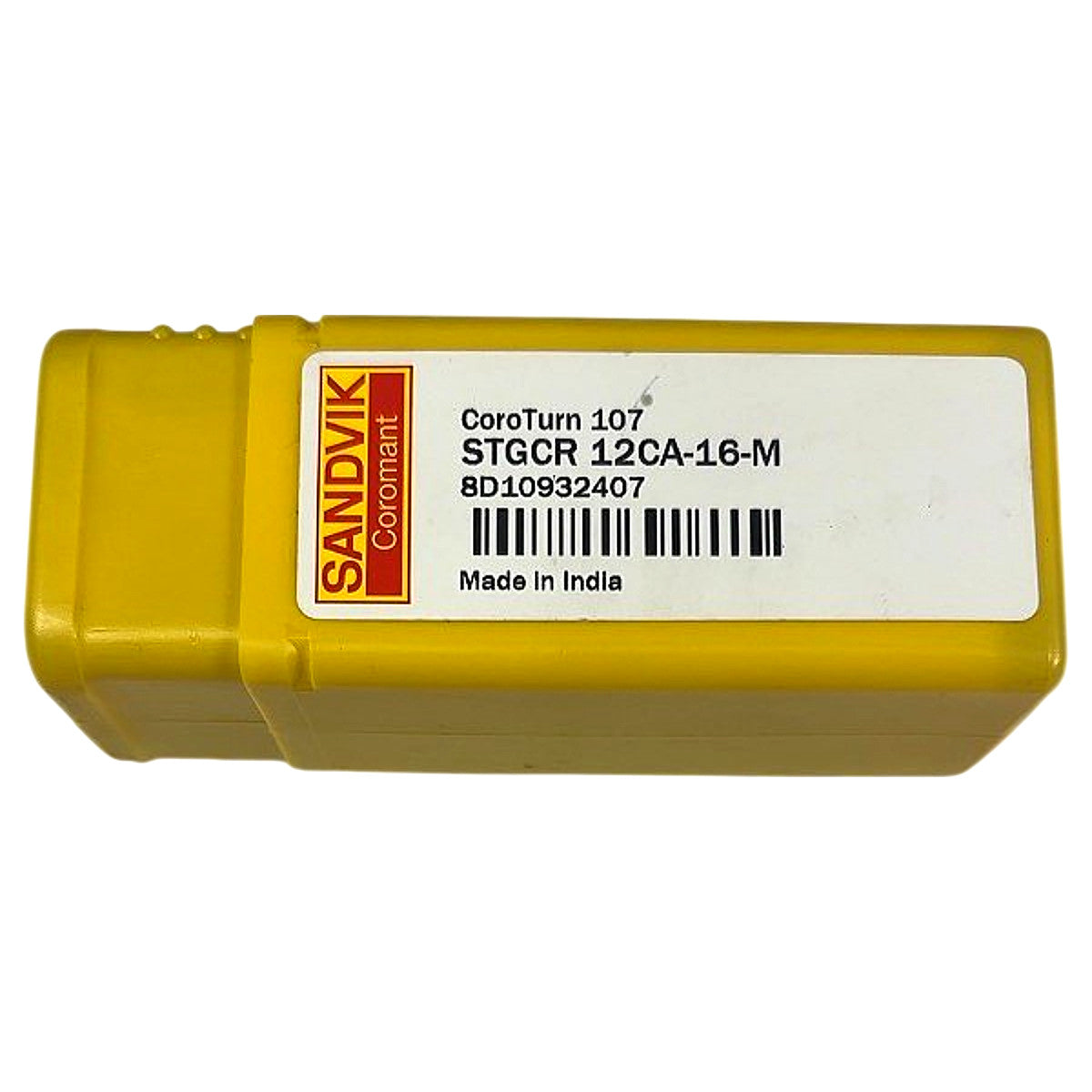

| Country of Manufacture | India |
| Condition | New |
| Included Accessories | Torx key, hex key, clamping screw, washer |
