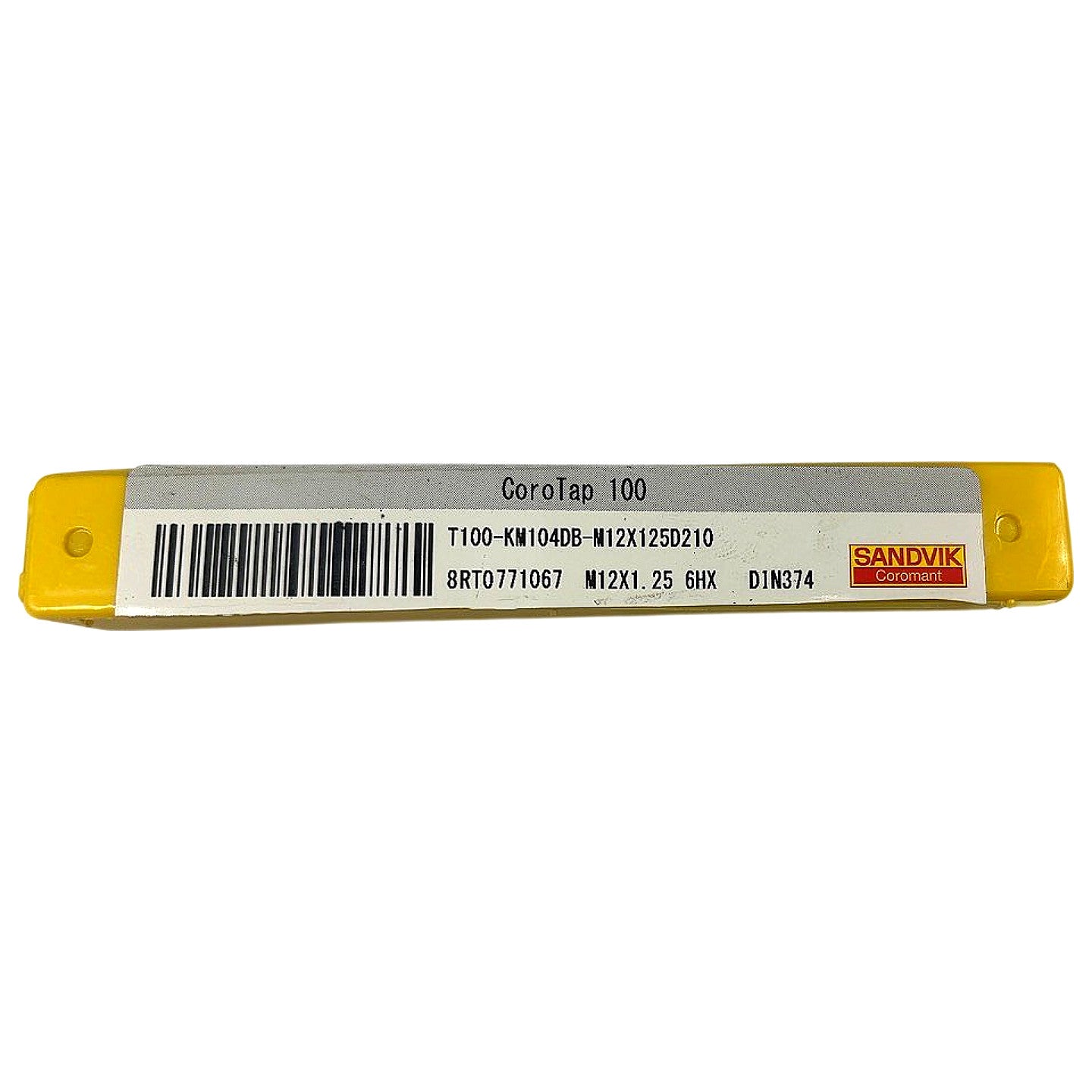

Sandvik Coromant T100-KM104DB-M12X125D210 M12x1.25 6HX CoroTap 100 Spiral Flute Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

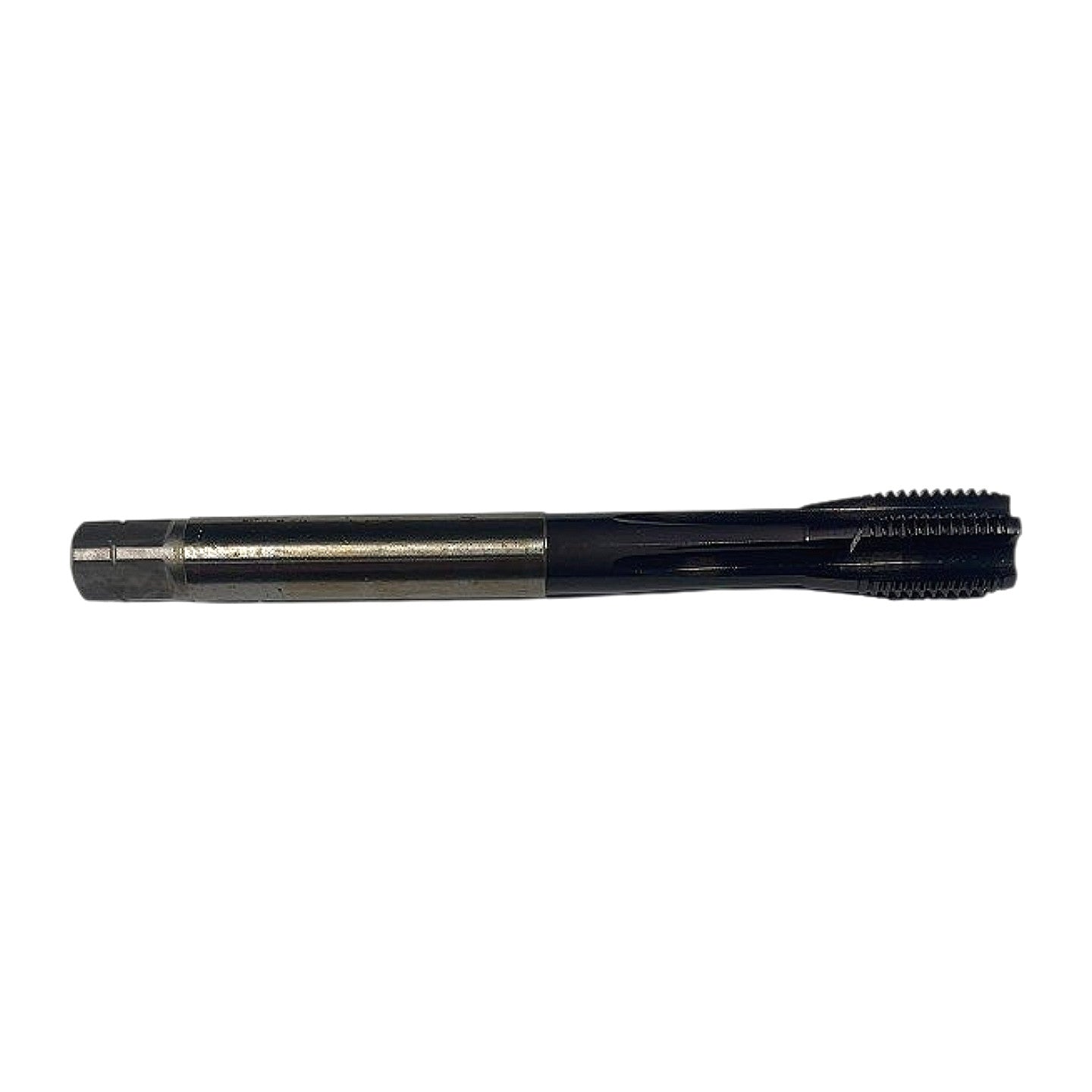

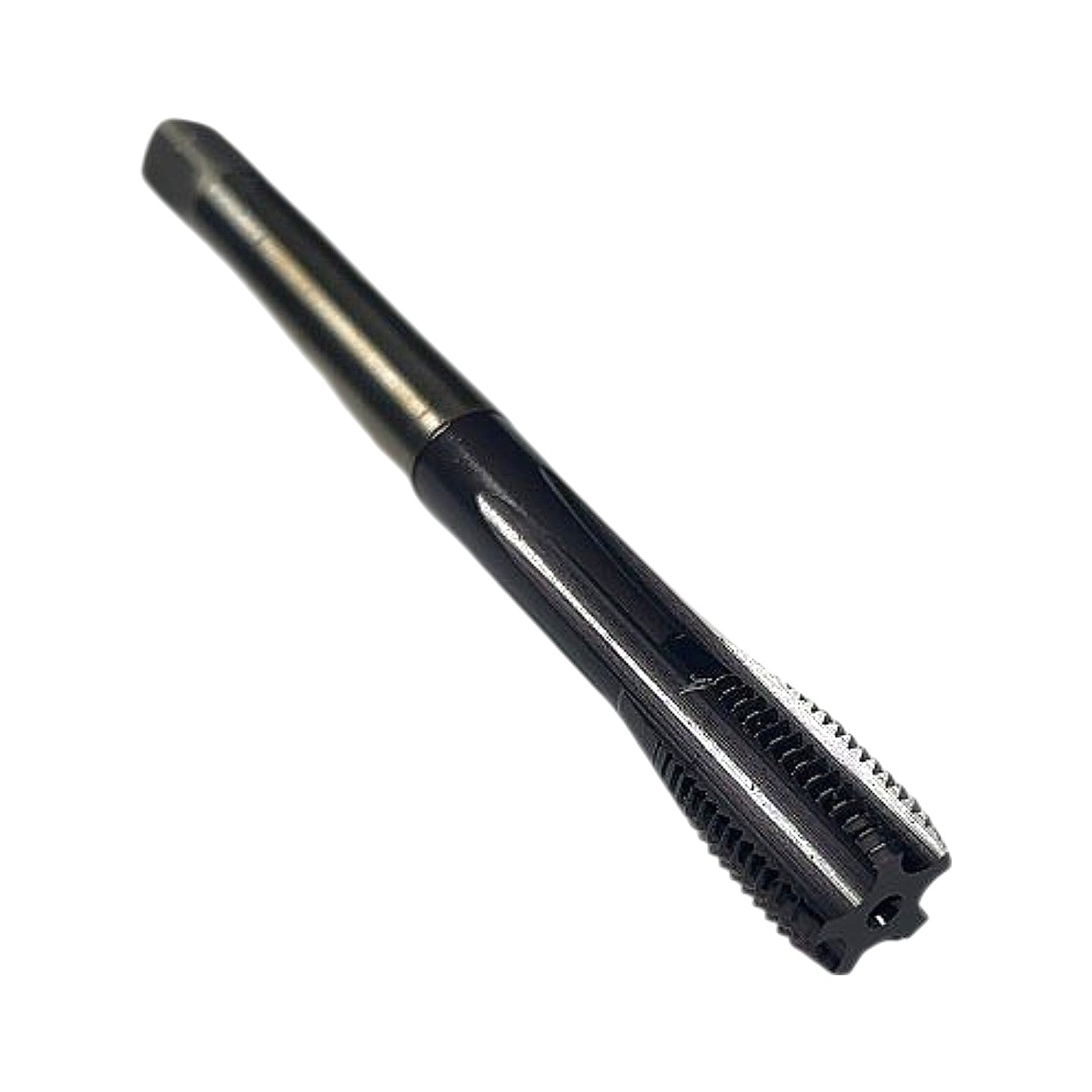

The Sandvik Coromant CoroTap 100 T100-KM104DB-M12X125D210 is a new, spiral-flute (chip-evacuation) machine tap designed for cutting M12×1.25 fine-pitch metric threads to a 6HX tolerance class per DIN 374. The "KM" designation indicates a High-Speed Steel-E (HSS-E, cobalt-enriched) substrate with a steam-oxide (DB = dark/black oxide) surface treatment, which improves lubricity, reduces built-up edge, and extends tool life in through-hole tapping applications where chips are evacuated upward. The "D210" suffix encodes a nominal thread depth of 2.0× diameter (≈24 mm) and the 210 mm overall length with a reduced/extended shank sized for the CoroTap 100 quick-change system — it is compatible with Sandvik Coromant's T-Max and CoroTap chuck systems with the KM shank interface. With four flutes and a spiral-flute geometry, this tap is optimized for tapping through-holes in steel, stainless steel, and cast iron at CNC machining centers, providing reliable chip extraction and consistent 6HX-class tolerances per DIN 374.
Product Specifications
| Brand | Sandvik Coromant |
| Product Line | CoroTap 100 |
| MPN | T100-KM104DB-M12X125D210 |
| Thread Size | M12x1.25 |
| Thread Standard | Metric Fine (MF) |
| Tolerance Class | 6HX |
| DIN Standard | DIN 374 |
| Tap Type | Spiral Flute (Through-Hole) |
| Material / Substrate | HSS-E (Cobalt High-Speed Steel) |
| Coating / Finish | Steam Oxide (Black Oxide) |
| Overall Length | 210 mm |
| Max Thread Depth | 2xD (approx. 24 mm) |
| Number of Flutes | 4 |
| Shank Type | KM (Sandvik CoroTap Quick-Change) |
| Condition | New |
