Sandvik CXS-07T098-20-7240R 1025 Solid Carbide Boring Bar

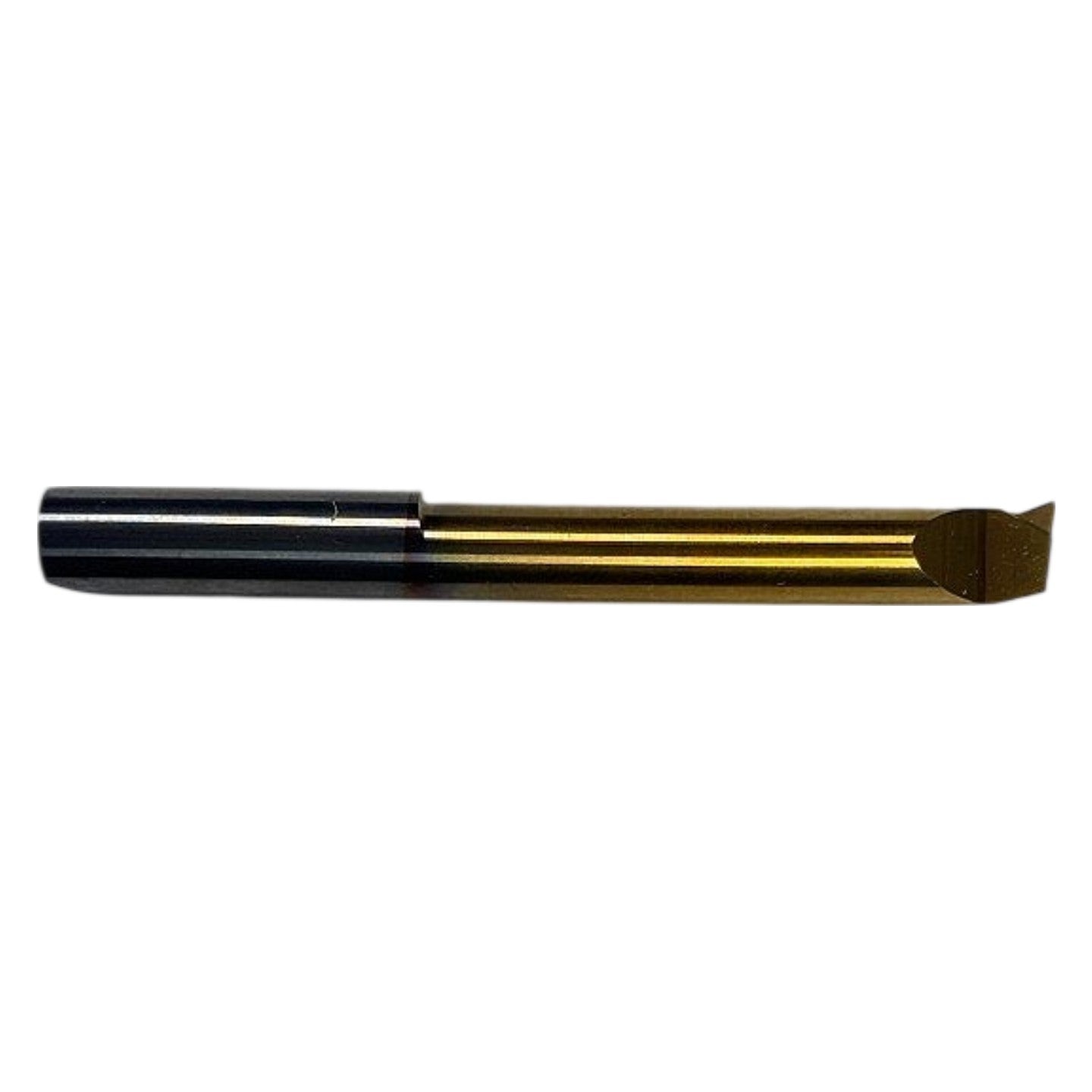

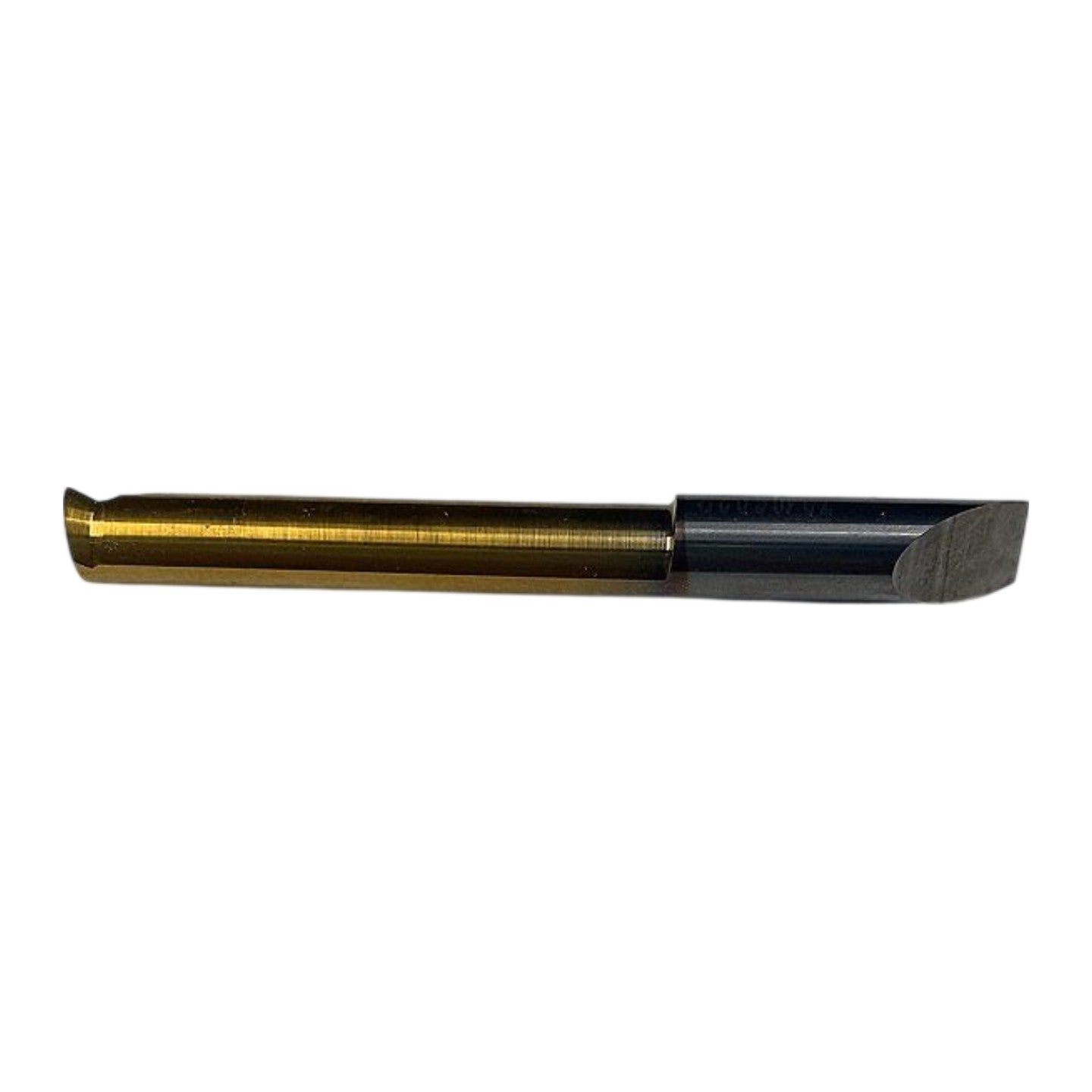

This is a new Sandvik Coromant CXS-07T098-20-7240R in grade 1025, a solid carbide internal turning/boring bar from the CoroTurn XS system designed for small-part and Swiss-type lathe machining. The designation decodes as follows: CXS = CoroTurn XS solid carbide boring bar; 07 = 7 mm shank diameter; T098 = insert seat geometry (top clamp, 9.8 mm insert size reference); 20 = 20 mm minimum bore diameter; 72 = 72 mm usable/effective length; 40 = total length 40 mm (overhang class); R = right-hand cutting direction. Grade 1025 is a PVD TiN/TiAlN-family uncoated or lightly coated fine-grain carbide substrate optimized for finishing passes in steel and stainless steel at small diameters. The tool shank exhibits a gold TiN-series PVD coating on the shank body visible in the photos, with the cutting tip area uncoated, consistent with Sandvik's 1025 grade presentation for CoroTurn XS bars. Compatible with Sandvik CoroTurn XS toolholders and Swiss-type CNC lathes accepting 7 mm round shank boring bars.

Product Specifications
