Sandvik E08R-SCLCL 2 CoroTurn 107 Indexable Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

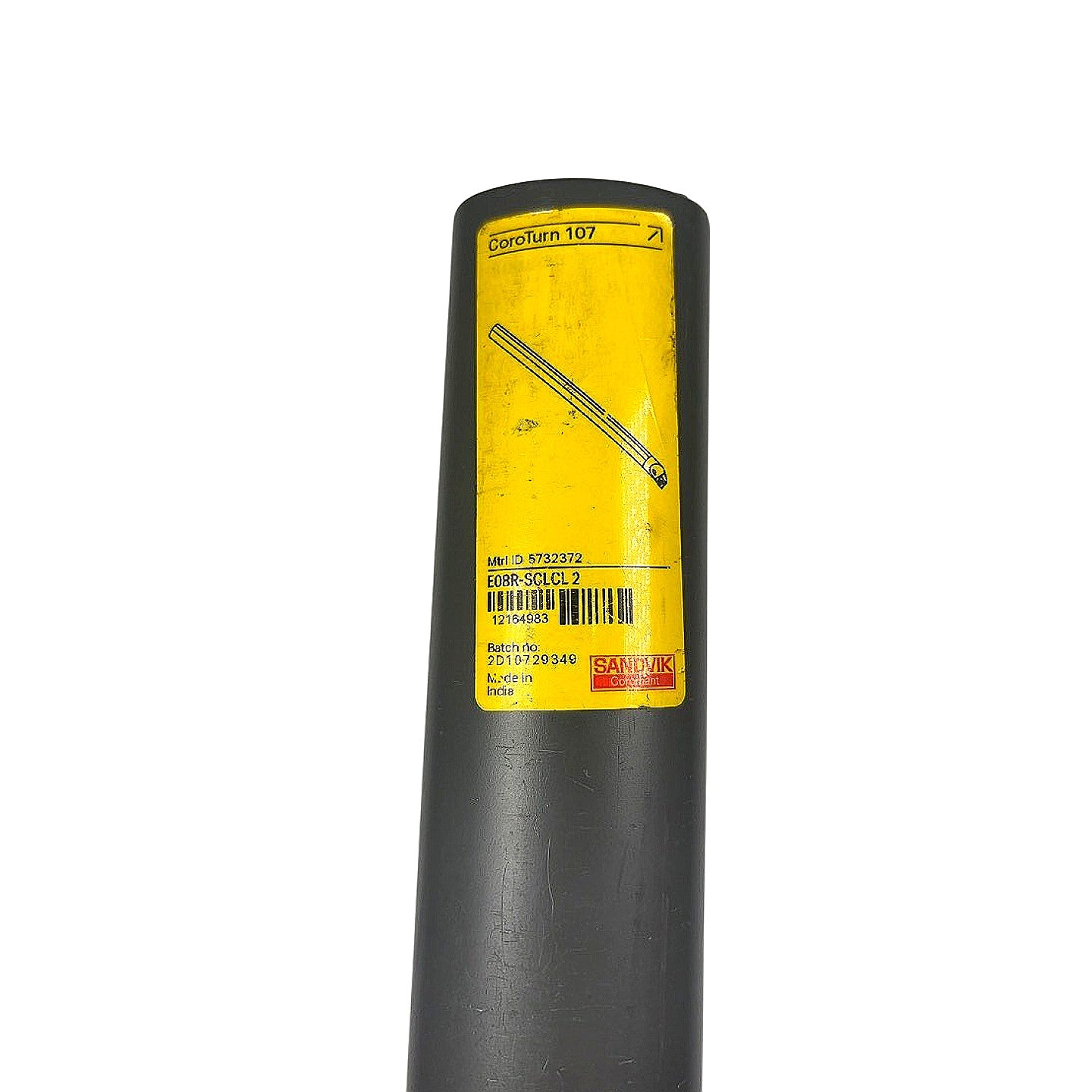

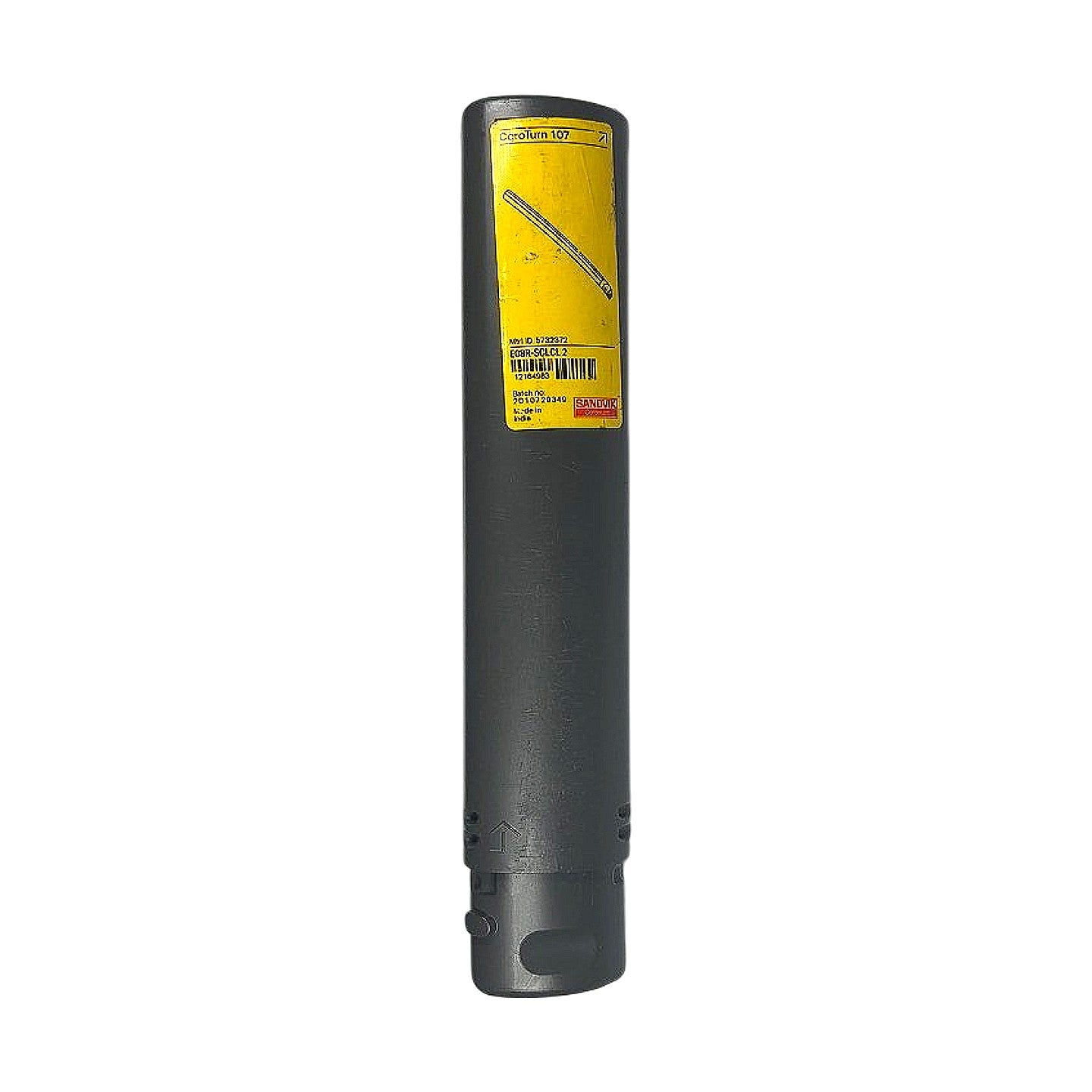

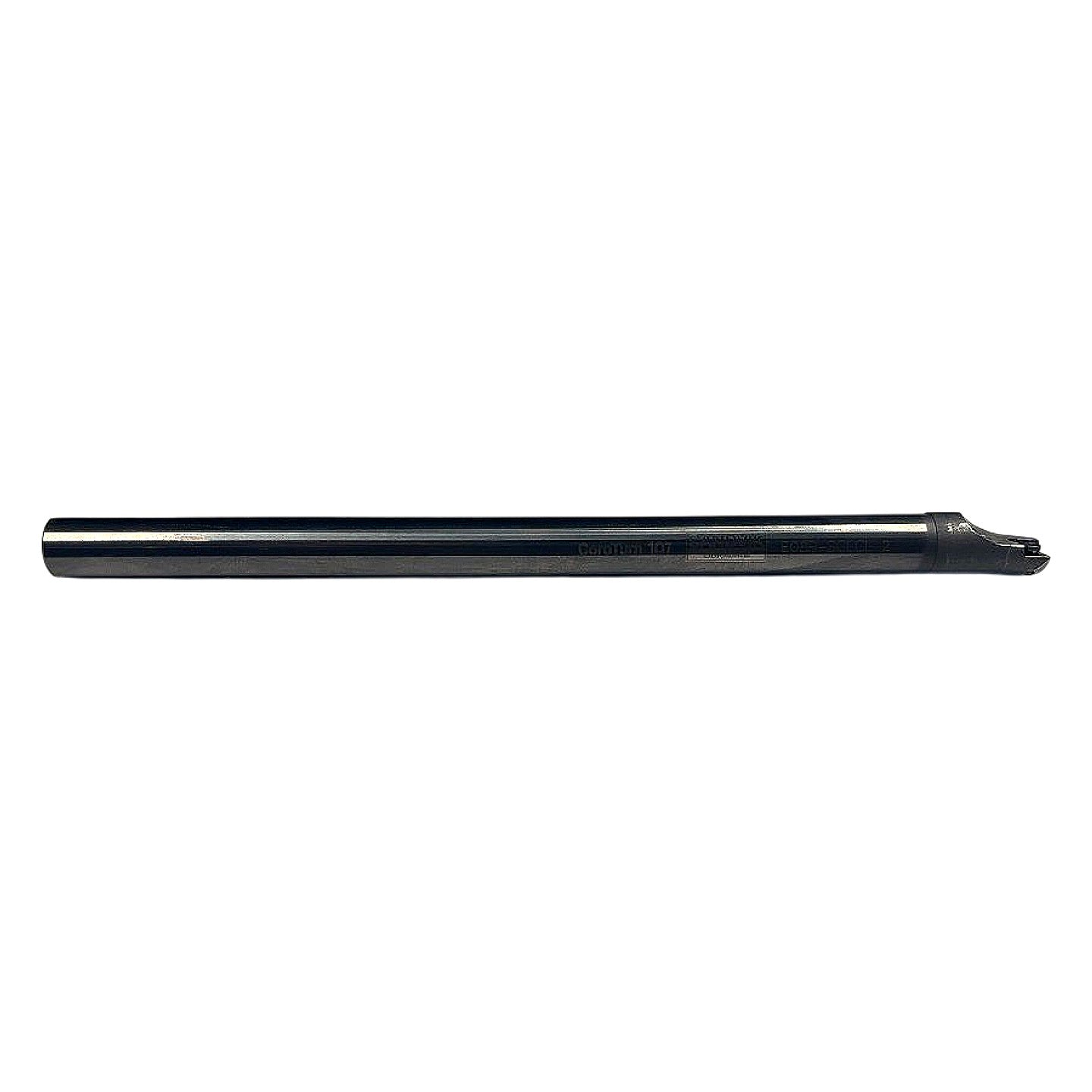

This is a new Sandvik Coromant E08R-SCLCL 2 CoroTurn 107 indexable boring bar, a solid steel screw-clamp internal turning toolholder designed for use with CCMT 06 02-series inserts (CC-style, 80° rhombic). Decoding the designation: E = boring bar style with cylindrical shank, 08 = 8 mm shank diameter, R = right-hand cutting, S = screw clamping method, CL = CCMT insert shape/seat, CL = 95° lead angle geometry, 2 = 2× diameter minimum bore to length ratio indicator. The bar is made in India per the original Sandvik Coromant label (Mtrl ID 5732372, batch 2D10729349) and is compatible with the CoroTurn 107 system for small-hole internal turning, profiling, and light finishing operations in bores as small as approximately 10 mm. The cylindrical shank is suited for standard ER or precision collet chuck systems accommodating 8 mm shanks.
Product Specifications
| Brand | Sandvik Coromant |
| Part Number (MPN) | E08R-SCLCL 2 |
| Material ID | 5732372 |
| Product Line | CoroTurn 107 |
| Toolholder Style | Boring Bar (Solid Steel Cylindrical Shank) |
| Shank Diameter | 8 mm (0.315 in) |
| Hand of Cut | Right-Hand |
| Clamping Method | Screw Clamp (S) |
| Compatible Insert Shape | CCMT (80° Rhombic) |
| Lead Angle | 95° |
| Insert Size Compatibility | CCMT 06 02 series |
| Operation Type | Internal Turning / Boring |
| Country of Origin | India |
| Condition | New |
