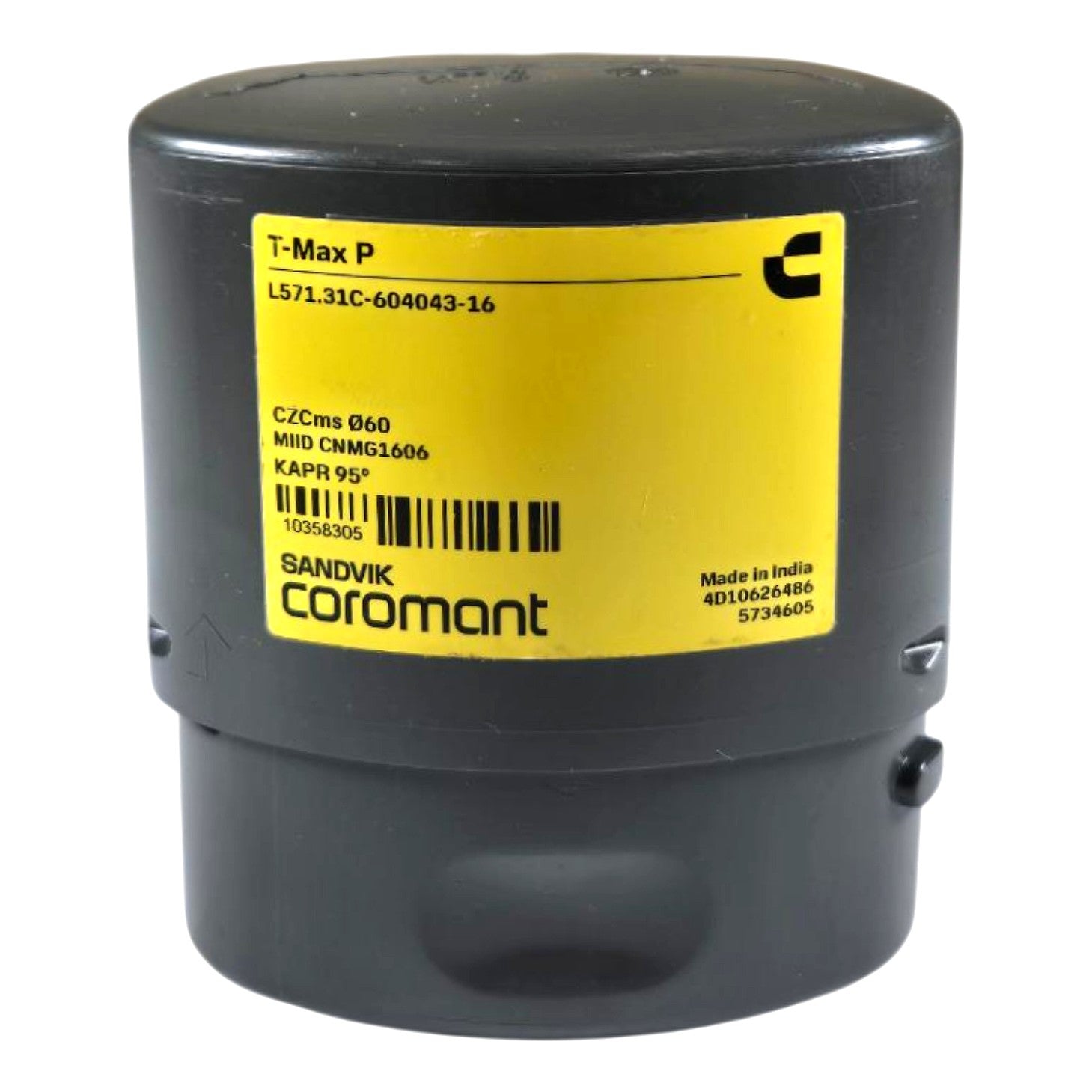

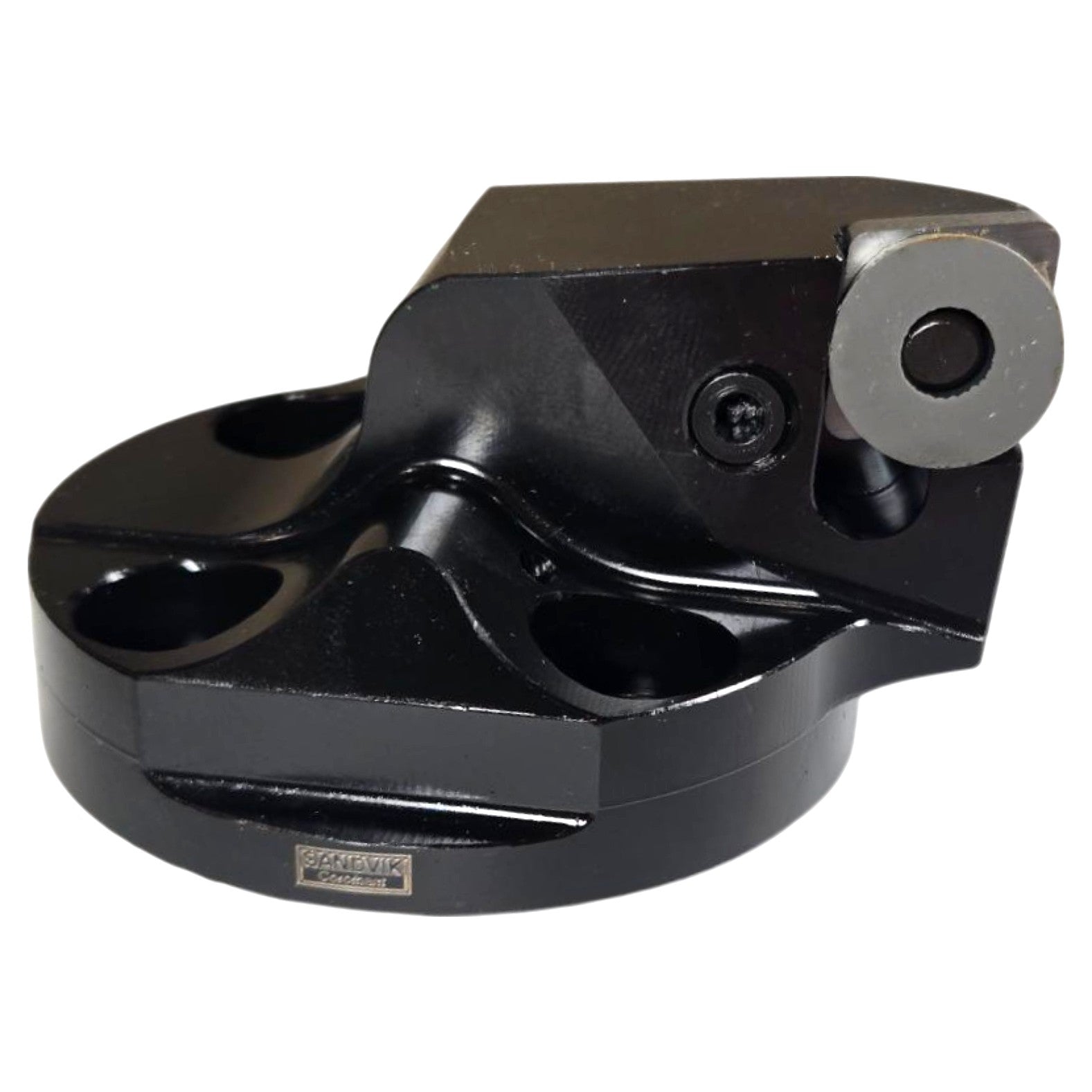

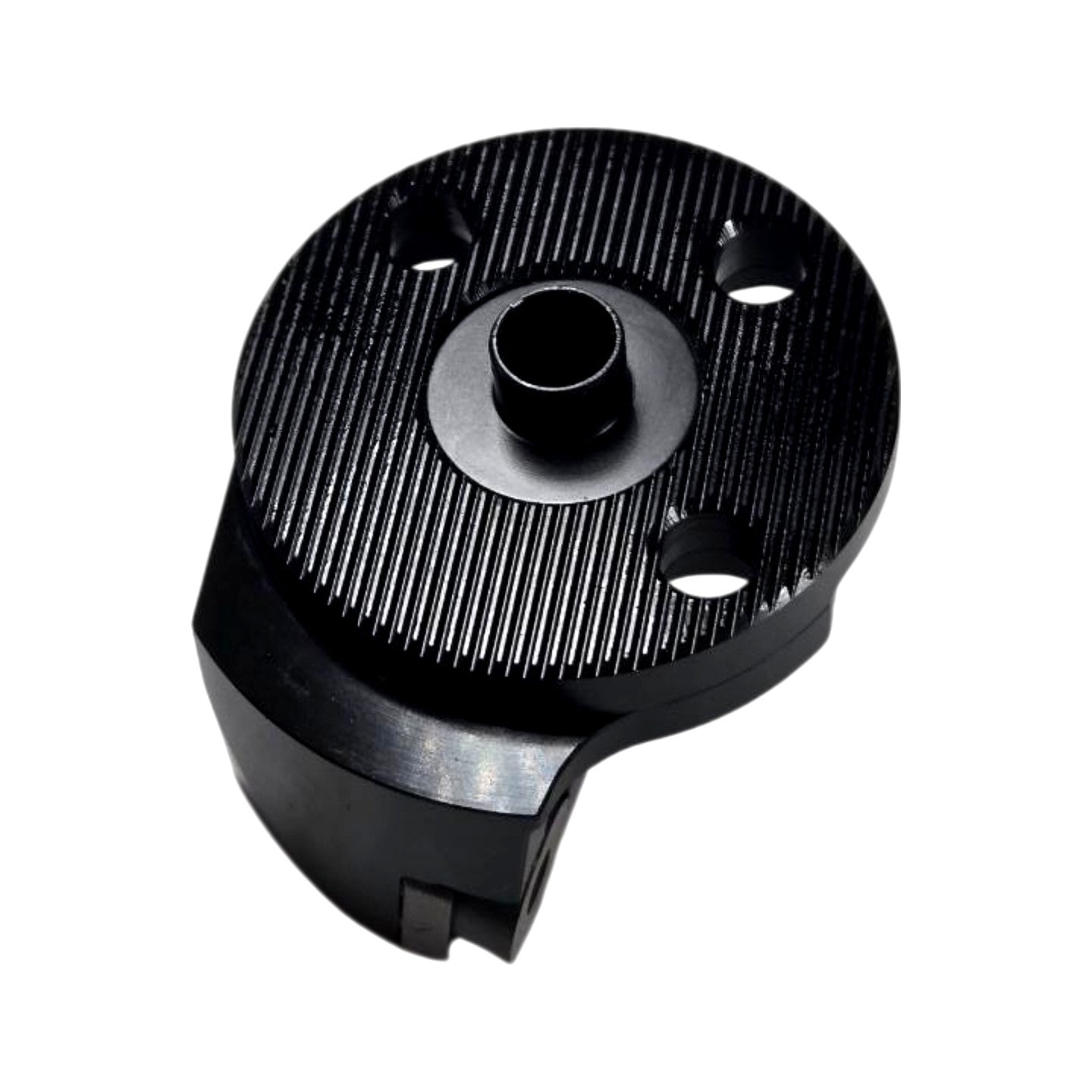

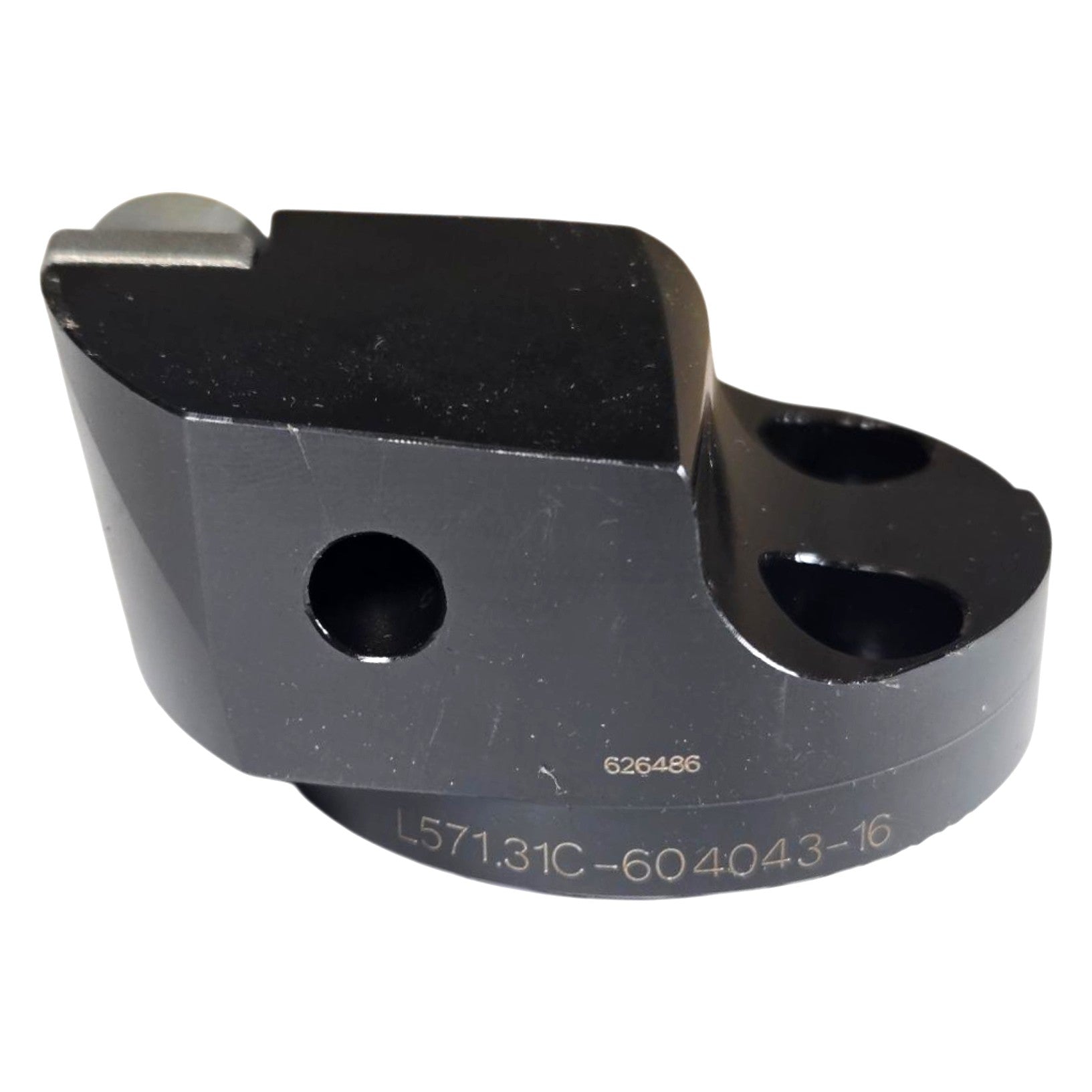

The Sandvik Coromant L571.31C-604043-16 is a new, indexable T-Max P turning head designed for the Coromant Capto modular tooling system (CZCms interface, Ø60 mm coupling diameter). It accepts CNMG 1606 (CNMG 432) double-sided negative turning inserts and features a 95° lead angle (KAPR 95°), making it suited for longitudinal turning and facing operations with a 5° back-clearance approach geometry. The head body is manufactured from hardened alloy steel with a black oxide/nitride surface treatment for corrosion resistance and is secured to the Capto shank via the precision serrated (Curvic) face-contact coupling, providing high rigidity and repeat positioning accuracy. Internal coolant capability is present via the through-body coolant port visible in the photos, allowing directed coolant delivery to the cutting zone. Barcode 10358305 and batch codes 4D10626486 / 5734605 are visible on the original Sandvik packaging label; the unit is supplied new in its original plastic canister.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | L571.31C-604043-16 |
| Series | T-Max P |
| Tooling System | Coromant Capto (CZCms) |
| Coupling Diameter | 60 mm |
| Compatible Insert Style | CNMG 1606 (CNMG 432) |
| Lead Angle (KAPR) | 95° |
| Insert Shape | C — 80° rhombic (diamond) |
| Insert Clearance Angle | N — 0° (negative) |
| Insert Size (IC) | 16 mm (1606 = 16 mm IC, 06 thickness) |
| Insert Thickness | 6.35 mm (06) |
| Cutting Direction | Right-hand |
| Internal Coolant | Yes — through-body coolant port |
| Body Material | Alloy steel, black oxide/nitride treated |
| Country of Origin | India |
| Condition | New |
| Sandvik Item No. | 5734605 |
| Barcode | 10358305 |
