Sandvik MACL 3150-R20 1025 CoroCut XS Carbide Cut-Off Insert (5pc)

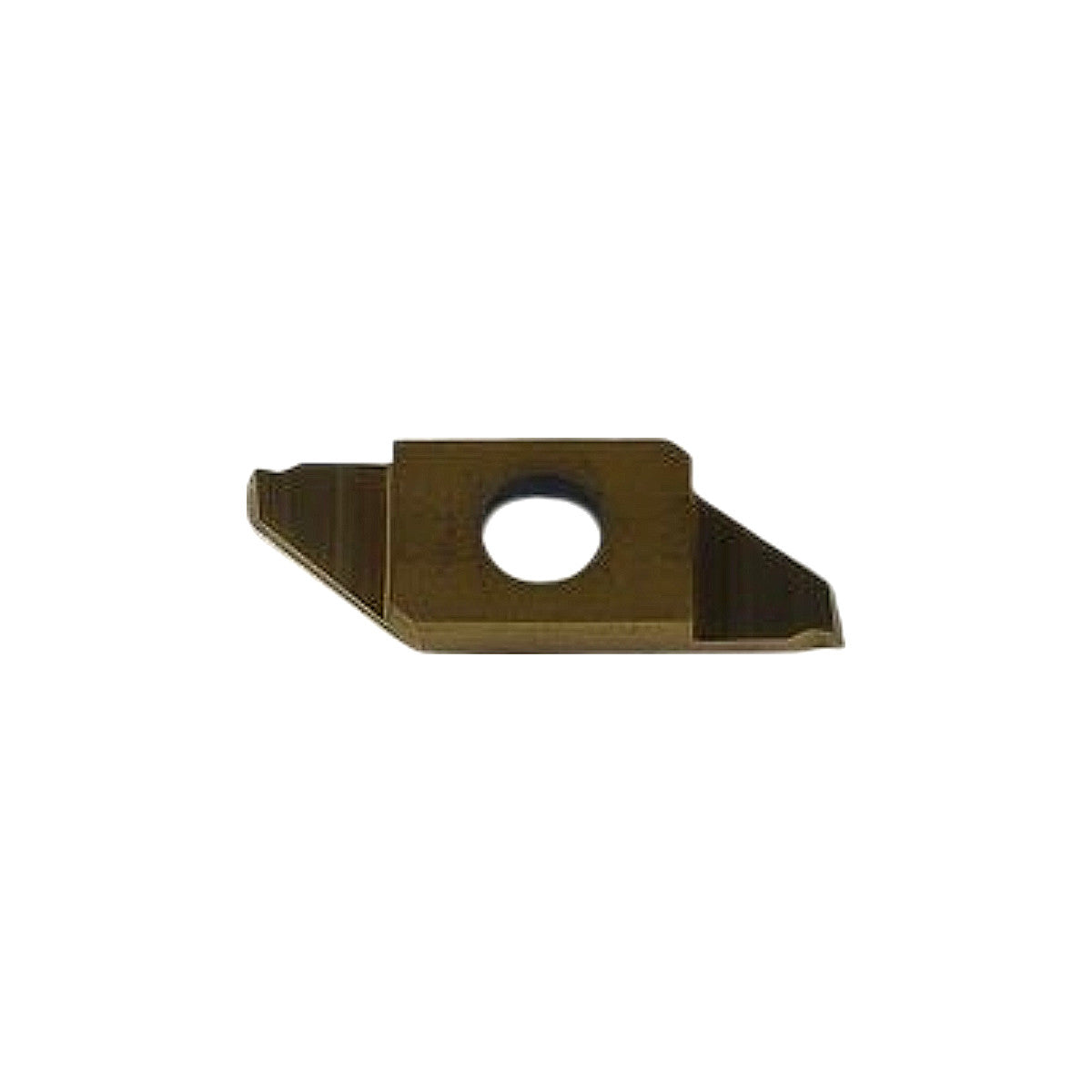

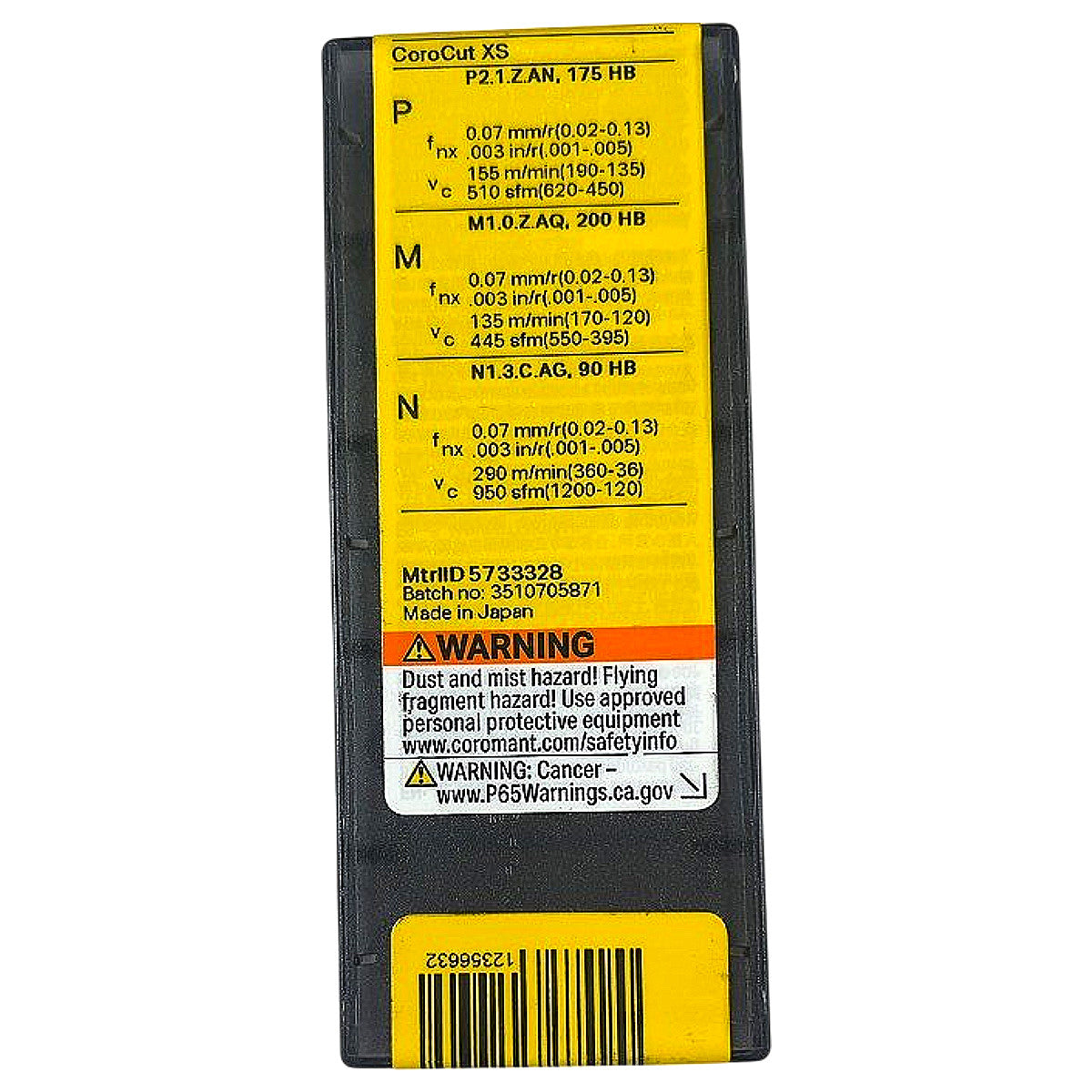

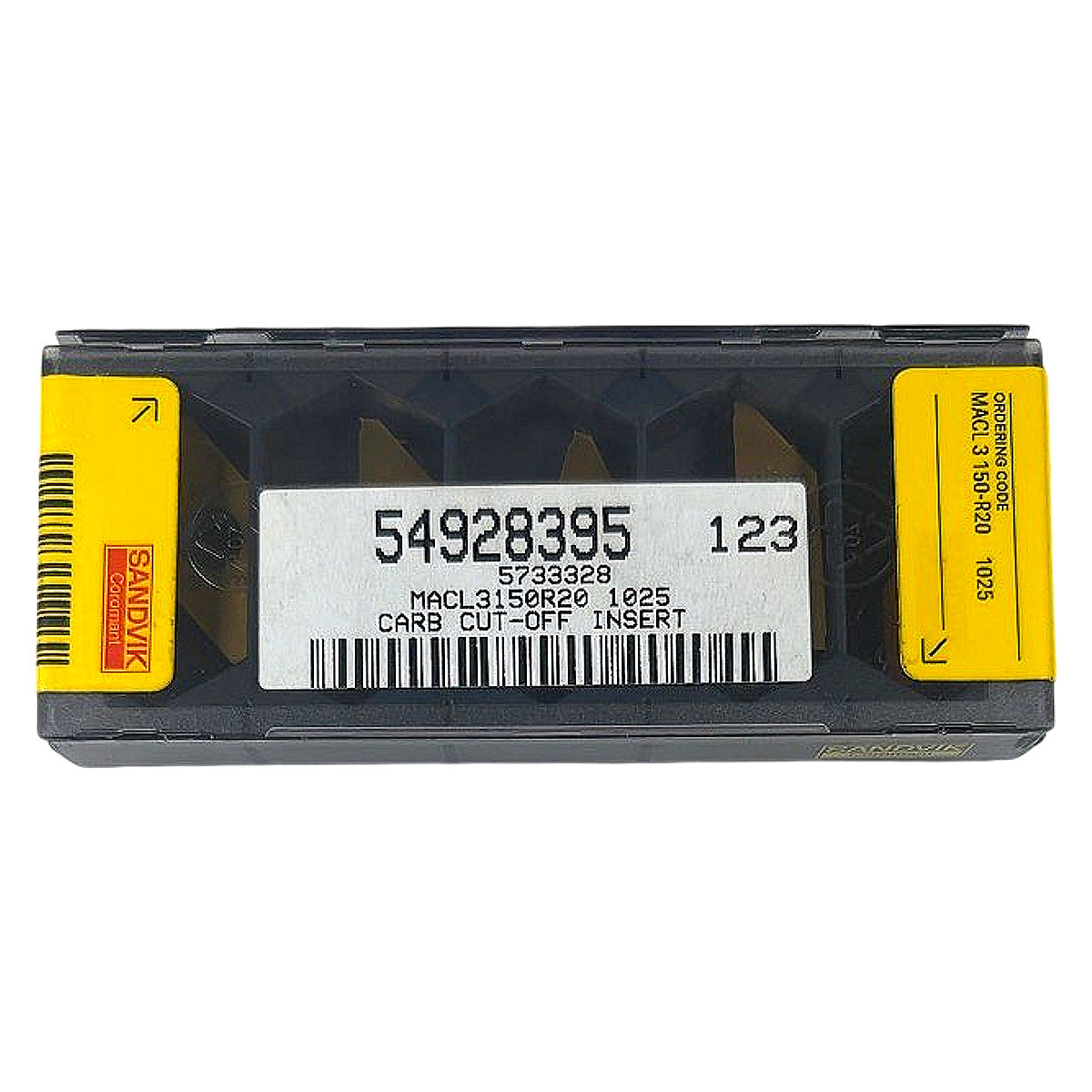

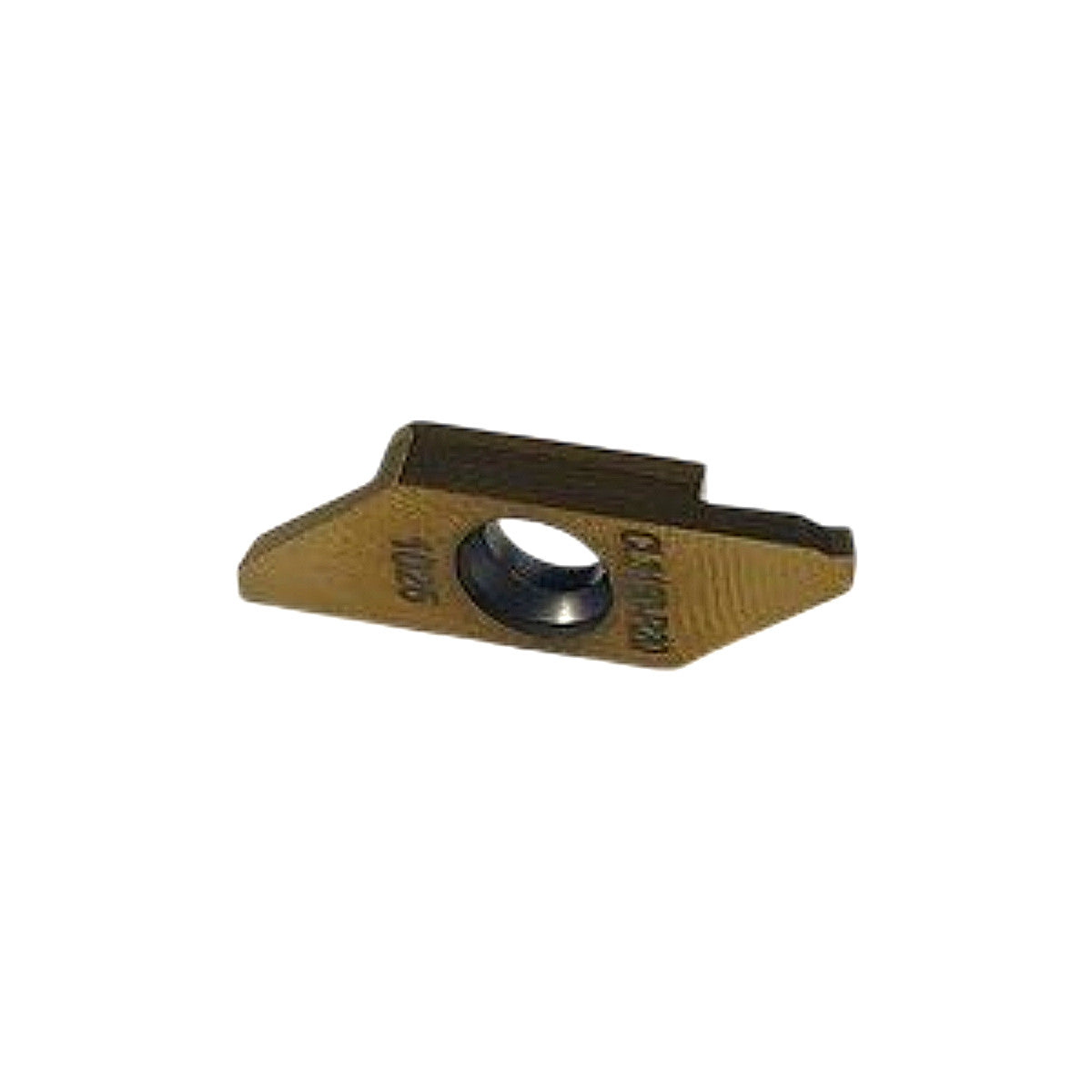

The Sandvik Coromant MACL 3150-R20 1025 is a new carbide cut-off (parting) insert from the CoroCut XS system, designed for small-part machining and bar work on Swiss-type lathes and small CNC turning centers. The MPN decodes as follows: MAC = CoroCut XS insert style/geometry (small-part cut-off), L = left-hand orientation, 3 = 3 mm cutting width, 150 = 15.0 mm maximum cutting depth (1.50 mm per digit), R20 = 0.20 mm nose radius, grade 1025. Grade 1025 is a PVD-coated cemented carbide (TiAlN-type, golden/bronze appearance visible in photos) engineered for both steel (P), stainless/heat-resistant alloys (M), and non-ferrous/non-metallic materials (N); the package label confirms cutting data for ISO P, M, and N workpiece materials. Recommended feed is 0.07 mm/rev (0.003 in/rev) across all material groups, with cutting speeds of 510 sfm for P-steel, 445 sfm for M-stainless, and 950 sfm for N-non-ferrous. This insert seats in Sandvik CoroCut XS toolholders dimensioned for the 3 mm blade width; the package of 10 inserts (qty 10 per tray as visible in photo) is factory-sealed and made in Japan per the package label.

Product Specifications
