Sandvik MB-09R180-09-14L 1025 Carbide Round Milling Insert (Qty 5)

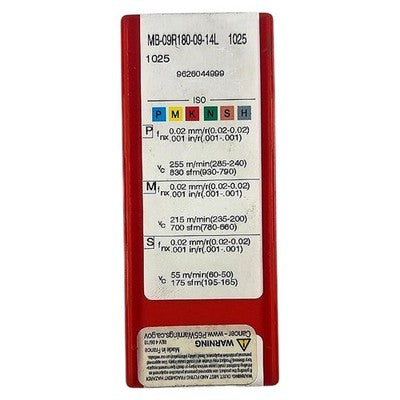

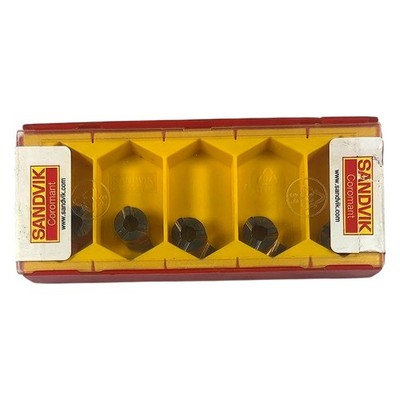

The Sandvik Coromant MB-09R180-09-14L is a new, indexable solid carbide round milling insert from the CoroMill 200 series, designed for copy milling and profiling applications. The full part number decodes as follows: MB = CoroMill 200 insert style, 09 = 9 mm inscribed circle (IC) diameter, R = right-hand cutting direction, 180 = 180° effective cutting edge angle (full round), 09 = 09 insert thickness code, 14 = 14 mounting hole size code, L = left-hand land geometry; grade 1025 is a CVD-coated cemented carbide (TiCN/Al₂O₃) optimized for ISO P, M, and S workpiece materials. Per the label, recommended cutting speeds are 255 m/min (830 SFM) for P steels, 215 m/min (700 SFM) for M stainless, and 55 m/min (175 SFM) for S superalloys, all at a feed of 0.02 mm/rev. These inserts are designed for use in Sandvik CoroMill 200 round insert milling bodies and are suited for copy milling, ramping, and profiling in steel, stainless steel, and heat-resistant alloys. This listing contains 5 inserts in the original Sandvik Coromant packaging, item number 9626044999, made in France.

Product Specifications
