Sandvik MB-09R180-09-14L 1025 TiAlN Carbide CoroCut MB Milling Insert (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

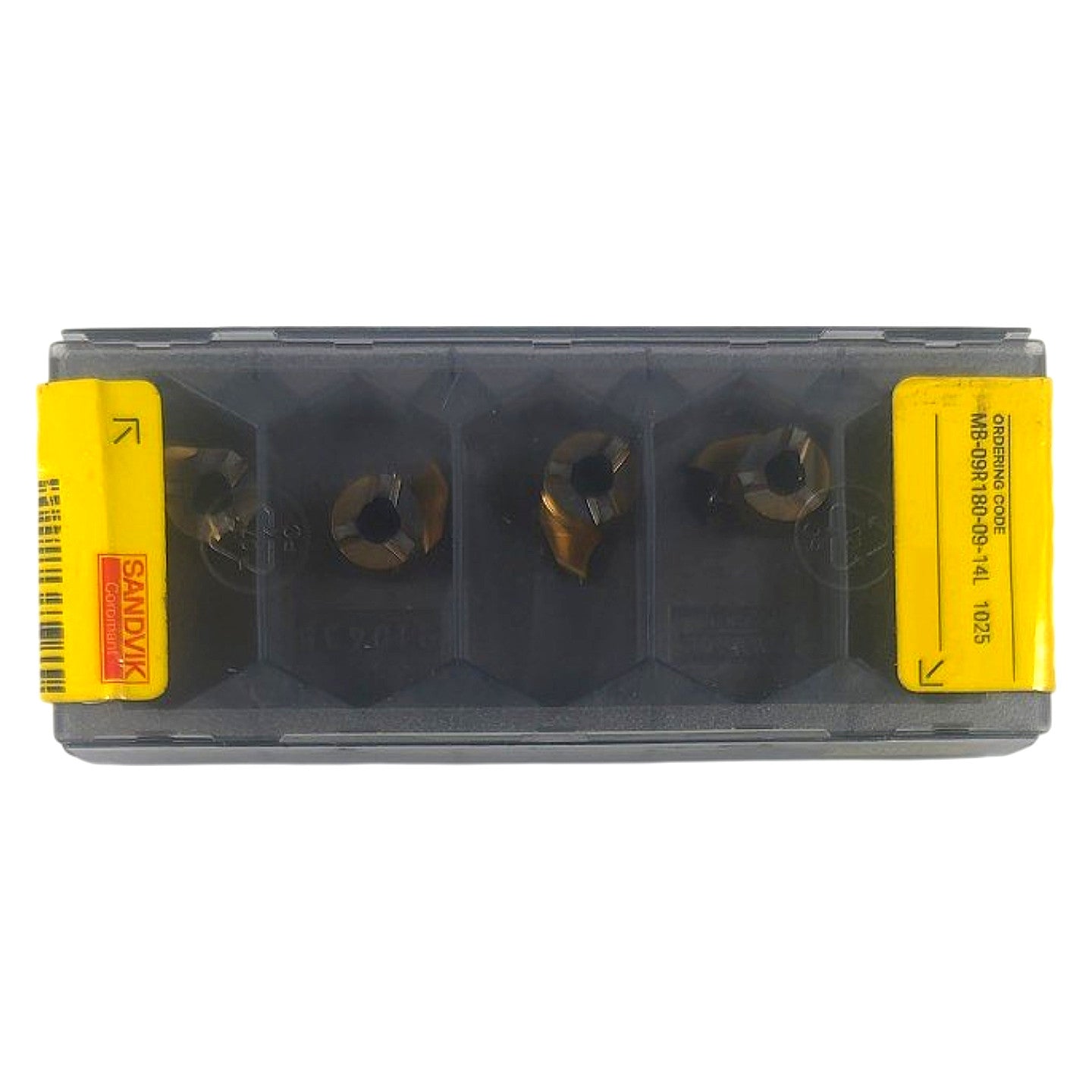

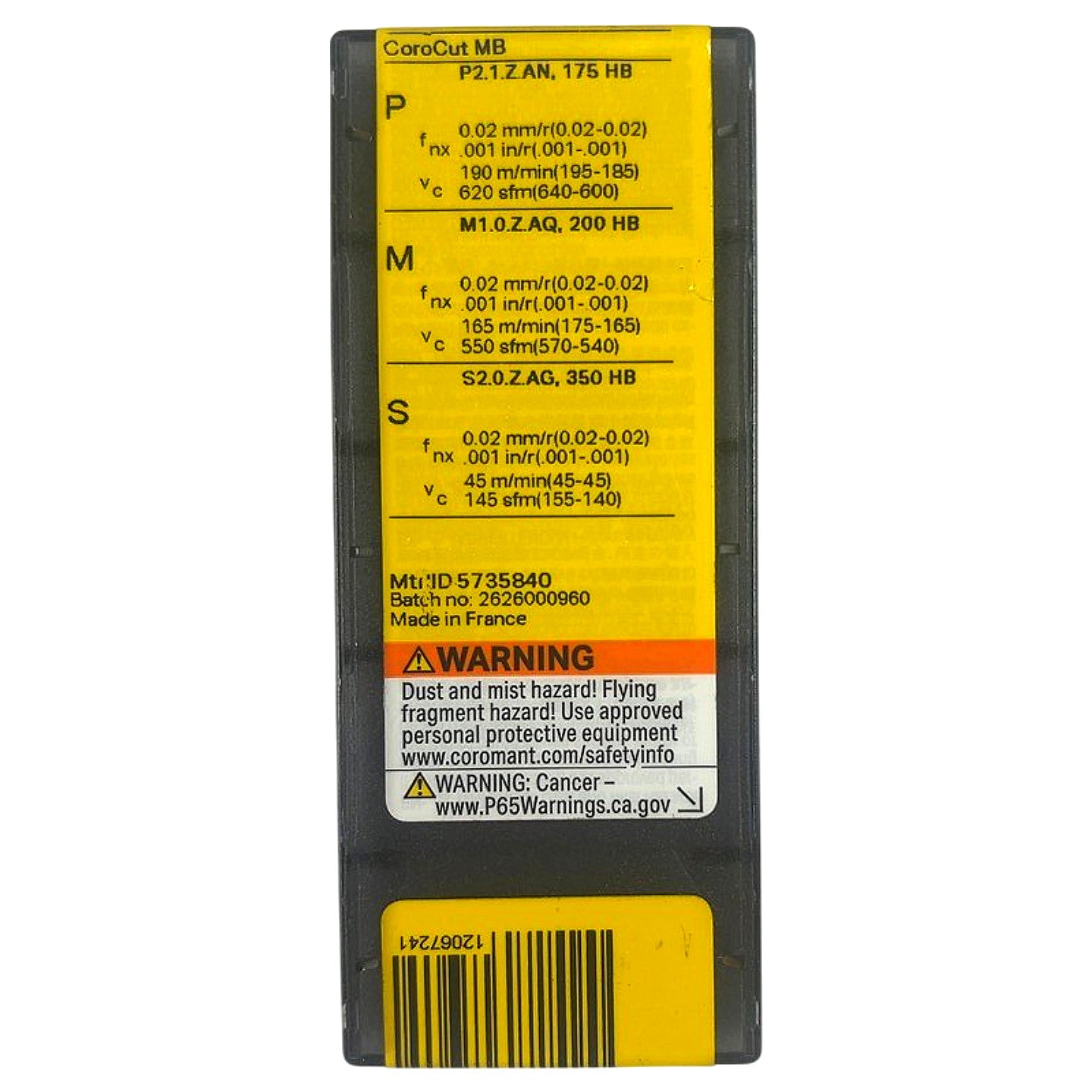

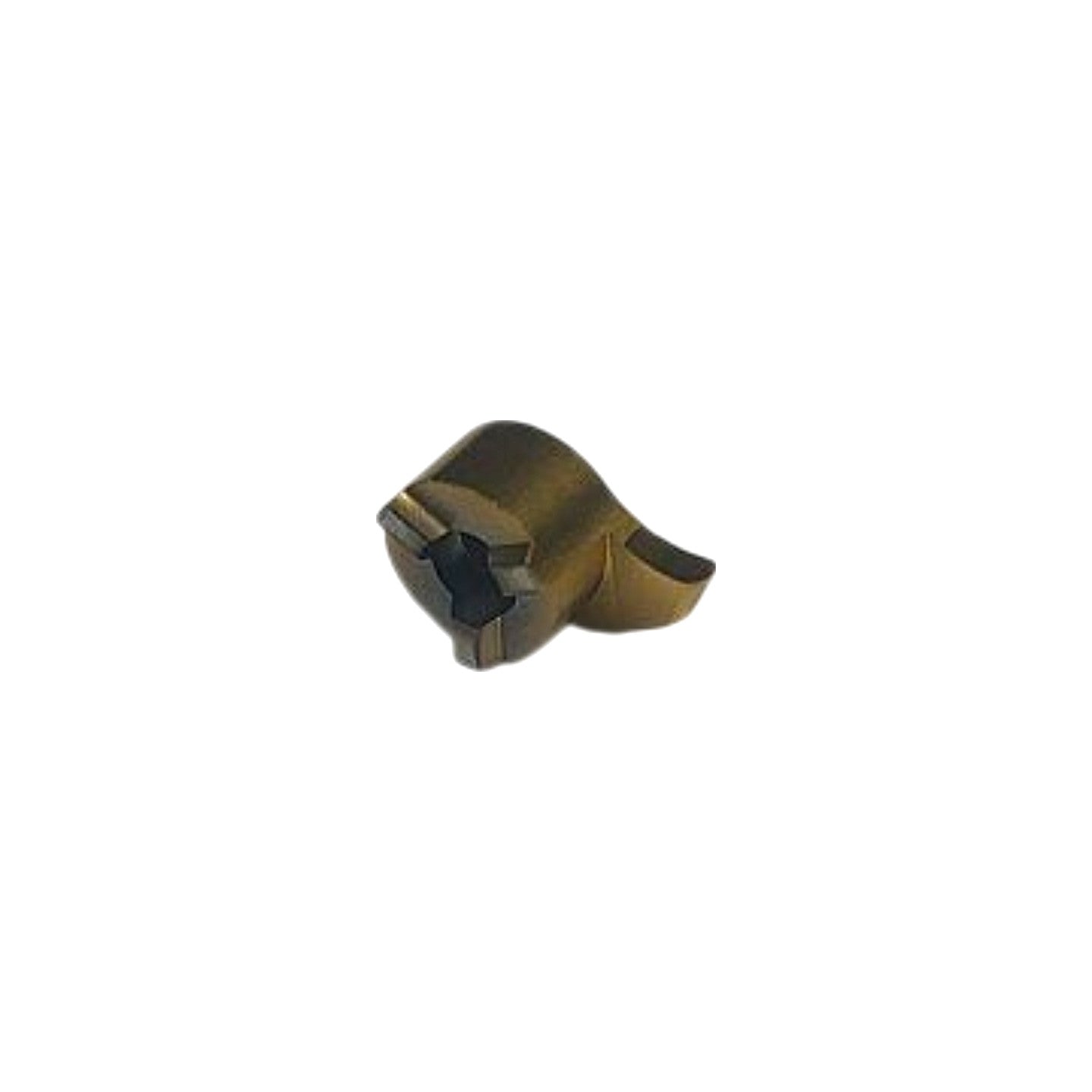

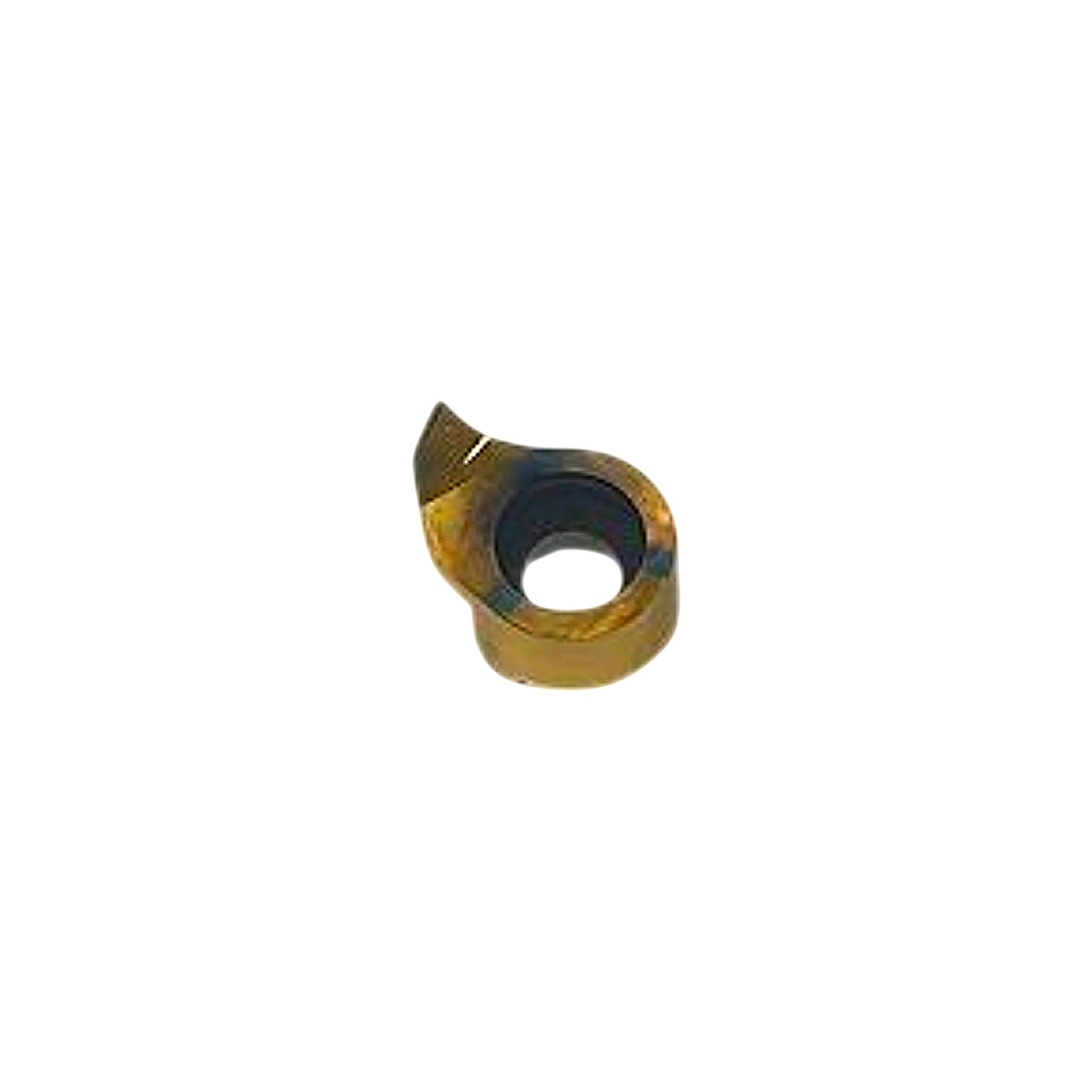

The Sandvik Coromant MB-09R180-09-14L 1025 is a new, round (180°) carbide insert from the CoroCut MB system, designed for small-part turning and parting/grooving operations on Swiss-type and small-bore lathes using the CoroCut MB toolholder platform. The insert is round in shape (IC ≈ 9 mm), right-hand cutting orientation (R), with a 14 mm effective cutting diameter and a 9 mm thickness designation, ground to a precision-profile geometry optimized for miniature machining. Grade 1025 is a PVD TiAlN-coated cemented carbide engineered for steel (ISO P), stainless/duplex (ISO M), and superalloys/titanium (ISO S), with recommended cutting speeds of 620 sfm (190 m/min) in P-class steels, 550 sfm (165 m/min) in M-class stainless, and 145 sfm (45 m/min) in S-class superalloys at a feed of 0.001 in/r (0.02 mm/r) as confirmed on the package label. Each package contains 5 inserts made in France; the insert's golden TiAlN PVD coating is clearly visible in the product photos.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | MB-09R180-09-14L |
| Grade | 1025 |
| Product Line | CoroCut MB |
| Insert Shape | Round (180°) |
| Cutting Orientation | Right-Hand (R) |
| Insert IC (Inscribed Circle) | 9 mm |
| Effective Cutting Diameter | 14 mm |
| Thickness Code | 09 |
| Coating | PVD TiAlN |
| ISO Material Group | P, M, S |
| Cutting Speed - Steel (P) | 190 m/min (620 sfm) |
| Cutting Speed - Stainless (M) | 165 m/min (550 sfm) |
| Cutting Speed - Superalloy (S) | 45 m/min (145 sfm) |
| Feed Rate | 0.02 mm/r (0.001 in/r) |
| Country of Origin | France |
| Mtr ID | 5735840 |
| Quantity per Package | 5 |
| Condition | New |
