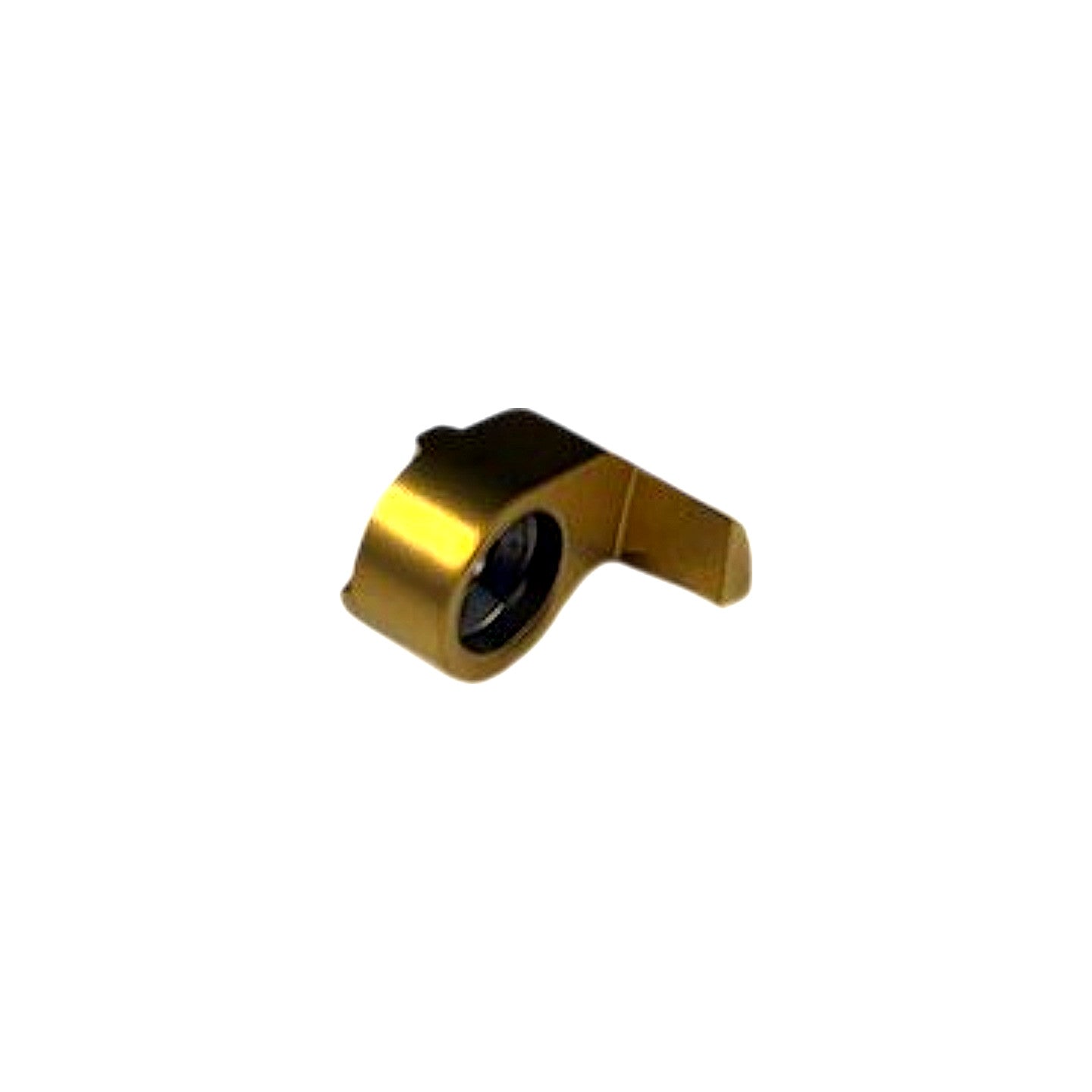

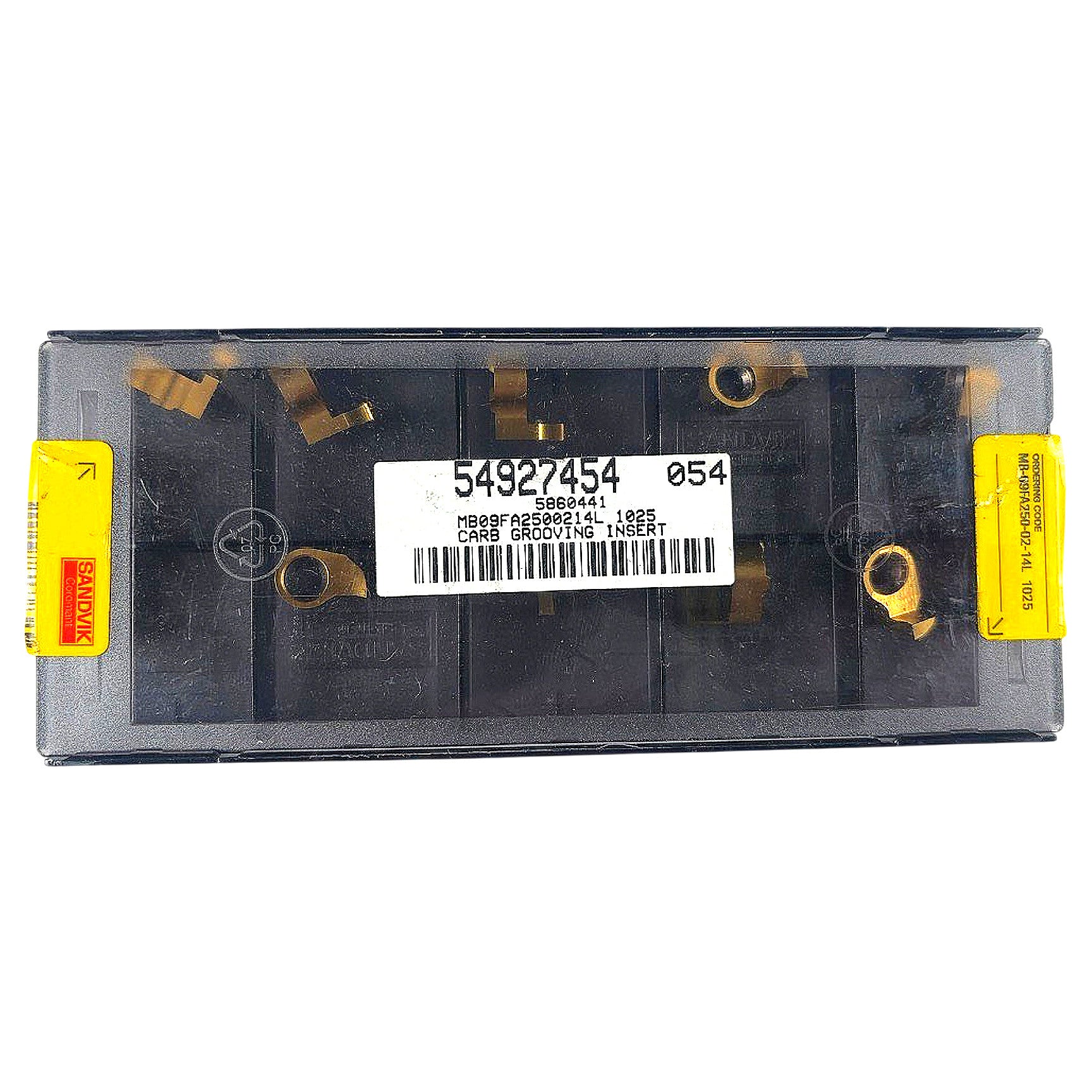

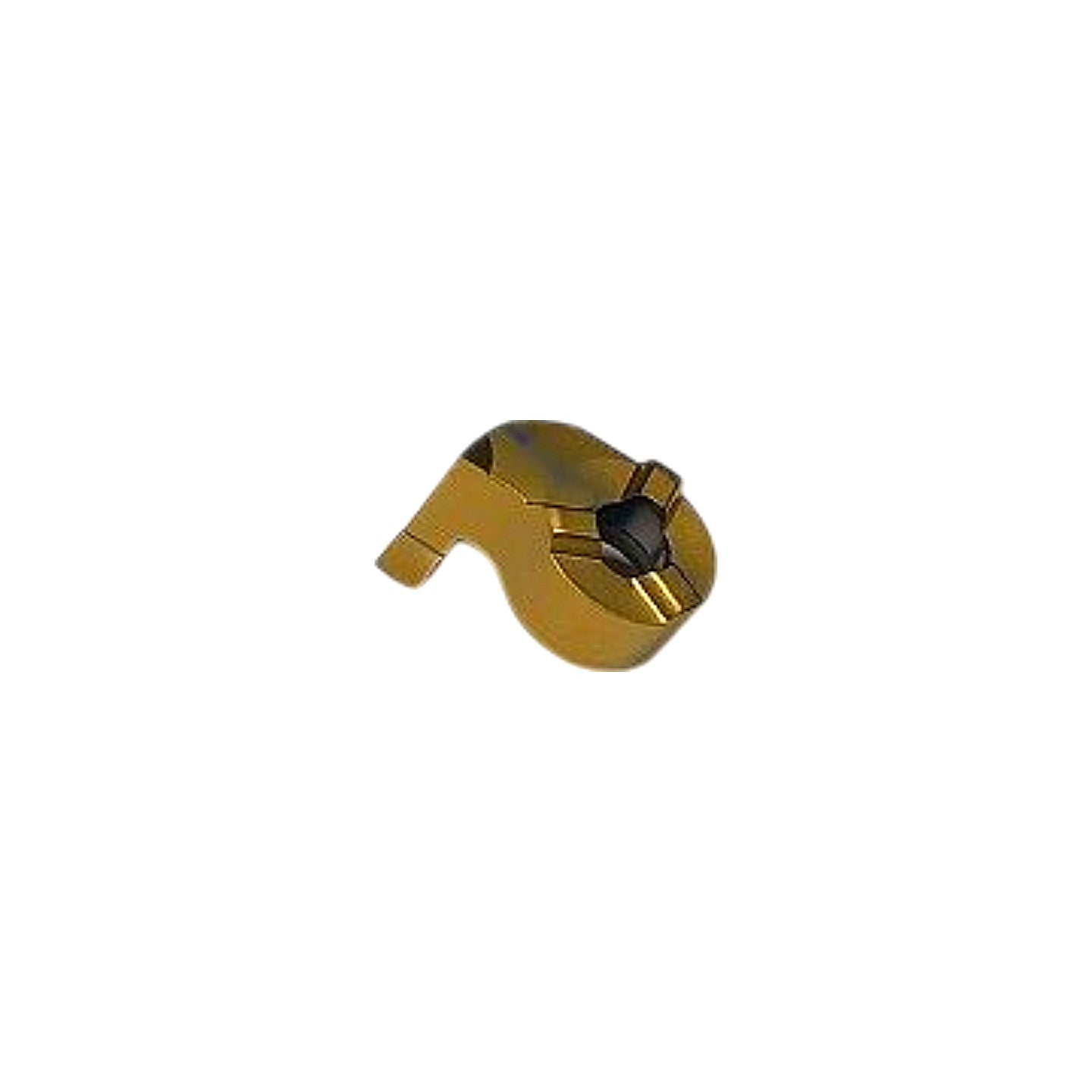

Sandvik MB09FA2500214L 1025 CoroCut MB 2.5mm LH Carbide Grooving Insert (10pc)

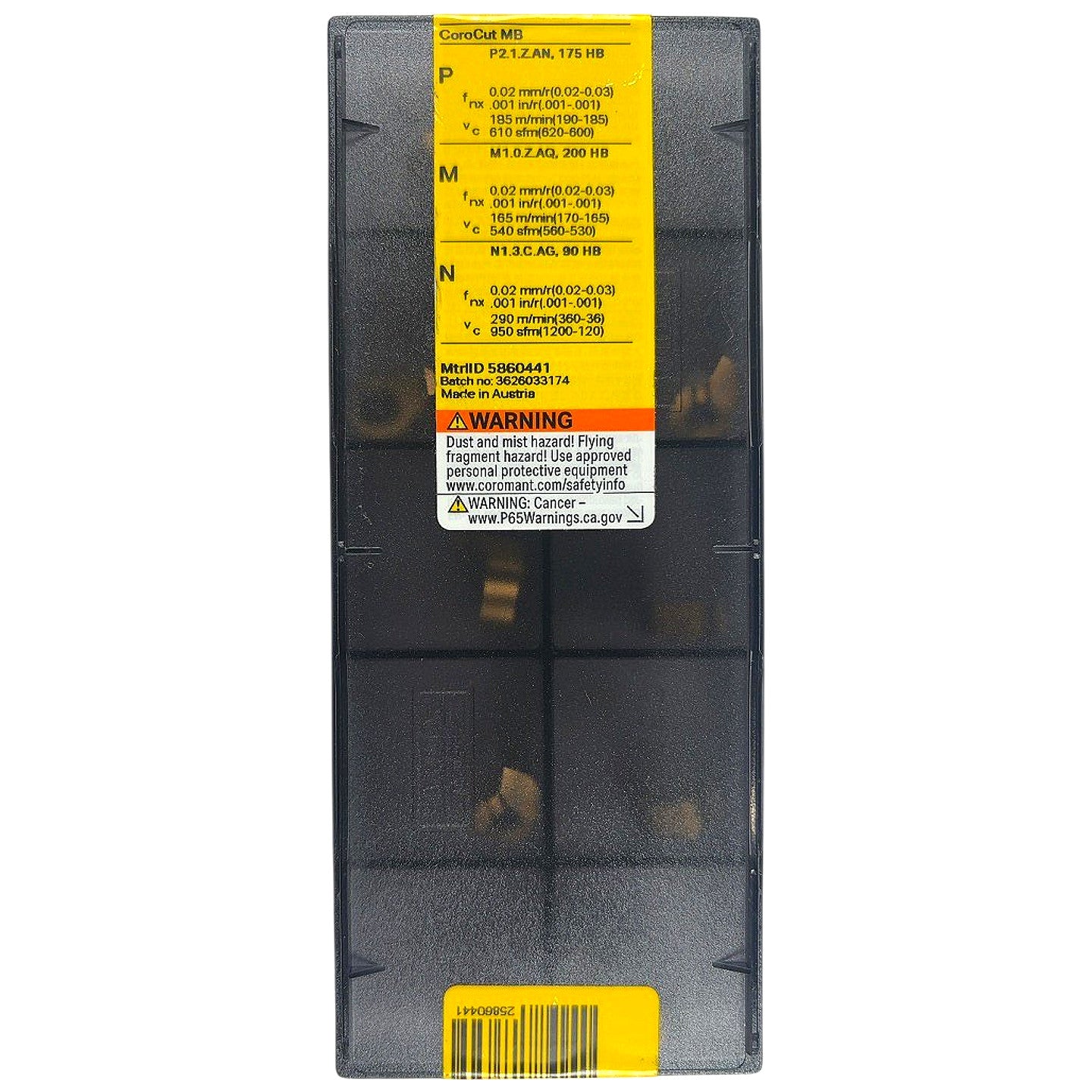

The Sandvik Coromant MB09FA2500214L 1025 is a new, left-hand CoroCut MB carbide grooving insert designed for the CoroCut MB miniature grooving system, targeting small-part and Swiss-type turning applications. The insert features a 2.50 mm (0.098 in) cutting width, 2.14 mm maximum cutting depth, and a 0° radial rake FA-style chipbreaker geometry optimized for finishing operations on steel, stainless steel, and non-ferrous materials. Grade 1025 is a PVD TiAlN-coated cemented carbide substrate — Sandvik's general-purpose grade suited for ISO P, M, and N material groups — delivering wear resistance and edge integrity at the small cutting dimensions required by the MB platform. The insert seats in Sandvik CoroCut MB toolholders accepting the MB09 insert size (9 mm head width), and the "L" suffix designates left-hand cutting orientation; cutting data per the package label includes Vc 610 sfm for P-class steel and 950 sfm for N-class non-ferrous materials at a feed of 0.001 in/r.

Product Specifications
