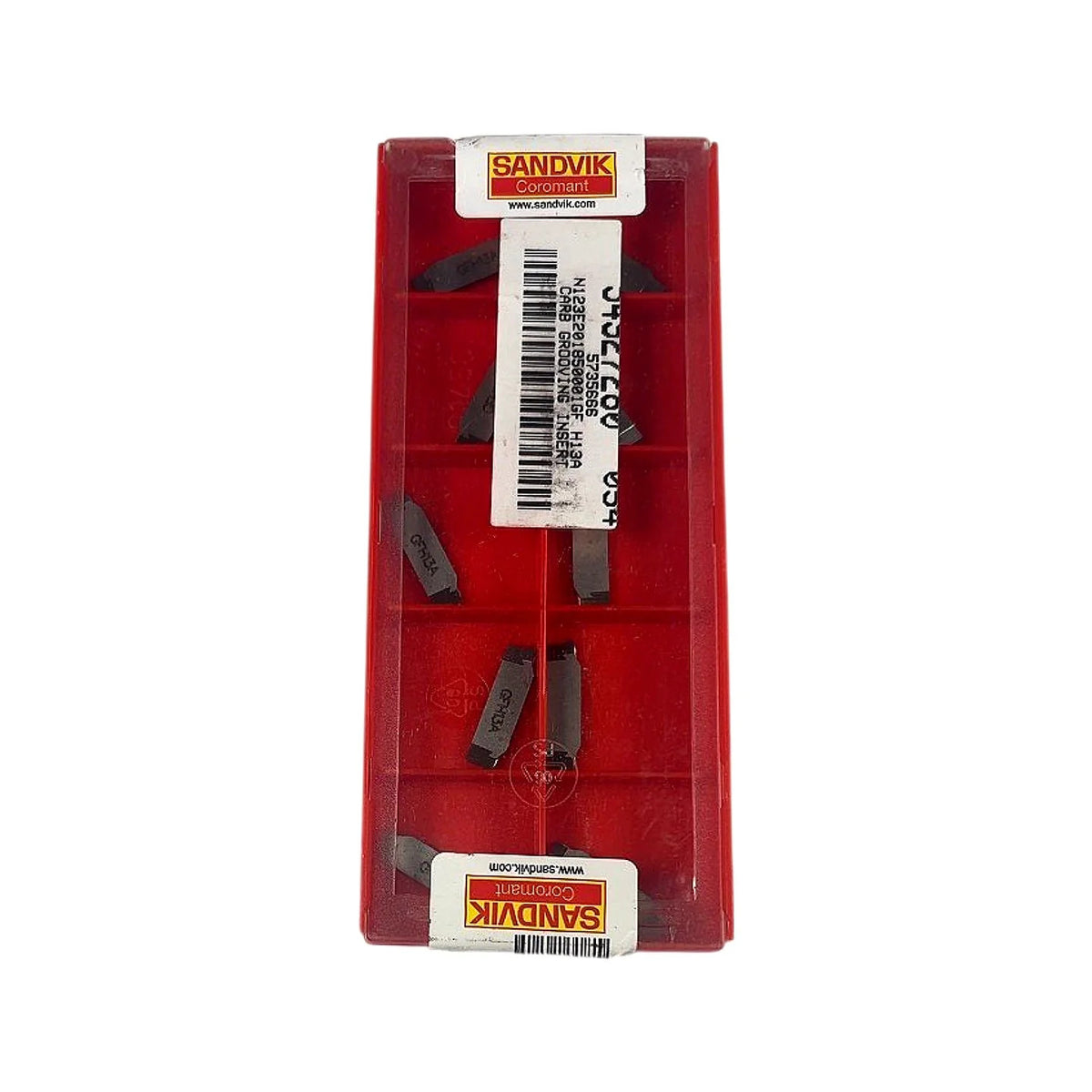

Sandvik N123E2-0185-0001-GF H13A Carbide Grooving Insert (10pc)

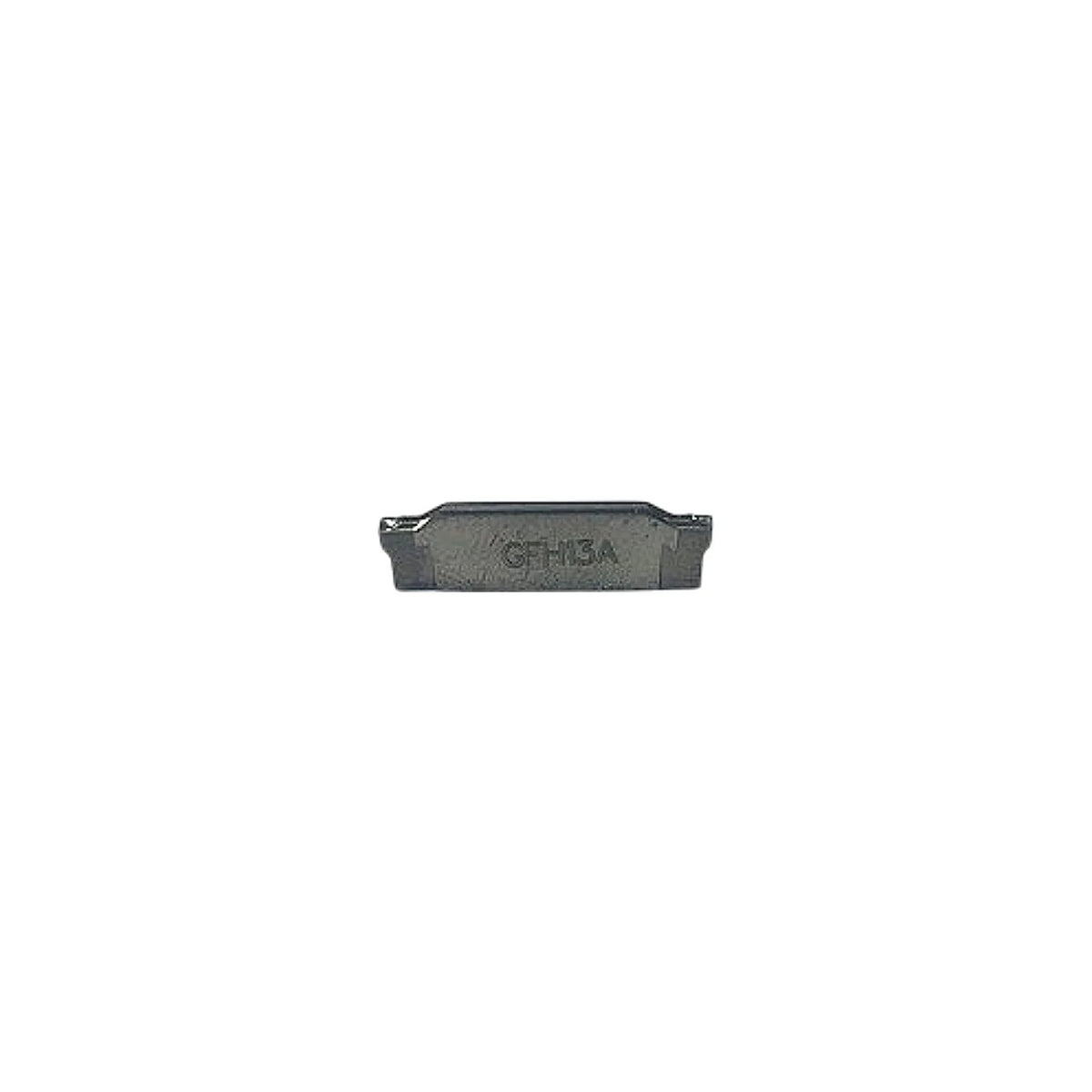

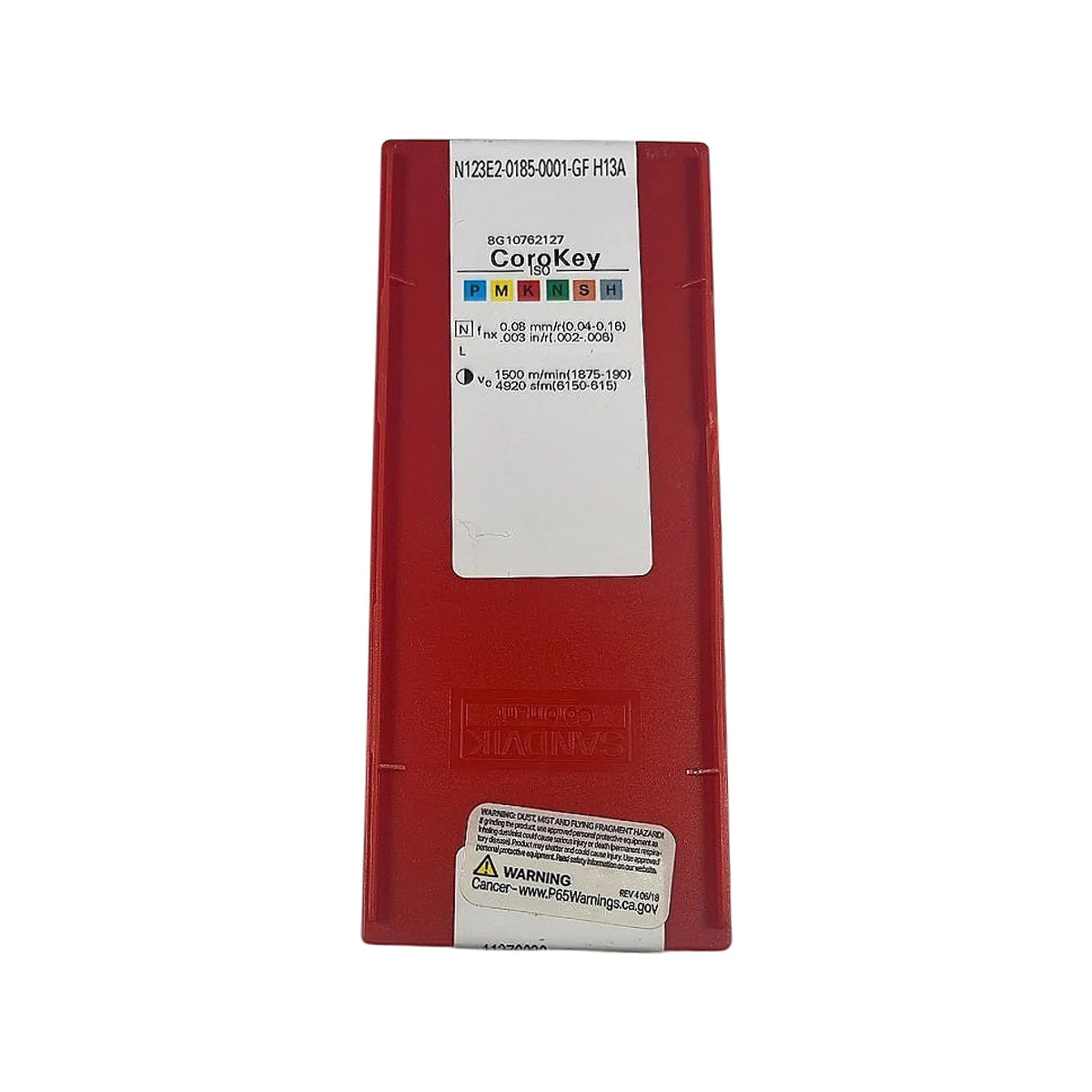

This is a new factory pack of 10 Sandvik Coromant N123E2-0185-0001-GF H13A carbide grooving inserts from the CoroCut 1-2 system, designed for grooving and parting operations. The insert geometry is GF (Ground Finish), optimized for finishing passes with low cutting forces, and features a 1.85 mm (0.073 in) cutting width and 0.01 mm corner radius. Grade H13A is an uncoated fine-grain carbide specifically engineered for non-ferrous materials including aluminum, copper, and other soft/sticky materials where a sharp, uncoated edge is critical to prevent built-up edge. The N-series designation and CoroKey label confirm primary application in the ISO N material group (non-ferrous), with recommended feed of 0.04–0.16 mm/rev and cutting speed up to 1500 m/min (4920 SFM) as printed on the package label. These inserts seat in Sandvik CoroCut 1-2 toolholders accepting the N123E2 insert pocket.

Product Specifications
