Sandvik N123F2-0265-0002-GFH13A Carbide Grooving Insert 10pc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

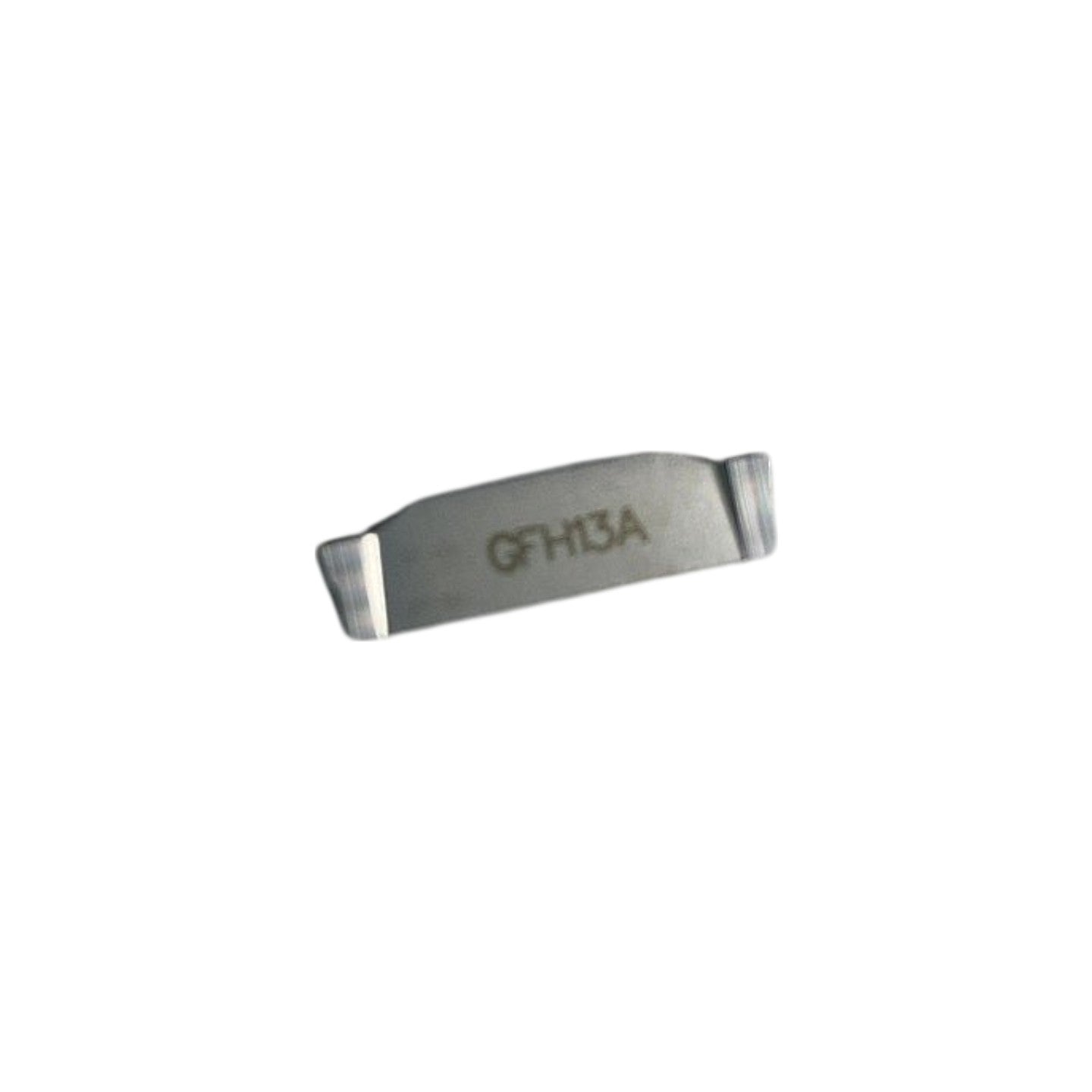

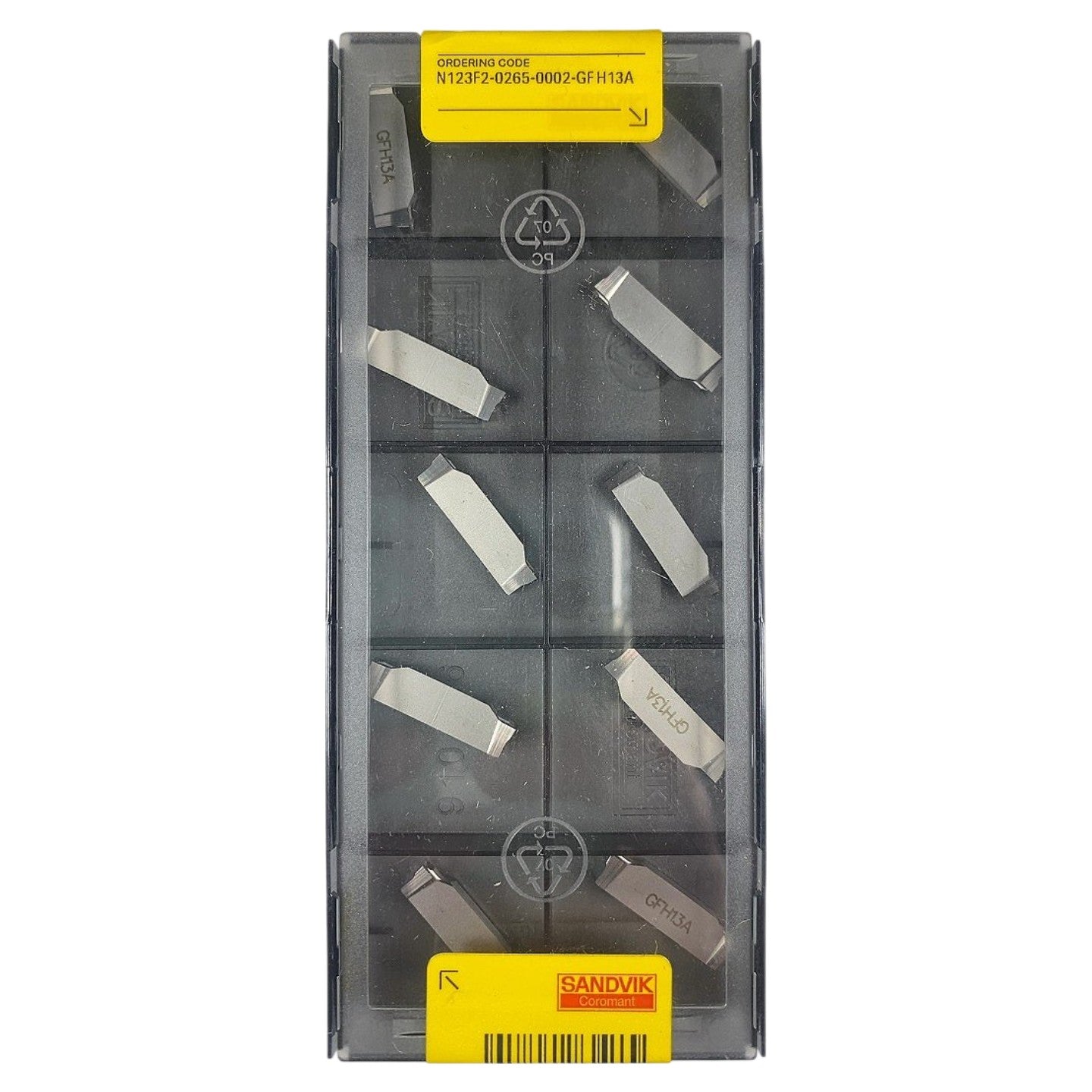

The Sandvik Coromant N123F2-0265-0002-GFH13A is a new, uncoated solid carbide grooving insert from the CoroCut 1-2 system, designed for precision parting and grooving operations on CNC lathes. The full ordering code N123F2-0265-0002-GFH13A decodes as follows: N123 = CoroCut 1-2 insert family; F2 = two-edge, front-mounted insert geometry; 0265 = 2.65 mm cutting width; 0002 = 0.2 mm nose radius; GFH13A = uncoated fine-grain carbide grade optimized for non-ferrous and heat-resistant superalloy (HRSA) finishing. Grade GFH13A is a submicron uncoated WC-Co cemented carbide ground to tight tolerances, delivering a razor-sharp cutting edge with very low friction — critical for achieving high surface finishes on aluminum, copper, brass, titanium, and Inconel-family alloys. These inserts are compatible with Sandvik CoroCut 1-2 toolholders using the F2 seat designation (e.g., RF123F2 and LF123F2 series shank tools and QS toolholders), and are sold as a full box of 10 new inserts as shown.
Product Specifications
| Brand | Sandvik Coromant |
| Full Ordering Code | N123F2-0265-0002-GFH13A |
| Insert Family | CoroCut 1-2 (N123F2) |
| Insert Style | F2 – two-edge front grooving |
| Cutting Width | 2.65 mm |
| Nose Radius | 0.2 mm |
| Grade | GFH13A |
| Grade Type | Uncoated submicron WC-Co carbide |
| Application Materials | Non-ferrous, HRSA, Ti alloys (ISO N, S) |
| Operation | Parting and grooving |
| Compatible Toolholder System | CoroCut 1-2, F2 seat (RF123F2, LF123F2) |
| Number of Cutting Edges | 2 |
| Quantity per Box | 10 inserts |
| Condition | New |
