Sandvik N151.2-600-50-4P 1005 6mm Carbide Profiling Insert 10 Pack
Regular price
$91.15
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

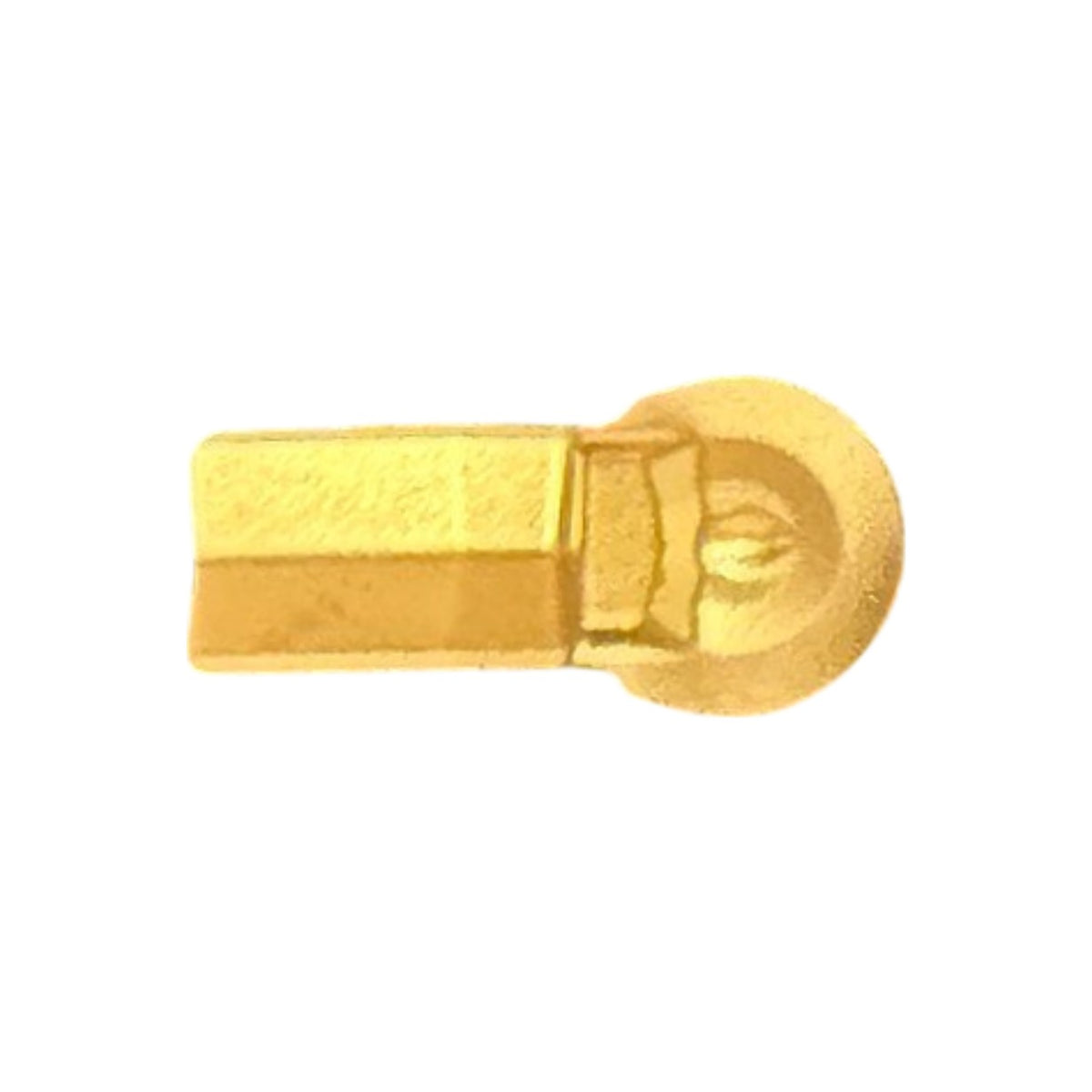

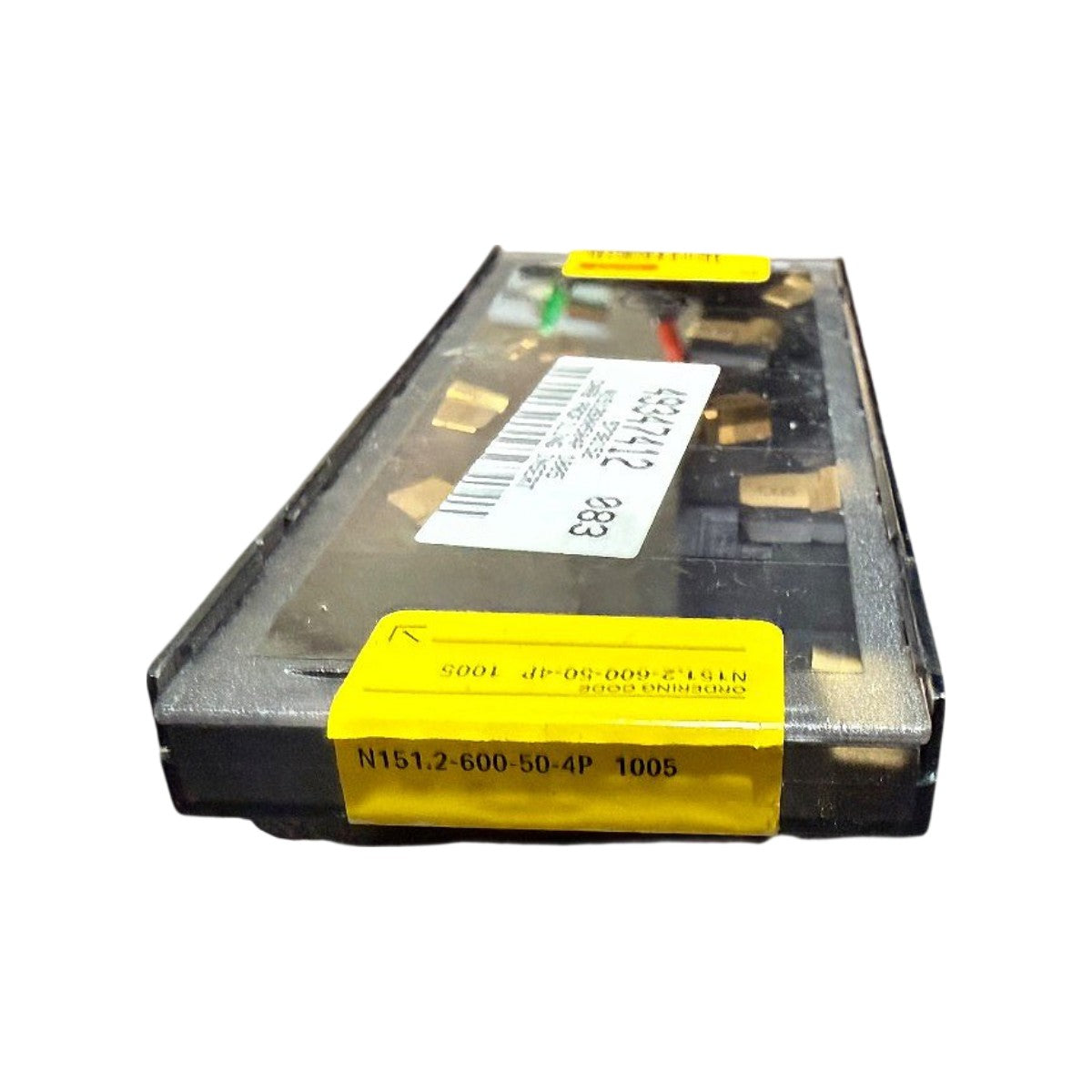

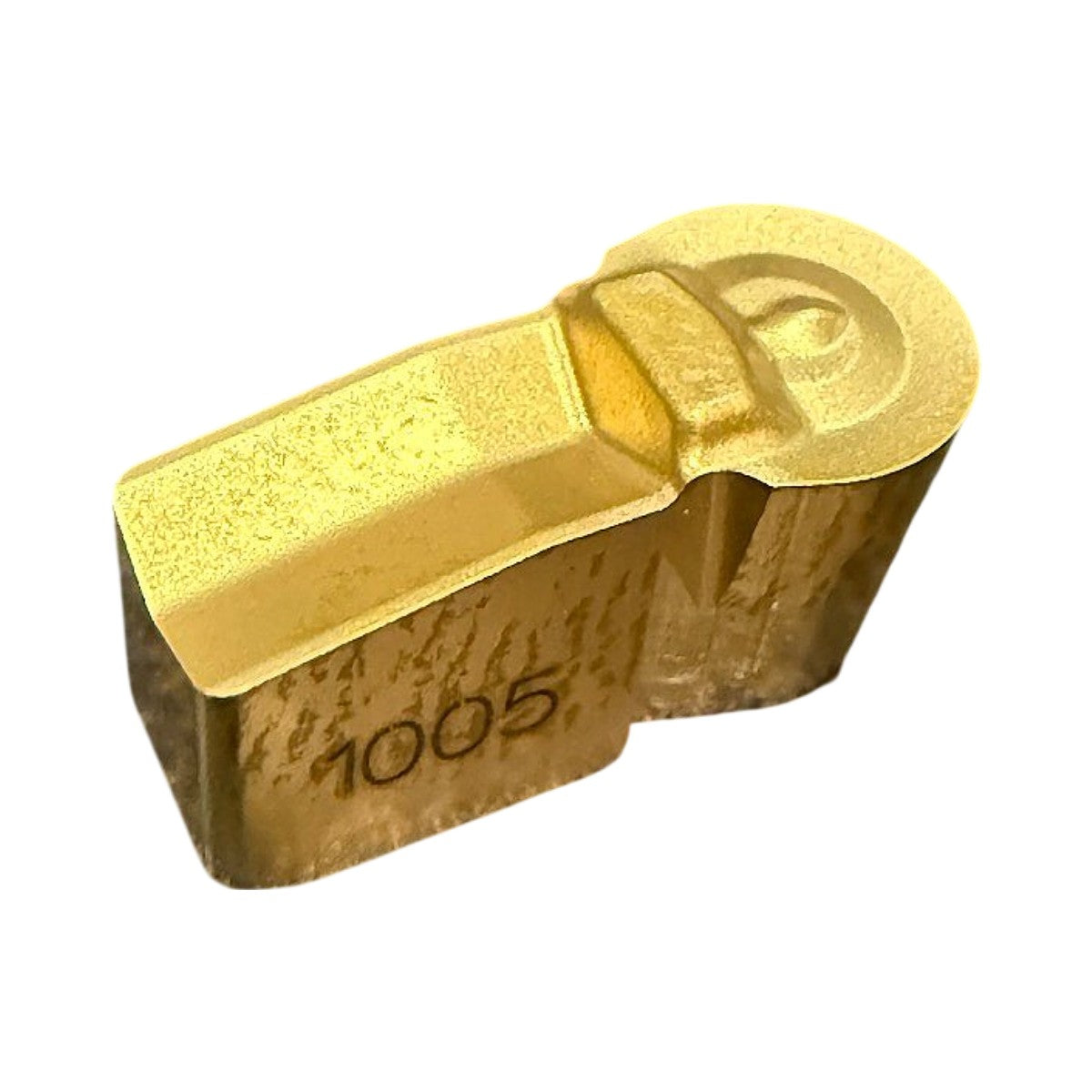

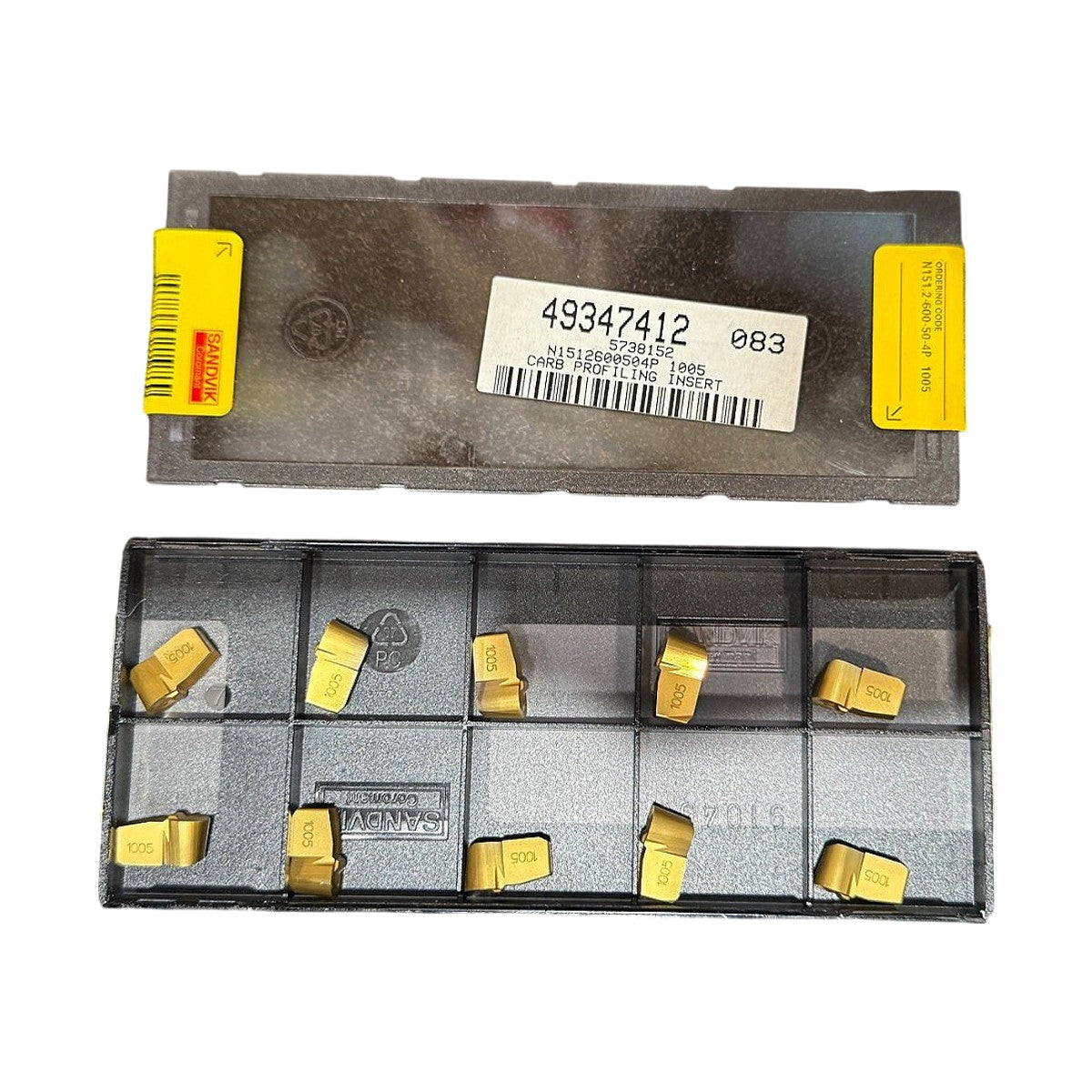

This new Sandvik Coromant T-Max Q-Cut N151.2-600-50-4P insert in grade 1005 is a carbide profiling insert for parting and grooving, supplied as a box of 10 (material ID 5738152, made in USA). The ordering code indicates a 6.00 mm cutting width, and the gold finish is consistent with the PVD-coated 1005 grade. The box label lists an ISO S application (S2 0.Z.AG, 350 HB) with a recommended feed of 0.2 mm/r (0.15-0.25 mm/r) and a cutting speed of 65 m/min (80-60 m/min), or 220 sfm. It fits Sandvik Coromant Q-Cut 151.2 blades and toolholders designed for this insert style.
Product Specifications
| Brand | Sandvik Coromant |
| Manufacturer Part Number | N151.2-600-50-4P 1005 |
| Alternate Part Number | N1512600504P 1005 |
| Material ID | 5738152 |
| EDP Number | 49347412 |
| Series | T-Max Q-Cut 151.2 |
| Grade | 1005 |
| Material | Carbide |
| Coating | PVD Coated |
| Color | Gold |
| Cutting Width | 6.00 mm |
| Insert Type | Profiling |
| Operation | Parting, Grooving, Profiling |
| ISO Material Application | S (Heat-Resistant Alloys) |
| Workpiece Hardness | 350 HB |
| Feed Rate | 0.2 mm/r (0.15-0.25 mm/r) |
| Cutting Speed | 65 m/min (80-60 m/min), 220 sfm |
| Quantity per Pack | 10 |
| Country of Origin | United States |
