Sandvik QD-NJ-0500-0002-CM 1145 CoroCut QD Carbide Grooving Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

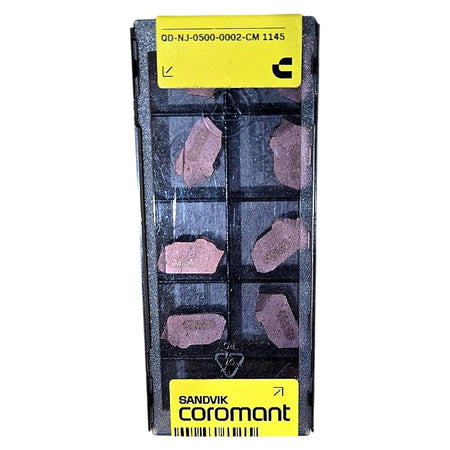

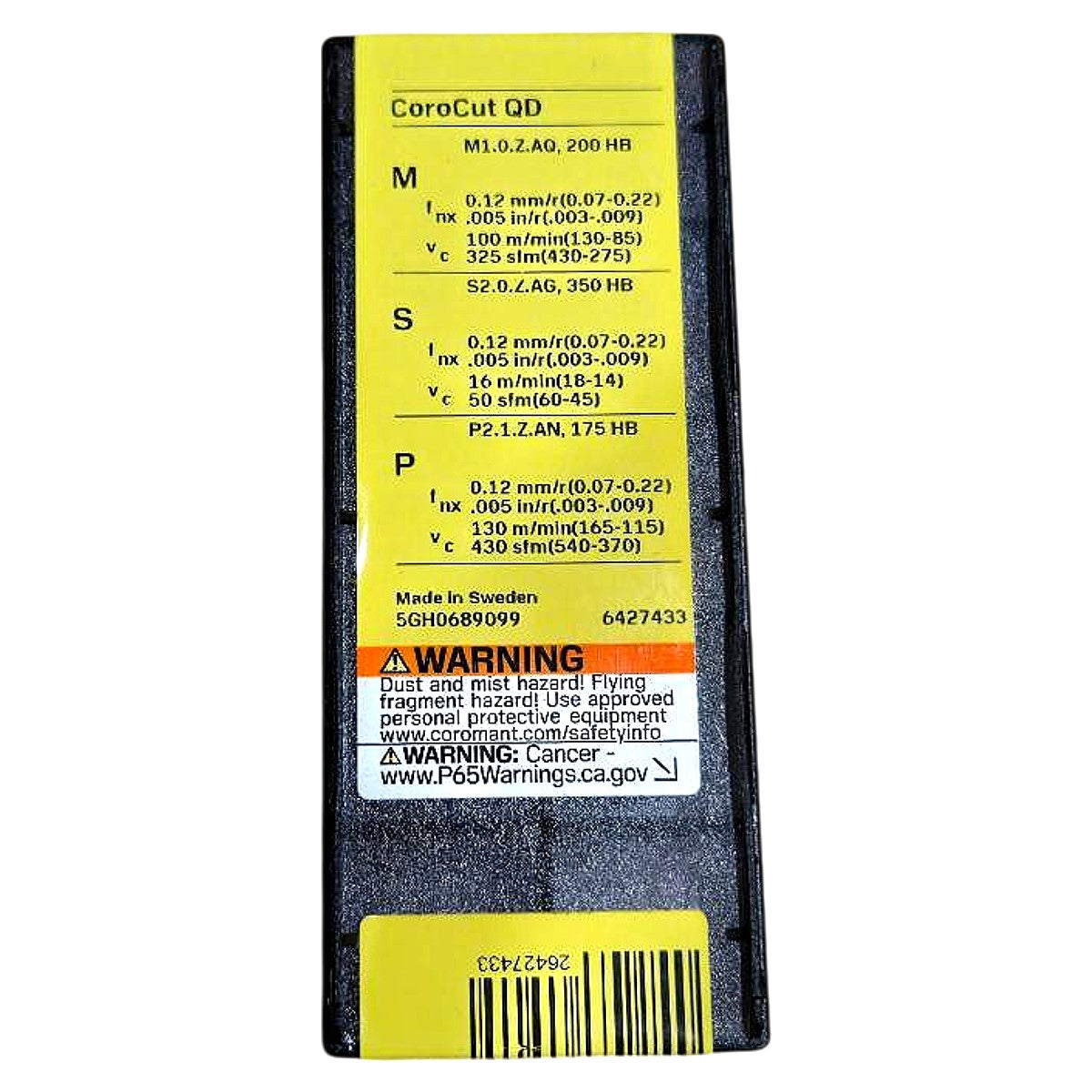

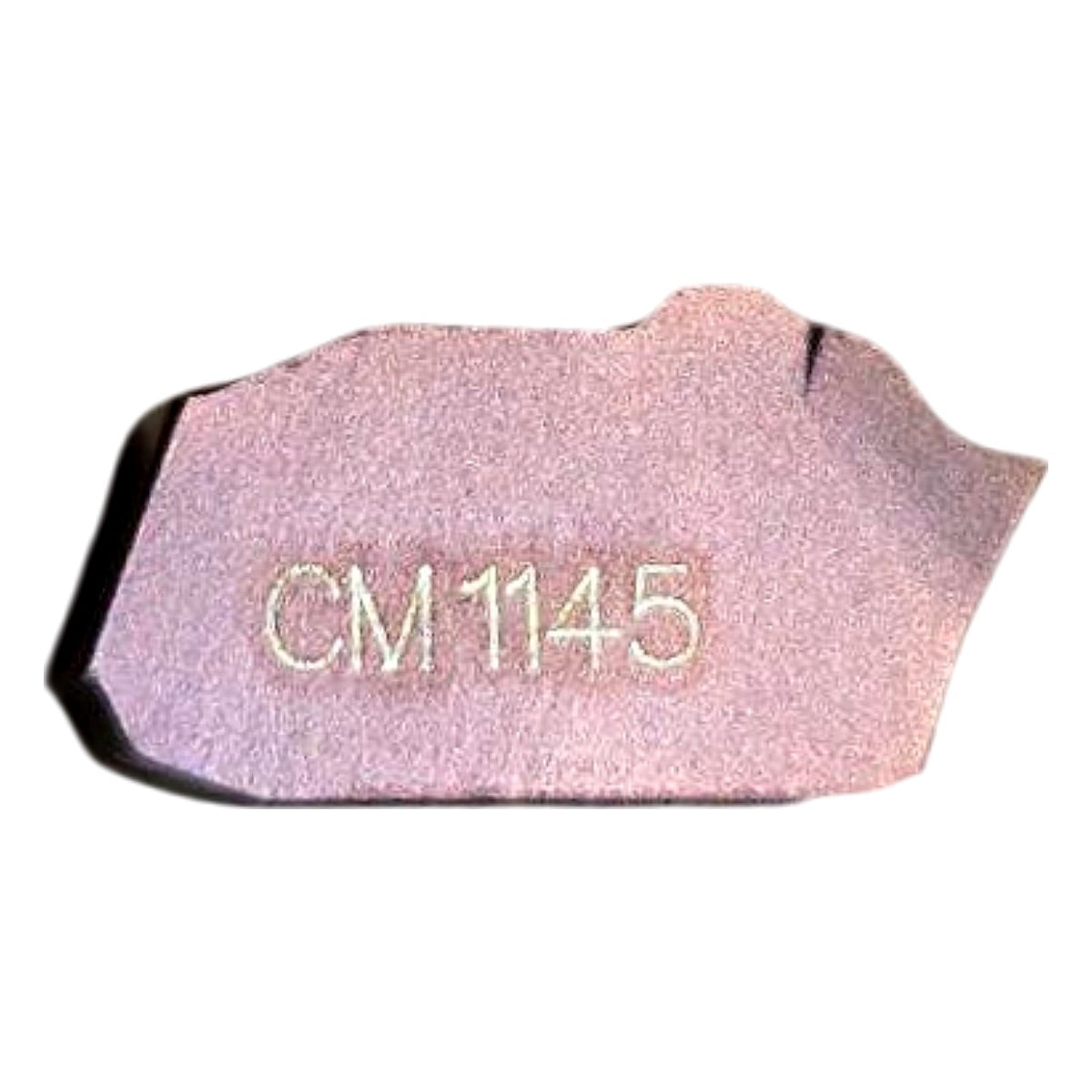

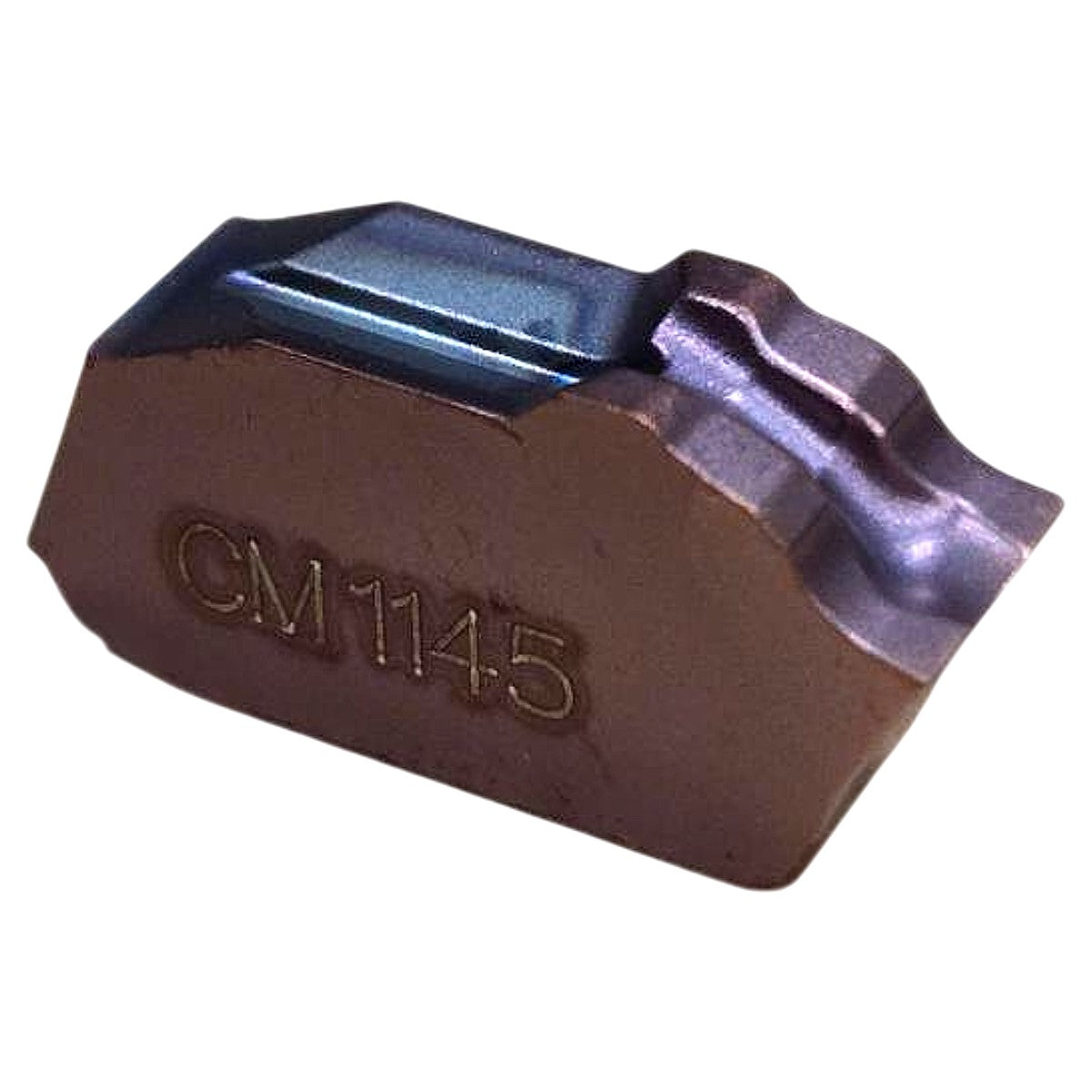

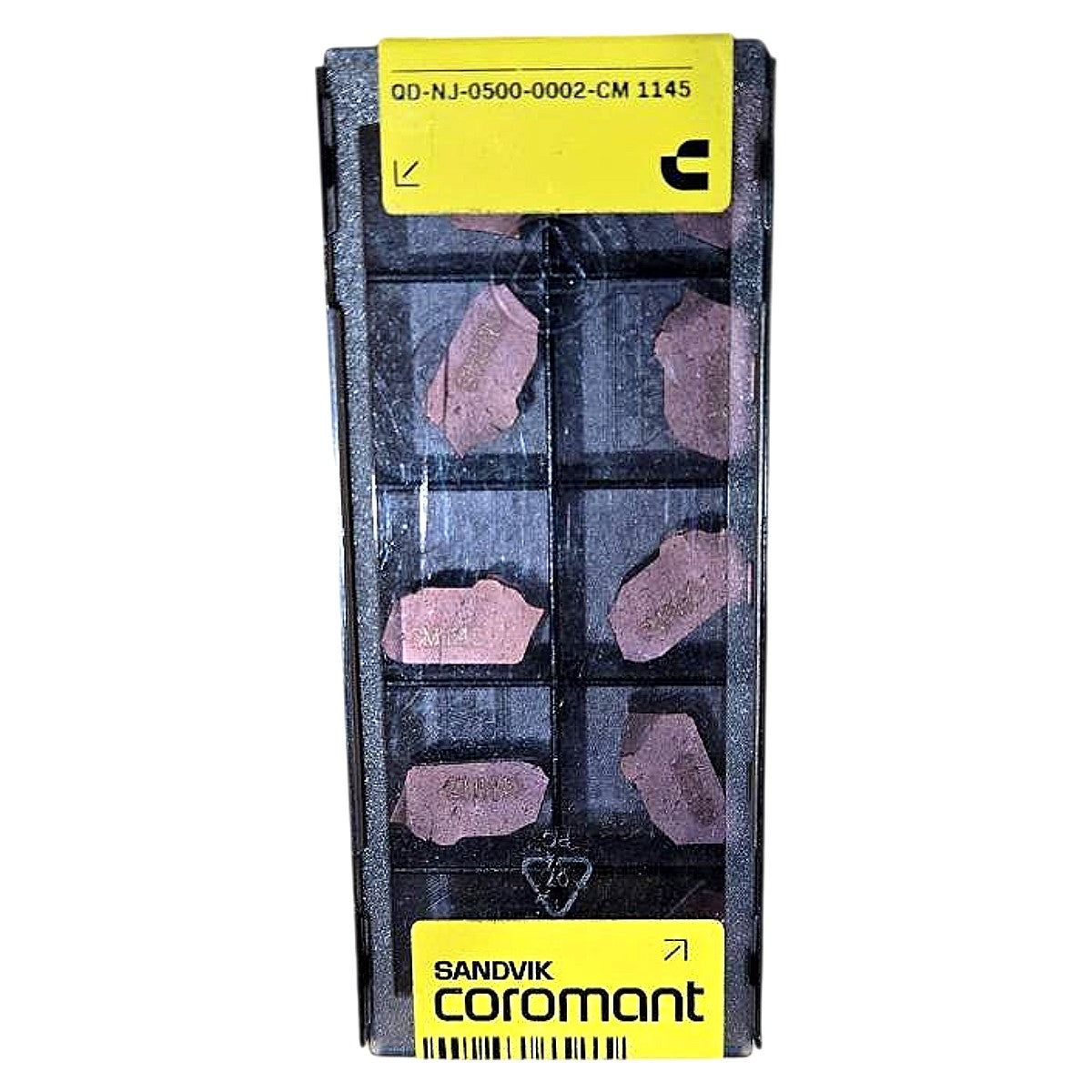

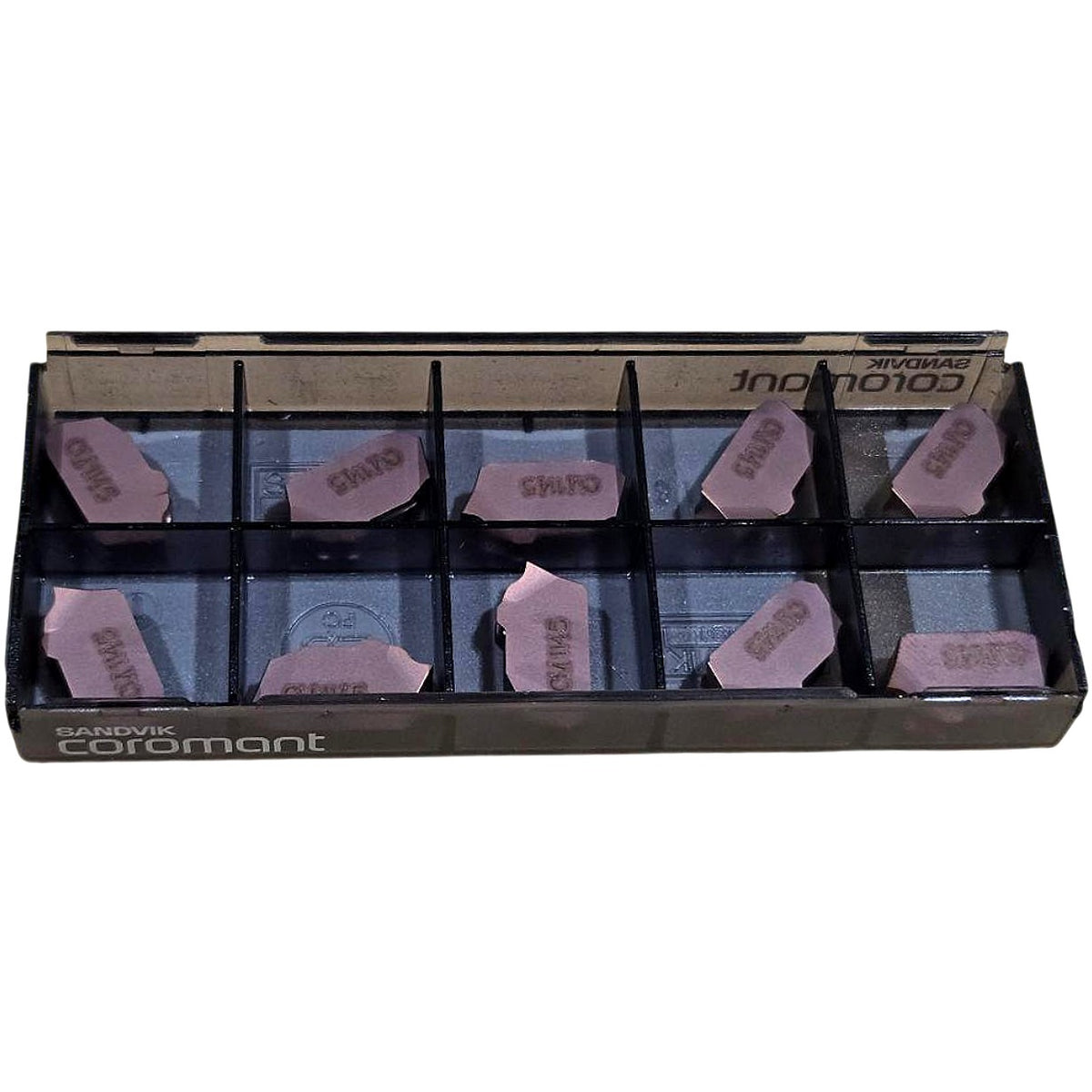

The Sandvik Coromant QD-NJ-0500-0002-CM 1145 is a new CoroCut QD double-ended carbide grooving insert, sold in the original factory tray of 10 pieces. Decoding the part number: QD = CoroCut QD insert system; NJ = insert geometry/chipbreaker style (neutral, J-chipbreaker profile for medium chip control); 0500 = 5.00 mm cutting width; 0002 = 0.2 mm corner radius; CM 1145 = uncoated cermet grade optimized for finishing and semi-finishing of steel (P), stainless steel (M), and heat-resistant superalloys (S). Grade CM 1145 is a cermet grade characterized by its smooth, hard surface (no PVD/CVD coating layer) visible as the pink/rose-colored substrate seen in the photos, delivering superior surface finish and edge sharpness for light finishing cuts. Per the label data, recommended cutting parameters include: for steel (P, 175 HB) Vc = 430 sfm (130 m/min) and fn = 0.005 in/r; for stainless steel (M, 200 HB) Vc = 325 sfm (100 m/min); for superalloys (S, 350 HB) Vc = 50 sfm (16 m/min); these inserts seat in CoroCut QD toolholders accepting the NJ seat style.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | QD-NJ-0500-0002-CM 1145 |
| Insert System | CoroCut QD |
| Grade | CM 1145 (cermet, uncoated) |
| Cutting Width | 5.00 mm (0.197 in) |
| Corner Radius | 0.2 mm (0.008 in) |
| Chipbreaker / Geometry | NJ |
| Insert Type | Double-ended grooving insert |
| Substrate Material | Cermet |
| Coating | Uncoated |
| ISO Application Range (P) | P2.1.Z.AN, 175 HB |
| ISO Application Range (M) | M1.0.Z.AQ, 200 HB |
| ISO Application Range (S) | S2.0.Z.AG, 350 HB |
| Cutting Speed - Steel (P) | 430 sfm / 130 m/min |
| Cutting Speed - Stainless (M) | 325 sfm / 100 m/min |
| Cutting Speed - Superalloy (S) | 50 sfm / 16 m/min |
| Feed Rate (all materials) | 0.005 in/r (0.07–0.22 mm/r range) |
| Country of Origin | Sweden |
| Quantity | 10 pieces (1 factory tray) |
| Condition | New |
