Sandvik QFU-H-0400-RM 1135 CoroCut QF Carbide Grooving Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

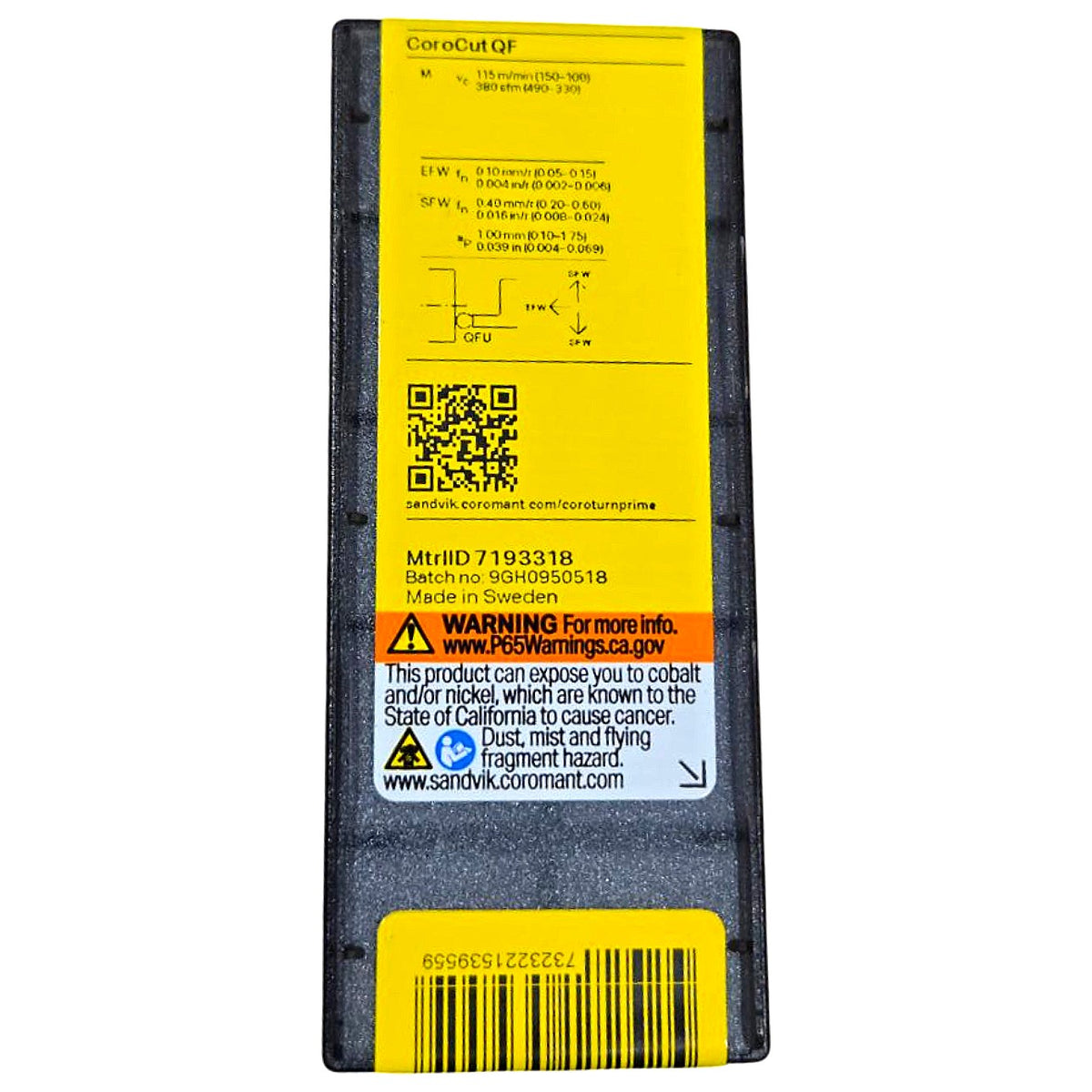

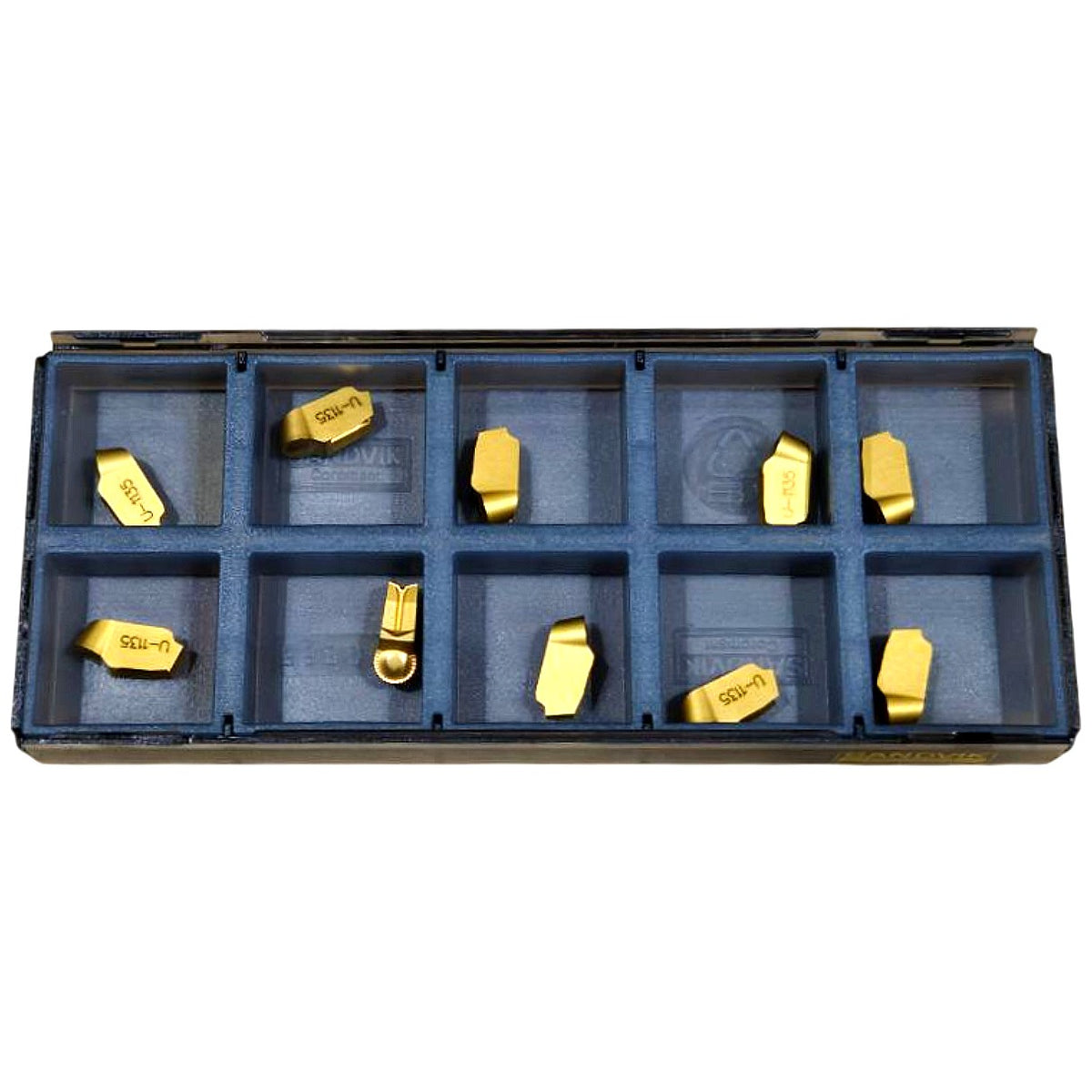

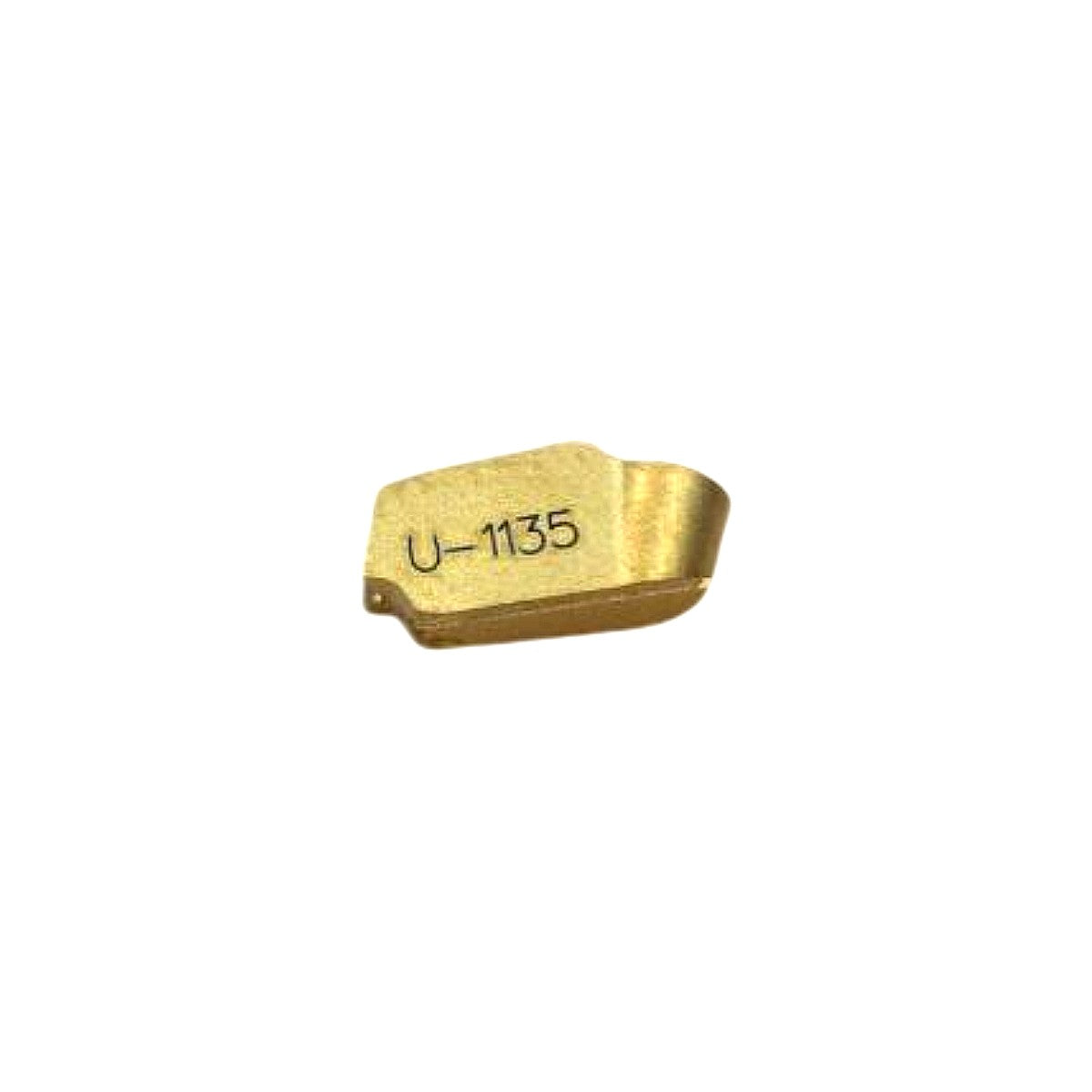

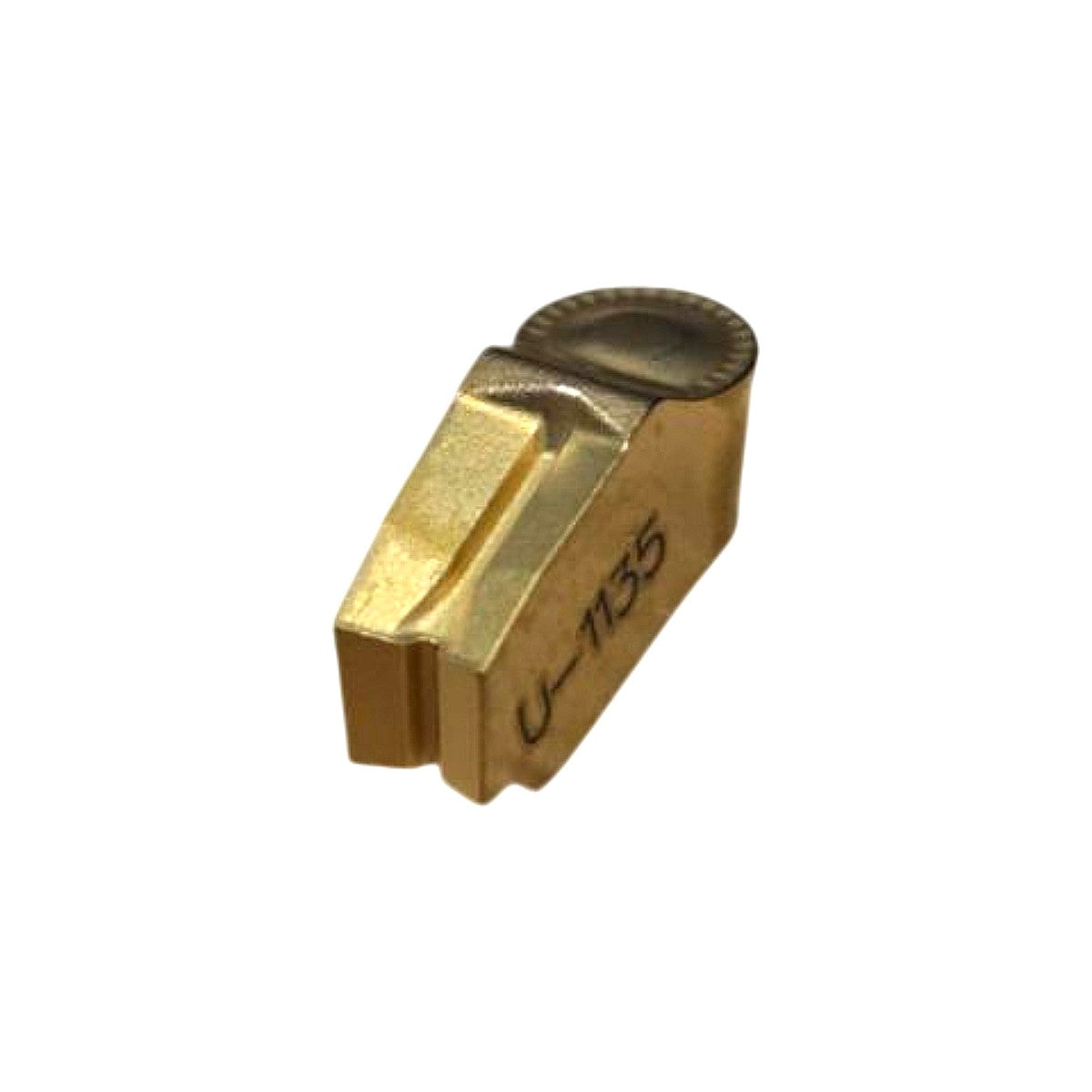

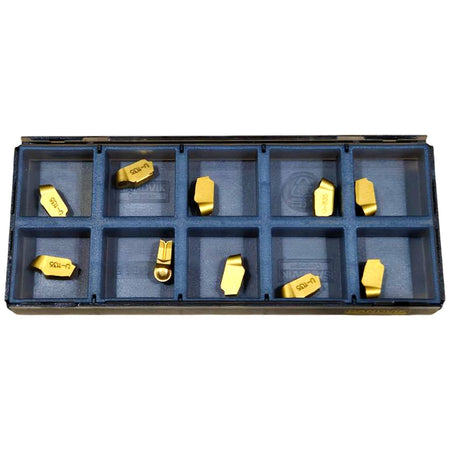

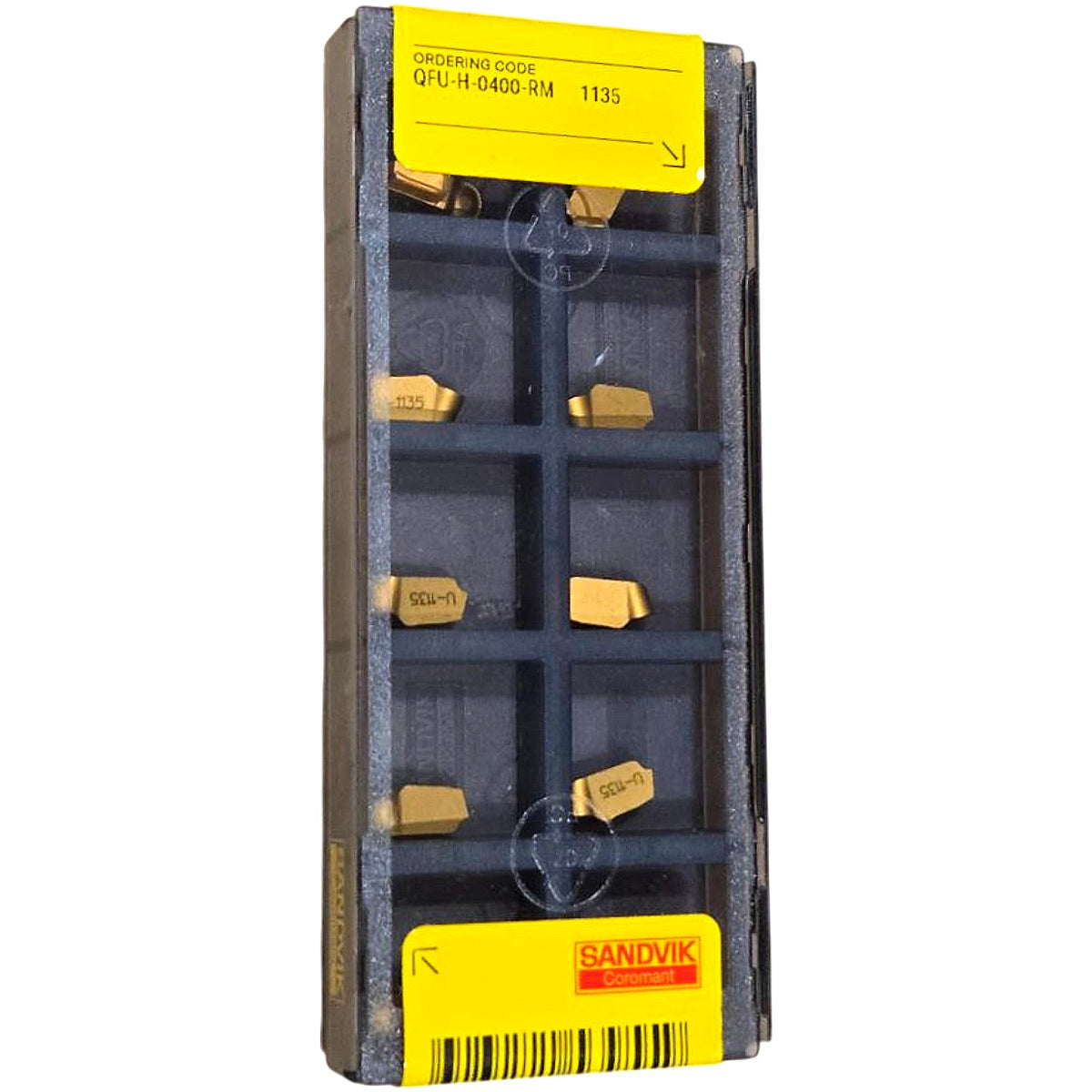

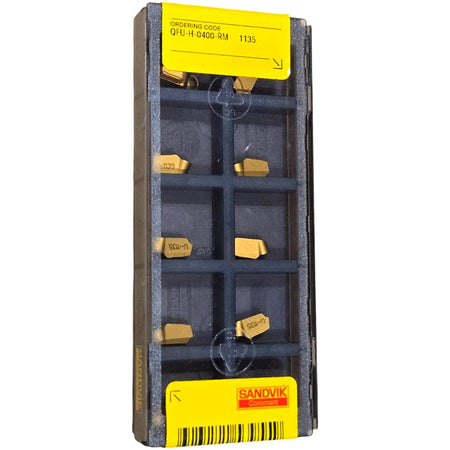

This listing is for a factory-new box of 10 Sandvik Coromant QFU-H-0400-RM 1135 carbide grooving inserts from the CoroCut QF system, ordering code confirmed on the yellow package label (MtrIID 7193318, EAN 7323221539559), manufactured in Sweden. Decoding the part number: QFU = CoroCut QF insert style for face/axial grooving; H = insert hand (right-hand cutting direction); 0400 = 4.00 mm cutting width; RM = chipbreaker geometry for finishing to medium finishing; grade 1135 is a CVD-coated cemented carbide with a TiN/Al₂O₃/TiCN multilayer coating (gold appearance confirmed in photos), optimized for ISO M (stainless steel) and P (steel) material groups. Published cutting data from the package back label: cutting speed Vc 115 m/min (380 sfm) for M materials; edge feed EFW fn 0.10 mm/r (0.004 in/r); side feed SFW fn 0.40 mm/r (0.016 in/r); depth of cut ap 1.00 mm (0.039 in). These inserts are designed for use in Sandvik CoroCut QF toolholders for face grooving and slot milling operations on CNC lathes and turning centers.
Product Specifications
| Brand | Sandvik Coromant |
| Ordering Code / MPN | QFU-H-0400-RM 1135 |
| EAN / UPC | 7323221539559 |
| Material ID (MtrIID) | 7193318 |
| Insert Series | CoroCut QF |
| Insert Style | QFU (face/axial grooving) |
| Hand of Cut | H – Right-hand |
| Cutting Width | 4.00 mm (0.157 in) |
| Chipbreaker | RM (finishing to medium finishing) |
| Grade | 1135 |
| Coating | CVD multilayer TiN/Al₂O₃/TiCN |
| ISO Material Group | M (stainless steel), P (steel) |
| Cutting Speed (Vc) – M Materials | 115 m/min / 380 sfm |
| Edge Feed (EFW fn) | 0.10 mm/r (0.004 in/r) |
| Side Feed (SFW fn) | 0.40 mm/r (0.016 in/r) |
| Depth of Cut (ap) | 1.00 mm (0.039 in) |
| Country of Origin | Sweden |
| Quantity | 10 pcs per box |
| Condition | New (factory sealed) |
