Sandvik QS-RF123F039-06B CoroCut 1-2 QS 3/8x3/8 RH Grooving Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

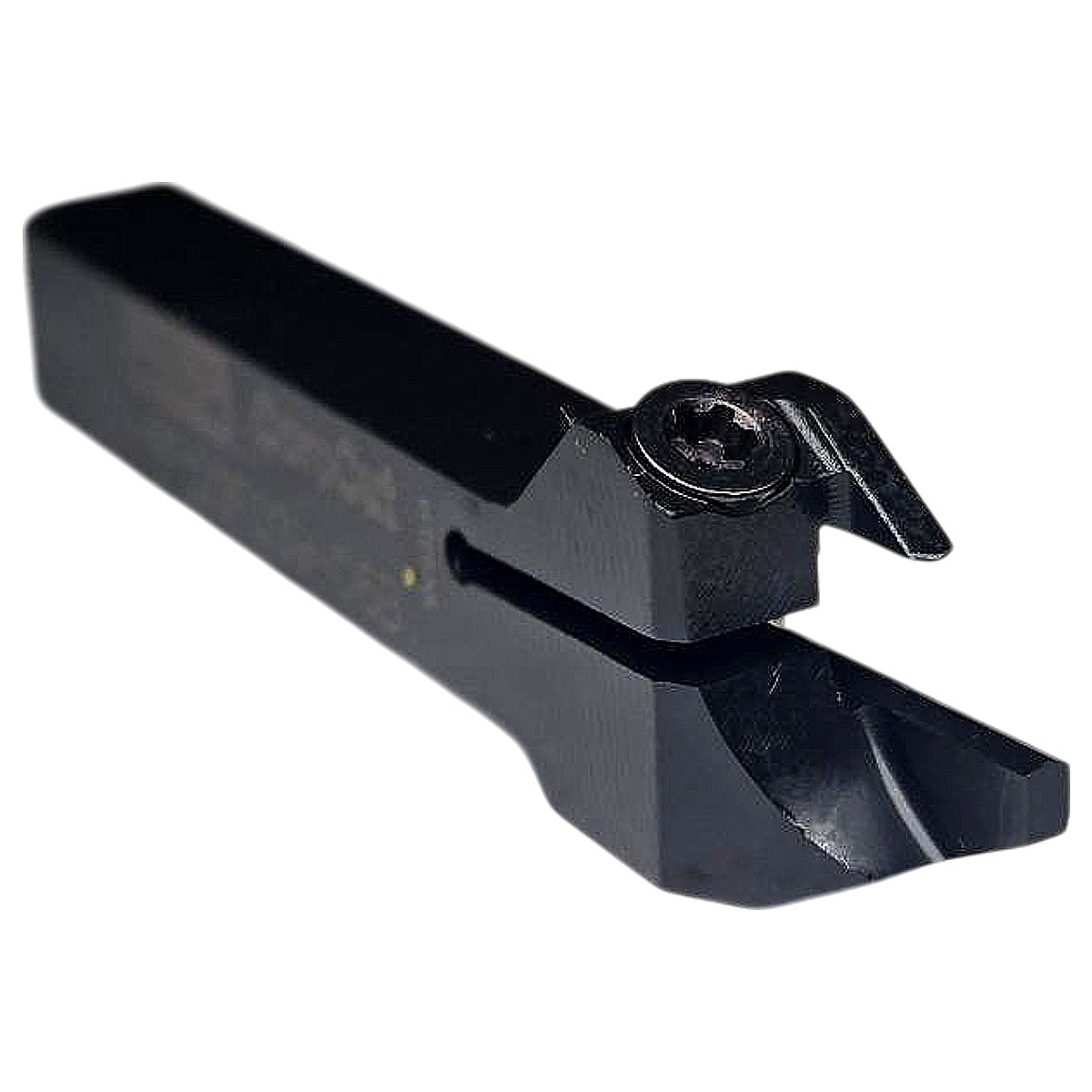

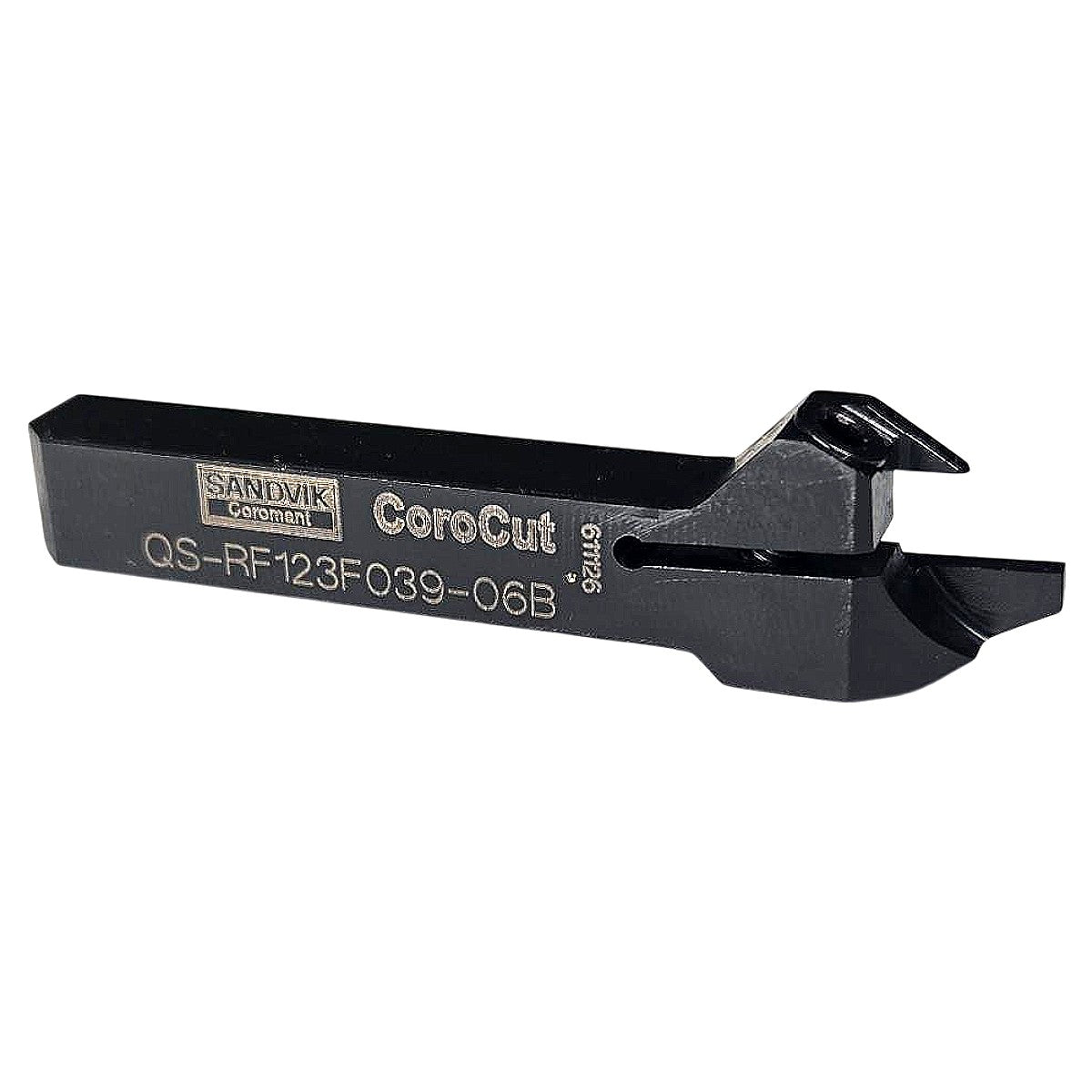

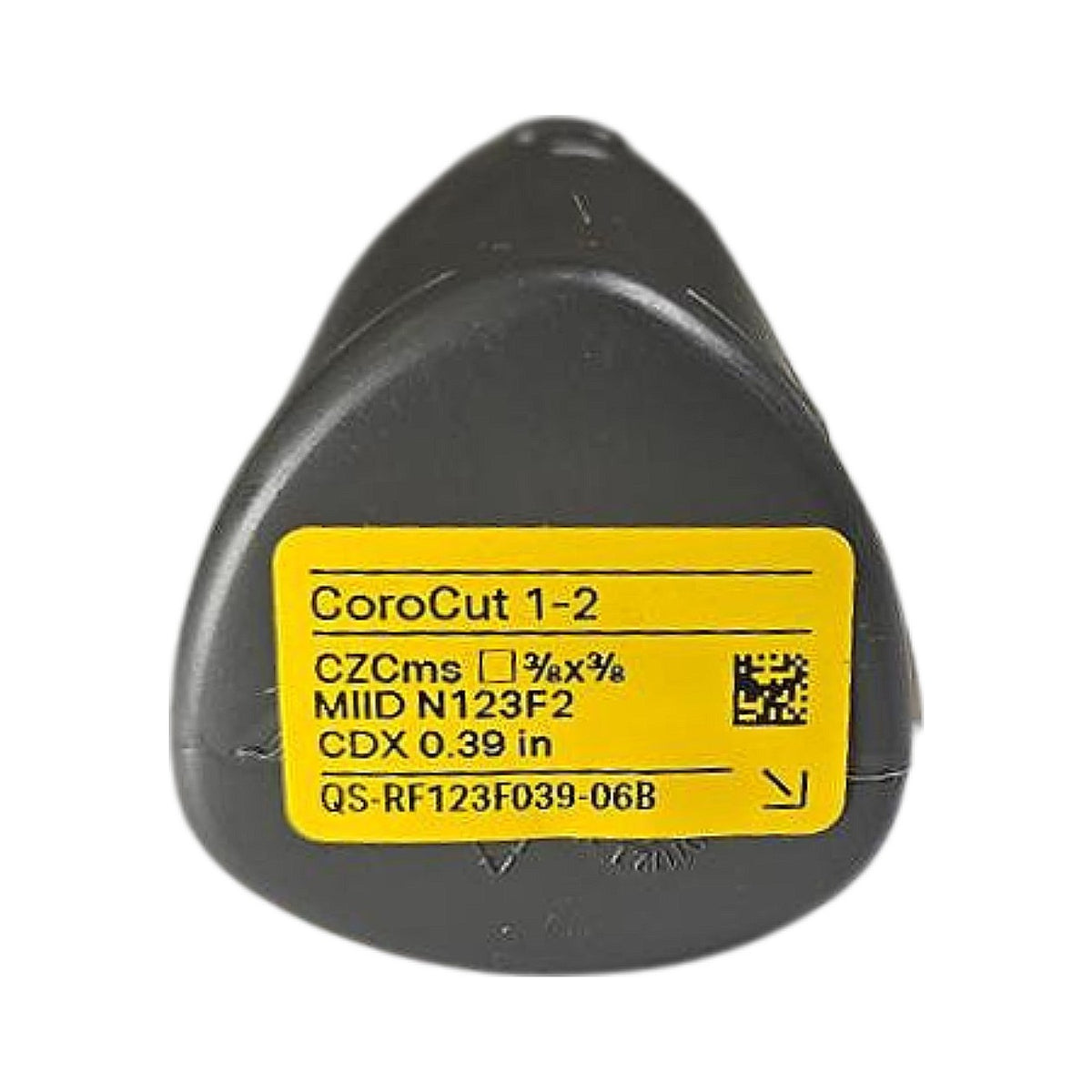

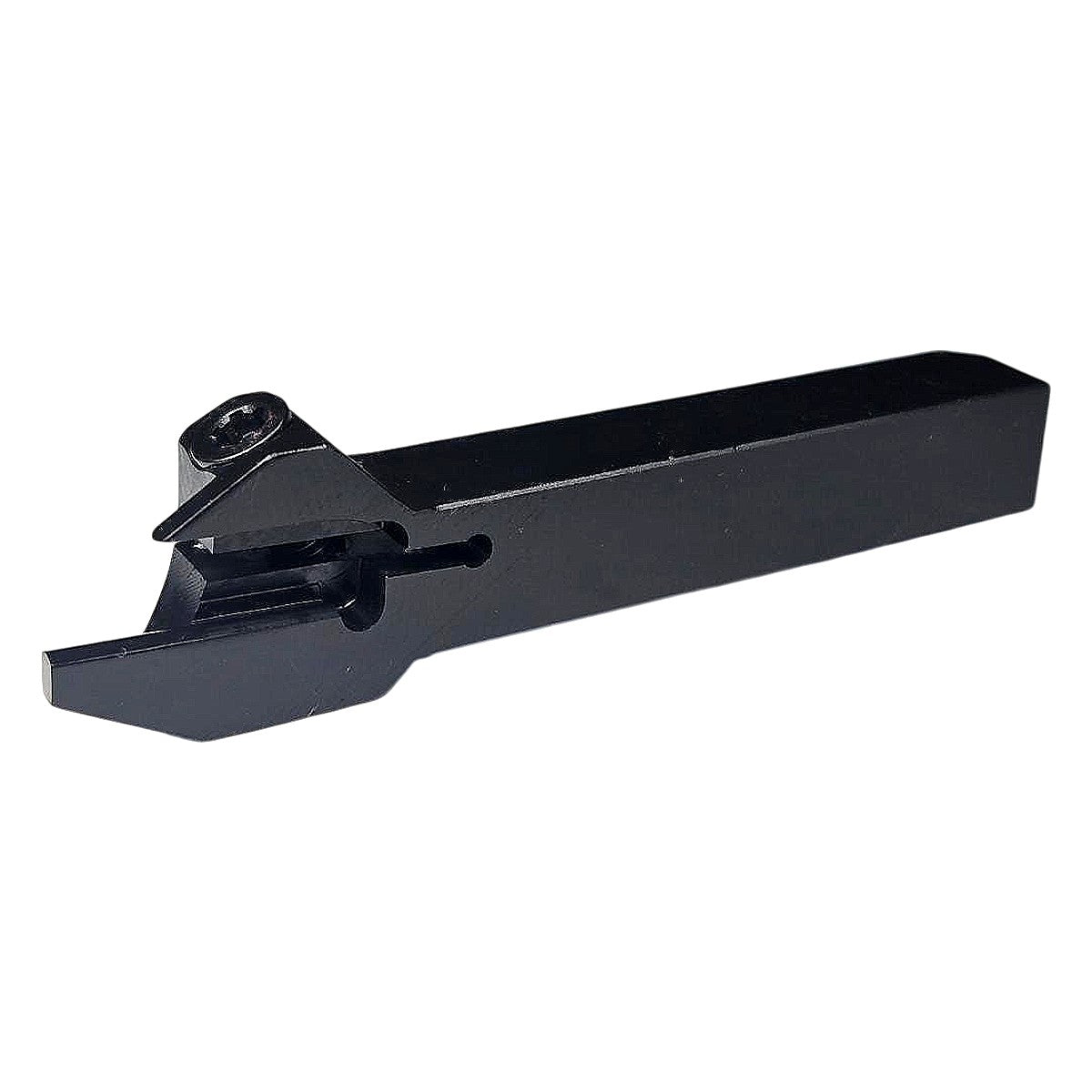

The Sandvik Coromant QS-RF123F039-06B is a new, right-hand CoroCut 1-2 quick-change (QS) grooving and parting toolholder in the RF (front/face grooving) style, designed for use with N123F2 series double-ended grooving inserts. The shank features a 3/8 in × 3/8 in (9.525 mm × 9.525 mm) square cross-section and accommodates a maximum cutting depth (CDX) of 0.39 in as confirmed on the Sandvik label; the QS interface enables rapid, repeatable tool changes without removing the holder from the turret, minimizing downtime on CNC lathes equipped with Sandvik Coromant QS quick-change turret systems. The "06B" suffix denotes a 6 mm insert width capacity with a B-type clamping arrangement, and the "039" encodes the 0.39 in maximum depth of cut; the holder is manufactured in Sweden to Sandvik Coromant's published tolerances and ships in the original Sandvik packaging with torx clamping screw and wrench included. Typical applications include external grooving, recessing, and shallow face grooving operations on CNC turning centers where quick tool-change capability is required.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | QS-RF123F039-06B |

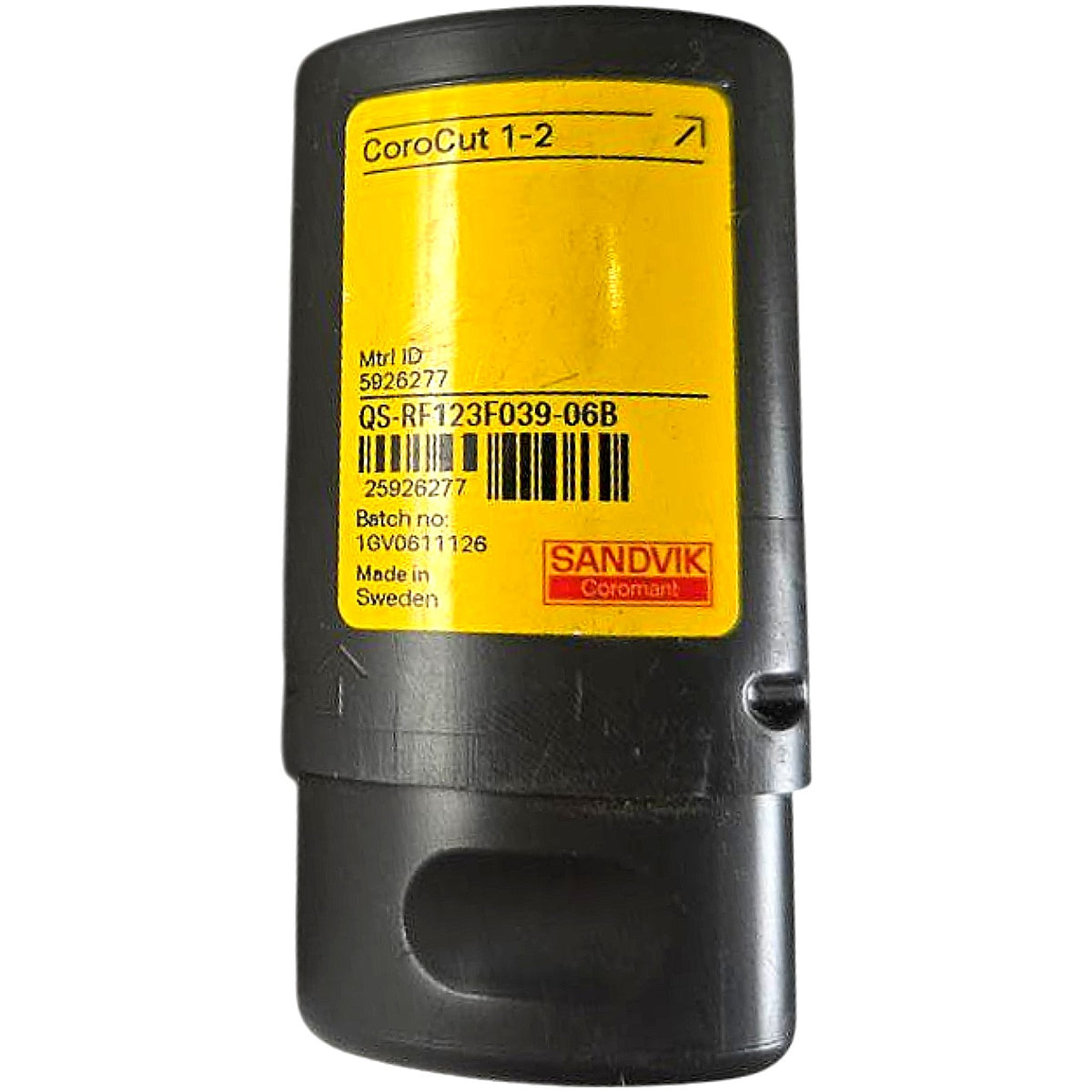

| Material ID (Mtrl ID) | 5926277 |
| Product Line | CoroCut 1-2 |
| Toolholder Style | RF (Right-Hand Front/Face Grooving) |
| Hand of Cut | Right Hand |
| Coupling System | QS (Quick-change Shank) |
| Shank Size | 3/8 in x 3/8 in (9.525 mm x 9.525 mm) |
| Max Depth of Cut (CDX) | 0.39 in (9.906 mm) |
| Insert Width Capacity | 6 mm |
| Compatible Insert Style | N123F2 |
| Clamping Type | B (screw-type clamp) |
| Country of Origin | Sweden |
| Condition | New |

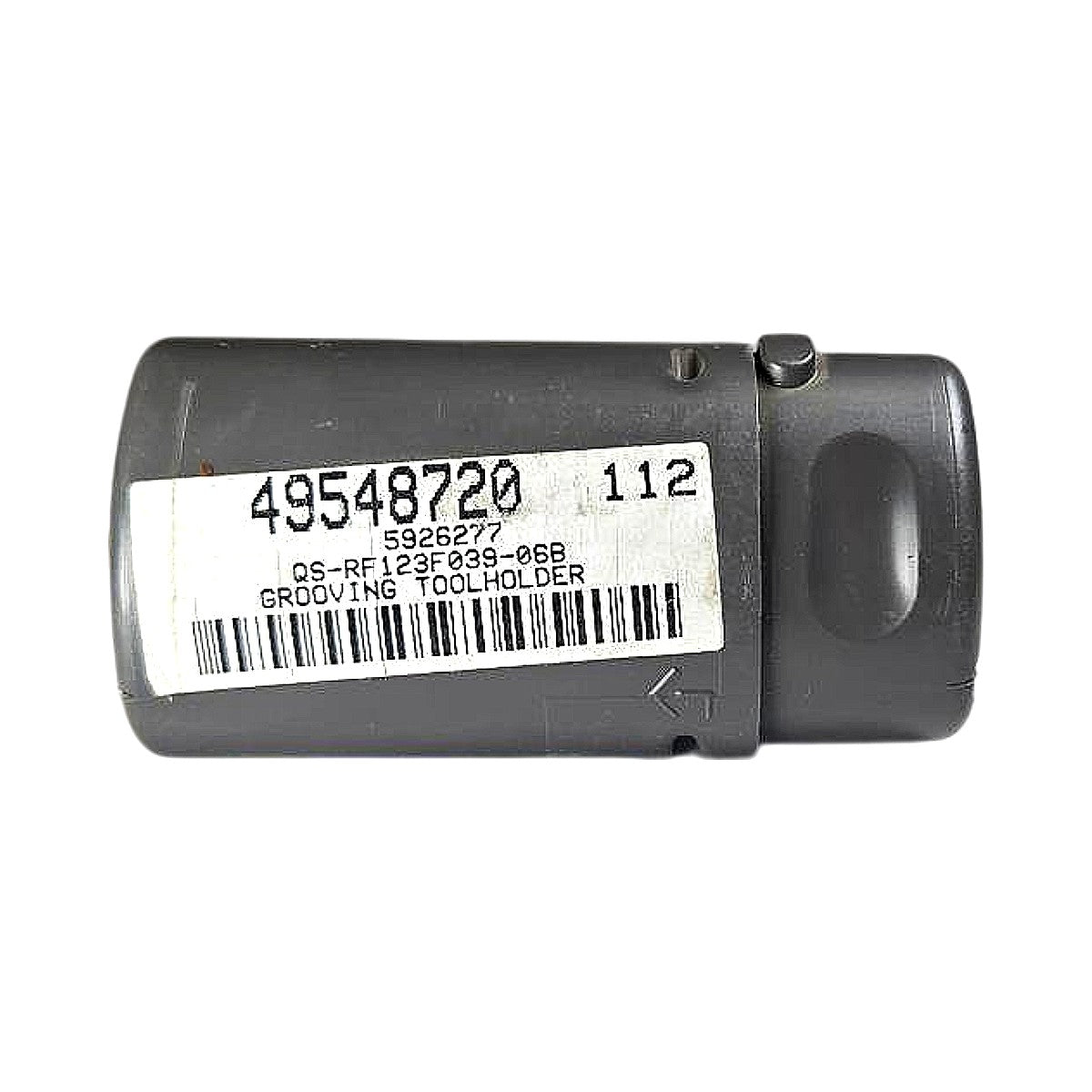

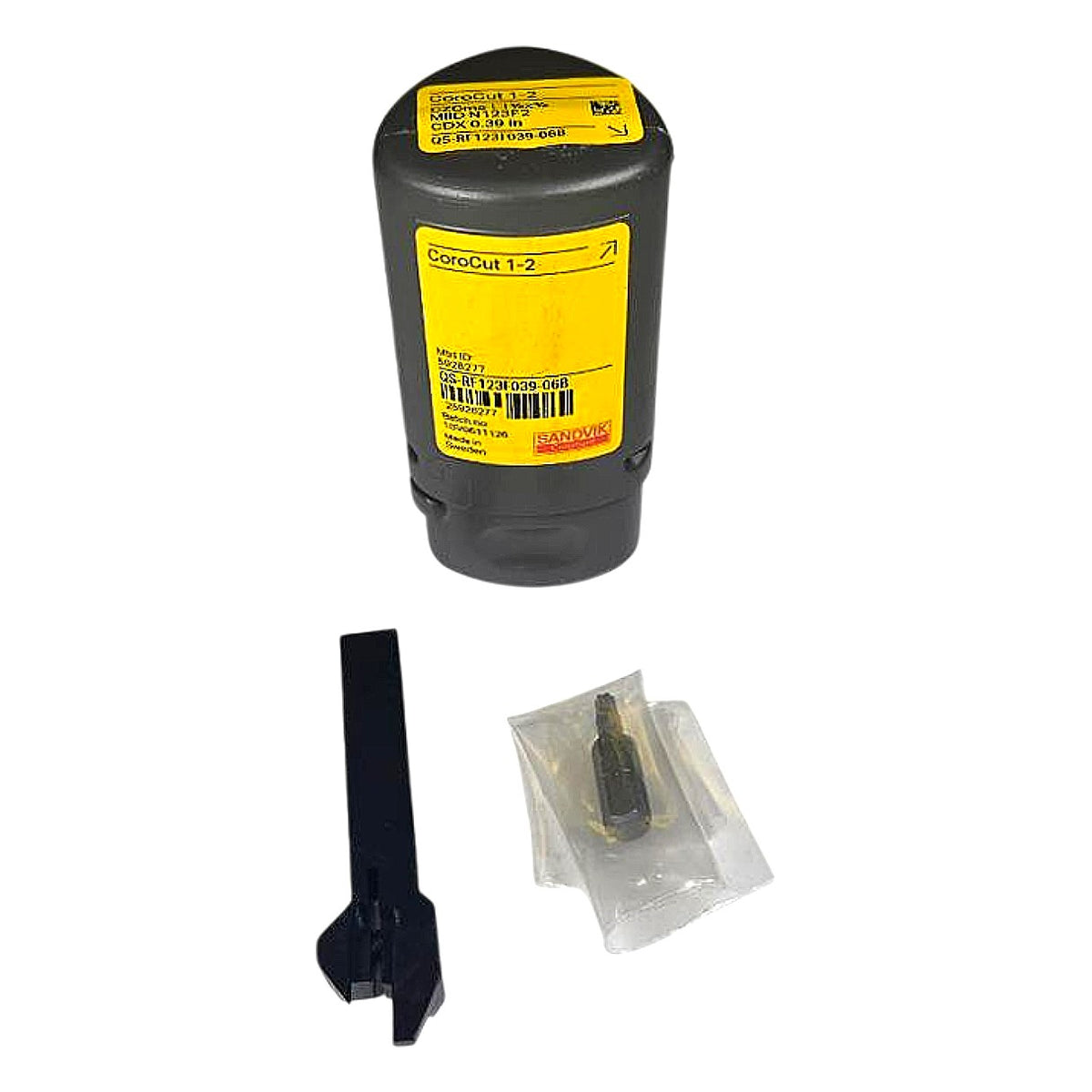

| Includes | Torx clamping screw, wrench, original packaging |
