Sandvik R210-140512M-MM 1040 CoroMill 210 Carbide Milling Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

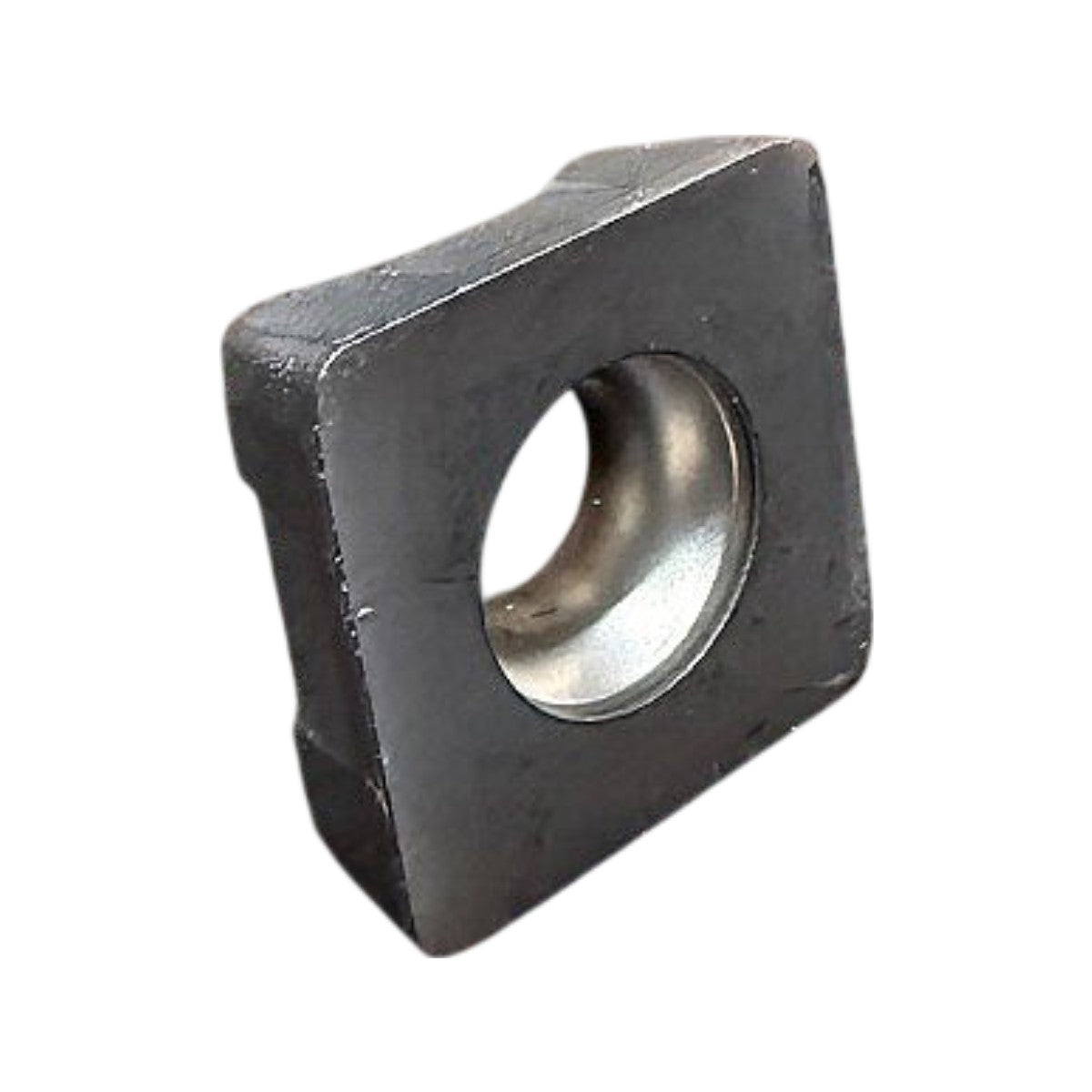

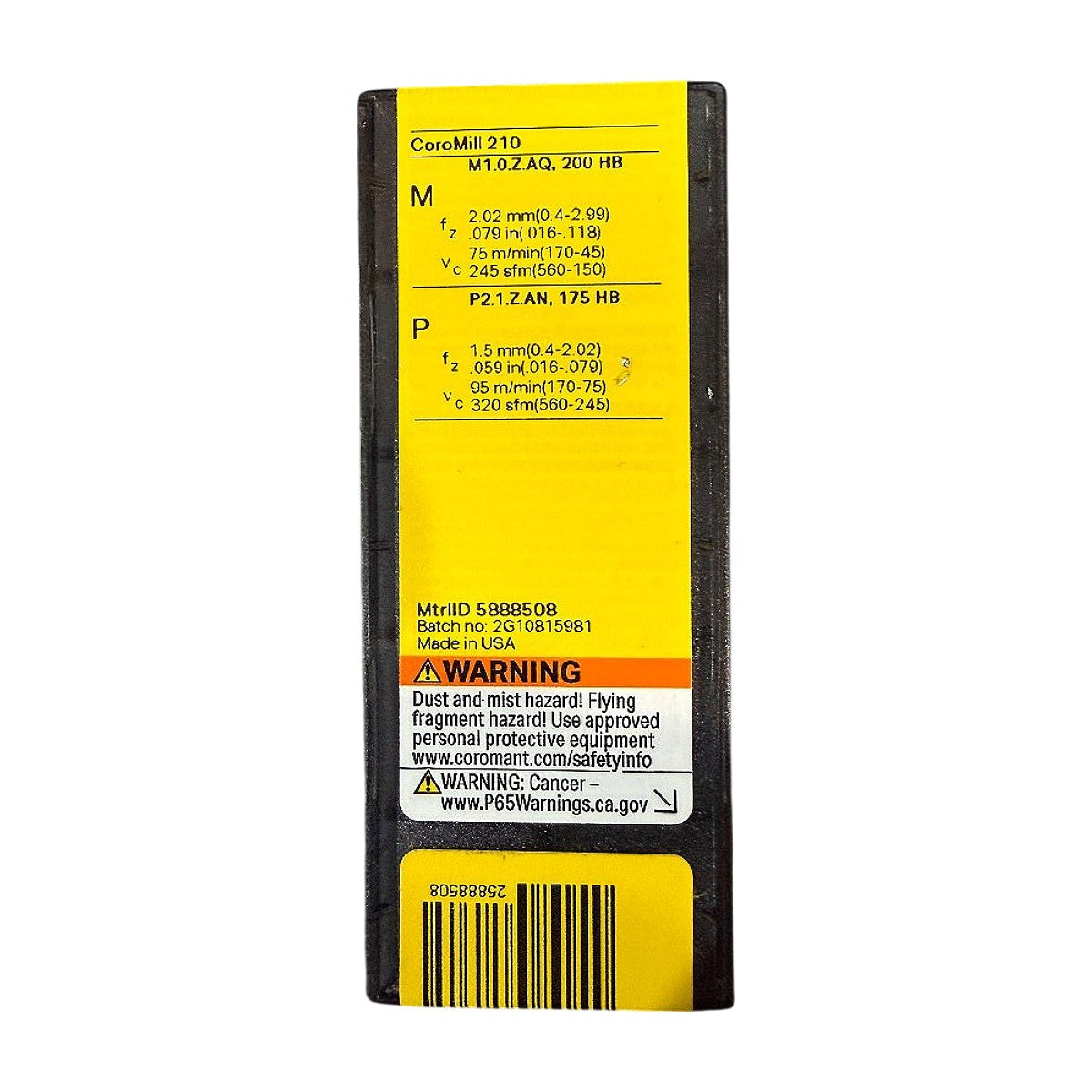

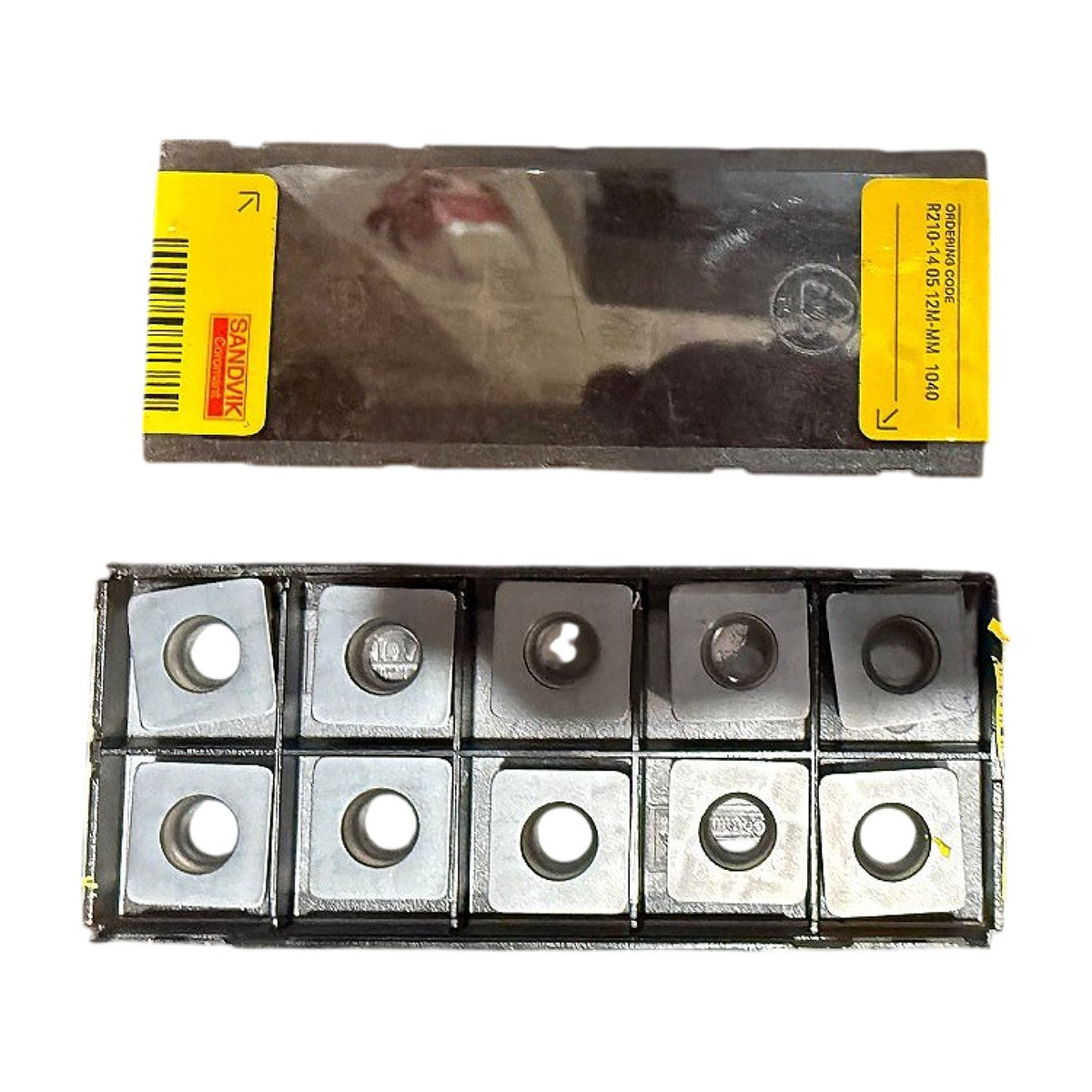

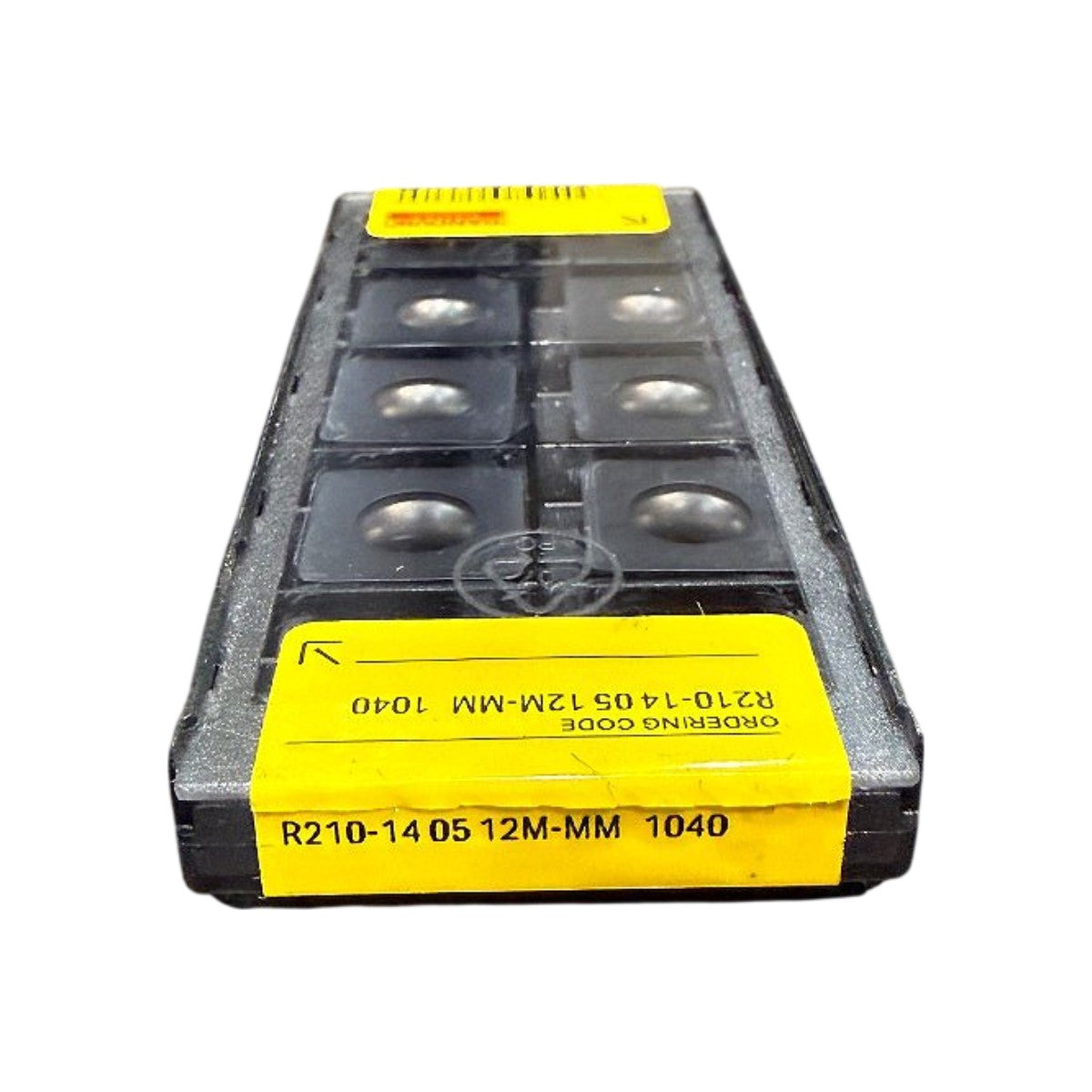

This is a new pack of Sandvik Coromant CoroMill 210 square milling inserts, ordering code R210-140512M-MM in grade 1040, Material ID 5888508, made in the USA. The ordering code gives a size 14 square insert with a 12 corner-radius designation and the MM medium-duty milling geometry. The label shows grade 1040 carbide inserts for ISO P (steel, 175 HB) and ISO M (stainless steel, 200 HB) workpiece materials. For ISO P the pack lists fz 0.4-2.02 mm (0.016-0.079 in) with a start value of 1.5 mm, and vc 95 m/min (320 sfm) with a range of 170-75 m/min. For ISO M it lists fz 0.4-2.99 mm with a start value of 2.02 mm, and vc 75 m/min (245 sfm) with a range of 170-45 m/min. The inserts are designed for CoroMill 210 face milling cutters, and the pack contains 10 inserts.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | R210-140512M-MM 1040 |
| Alternate Part Number | R210-14 05 12M-MM |
| Material ID | 5888508 |
| Series/System | CoroMill 210 |
| Grade | 1040 |
| Insert Shape | Square |
| Insert Size Code | 14 |
| Insert Thickness Code | 05 |
| Corner Radius Code | 12 |
| Geometry/Chipbreaker | MM (medium) |
| Insert Material | Carbide |
| Coating | PVD Coated |
| Operation | Milling |
| Workpiece Materials | ISO P (Steel), ISO M (Stainless Steel) |
| Reference Hardness ISO P | 175 HB |
| Reference Hardness ISO M | 200 HB |
| Feed per Tooth fz ISO P | 1.5 mm (0.4-2.02 mm) |
| Feed per Tooth fz ISO M | 2.02 mm (0.4-2.99 mm) |
| Cutting Speed vc ISO P | 95 m/min (170-75), 320 sfm (560-245) |
| Cutting Speed vc ISO M | 75 m/min (170-45), 245 sfm (560-150) |
| Quantity per Pack | 10 |
| Country of Origin | USA |
| Compatible Holder | CoroMill 210 cutters |
