Sandvik R210-140512M-MM 1040 CoroMill 210 Carbide Milling Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

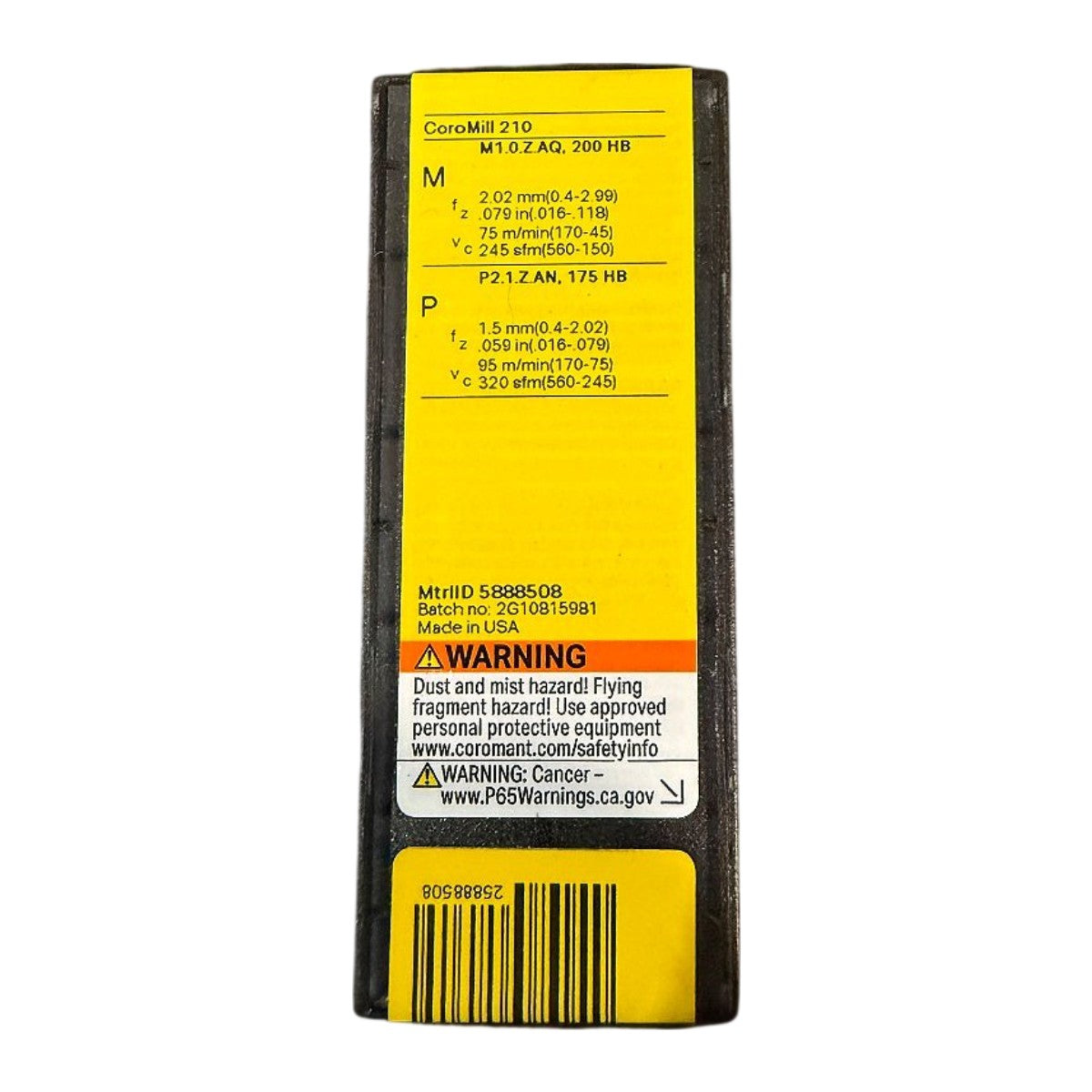

This is a new box of 10 Sandvik Coromant CoroMill 210 indexable carbide milling inserts, ordering code R210-1405 12M-MM, in grade 1040. The R210 designation identifies the CoroMill 210 round-insert system, and the 14 in the code indicates a 14 mm insert diameter. The -MM geometry is a medium-duty milling chipbreaker, and grade 1040 is a coated carbide for steel (ISO P) and stainless steel (ISO M). The pack label lists starting data of fz 1.5 mm (0.4-2.02 mm) at vc 95 m/min (75-170) for ISO P2.1.Z.AN steel at 175 HB, and fz 2.02 mm (0.4-2.99 mm) at vc 75 m/min (45-170) for ISO M1.0.Z.AQ stainless at 200 HB. The inserts are made in the USA, material ID 5888508, and fit CoroMill 210 milling cutters.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | R210-140512M-MM 1040 |
| Series/System | CoroMill 210 |
| Grade | 1040 |
| Chipbreaker/Geometry | -MM (medium) |
| Insert Diameter | 14 mm |
| Material | Carbide |
| Coating | Coated (PVD) |
| Operation | Milling |
| Workpiece Material | ISO P (steel), ISO M (stainless steel) |
| Quantity per Pack | 10 |
| Material ID | 5888508 |
| Country of Origin | USA |
| Compatible Cutter | CoroMill 210 milling cutters |
| Feed per Tooth (ISO P) | 1.5 mm (0.4-2.02 mm) |
| Cutting Speed (ISO P) | 95 m/min (75-170 m/min) |
| Feed per Tooth (ISO M) | 2.02 mm (0.4-2.99 mm) |
| Cutting Speed (ISO M) | 75 m/min (45-170 m/min) |
