Sandvik R216-25B25-060 CoroMill 216 25mm Ball Nose End Mill

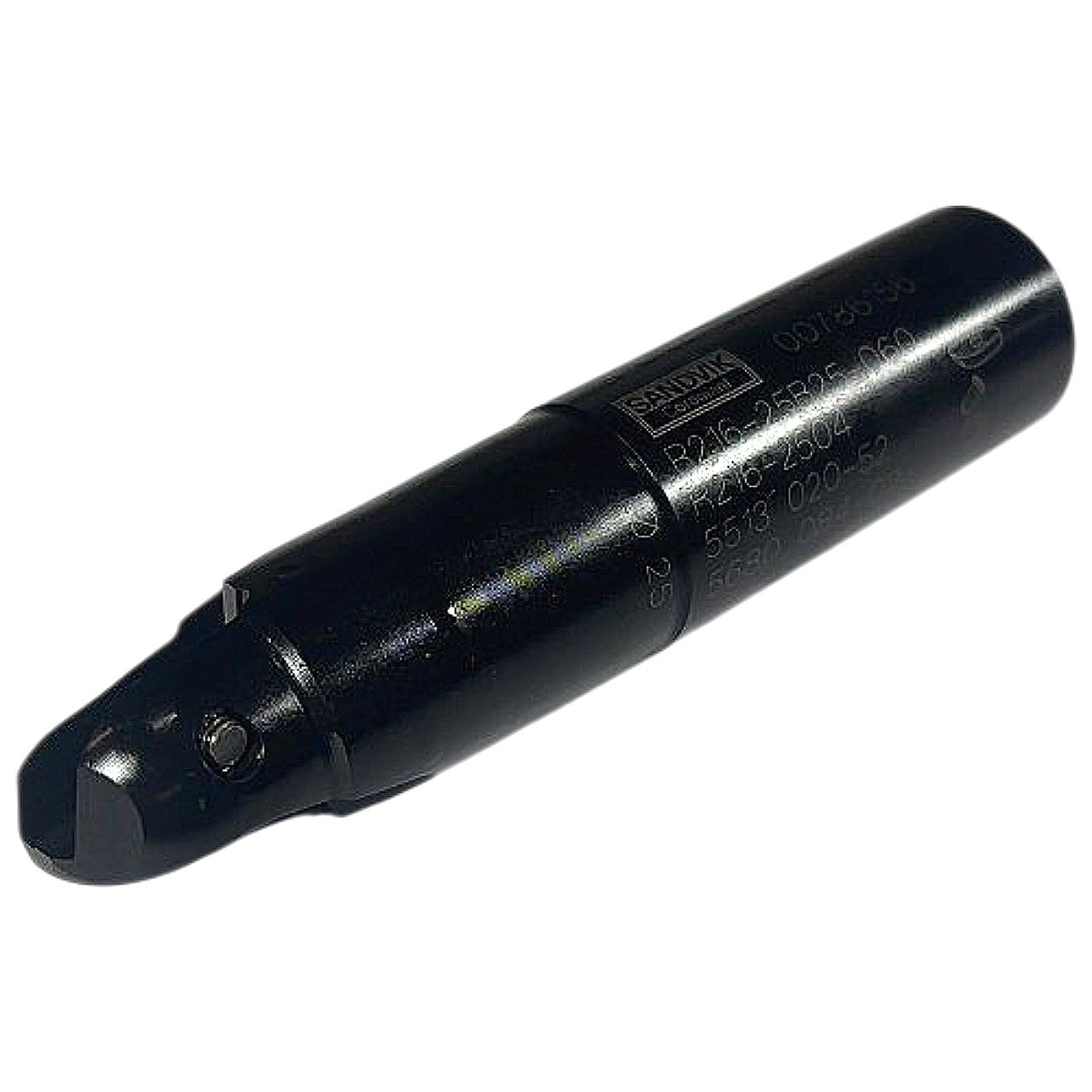

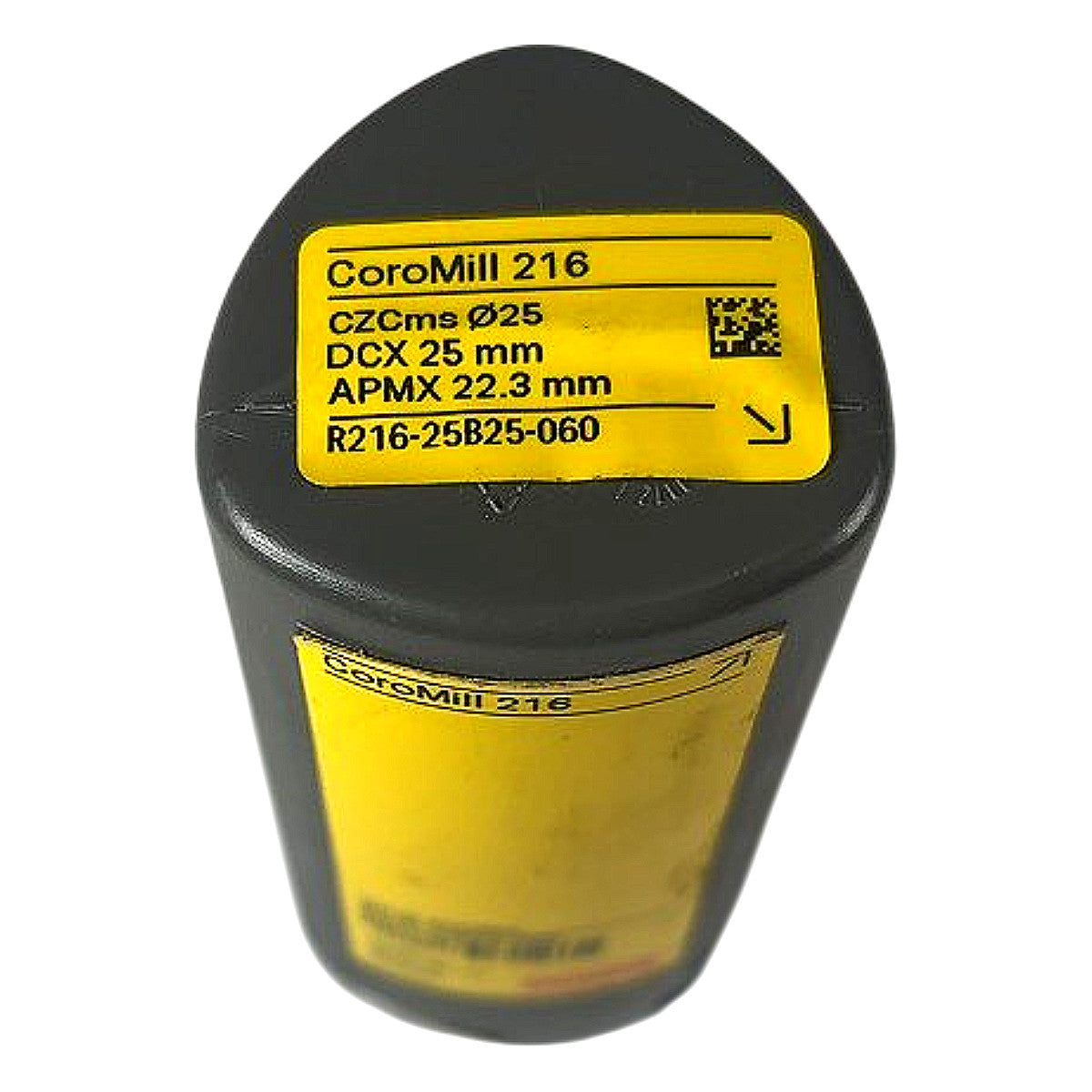

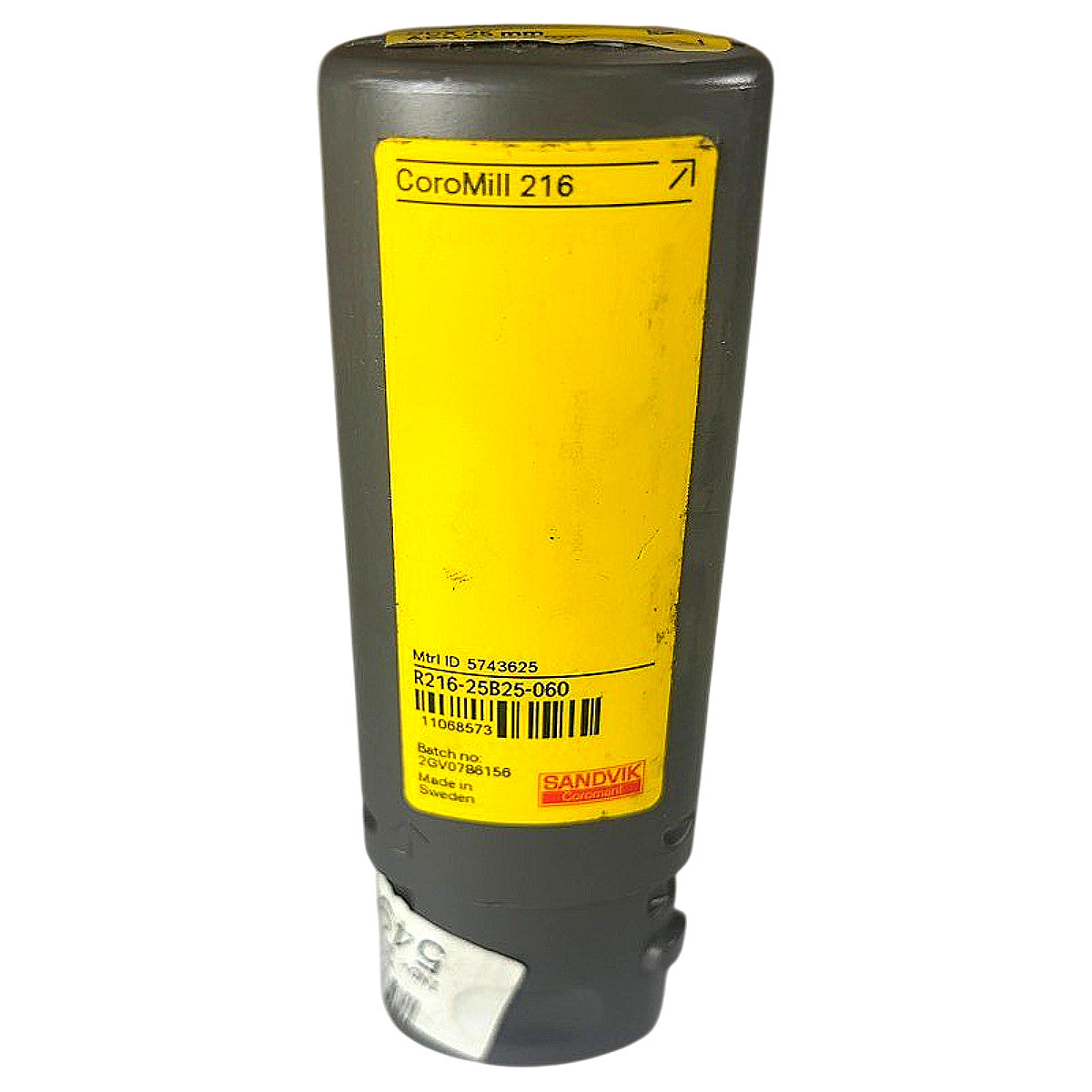

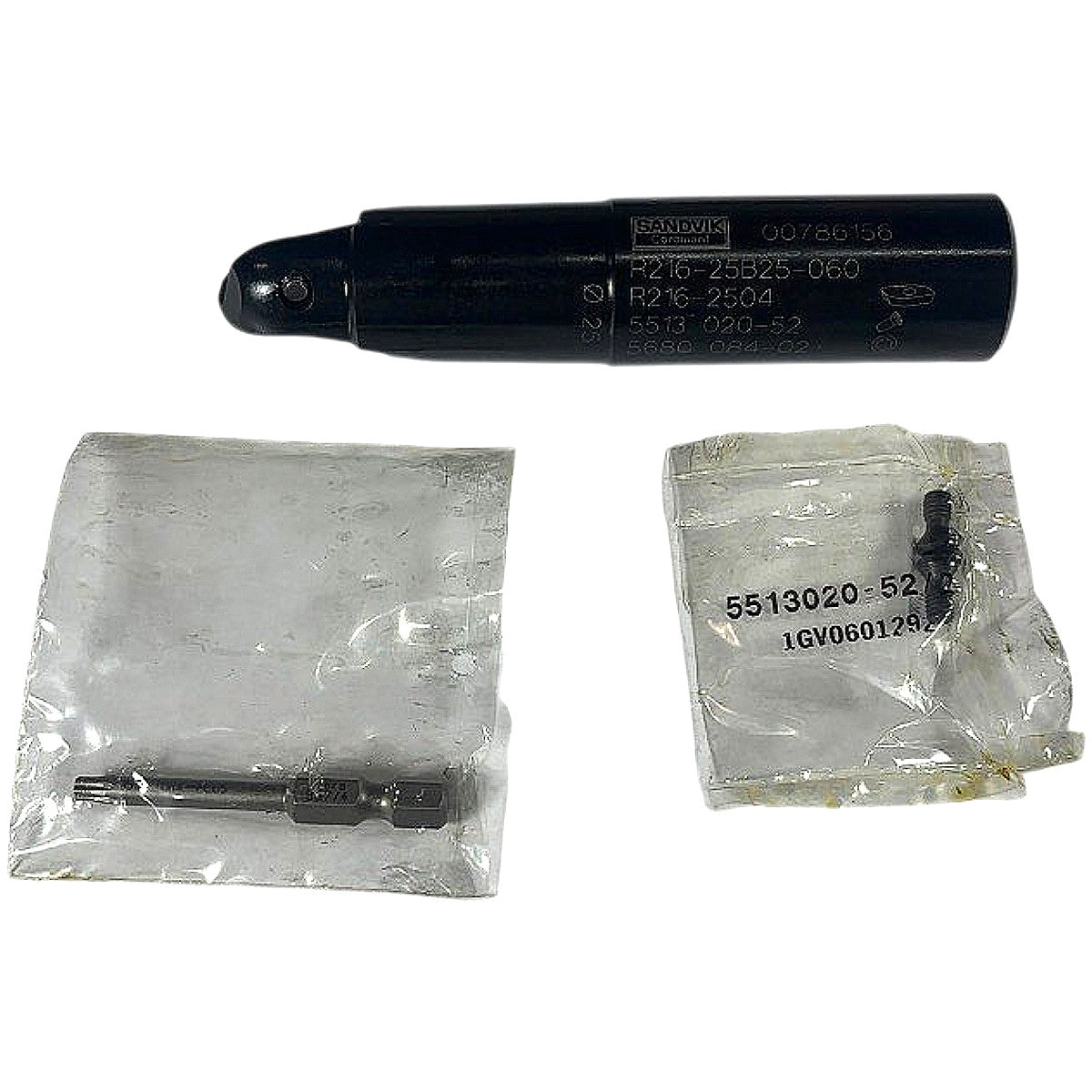

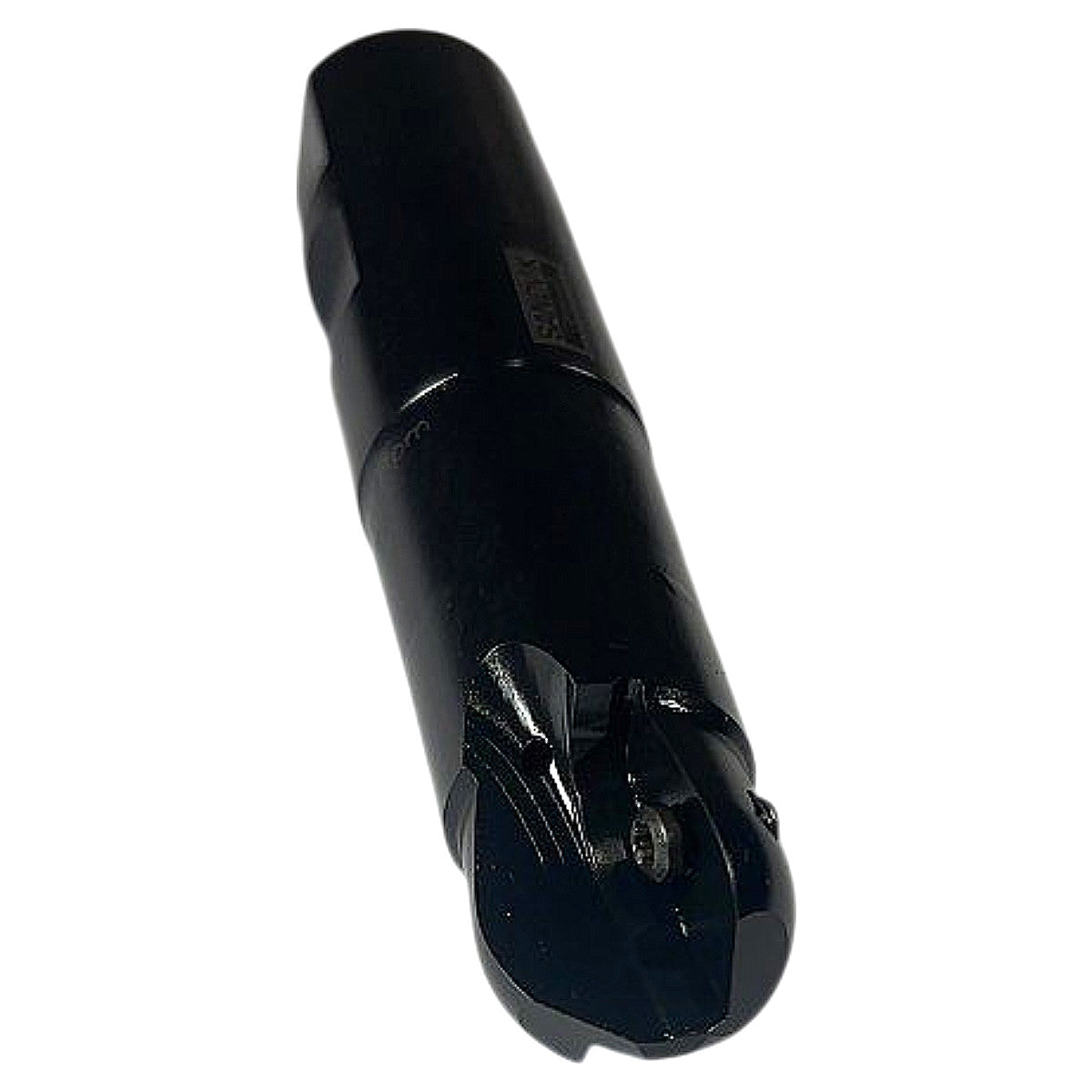

The Sandvik Coromant R216-25B25-060 is a new CoroMill 216 ball nose end mill designed for full-radius profiling, 3D contouring, and semi-finishing of hardened and difficult-to-cut materials including steel, stainless steel, and high-temperature alloys. The tool body is 25 mm in diameter (DCX 25 mm) with a 25 mm cylindrical shank (B25), a 60 mm overall usable length, and a maximum axial depth of cut (APMX) of 22.3 mm, all as confirmed by the label markings visible in the photos. The insert seat designation R216-2504 accepts SPKR 0703... series ball nose inserts secured by a Torx-style clamping screw (5513 020-52, also included); the body is manufactured from through-hardened steel with a black oxide surface treatment and features internal coolant capability via the CZCms designation (center- and zone-directed coolant). This listing includes the bare tool body, clamping screw (5513 020-52), and wrench — no inserts are included — making it a complete holder-and-hardware set ready for immediate use on machining centers with a 25 mm collet or hydraulic chuck interface.
