Sandvik R245-18 T6 M-KM 3040 CoroMill 245 Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

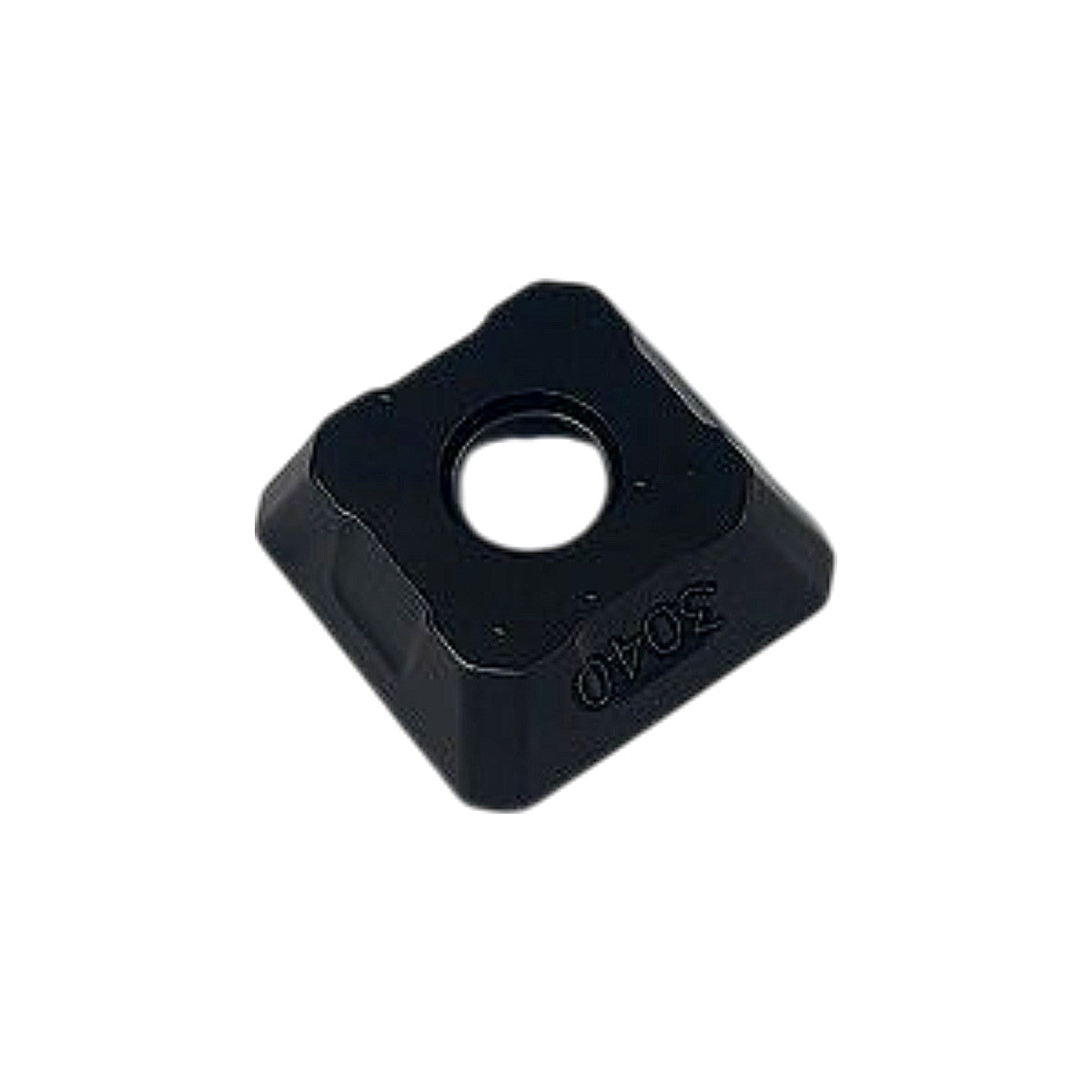

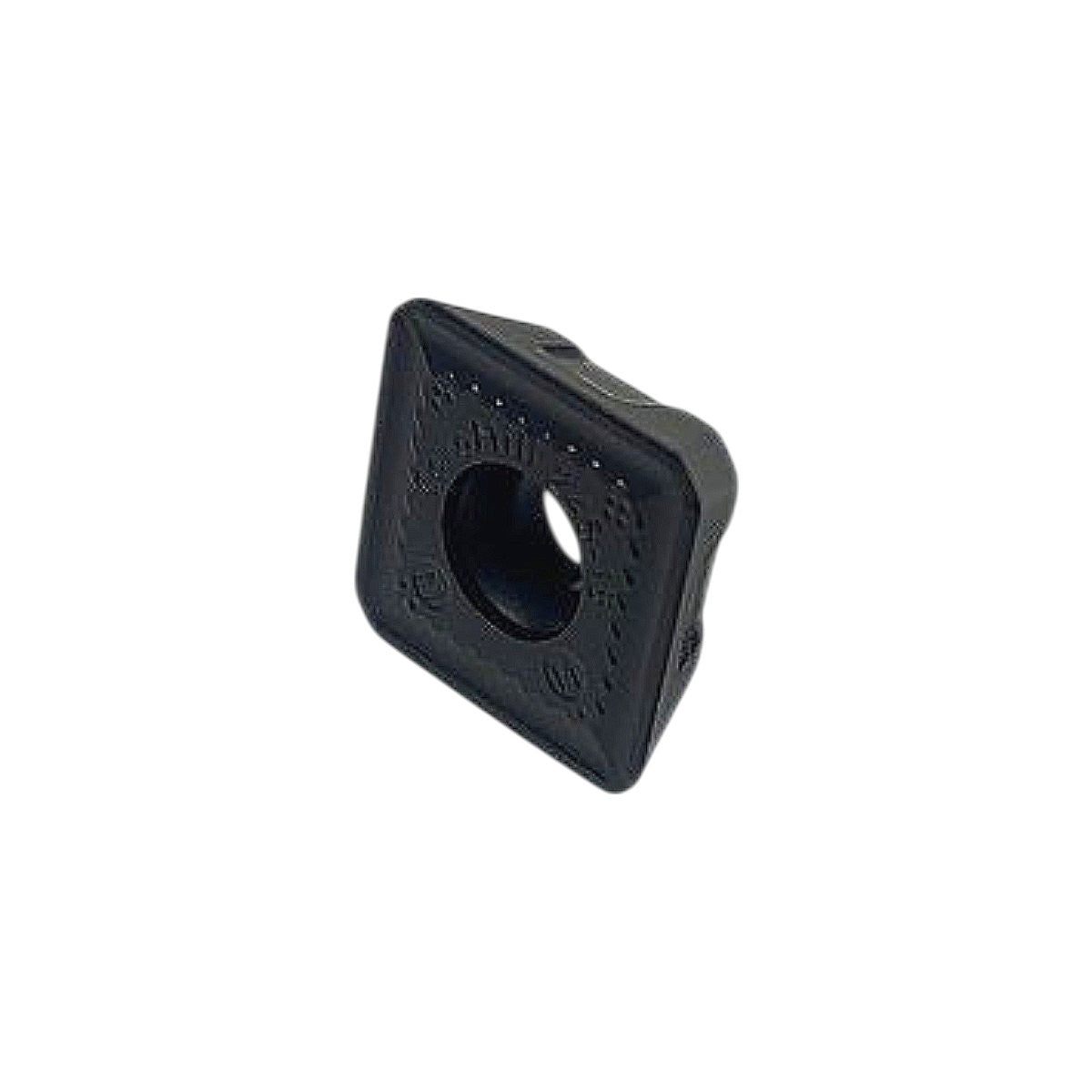

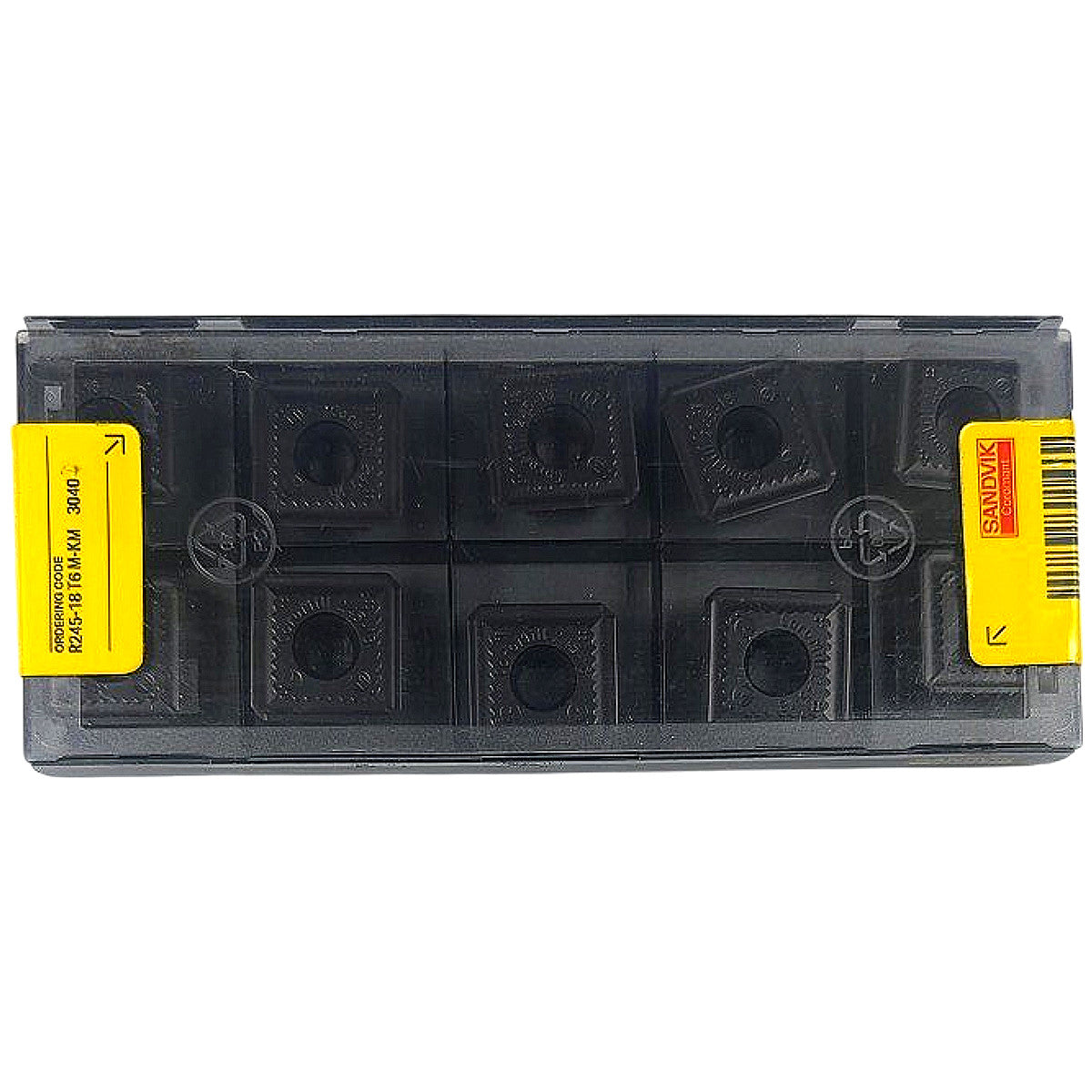

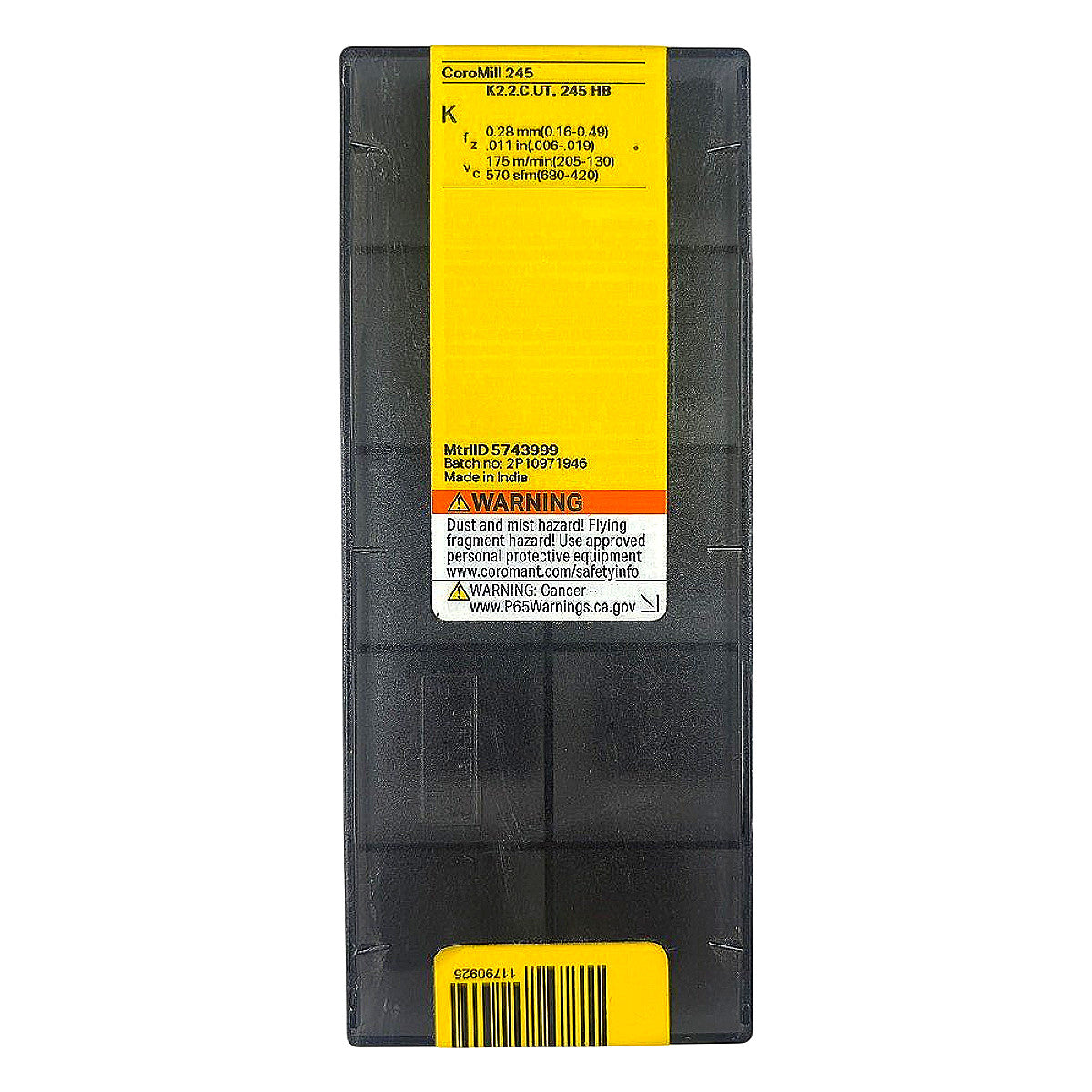

The Sandvik Coromant R245-18 T6 M-KM 3040 is a square (90° shape) positive-rake carbide milling insert designed for the CoroMill 245 face milling cutter platform. Grade 3040 is a CVD-coated cemented carbide with a TiCN/Al₂O₃ multilayer coating optimized for the K material group (cast iron), with a recommended cutting speed of 175 m/min (570 sfm) and feed per tooth of 0.28 mm (0.011 in) as shown on the package label. The KM chipbreaker geometry delivers medium-duty cutting action suited to stable conditions in grey and nodular cast iron, with 6 usable cutting edges per insert (T6 designation) providing excellent economy. The insert seats in standard R245 toolholders accepting 18 mm insert size, including Sandvik's RA245-xxx-18 cutter bodies. This listing contains 10 new, factory-sealed inserts in the original Sandvik Coromant packaging.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | R245-18 T6 M-KM 3040 |
| Insert Series | CoroMill 245 |
| Grade | 3040 |
| Coating | CVD TiCN/Al₂O₃ multilayer |
| Insert Shape | Square (90°) |
| Chipbreaker | KM |
| Insert Size | 18 mm |
| Usable Cutting Edges | 6 (T6) |
| ISO Material Group | K (cast iron) |
| Application | K2.2.C.UT, 245 HB cast iron |
| Recommended Cutting Speed | 175 m/min (570 sfm) |
| Feed Per Tooth (fz) | 0.28 mm / 0.011 in |
| Compatible Cutter | Sandvik CoroMill R245 cutter bodies |
| Quantity | 10 inserts per box |
| Condition | New |
| Country of Origin | India |
