Sandvik R300-0517E-PM 1130 PVD Carbide Round Milling Insert (10 pcs)
Regular price
$98.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

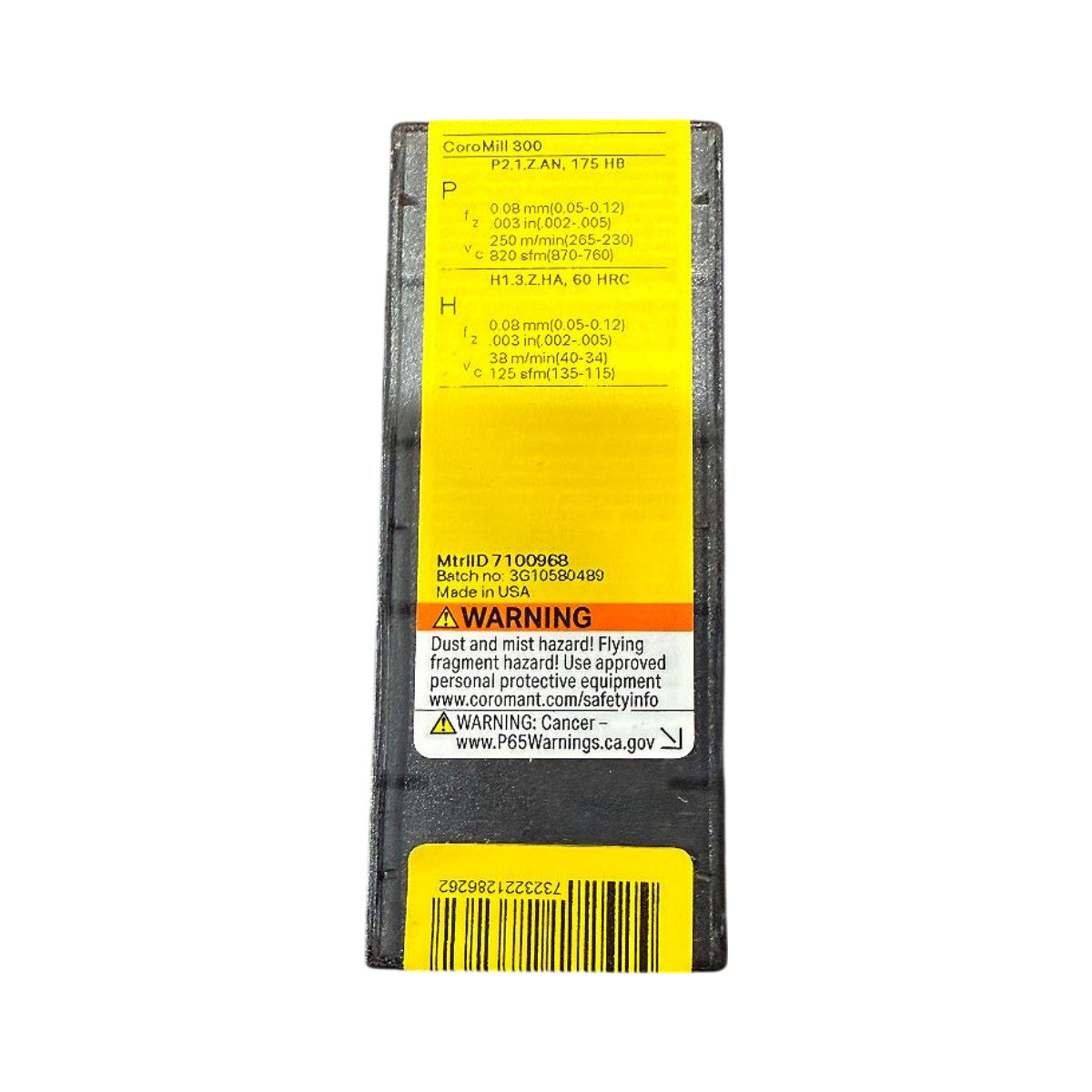

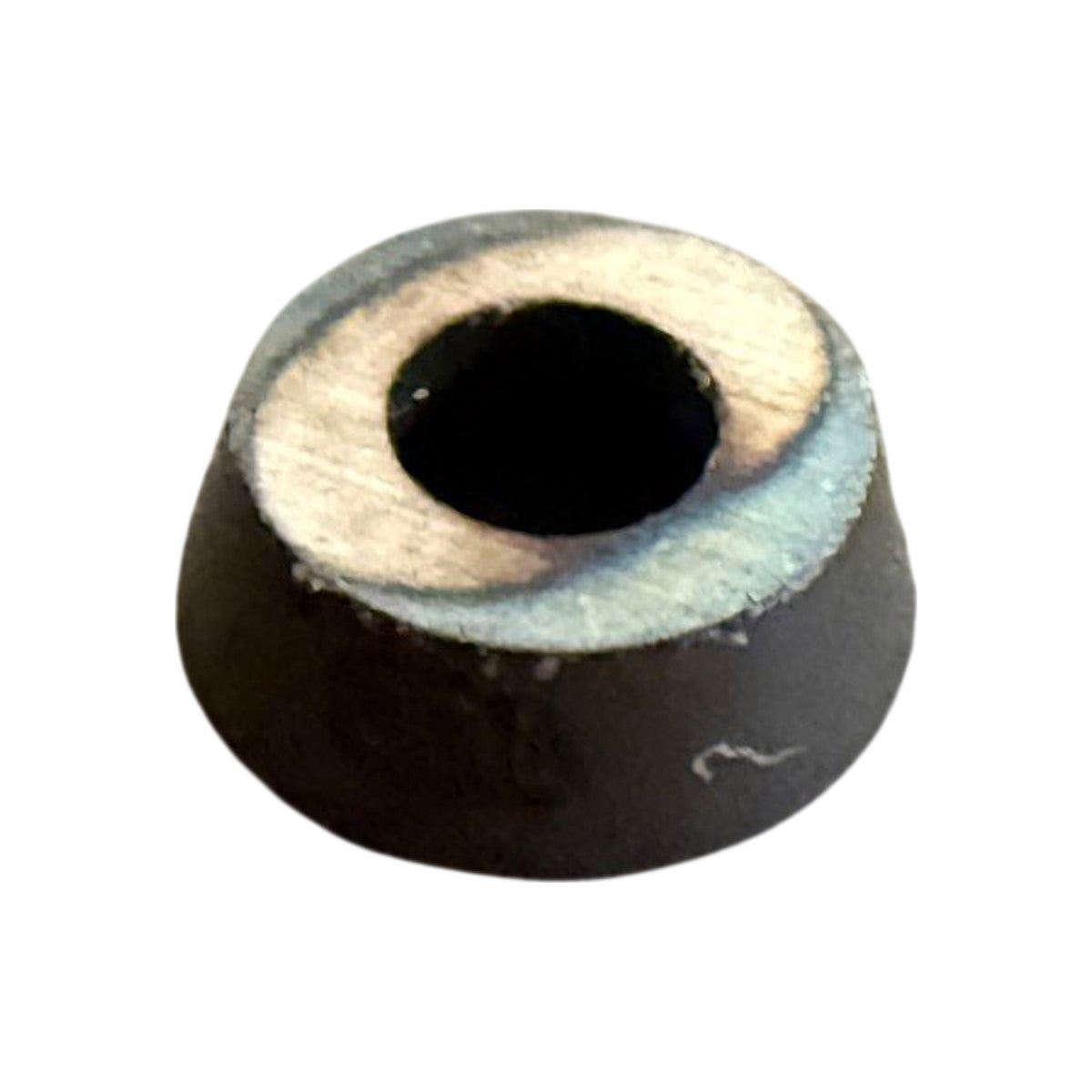

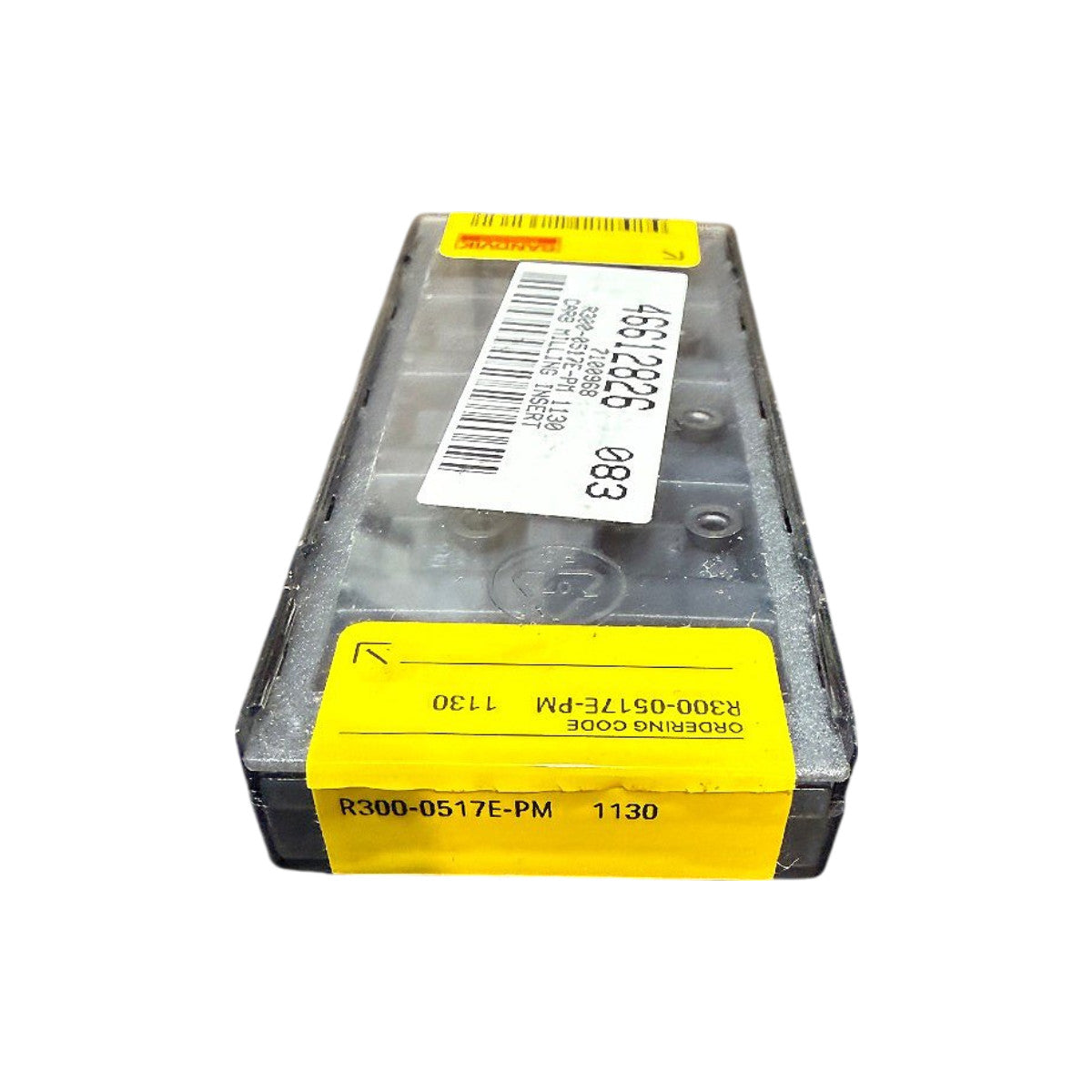

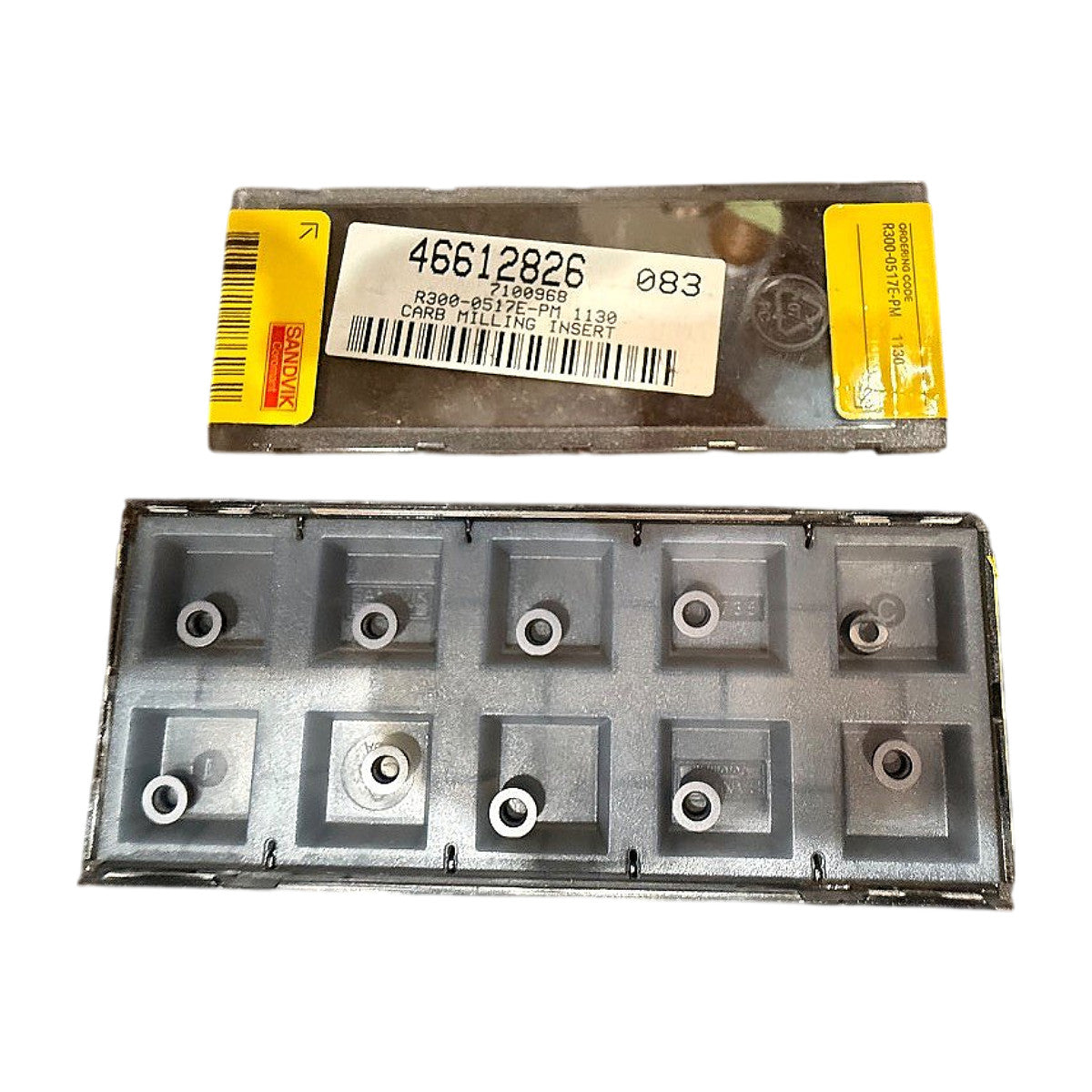

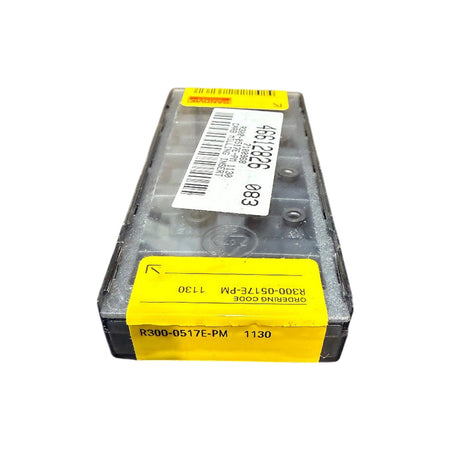

This Sandvik Coromant R300-0517E-PM insert (material ID 7100968, EDP 46612826) is a round carbide milling insert in grade 1130 for the CoroMill 300 cutter system. Grade 1130 is a PVD-coated carbide (TiAlN-type) grade. The box label lists it for ISO P steel (P2.1.Z.AN, 175 HB) at 0.08 mm fz and 250 m/min (820 sfm) vc, and for ISO H hardened steel (H1.3.Z.HA, 60 HRC) at 0.08 mm fz and 38 m/min (125 sfm) vc. The PM geometry is a medium chipbreaker, and the E designation is a honed round cutting edge. The inserts were made in the USA. This lot is new and sealed in the original Sandvik box of 10 inserts.
Product Specifications
| Brand | Sandvik Coromant |
| Manufacturer Part Number | R300-0517E-PM 1130 |
| Material ID | 7100968 |
| EDP Number | 46612826 |
| Series/System | CoroMill 300 |
| Insert Shape | Round |
| Grade | 1130 |
| Material | Carbide |
| Coating | PVD Coated (TiAlN) |
| Chipbreaker/Geometry | PM (medium) |
| Edge Preparation | E (honed round edge) |
| Operation | Milling |
| Workpiece Material | ISO P (steel), ISO H (hardened steel) |
| Rec. fz / vc (P2.1.Z.AN, 175 HB) | 0.08 mm, 250 m/min (820 sfm) |
| Rec. fz / vc (H1.3.Z.HA, 60 HRC) | 0.08 mm, 38 m/min (125 sfm) |
| Center Hole | Yes |
| Quantity per Pack | 10 |
| Country of Origin | USA |
