Sandvik R390-180612H-PL 4340 CoroMill 390 Carbide Milling Insert (7 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

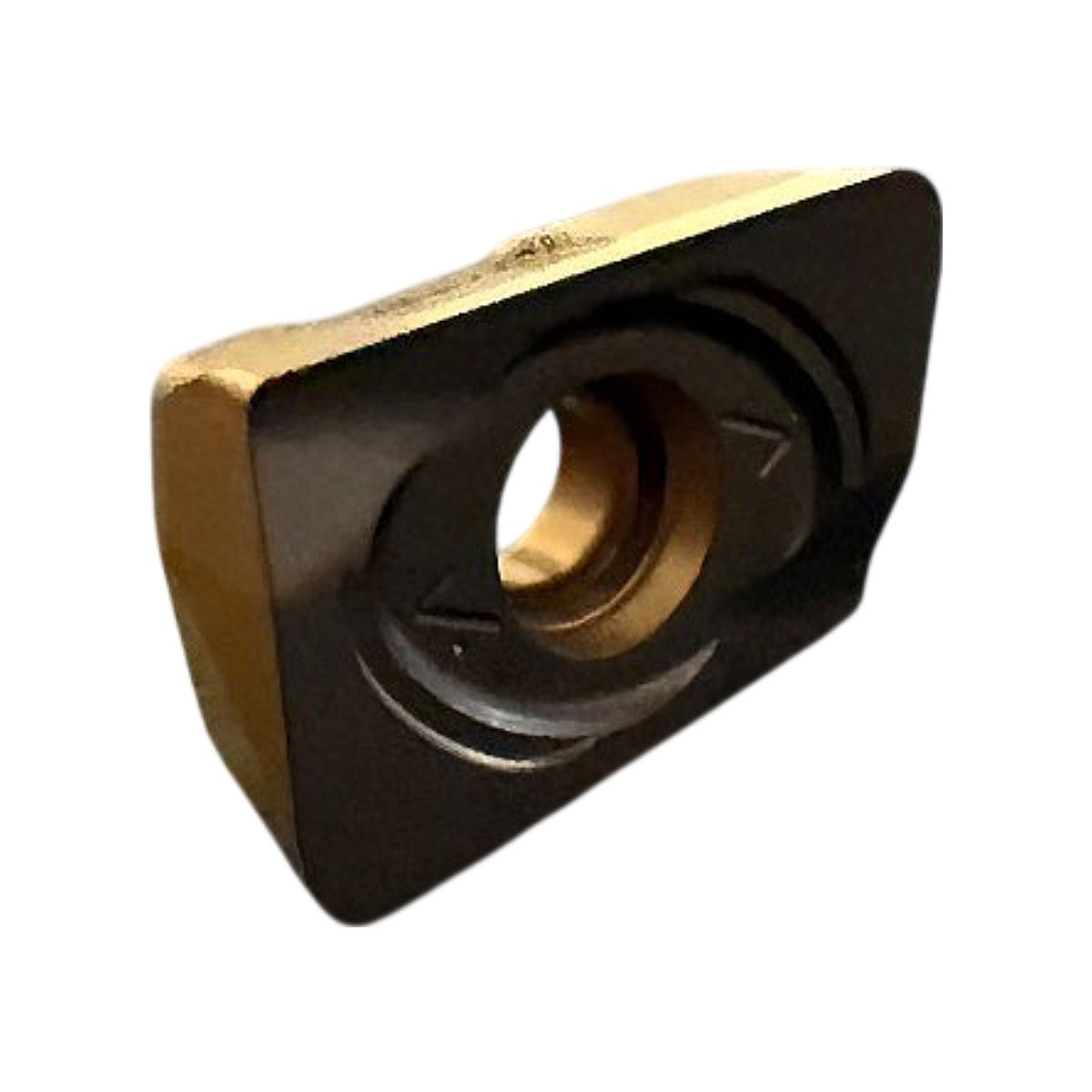

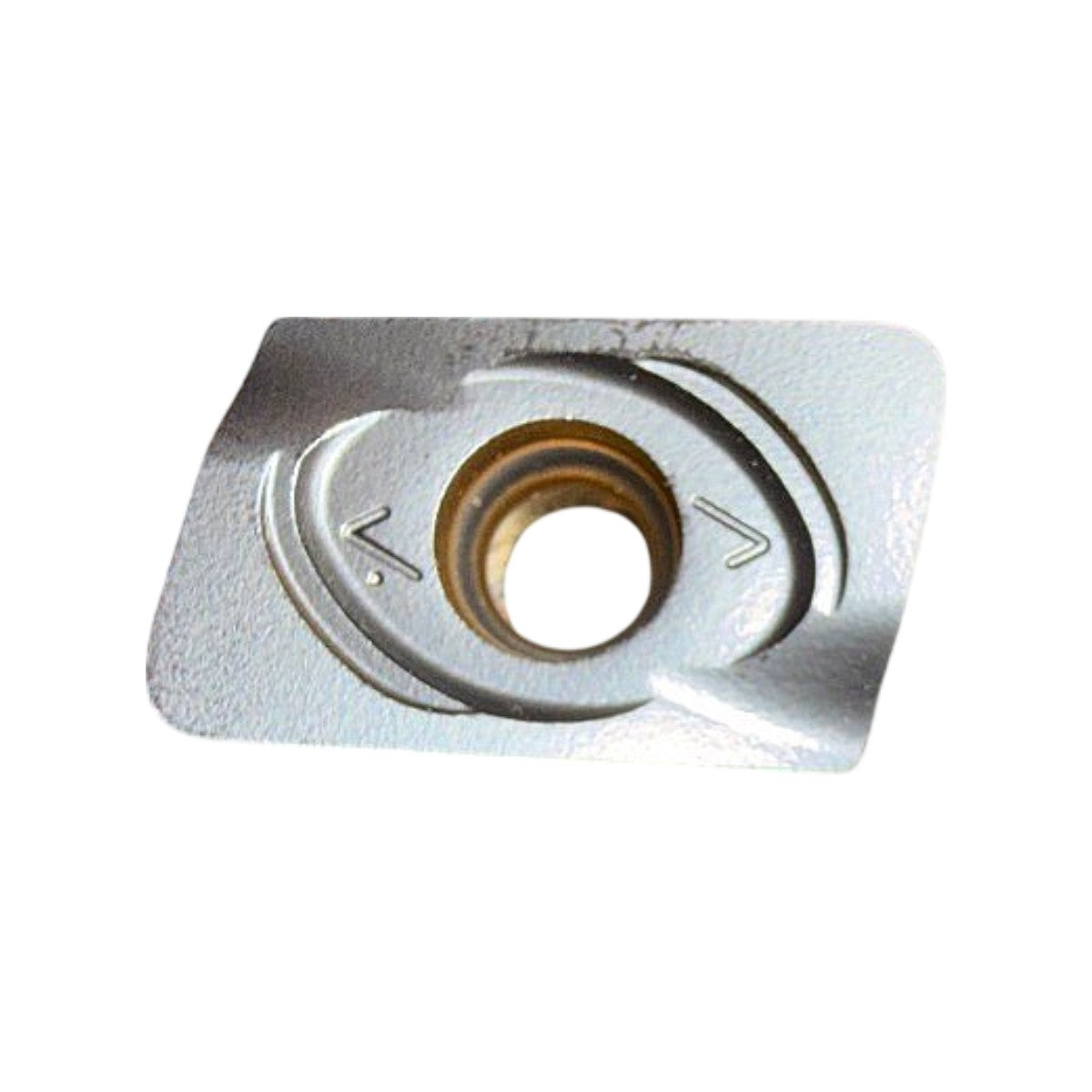

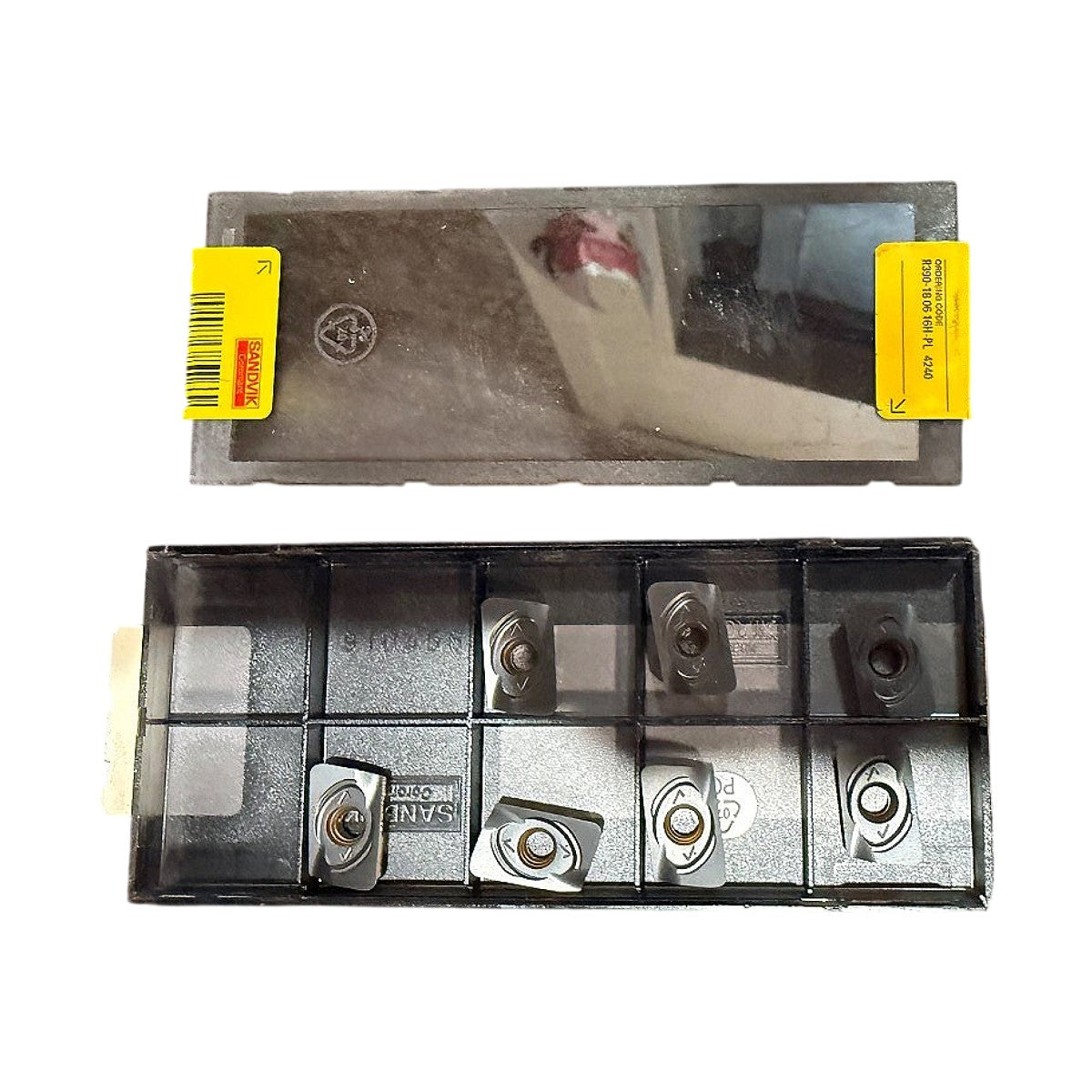

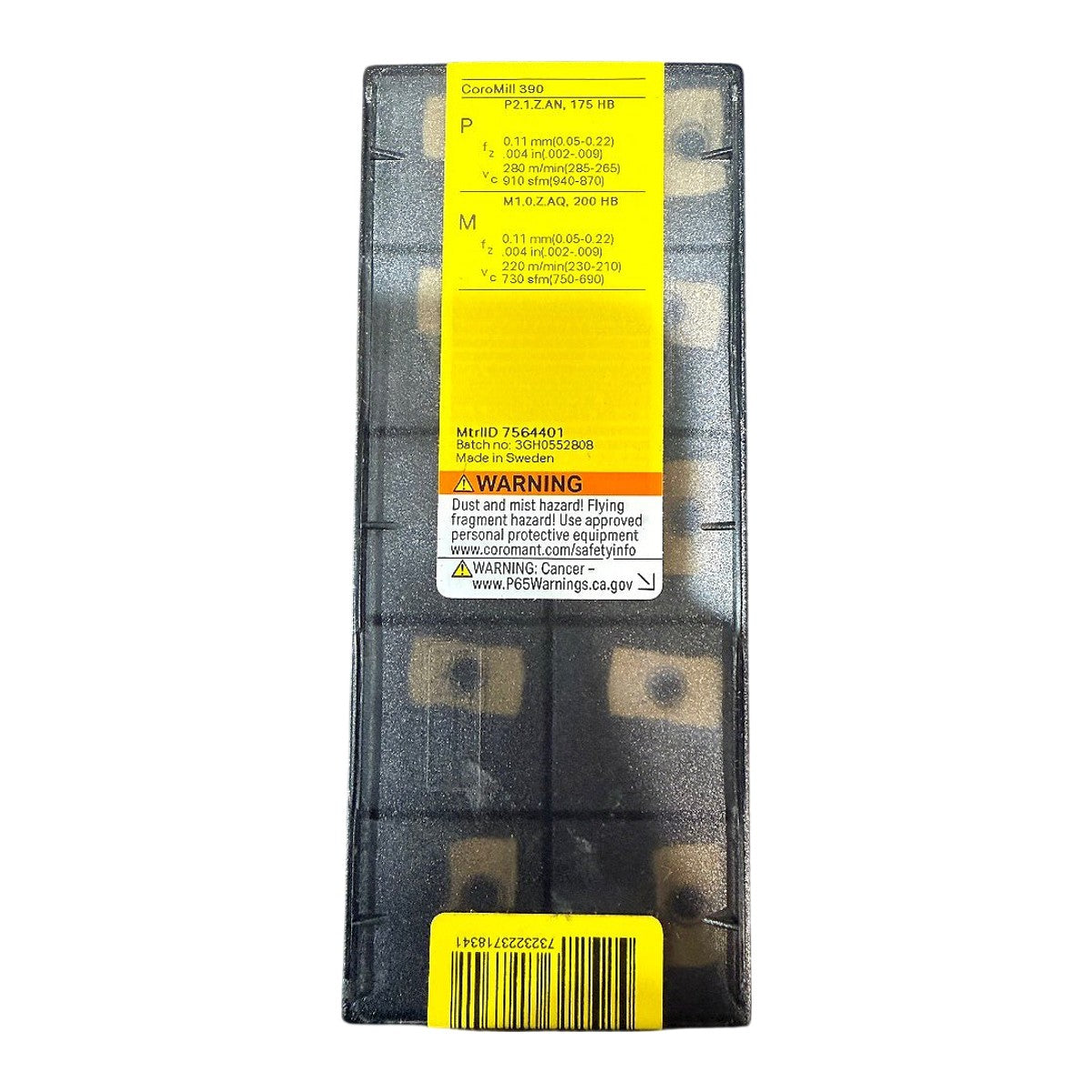

This Sandvik Coromant R390-18 06 12H-PL insert in grade 4340 is a carbide indexable milling insert for the CoroMill 390 system, supplied new in the original 10-slot Sandvik box made in Sweden. The designation gives an 18 mm insert size, a 06 thickness code, a 1.2 mm corner radius and the PL geometry, with the gold-colored coated carbide grade 4340 marked on the ordering label. The pack label lists ISO P steel (P2.1.Z.AN, 175 HB) at fz 0.11 mm (0.05-0.22 mm) and vc 280 m/min (910 sfm), and ISO M stainless (M1.0.Z.AQ, 200 HB) at fz 0.11 mm and vc 220 m/min (730 sfm). The insert is used in CoroMill 390 shoulder and face milling cutters, with the cutting direction arrows and clamp-screw hole visible on the insert face.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | R390-180612H-PL 4340 |

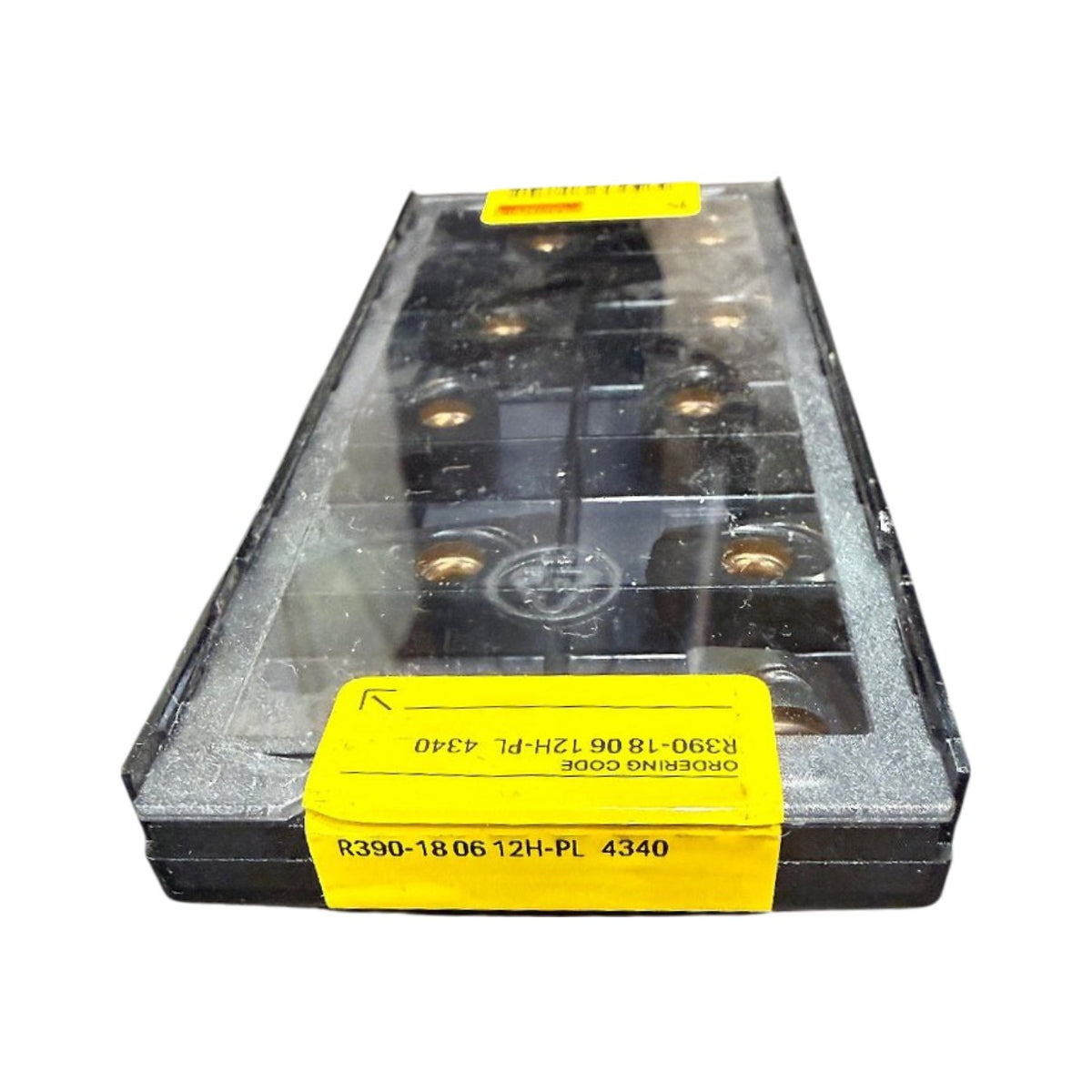

| Ordering Code | R390-18 06 12H-PL 4340 |
| Series/System | CoroMill 390 |
| Grade | 4340 |
| Insert Material | Carbide |
| Coating | CVD Coated |
| Insert Size | 18 (18 mm cutting edge length) |
| Thickness Code | 06 |
| Corner Radius | 1.2 mm |
| Geometry | PL |
| Operation | Milling |
| Workpiece Material (ISO) | P (Steel), M (Stainless) |
| Steel Workpiece Class | P2.1.Z.AN, 175 HB |
| Stainless Workpiece Class | M1.0.Z.AQ, 200 HB |
| Feed per Tooth (P) | 0.11 mm (0.05-0.22 mm) |
| Cutting Speed (P) | 280 m/min (910 sfm) |
| Feed per Tooth (M) | 0.11 mm (0.05-0.22 mm) |
| Cutting Speed (M) | 220 m/min (730 sfm) |
| Material ID | 7564401 |
| Quantity per Pack | 10 |
| Country of Origin | Sweden |
