Sandvik RA216F-1640E-L 1010 Round Carbide Milling Insert (10pc)

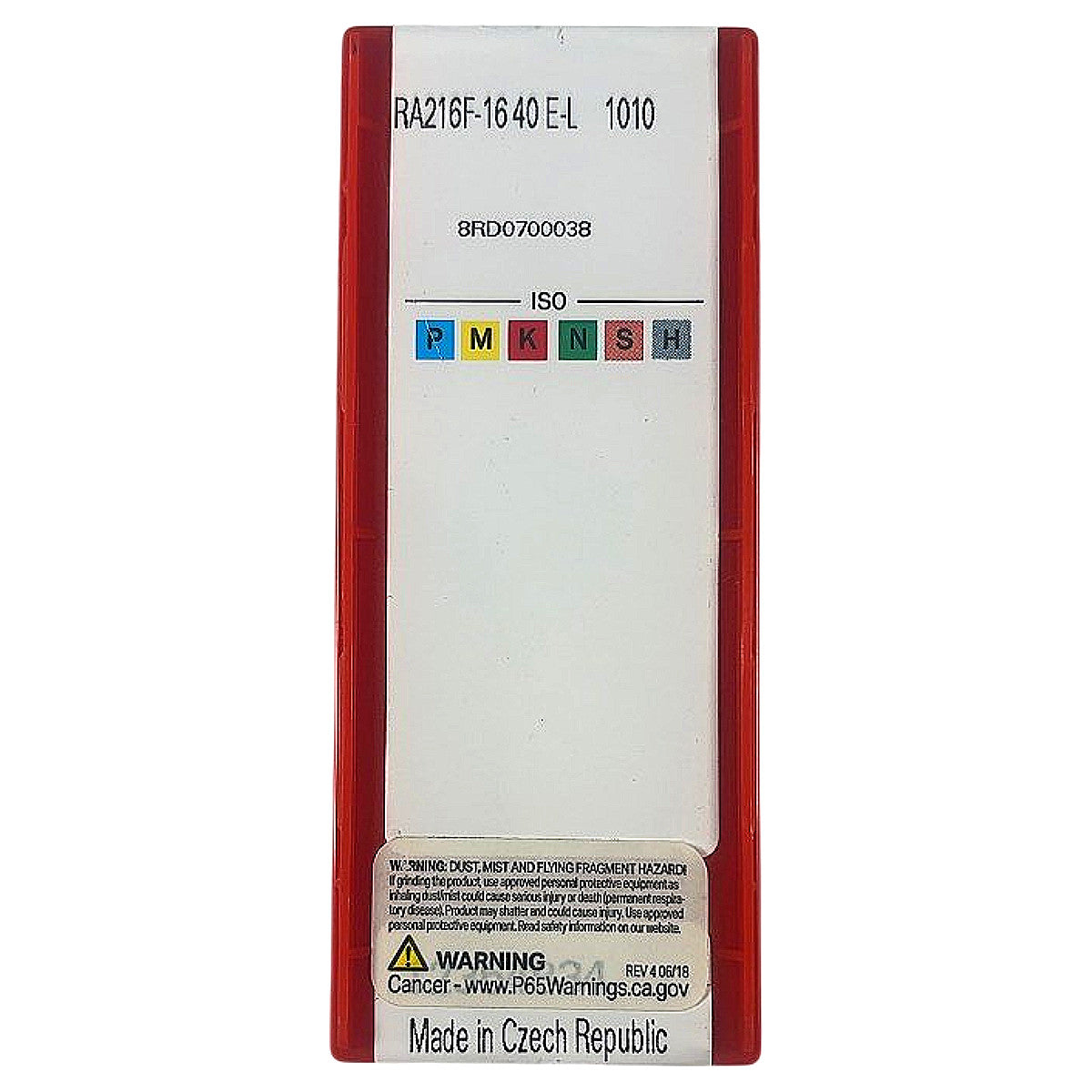

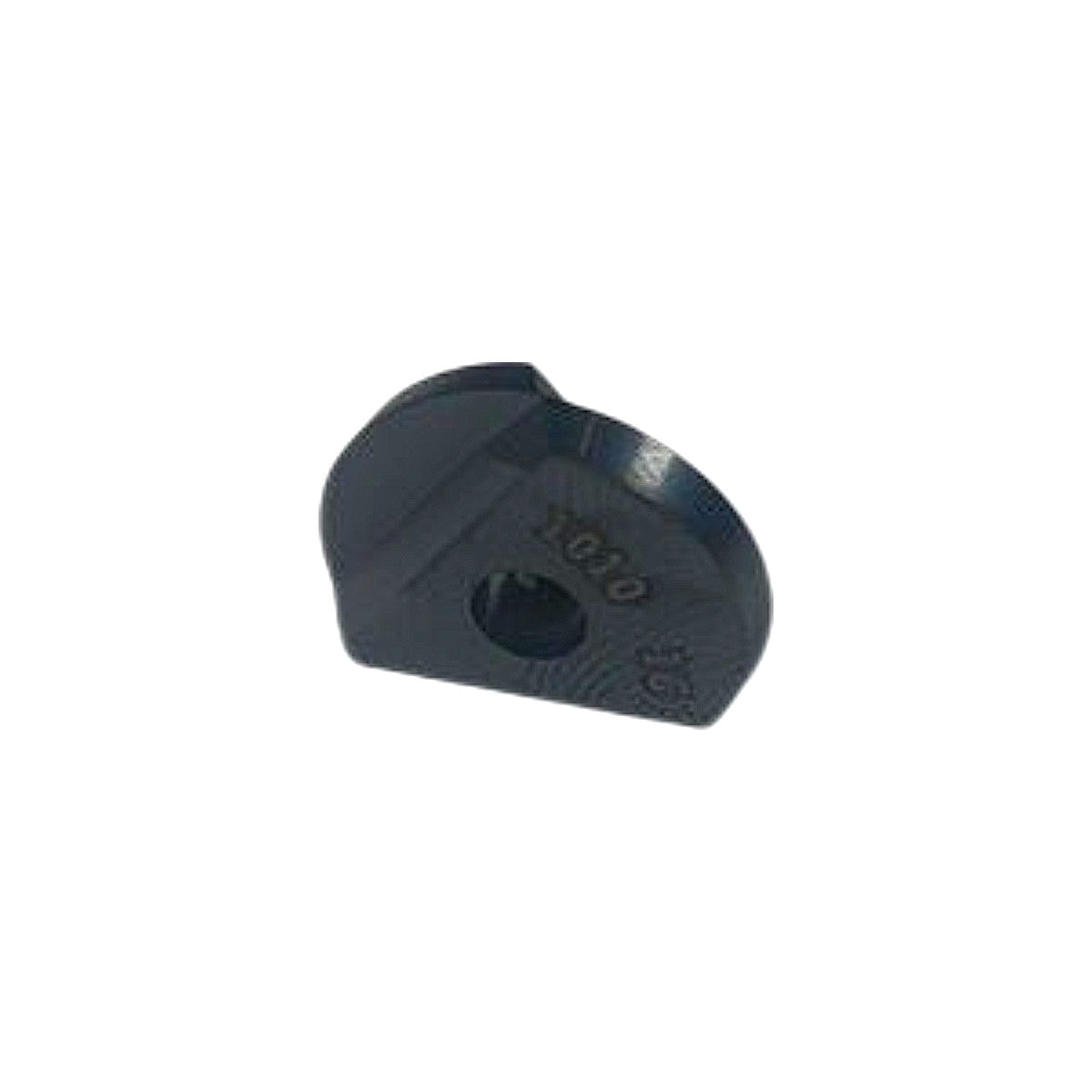

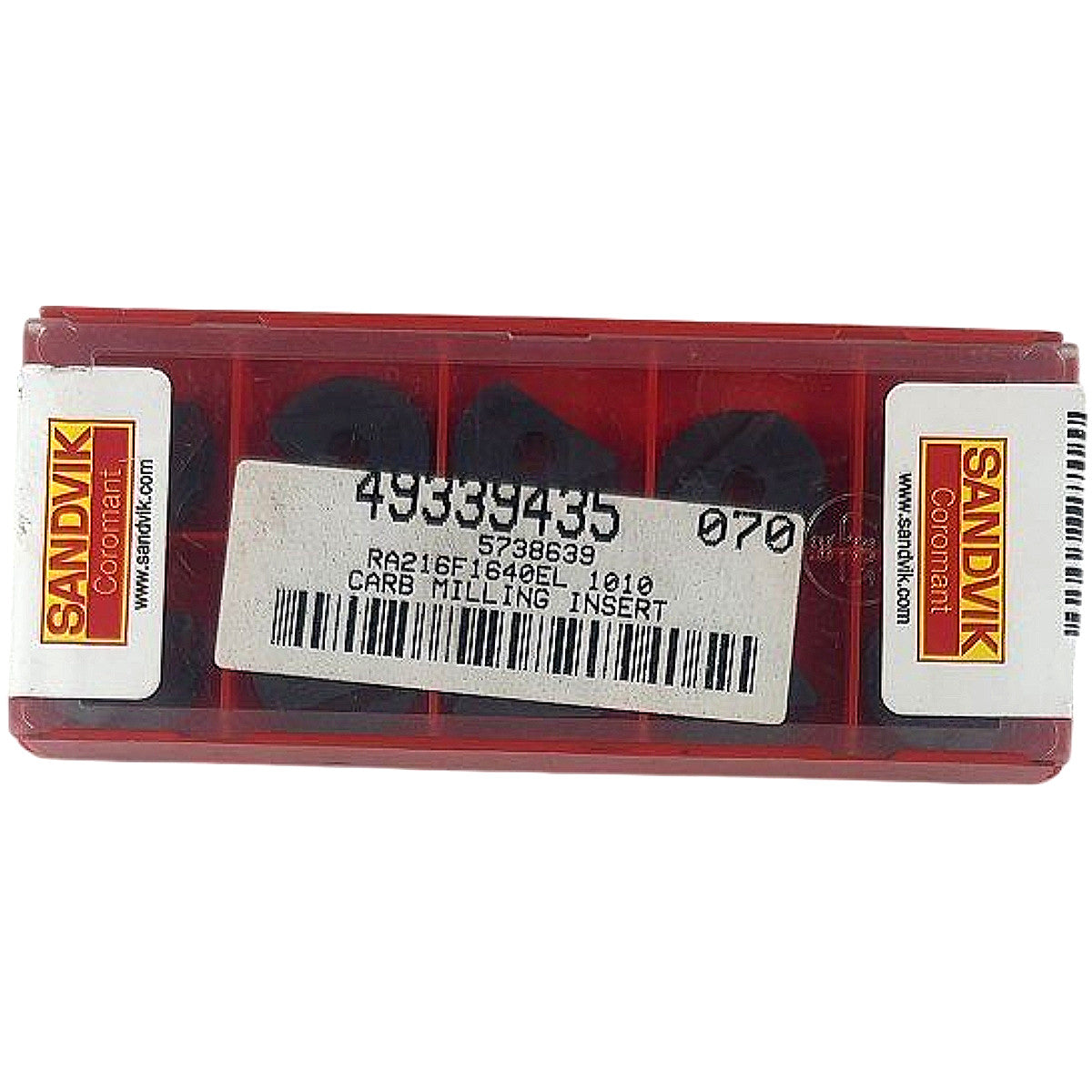

The Sandvik Coromant RA216F-1640E-L 1010 is a new, round (full-radius) indexable carbide milling insert designed for the CoroMill 216F ball-nose end mill platform. Decoding the part number: RA216F = CoroMill 216F product family (ball-nose finishing); 16 = 16 mm insert diameter; 40 = 4.0 mm insert thickness; E = precision-ground tolerance class; L = left-hand cutting geometry with a positive rake chipbreaker; 1010 = Sandvik carbide grade, an uncoated (dark/black appearance) fine-grain cemented carbide substrate optimized for machining hardened steels and cast iron at moderate-to-high cutting speeds, offering excellent wear resistance and edge toughness. The 1010 grade is an ISO P, M, K, N, S, and H applicable grade as confirmed by the ISO color-coded material applicability chart visible on the packaging rear label, making it broadly suitable for steel, stainless, cast iron, non-ferrous, superalloy, and hardened workpiece materials. These inserts are manufactured in the Czech Republic and are sold in the original sealed Sandvik Coromant 10-piece plastic tray (catalog order qty 070, package code 5738639 / 49339435). Compatible toolholders include the Sandvik Coromant R216F-16 series CoroMill 216F ball-nose milling cutter bodies.

Product Specifications
