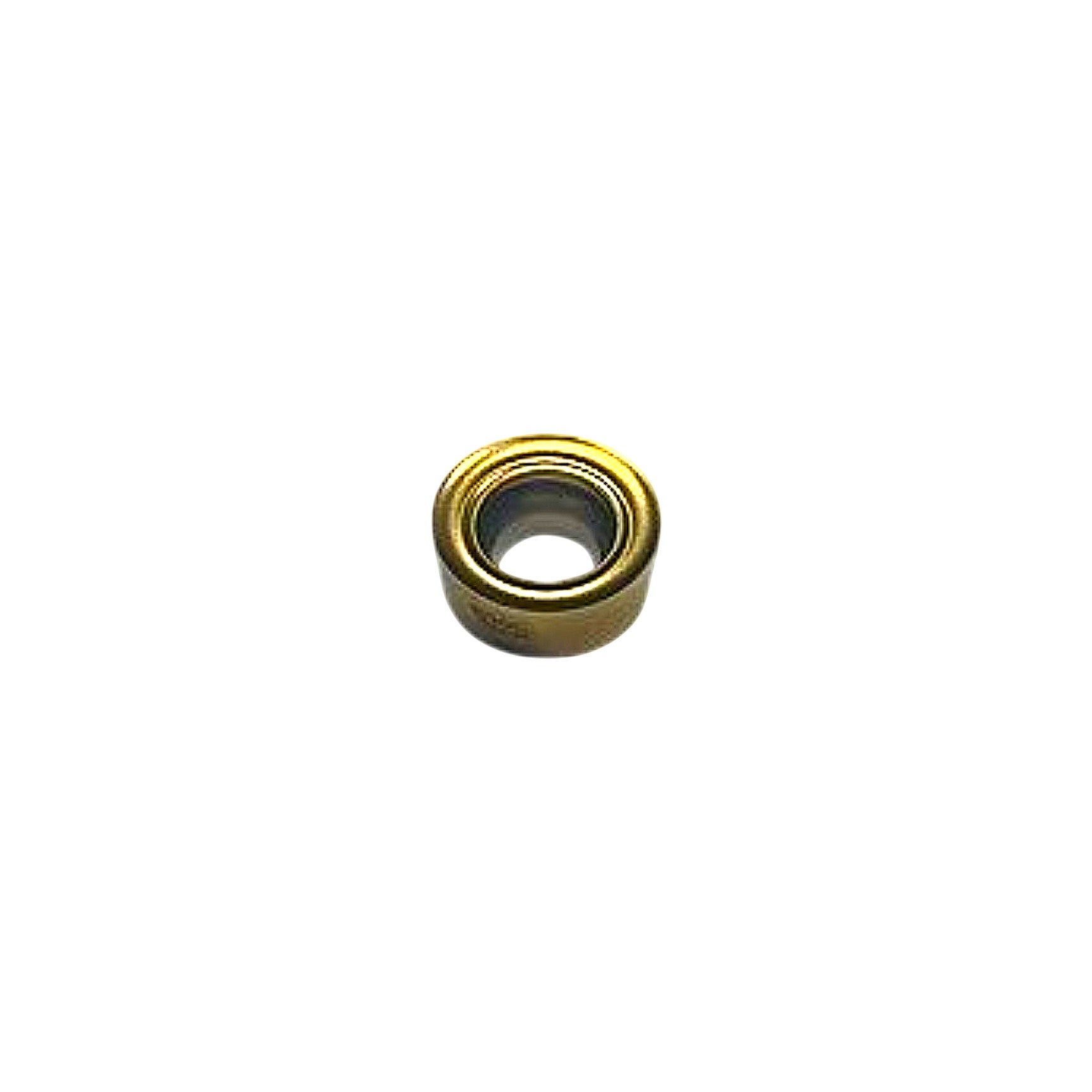

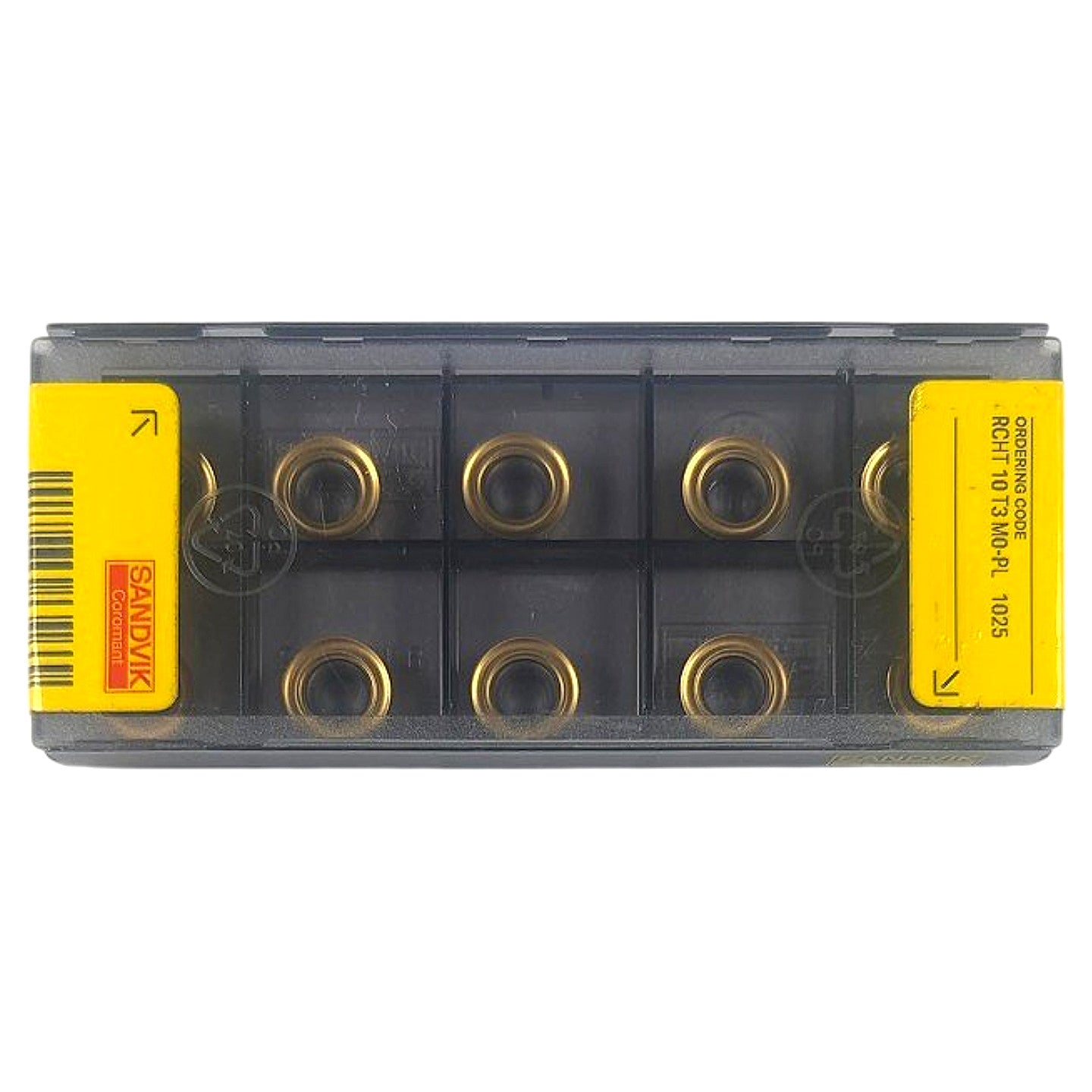

Sandvik RCHT 10 T3 M0-PL 1025 Round Carbide Milling Insert (10pc)

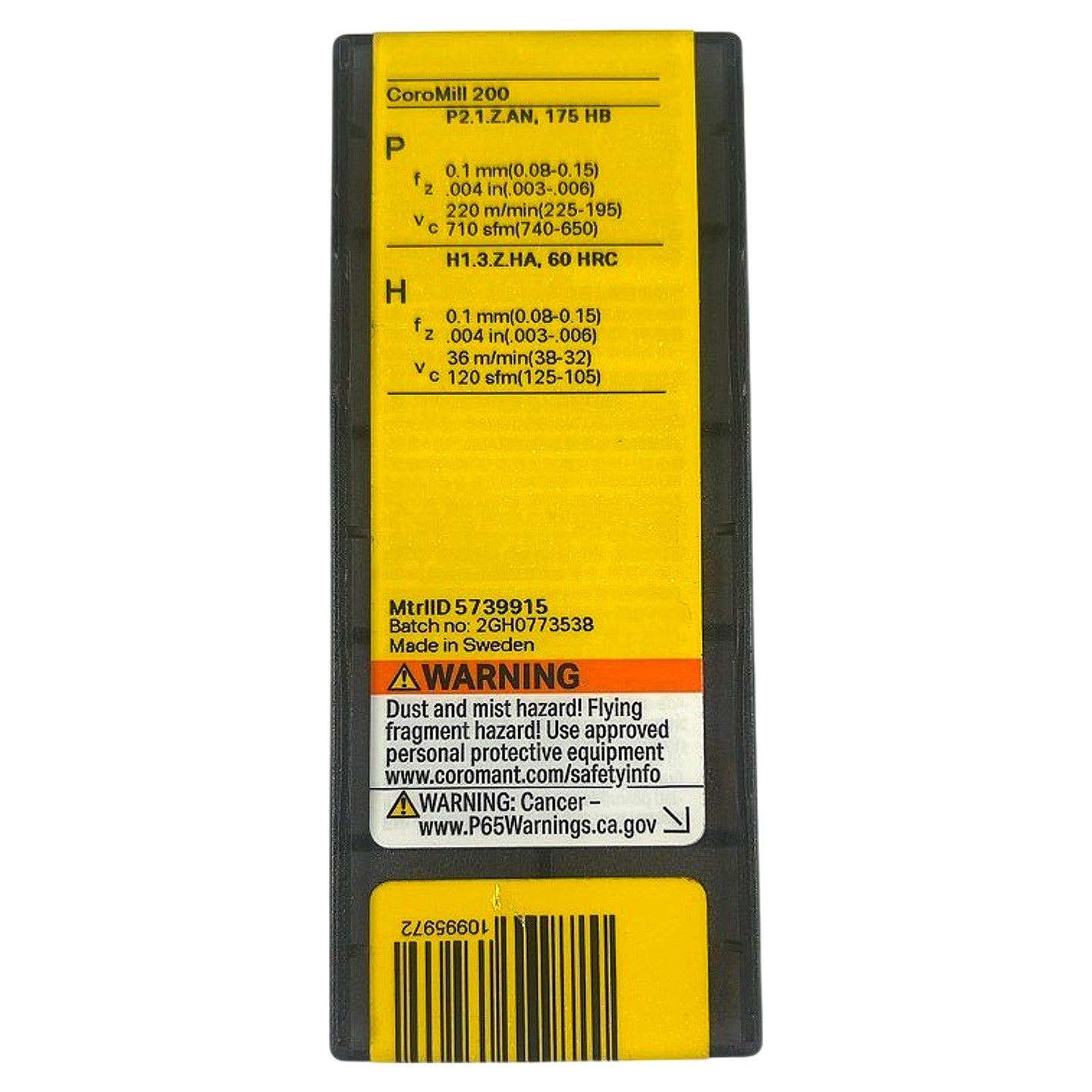

The Sandvik Coromant RCHT 10 T3 M0-PL 1025 is a new, round (circular) carbide milling insert designed for the CoroMill 200 face and shoulder milling system. Decoding the ISO designation: R = round shape, C = 7° clearance angle, H = tight tolerance class, T = with hole and chipbreaker, 10 = 10 mm inscribed circle diameter, T3 = 3.97 mm thickness, M0 = 0.0 mm nose radius (full round edge), PL = the Sandvik-specific positive-geometry light-cutting chipbreaker geometry. Grade 1025 is a CVD-coated cemented carbide in the Sandvik GC1025 family, featuring an Al₂O₃/TiCN multilayer CVD coating over a tough substrate, optimized for steel (ISO P) at cutting speeds up to 710 SFM and hardened materials (ISO H, up to 60 HRC) at up to 120 SFM with a feed per tooth of 0.004 in (0.1 mm). The PL chipbreaker geometry provides a positive rake angle for light, low-force cutting, making these inserts well-suited for finishing and semi-finishing passes on steel components and hardened steels in CoroMill 200 toolholders. Each package contains 10 inserts, manufactured in Sweden, MtrID 5739915.

Product Specifications
