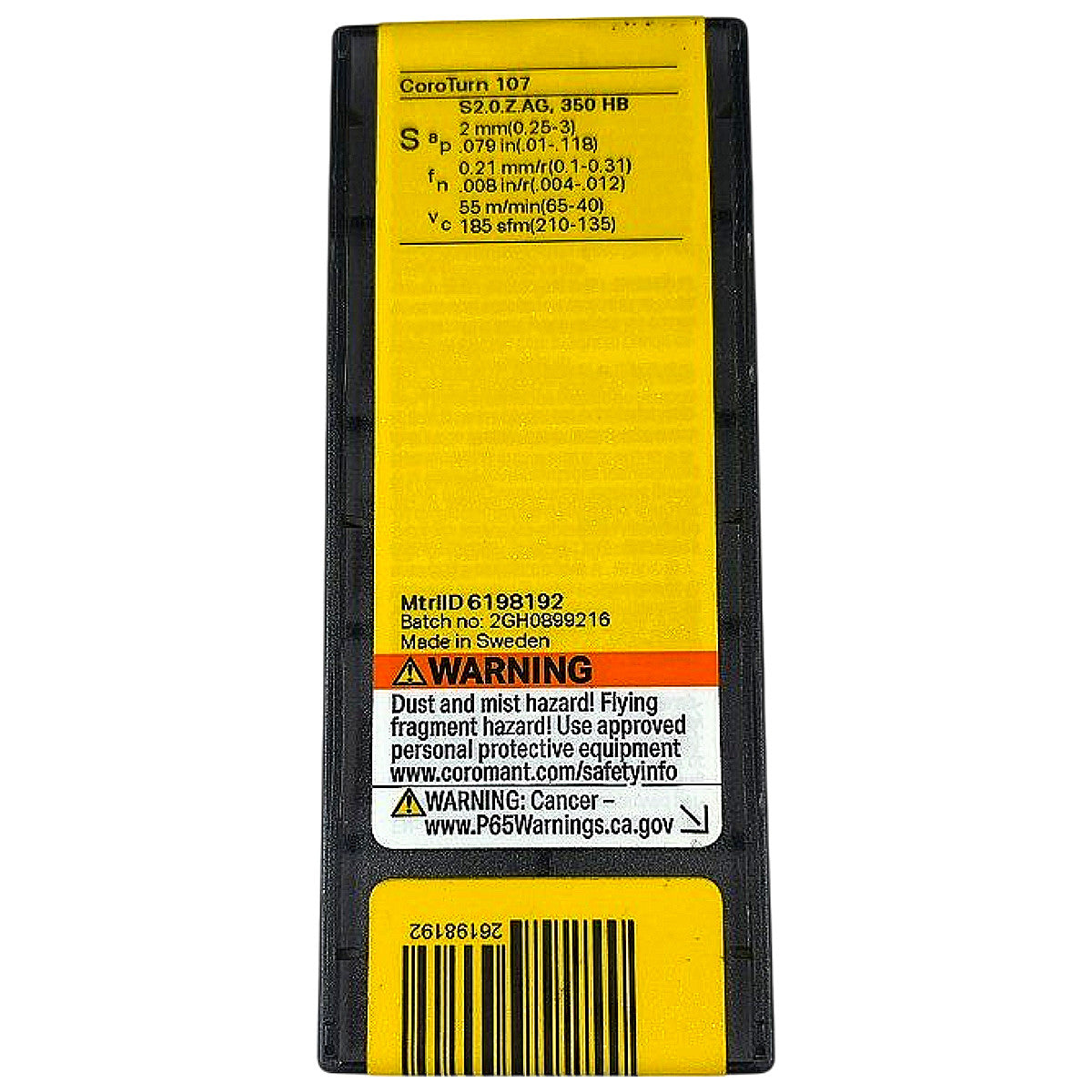

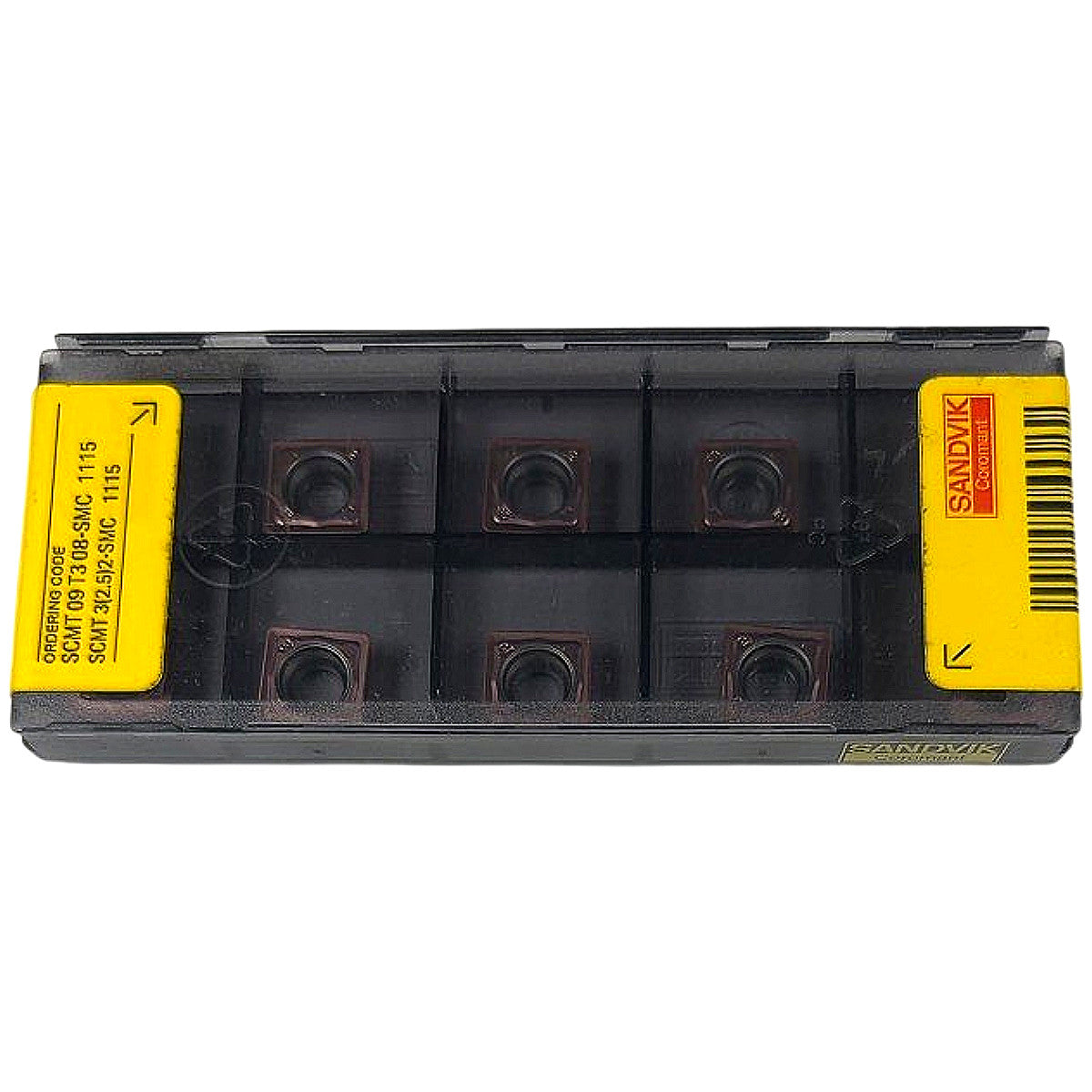

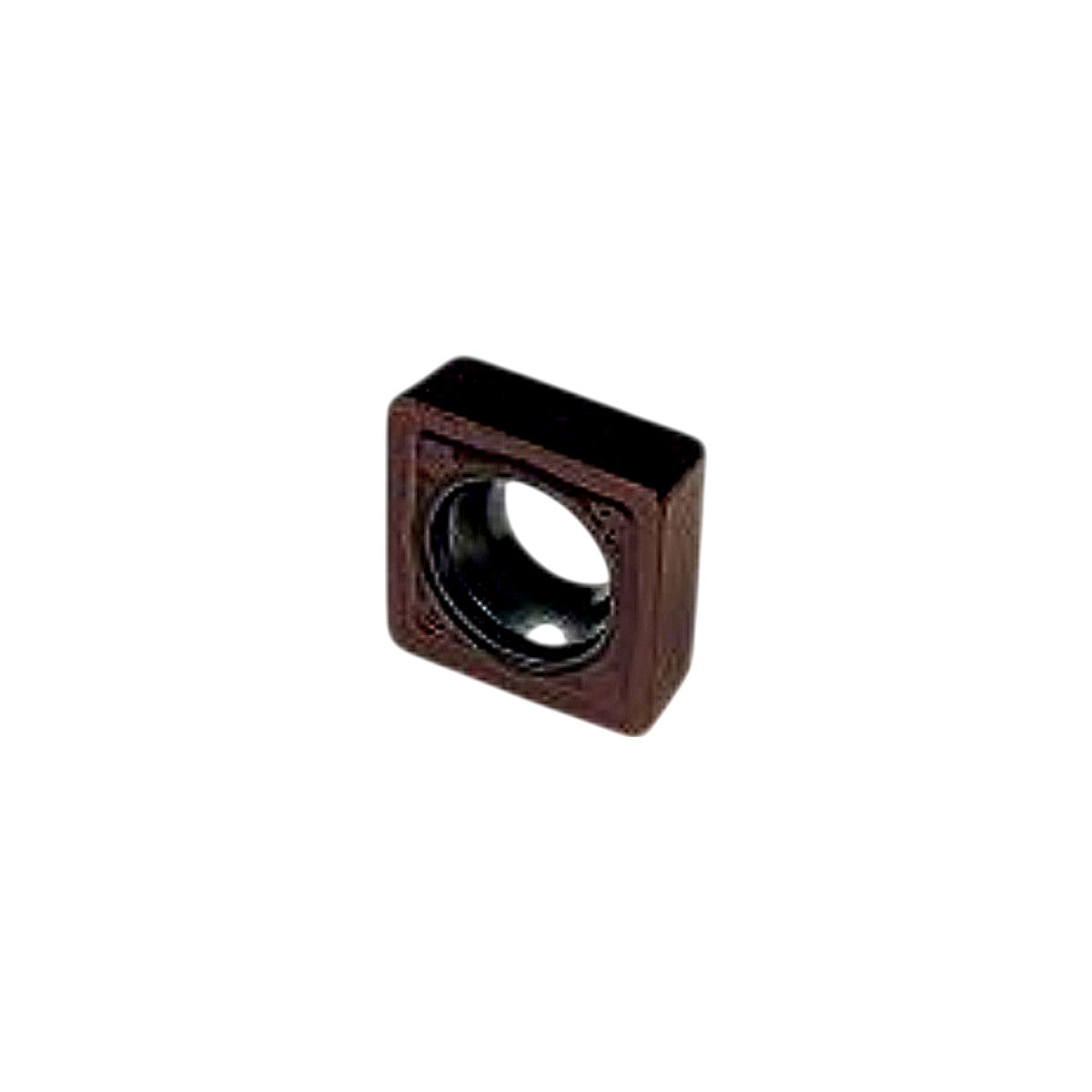

The Sandvik Coromant SCMT 09T308-SMC 1115 is a new, indexable carbide turning insert from the CoroTurn 107 product family, designed for internal and external turning of stainless steel (ISO S — heat-resistant superalloys) at up to 350 HB hardness. Decoding the ISO designation: S = 90° square shape, C = 7° clearance angle, M = medium tolerance class (±0.05–0.13 mm), T = with hole and chipbreaker, 09T3 = 9.525 mm (3/8 in) inscribed circle / 3.97 mm thickness, 08 = 0.8 mm nose radius, SMC = Sandvik's positive SMC chipbreaker geometry optimized for light-to-medium finishing cuts on stainless and superalloys. Grade 1115 is a PVD-coated cemented carbide with a TiAlN-based coating (appearing dark brown/bronze in the photos), offering excellent toughness and thermal resistance for interrupted and continuous cuts. The insert is compatible with CoroTurn 107 toolholders using the SCLC/SCMC/STFC boring bar and external turning holder designations that accept SCMT 09T3 inserts. Recommended cutting data per the package label: depth of cut 2 mm (0.25–3 mm range), feed 0.21 mm/rev (0.1–0.31 mm/rev range), cutting speed 55 m/min / 185 sfm (range 65–40 m/min / 210–135 sfm) for the S material group at 350 HB. Each factory-sealed tray contains 10 inserts, made in Sweden.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | SCMT 09T3 08-SMC 1115 |
| Metric Equivalent MPN | SCMT 3(2.5)2-SMC 1115 |
| Insert Shape | Square (S) — 90° |
| Clearance Angle | 7° (C) |
| Tolerance Class | M (±0.05–0.13 mm) |
| Mounting Type | With hole & chipbreaker (T) |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Insert Thickness | 3.97 mm (5/32 in) |
| Nose Radius | 0.8 mm (0.031 in) |
| Chipbreaker | SMC (light-to-medium finishing, stainless/superalloys) |
| Grade | 1115 |
| Coating | PVD TiAlN-based |
| Substrate | Cemented carbide |
| ISO Material Group | S (stainless steel / heat-resistant superalloys) |
| Max Hardness | 350 HB |
| Product Family | CoroTurn 107 |
| Cutting Speed (vc) | 55 m/min / 185 sfm (range: 40–65 m/min) |
| Feed Rate (fn) | 0.21 mm/rev (range: 0.1–0.31 mm/rev) |
| Depth of Cut (ap) | 2 mm (range: 0.25–3 mm) |
| Quantity per Pack | 10 inserts |
| Country of Origin | Sweden |
| Condition | New |
